Waveshare Jetson Xavier NX 16GB Developer Kit (22588)

Waveshare Jetson Xavier NX 16GB Development Kit (22588 ) is a developer kit based on the Jetson Xavier NX AI module. It allows you to develop projects for edge computing with AI. This is not an official NVIDIA developer kit. This Waveshare kit is based on the Jetson Xavier NX Module and provides almost the same peripheral interfaces, size, and thickness as the Jetson Xavier NX Developer Kit.

It delivers 21 TOPS of computing power to run modern neural networks in parallel and process data from multiple high-resolution sensors, a requirement for full-fledged AI systems.

Support for Jetson Xavier NX cloud modules allows developers to create and deploy high-quality software-defined functions on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and TAO Toolkit give you a faster path to trained and optimized AI networks, and containerized deployment on Jetson devices provides flexibility and seamless upgrades.

Jetson Xavier NX is ideal for high-performance AI systems such as commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other embedded AIoT systems.

Application areas:

• Image recognition
• Object recognition
• Semantic segmentation
• Pose estimation
• Monocular depth
• Pose tracking

This kit includes the Xavier NX module with built-in 16GB eMMC, does not support Micro SD card. Free 128GB NVMe SSD, high-speed read/write, meets the development needs of large AI projects.

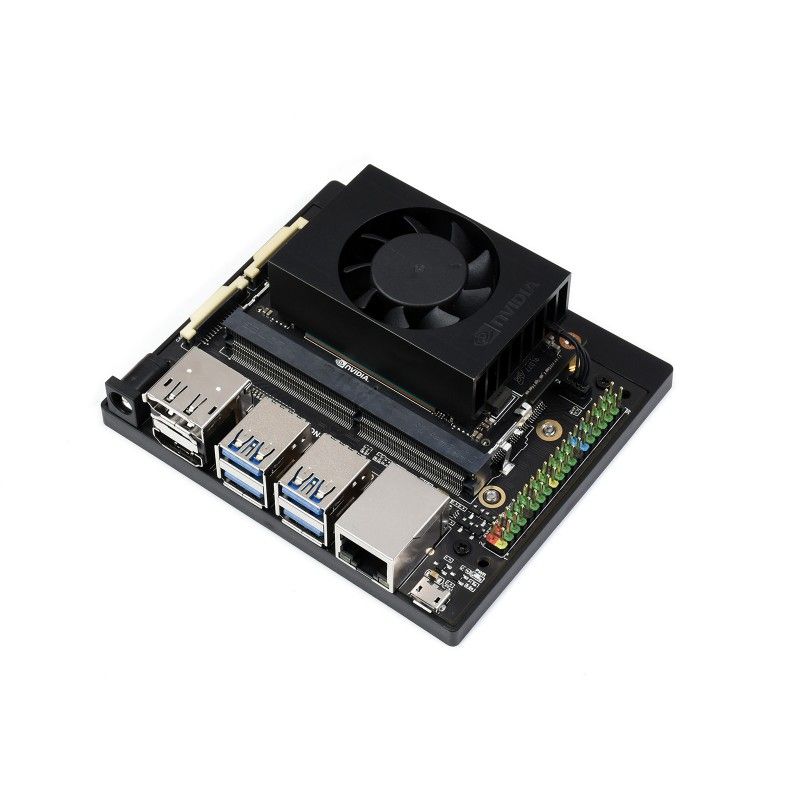

The Waveshare NX16 GB development kit includes a 16 GB Jetson Xavier NX module, JETSON-IO-BASE-B, 128 GB NVMe SSD, power adapter, and cooling fan.

Comparison of the official developer kit OFFICIAL JETSON XAVIER NX DEVELOPER KIT with WAVESHARE JETSON XAVIER NX
DEVELOPER KIT

	OFFICIAL JETSON XAVIER NX DEVELOPER KIT	WAVESHARE JETSON XAVIER NX DEVELOPER KIT
Looks like.		It is almost the same as the Jetson Xavier NX Developer Kit, compatible with the expansion board and case of the official NX Developer Kit
Base board	8GB memory, special version without eMMc is included in the official kit.	Official NVIDIA 16GB Xavier NX module with 16GB eMMC
External storage	Micro SD card (must be purchased separately)	Free 128G NVMe SSD, PCIe 3.0 interface read speed up to 2400MB/s, no need to purchase extra, which can meet the requirements of complex development projects
Network card	Original M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI	M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI
GPIO	Regular 40PIN GPIO interface	Labeled 40PIN GPIO interface
Other.	The parameters such as AI performance, CPU, GPU, peripheral interface, size, bottom of the case and thickness are the same

Specifications:

Elements of the board:

Overall dimensions (mm): 103 х 90

Information for developers (Wiki): www.waveshare.com/wiki/JETSON-XAVIER-NX-DEV-KIT

1. Waveshare NX development kit:
   Jetson Xavier NX 16 GB module

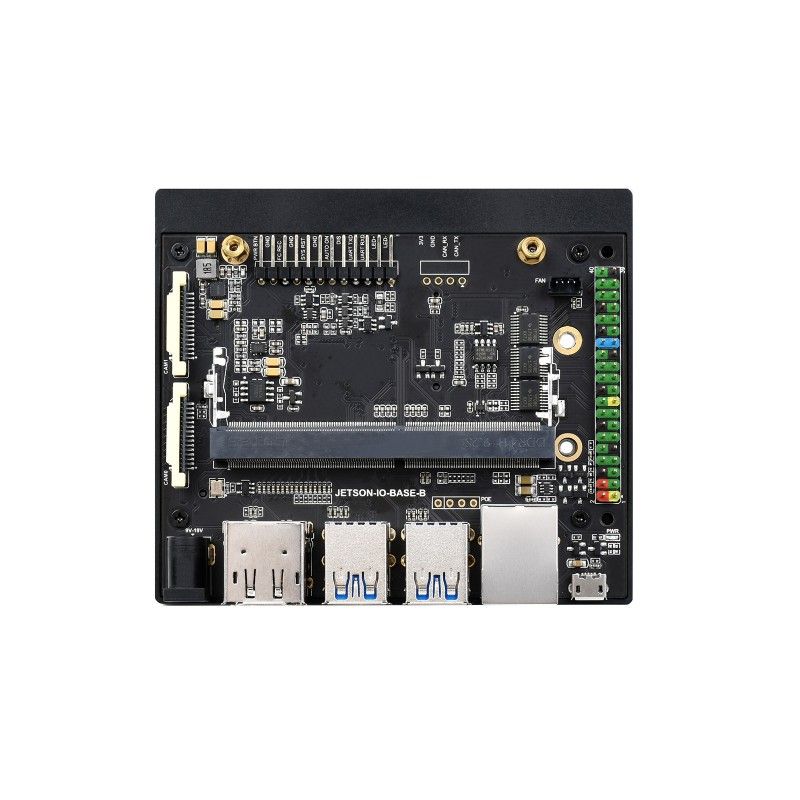

   JETSON-IO-BASE-B
   Cooling fan
2. 128 GB NVMe SSD
3. Wireless network card
4. Power supply unit

1234

Weight: 0.571 kg
