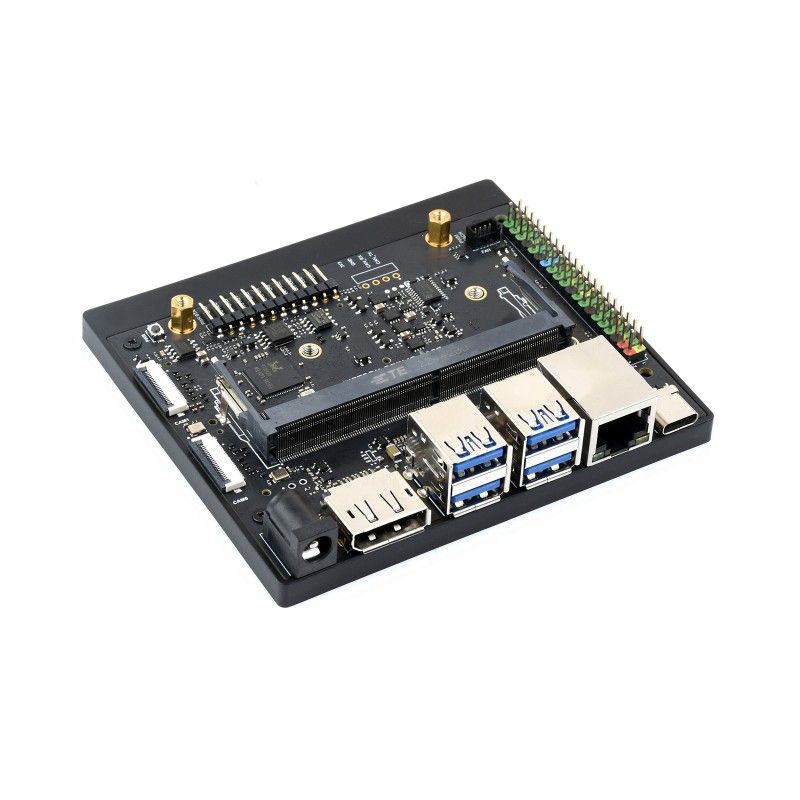

Waveshare Jetson Orin Nano/NX Base Board (24726)

The Waveshare Jetson Orin Nano/NX Base Board (24726 ) is a development board based on the Jetson Orin Nano and Jetson Orin NX modules from NVIDIA. This development board is designed to develop and test software and hardware for use in artificial intelligence, data processing, machine learning, and other compute-intensive applications.

The Jetson Orin Nano/NX Development Board provides advanced connectivity for a variety of devices and extensions. It has connectors for external devices such as HDMI, USB, Ethernet, and GPIO, allowing you to connect monitors, cameras, sensors, network devices, and other components.

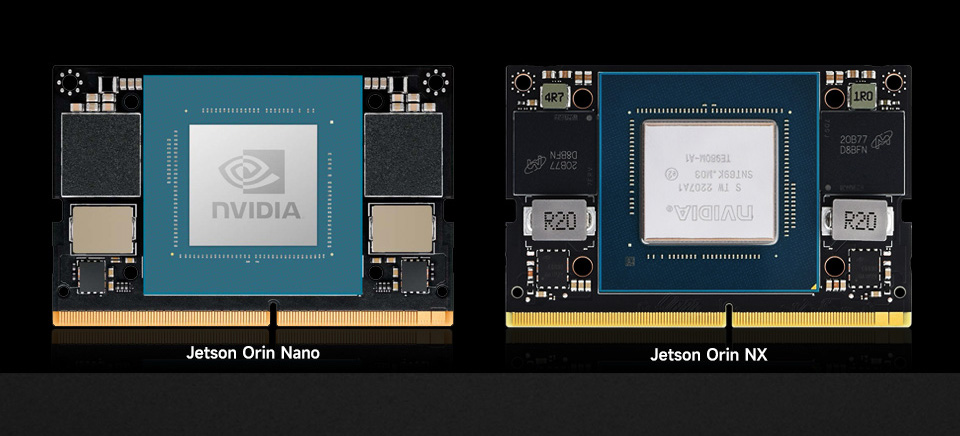

The Jetson Orin Nano and Jetson Orin NX are powerful compute resource modules designed by NVIDIA for smart autonomous systems, robots, medical devices, and other high-performance applications. These modules feature high-performance graphics cores and processors, and support multifunctional interfaces for interfacing with a variety of devices and sensors.

The Waveshare Jetson Orin Nano/NX Development Board provides a convenient environment for developing and validating software and hardware that uses Jetson Orin Nano and Jetson Orin NX modules in HPC and AI applications.

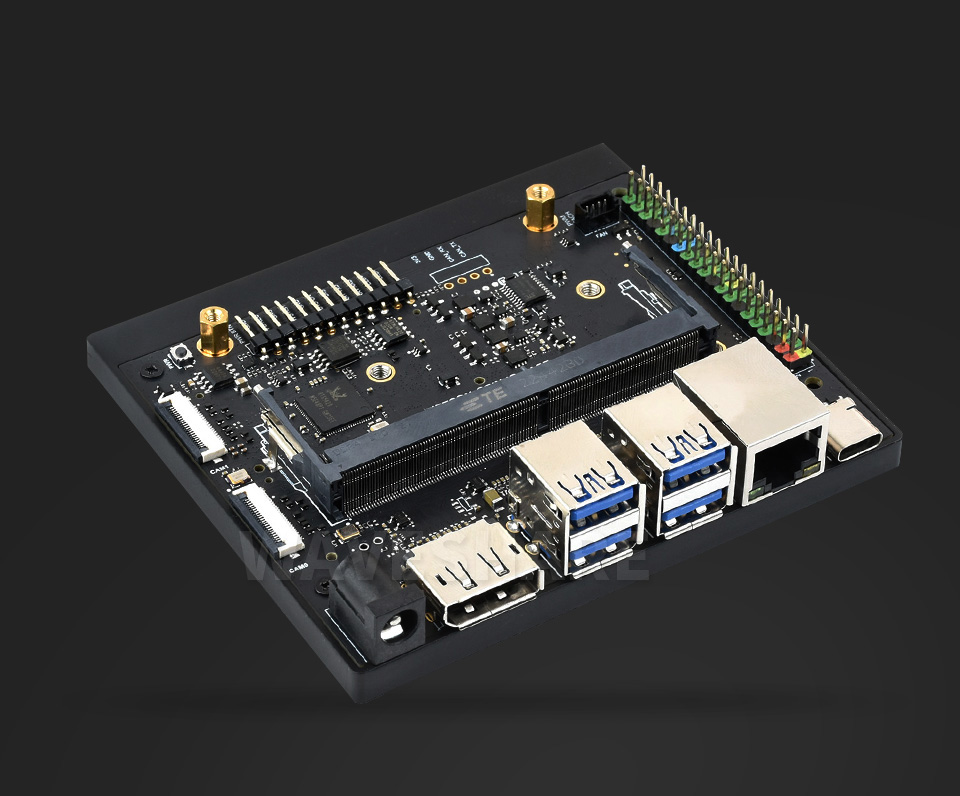

Compatible with the Orin module
Supports connection to N-VIDIA Jetson Orin Nano Module and Jetson Orin NX Module

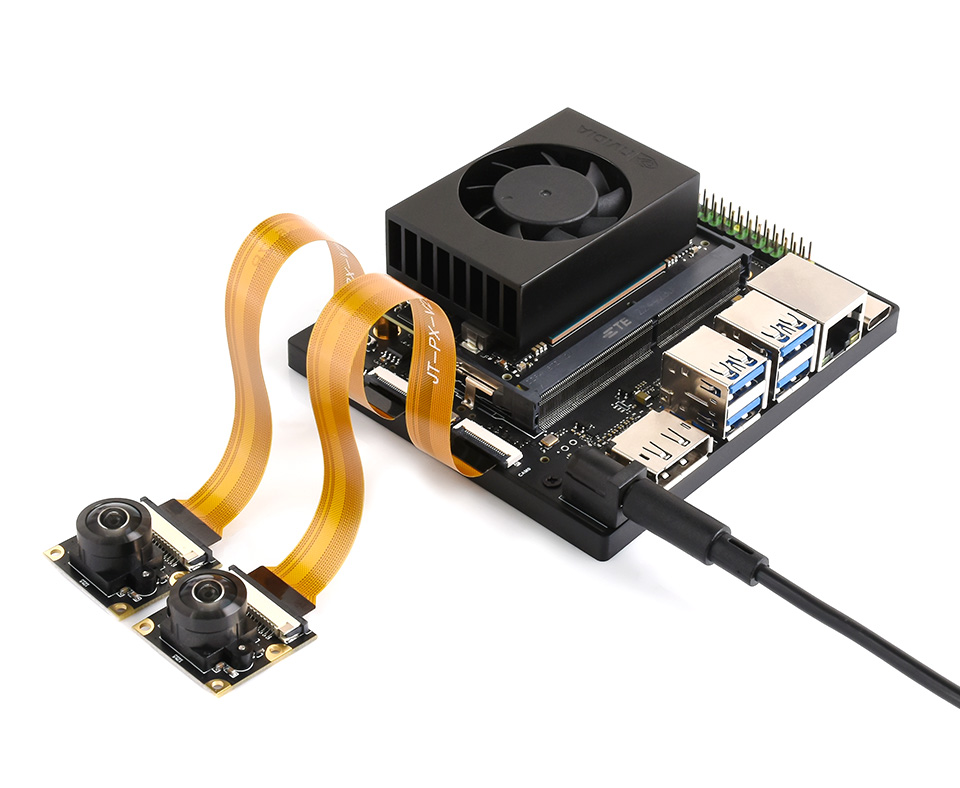

Connection to a CSI camera: 2 × 4-band CSI camera ports for AI applications such as face recognition, traffic sign recognition, and license plate recognition

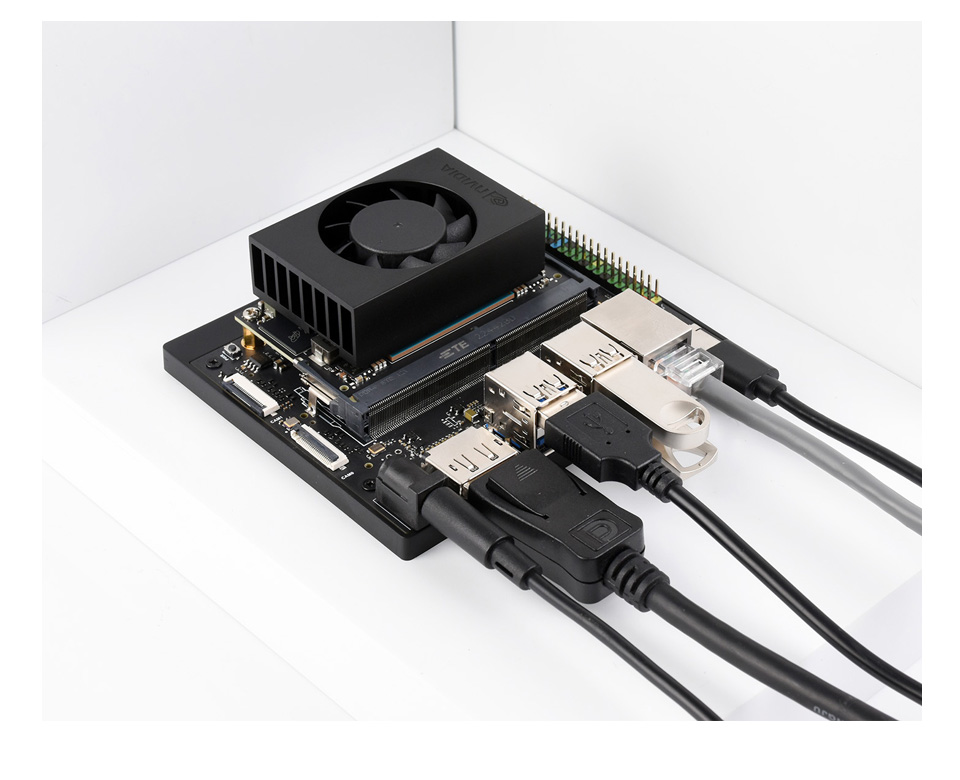

5 × USB ports: 4 × Type-A + 1 × Type-C
Supports connectivity to more peripherals, USB 3.2 Gen 2 ports for up to 10Gbps data transfer, and the Type-C port can be used for system recording

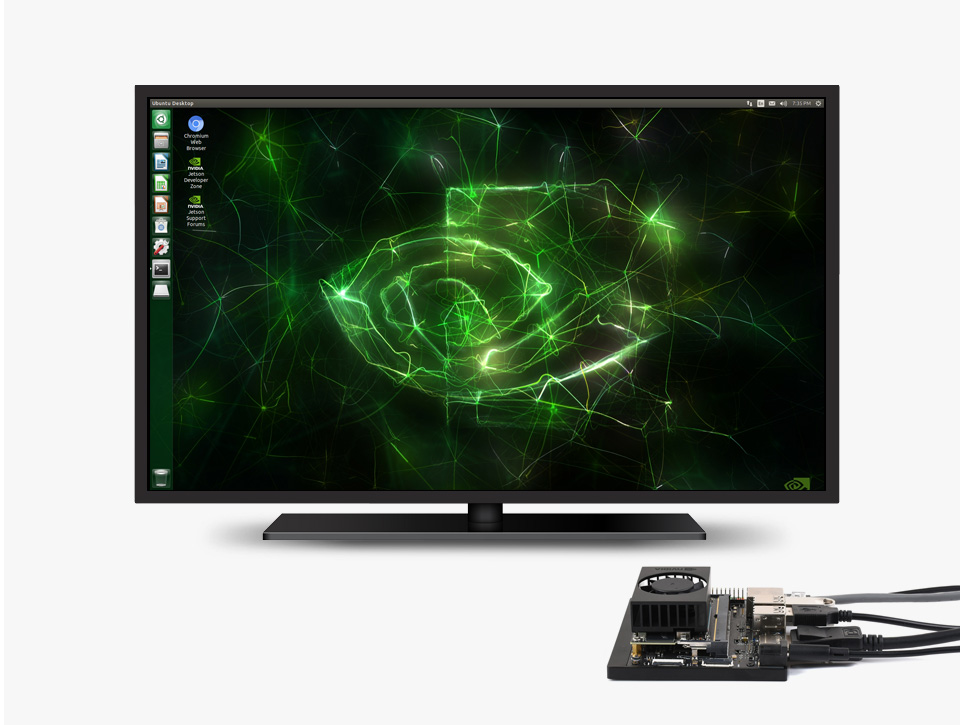

4K high-definition output supports DP high-definition port

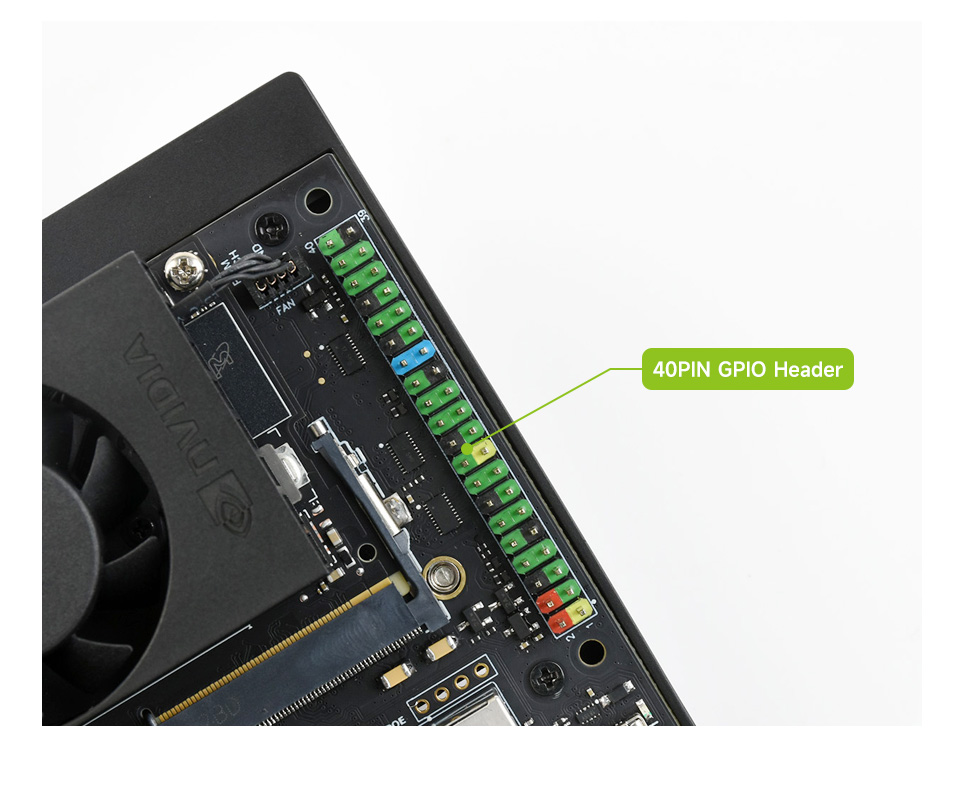

Has a 40PIN color-coded GPIO connector for differentiating I/O resources such as I2C, SPI, I2S, UART, GPIO, etc.

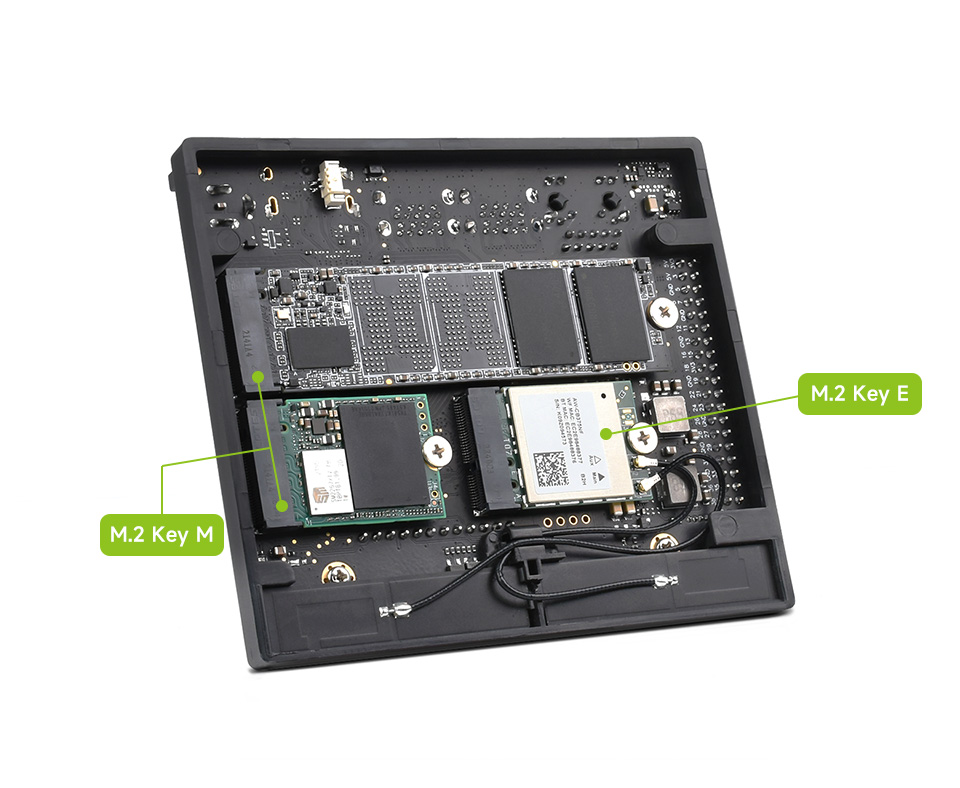

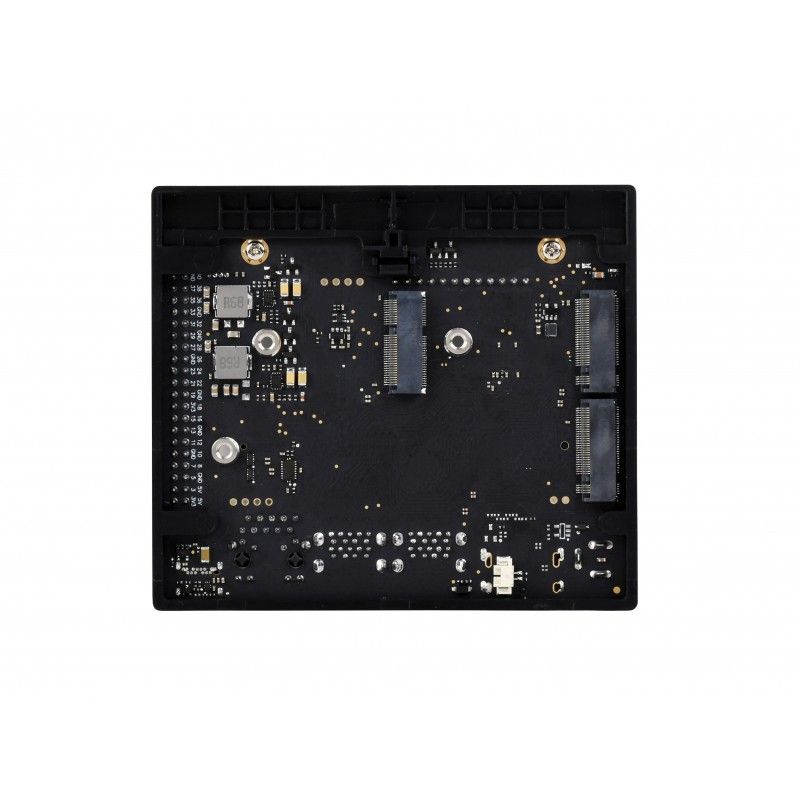

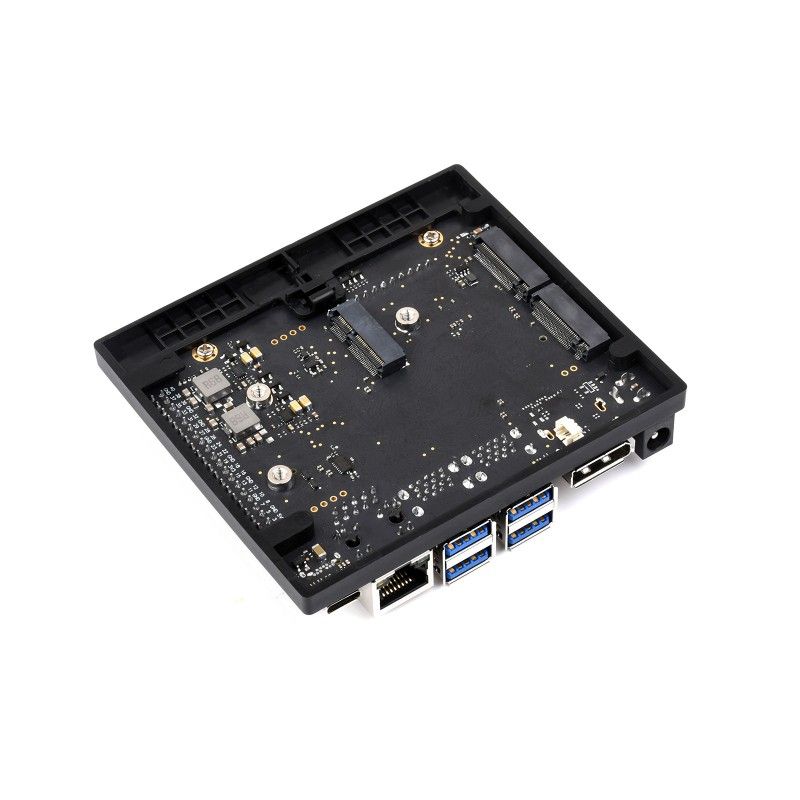

Has built-in 2 M.2 Key M ports for easy connection of SSDs and 1 M.2 Key E interface for connecting a wireless network card, which can reduce the amount of cable connection

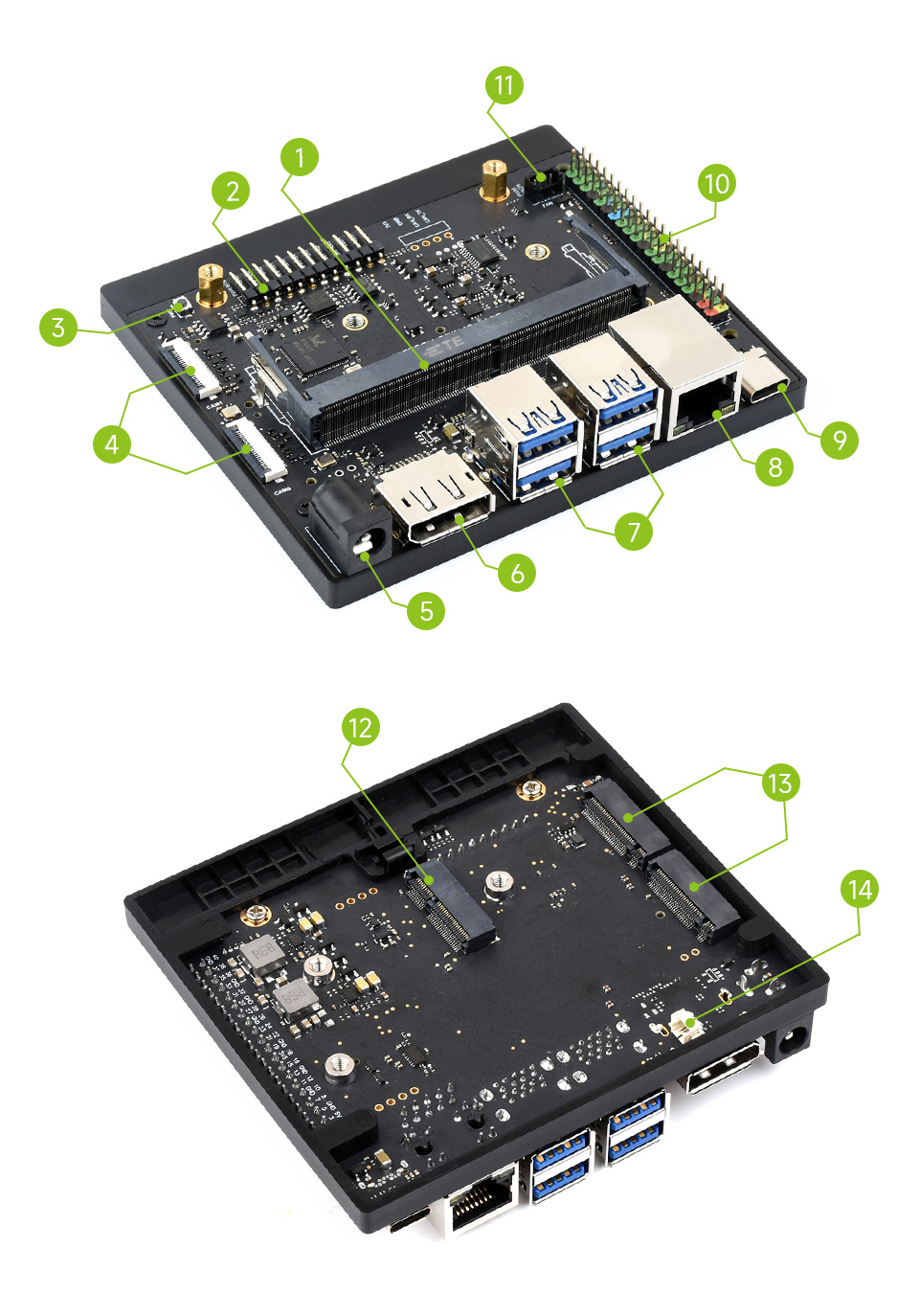

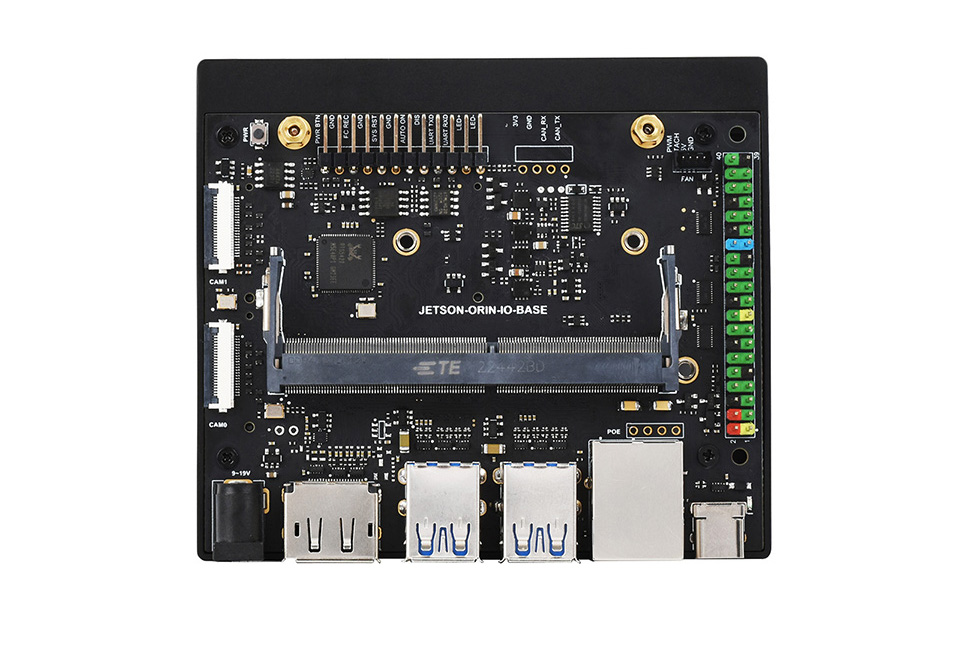

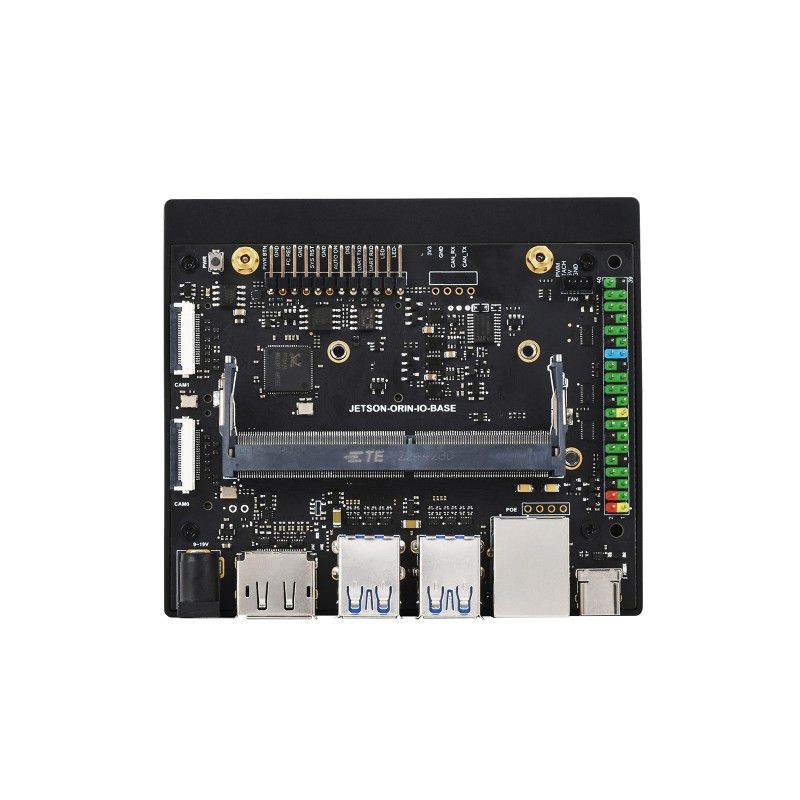

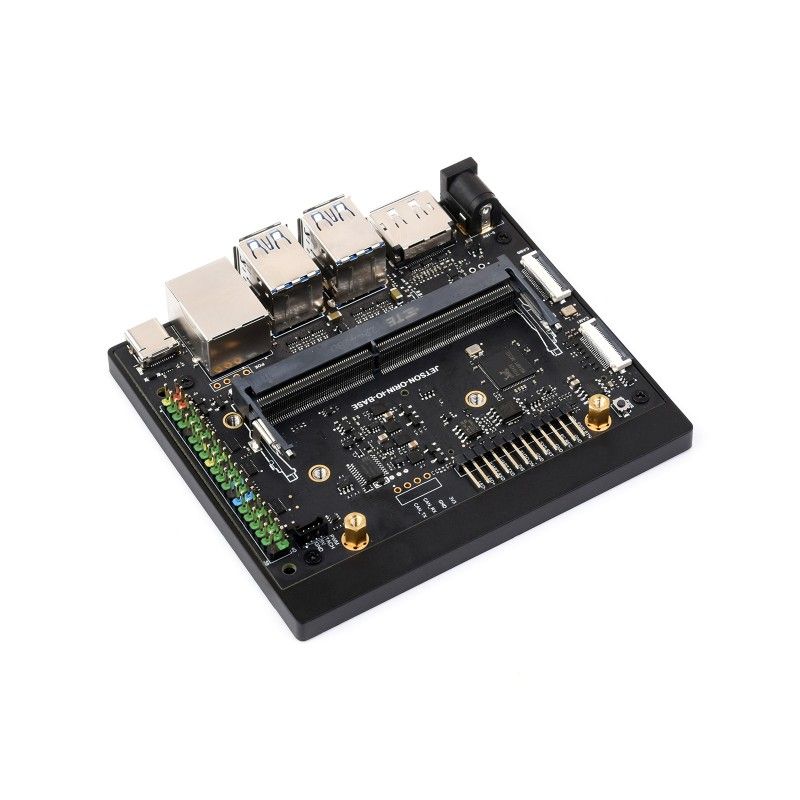

Module elements:

1. 260PIN DO-DIMM connector for connecting the Jetson Orin Nano/NX module
2. 12PIN connector - adaptive pins for power supply, reset button, force recovery setting, serial port configuration, auto power on, and power indicator functions
3. Power button
4. 2× 22PIN CSI camera connectors
5. DC power socket supports 9V to 19V wide range power supply, compatible with 5.5×2.4 mm plug
6. DisplayPort connector Supports 4K display
7. 4 USB 3.2 Gen2 Type A ports support data transfer up to 10Gbps
8. Gigabit Ethernet RJ45 port
9. USB Type-C interface for system recording and data transfer
10. 40PIN connector
11. 4PIN PWM fan connector
12. M.2 Key E for connecting a wireless network card
13. 2x M.2 Key M for connecting NVME SSDs
14. RTC backup battery connector

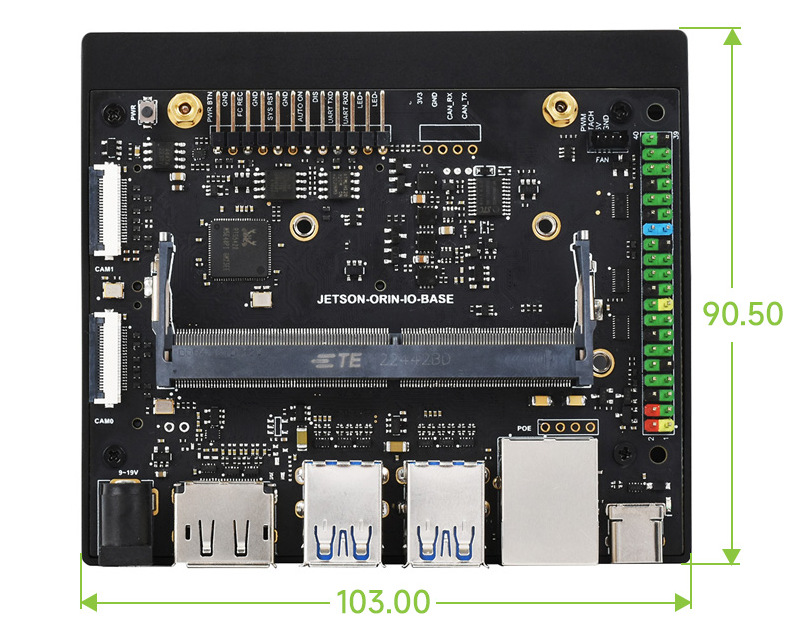

Overall dimensions: 103mm x 90.5mm

Wiki: www.waveshare.com/wiki/JETSON-ORIN-IO-BASE

Scope of delivery:

1. JETSON-ORIN-IO-BASE x1

Weight: 0.082 kg
