SeeedStudio Jetson Nano 4GB J1020 v2

TheSeeedStudio Jetson Nano 4GB J1020 v2 is a compact and high-performance microcomputer designed for developing AI-based solutions. Equipped with 4GB of RAM and an NVIDIA Maxwell GPU with 128 CUDA cores, this device is ideal for projects in computer vision, machine learning, autonomous mobile robotics, IoT, and automation. The v2 version of the platform provides updated functionality and improved power efficiency, making it a great choice for developers and engineers.

Key Features:

• Processor: NVIDIA Maxwell GPU with 128 CUDA cores to accelerate computing in AI applications.
• RAM: 4 GB LPDDR4 for fast performance even for complex tasks.
• Interfaces: USB 3.0, GPIO, CSI, HDMI, and Ethernet for wide functionality.
• AI computing: Supports TensorFlow, PyTorch, Caffe, Keras, and other frameworks.
• Compact design: easy to integrate into projects due to its small size and low power consumption.
• Expandability: Supports additional accessories and modules for flexible use in IoT or robotics applications.
• Mounting: can be mounted on a wall or desktop use.

Technical specifications (for Jetson Nano 4GB System on Module):

• Al Performance: Jetson Nano 4GB - 0.5 TOPS
• Graphics Processing Unit (GPU): NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
• Central Processing Unit (CPU): Quad-core ARM Cortex-A57 MPCore
• Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
• Video encoder: 1x 4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30 (H.265 & H.264)
• Video decoder: 1x 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60 (H.265 & H.264)

Technical specifications (for the carrier board):

• Drive connection: M.2 Key M PCIe x1
• Network connection: RJ-45 Gigabit Ethernet (10/100/1000M) x1
• I/O ports: USB 3.0 Type-A x1

Micro-USB port for device mode x1

CSI camera (2-lane 15pin) x2

HDMI Type A display x1; DP x1

fan 4 pin fan connector (5V PWM) x1

multifunctional port 40-pin expansion connector x1 and 12-pin control connector, as well as UART x1

• Power supply: DC socket 12 V/2 A
• Operating temperature: 0℃ 60℃

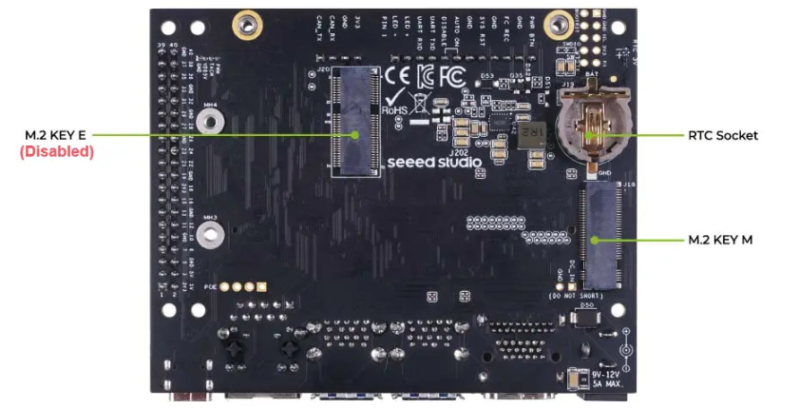

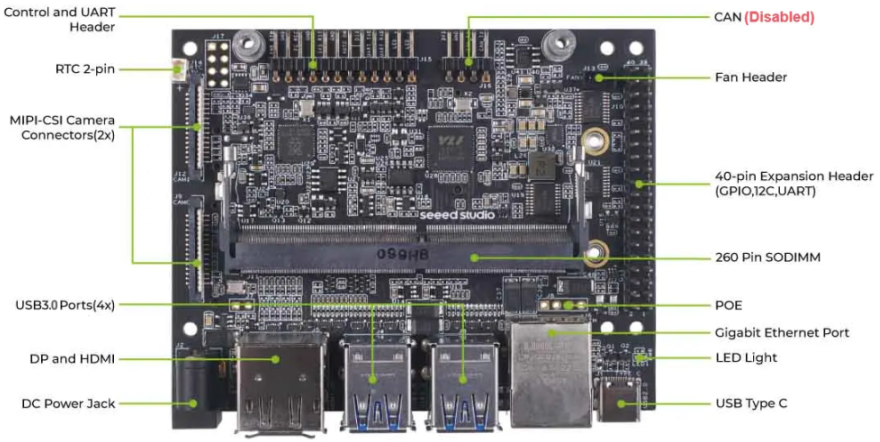

Board overview:

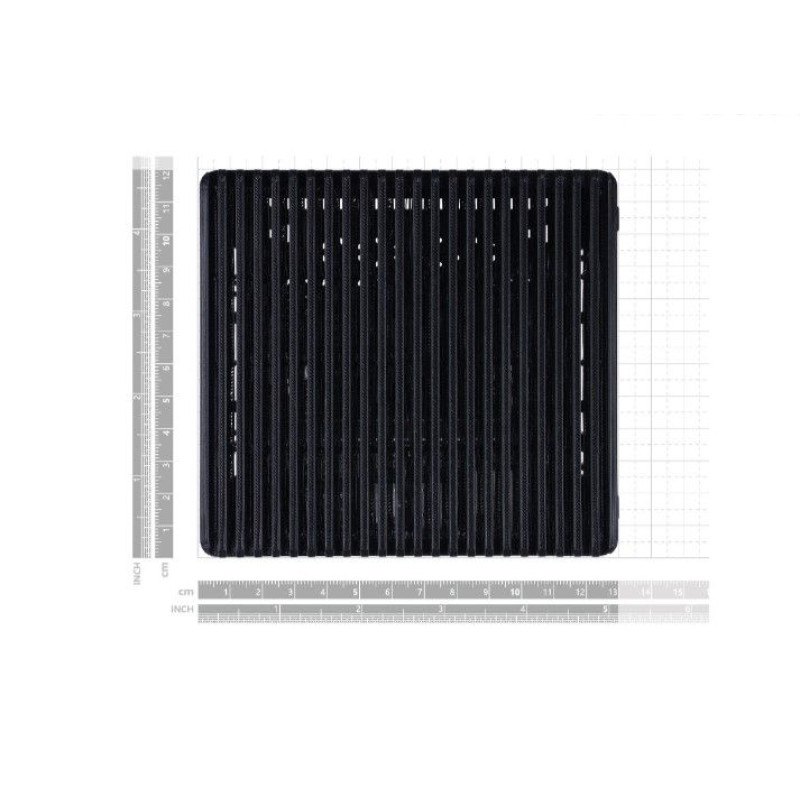

Overall dimensions: 130 mm x 120 mm x 50 mm (including case)

Weight: 54.8 g

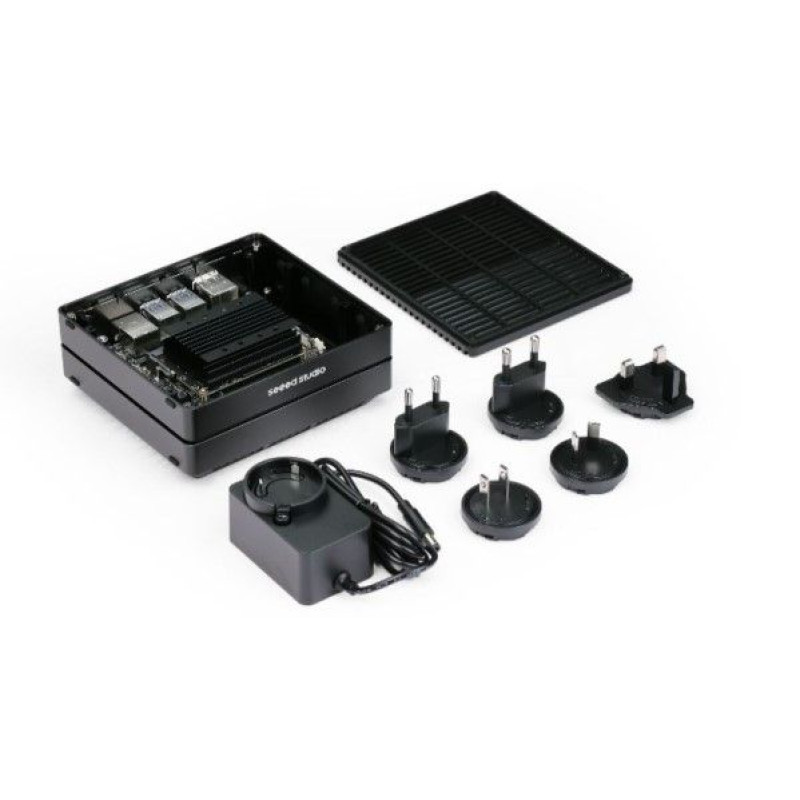

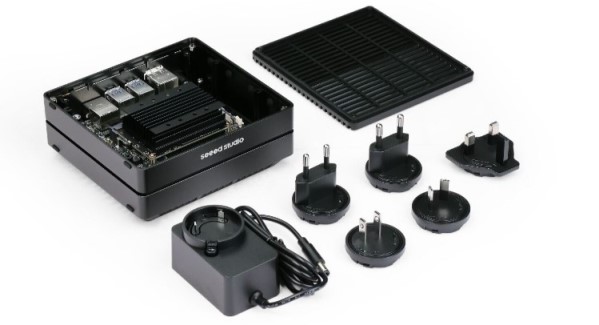

Scope of delivery:

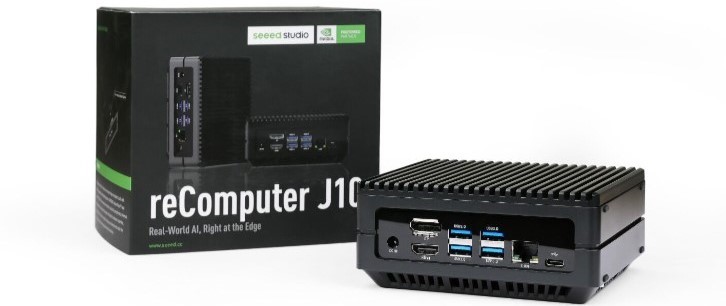

1. reComputer J1020 v2 (system installed) x1
2. 12 V/2 A power adapter (with 5 interchangeable plugs)
