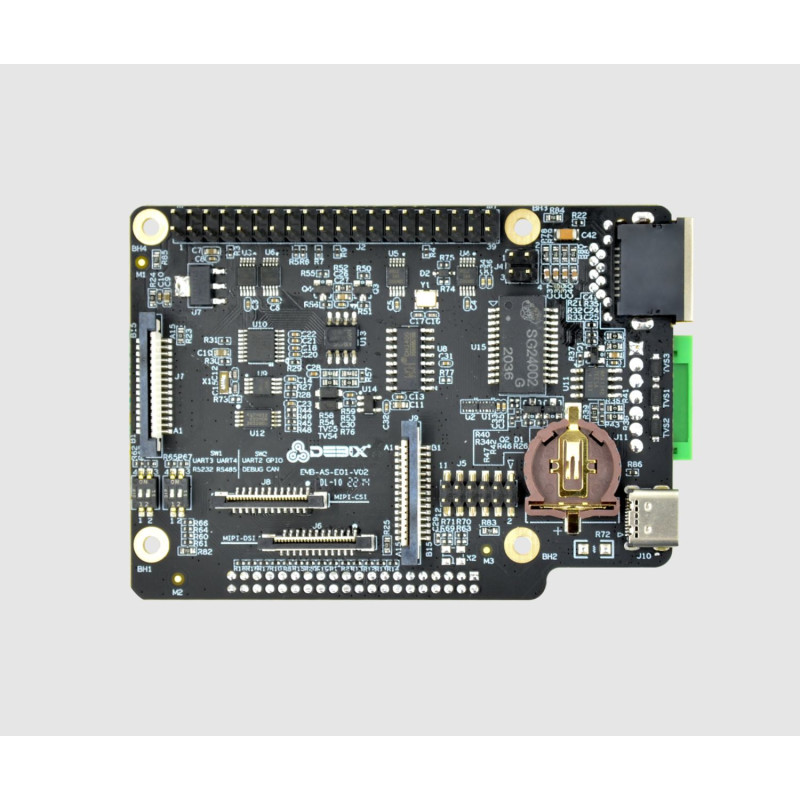

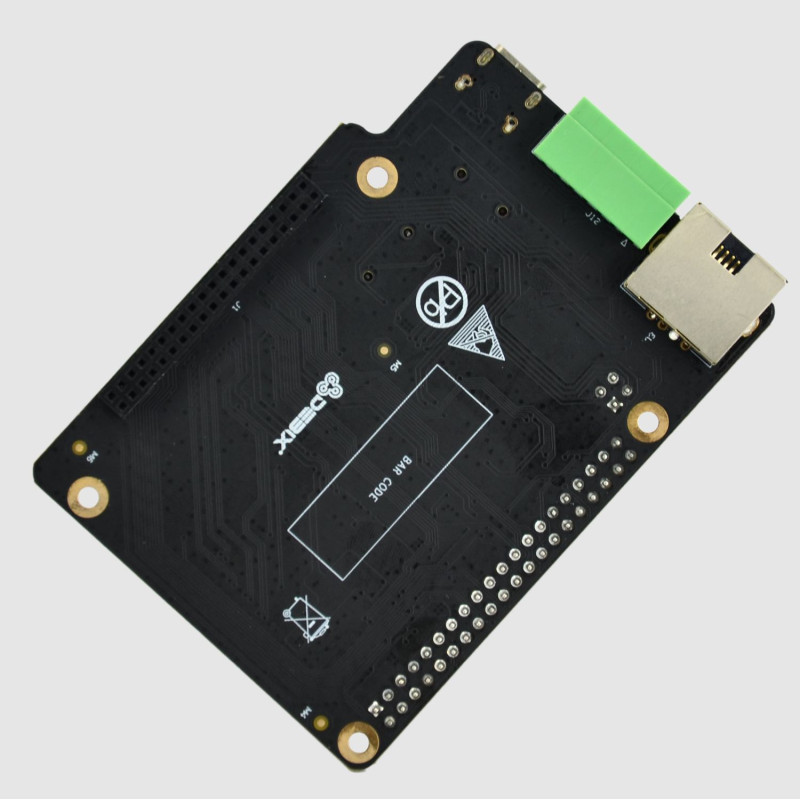

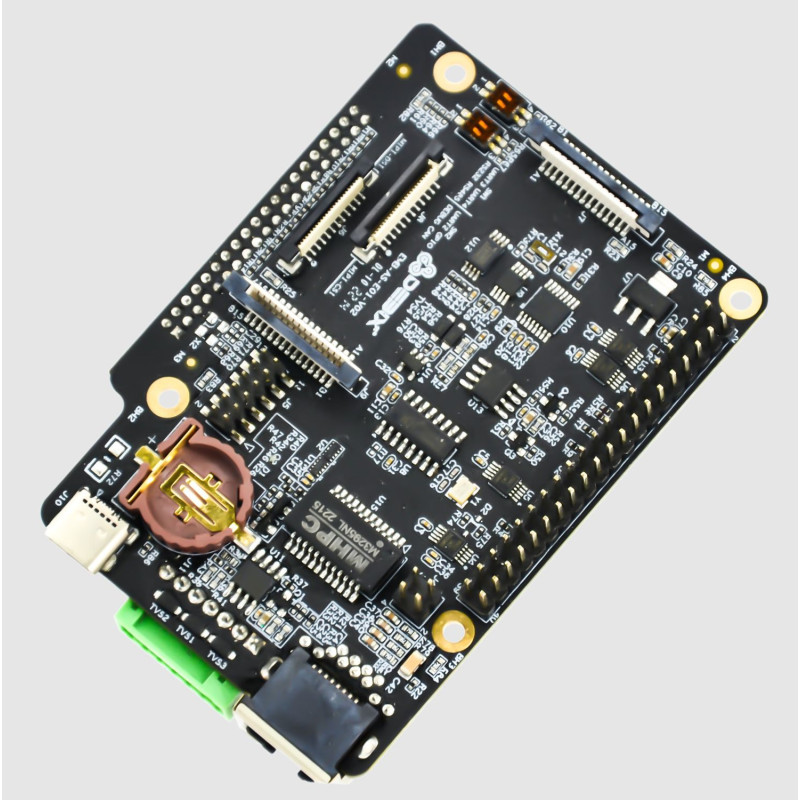

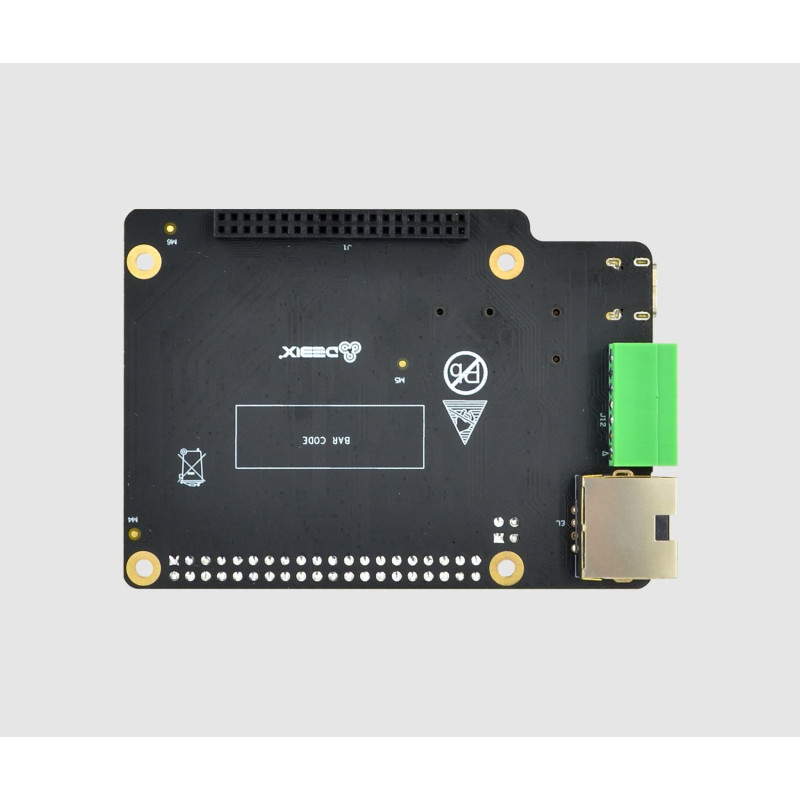

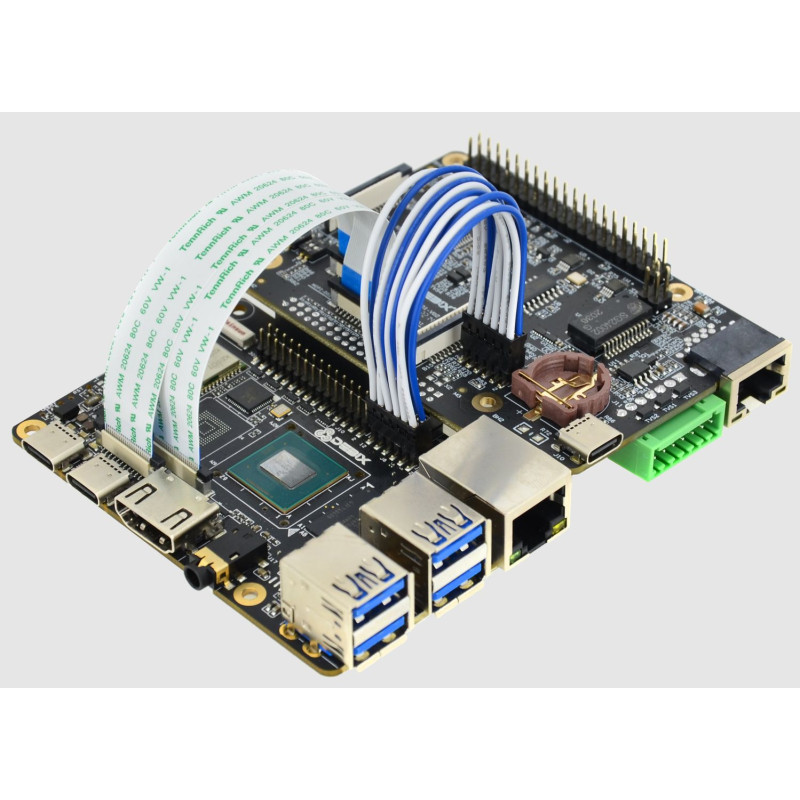

DEBIX Model A I/O Board

£31.30

Description

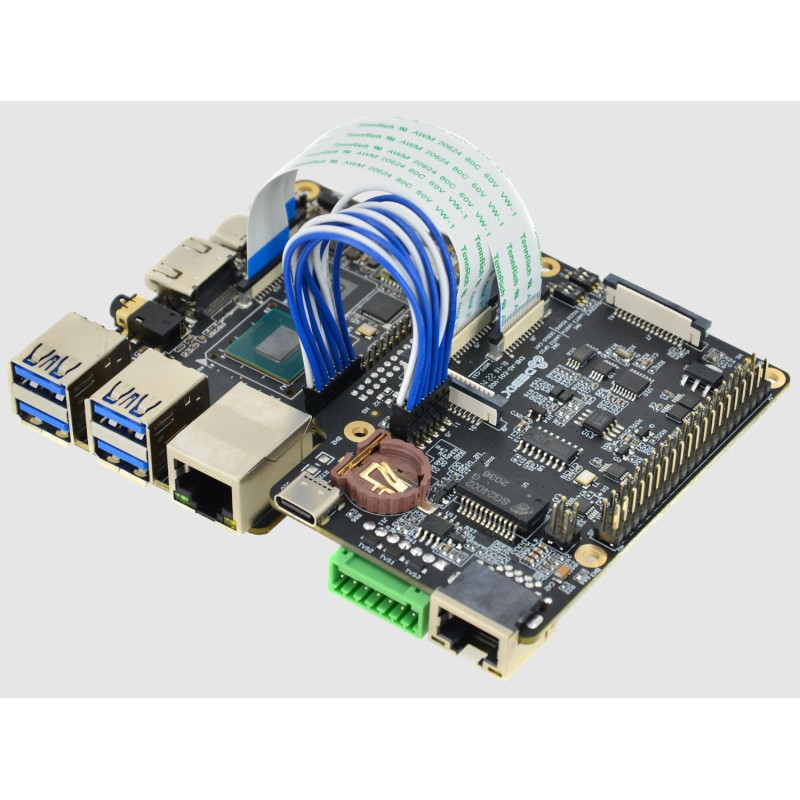

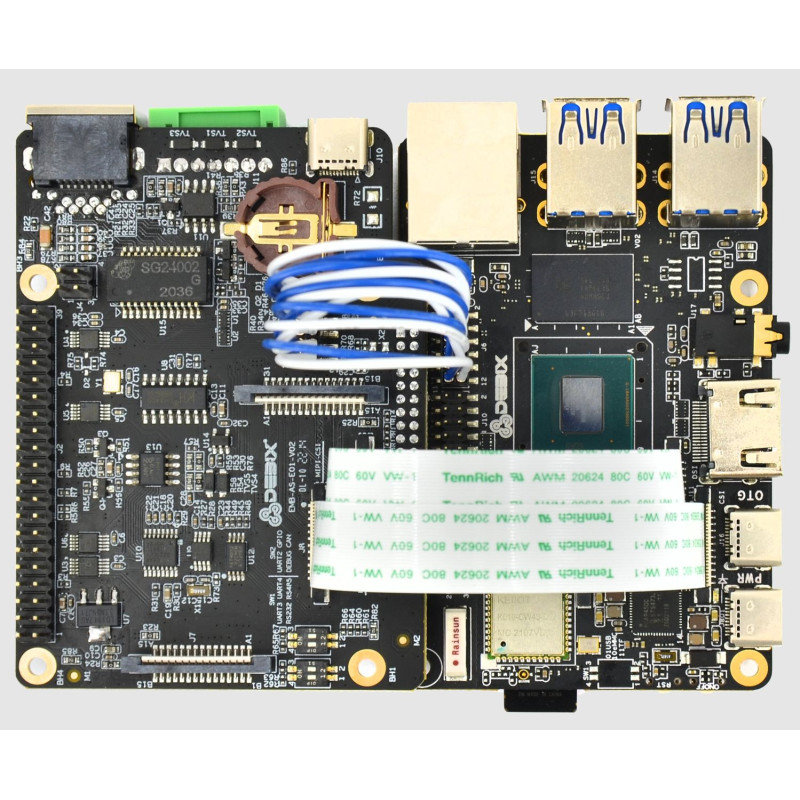

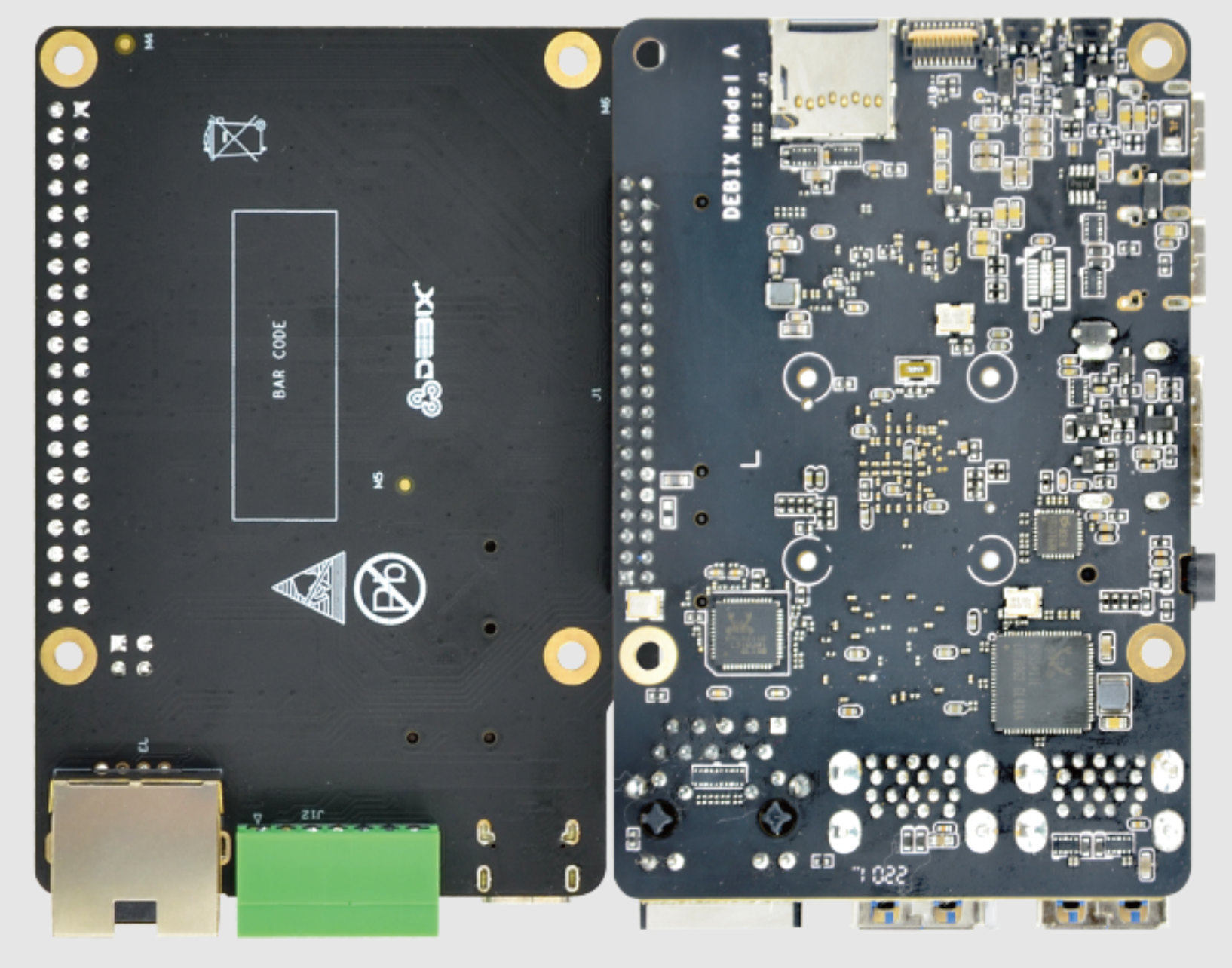

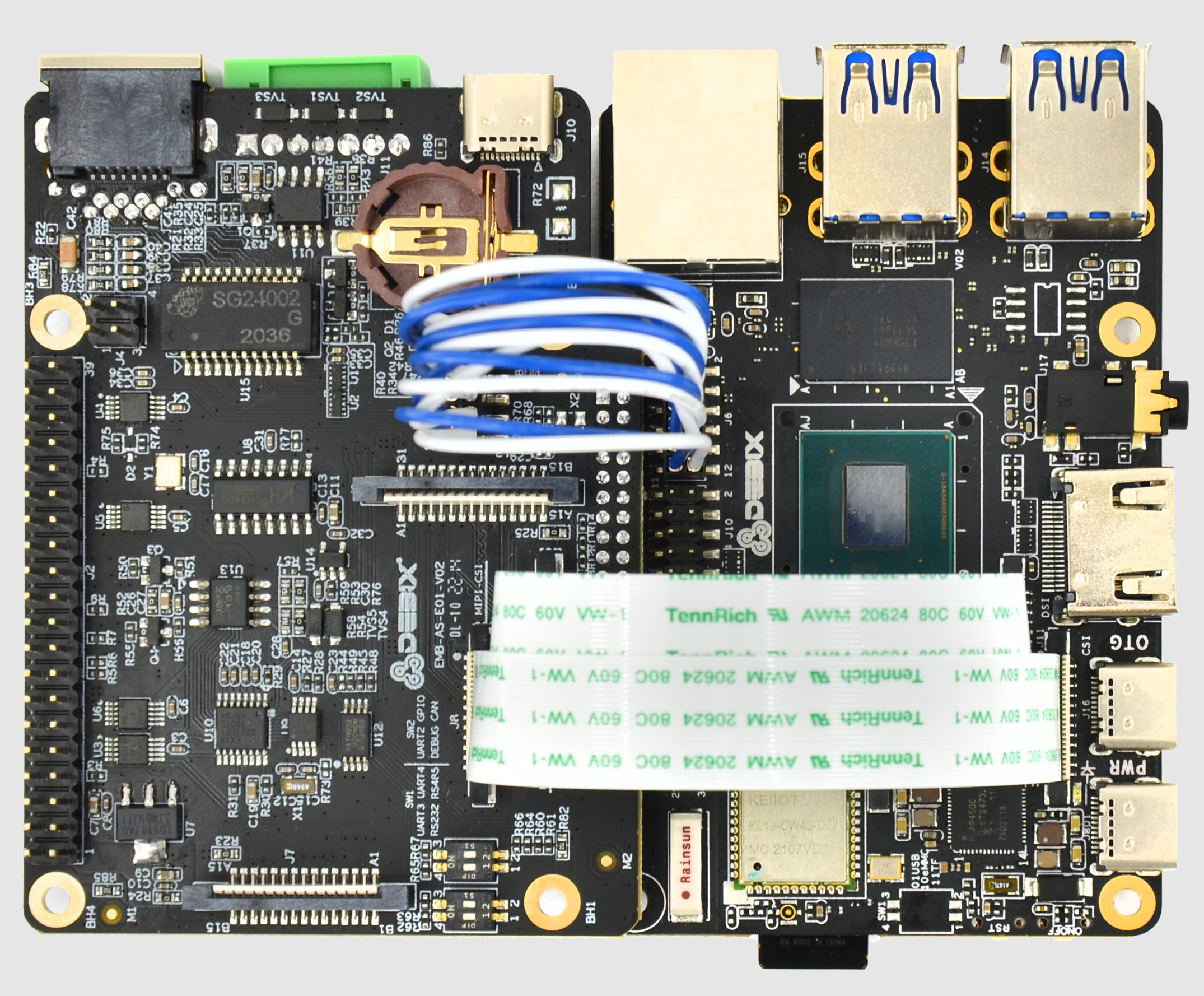

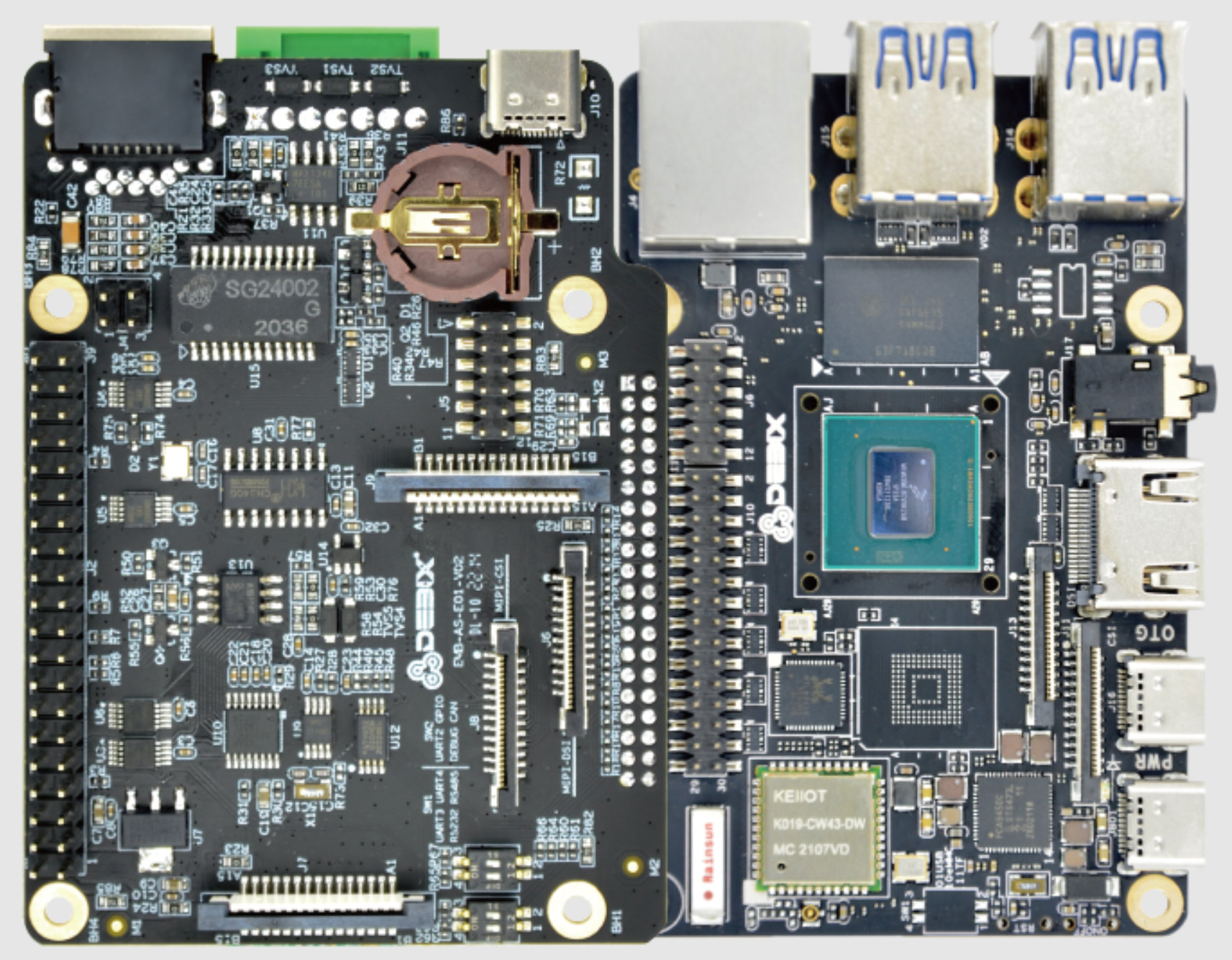

The DEBIX Model A I/O Board is an add-on board designed for the DEBIX Model A microcomputer. It adds one RJ45 1000M network interface and PoE capability to the DEBIX Model A single board computer. It comes with RS232, RS485 and a CAN transceiver to enable connection to more industrial equipment, and the expansion capability provides unlimited options and functionality.

Key Features:

Adds one RJ45 1000M network interface and PoE capability (compatible with Raspberry Pi)
Serial ports (RS232, RS485) and CAN transceiver for connecting to more industrial equipment
Built-in real-time clock (RTC)

Warning: the pinout of the DEBIX I/O board is different from the pinout on the DEBIX Model A board - please refer to the documentation

Technical specifications:

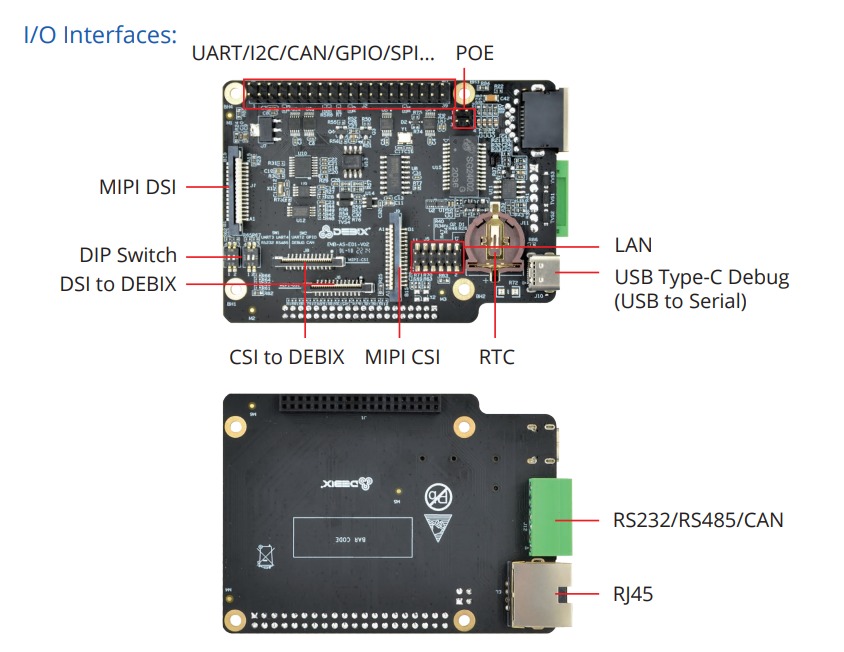

I/O interfaces
Network	1 x RJ45 Gigabit Network POE supported (compatible with POE power supply module)
USB	1 x USB Debug Type-C
RTC	1 x RTC
Serial ports	1 x RS232 1 x RS485
CAN	1 x CAN Transceiver
DIP Switch	2 x 2-bit DIP switch (used to select USB-Debug, RS232, RS485 and CAN)

Connectors
40-Pin 2 rows	3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO by default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration
MIPI CSI	1 x MIPI CSI
MIPI DSI	1 x MIPI DSI
E2PROM	1 x 2-Kbit E2PROM
