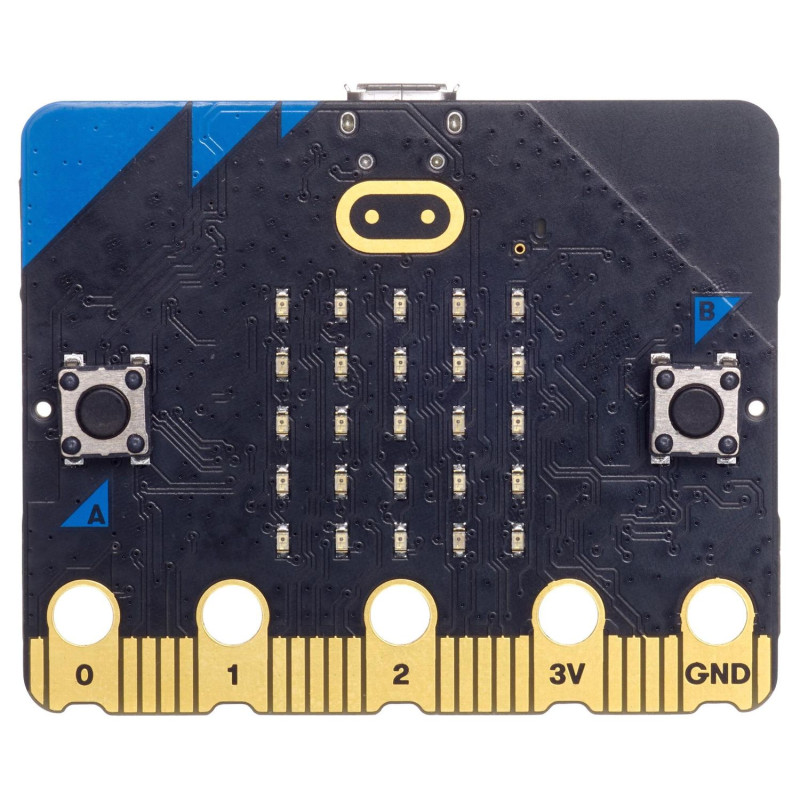

BBC micro:bit V2 microcomputer

The BBC micro:bit V2 Kit is a single board computer (SBC) that contains an NRF52 application processor and various peripherals that can be connected to it.
The KL27 interface processor is connected to the application processor and manages data exchange via the USB interface.

This micro:bit V2 microcomputer expands the line of first-generation micro:bit microcomputers and has a great performance.

The interest in this microcomputer was created when the BBC Corporation, together with major technology companies (including the chip manufacturer Nordic Semiconductor), distributed 1 million microcomputers free of charge to children. This microcomputer was distributed to British schools as part of a special project. As of 2018, the number of microcomputers produced exceeded 2 million.

This computer is designed with programming environments and provides users with an interesting way to learn programming and stimulates technical creativity.

Elements of the micro:bit V2 microcomputer and technical specifications:

• Microcontroller model Nordic nRF52833 with ARM Cortex-M4 architecture processor, 32-bit, 64 MHz, 128 KB RAM, 512 KB non-volatile memory
• Interface processor model MKL27Z256VFM4 Arm Cortex-M0 + Flash ROM 256KB (128kB reserved for future use as storage) RAM 16KB @ 48MHz
• Micro-USB 2.0 port - used for flashing the program on the microcontroller, power supply of the board (5V) and data exchange with a computer
• Display - LED matrix 5 * 5
• Special buttons A and B (input devices)
• Reset / power button (RESET / POWER)
• Motion sensor LSM303AGR Accelerometer (three-dimensional acceleration sensor)
• Temperature sensor (built in NRF52)
• Compass - built-in magnetic field sensor.
• Built-in speaker type JIANGSU HUANENG MLT-8530 (80dB @ 5V, 10cm)
• Built-in microphone type Knowles SPU0410LR5H-QB-7 MEMS with sensitivity 38dB ± 3dB @ 94dB SPL
• Input and output contacts
  • Large contacts for crocodile clamping - 5
    • 0, 1, 2 - main I/O pins
    • 3V, GND - for power supply of the board
  • Small GPIO pins (used for I/O) - 19 pcs.
• The 2.4GHz radio module with a channel width of 1Mbps or 2Mbps is used to communicate micro: bit boards with each other in the "Radio" mode, and the Bluetooth 5.1 with Bluetooth Low Energy (BLE) protocol is supported for communication with other devices and wireless firmware on the microcontroller
• JST connector- additional design possibility to connect an external power supply 1.8V .. 3.6V (190mA max)

Board size: 42 * 51.6 mm

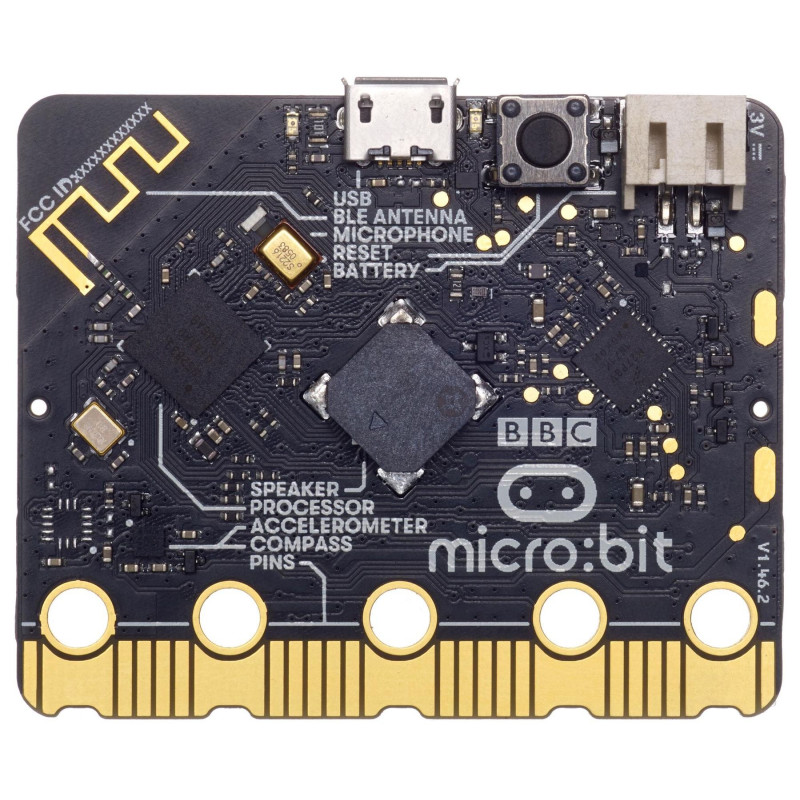

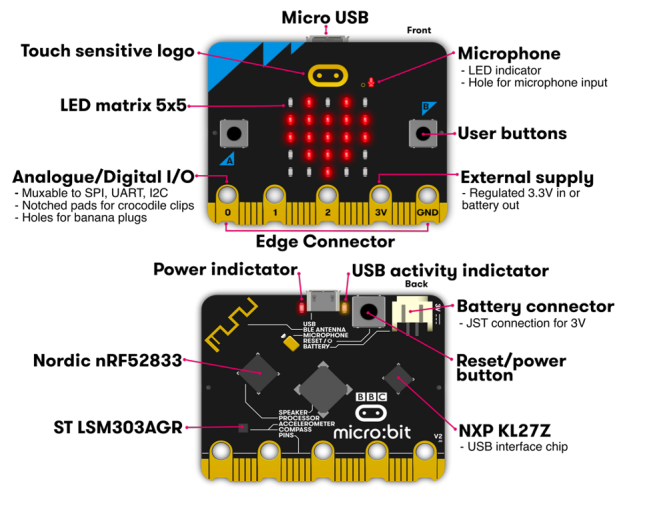

Board elements:

Micro USB - Micro USB port

Touch sensitive logo - touch sensor

LED matrix 5x5 - LED matrix of 5x5 elements

Analogue / Digital I / O - GPIO interface pins

External supply - connector for external power supply

User buttons - special buttons

Microphone - built-in microphone with LED indication

Power indicator - power indicator

Nordic nRF52833 - application processor

ST LSM303AGR - motion sensor

NXP KL27Z - interface chip

Reset / power button - Reset / Power button

Battery connector - JST 3V power connector

USB activity indicator - LED indicator for USB port activity

The package includes:

BBC Micro:bit - 1 pc.
