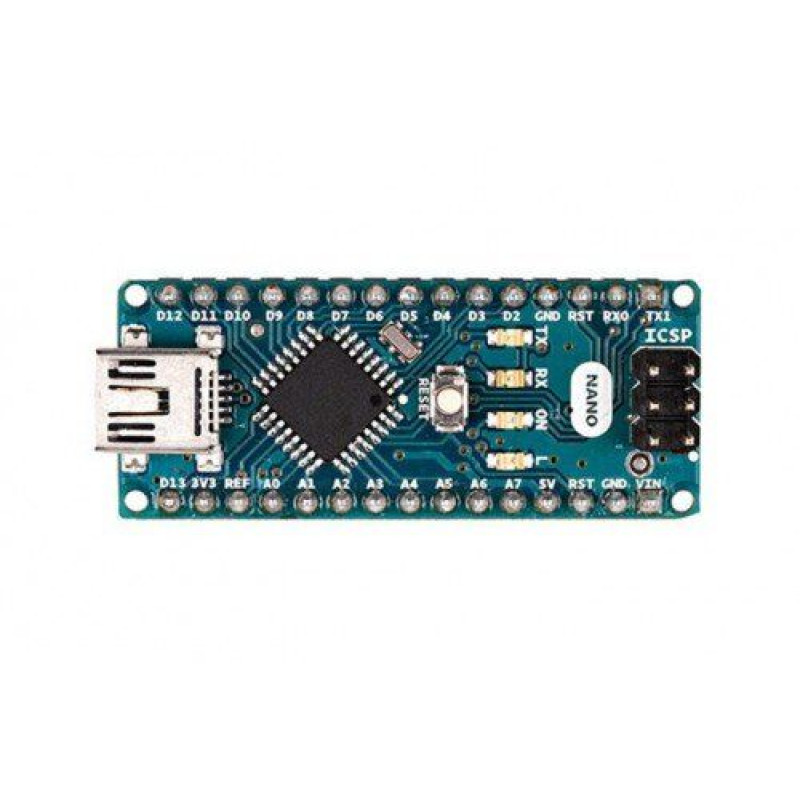

Arduino Nano / A000005

Arduino Nano / A000005 - is a small, full-fledged board based on the ATmega328 microcontroller (Arduino Nano 3.x). Its functionality is similar to the Arduino Duemilanove, but it has such differences as the absence of a power connector, the use of USB Mini-B instead of a standard USB cable, and a more compact board size. The Arduino Nano comes with soldered pin connectors that allow you to easily attach it to a breadboard.

Main features:

• The ATMega328 microcontroller runs at 16 MHz and has 32 KB of flash memory (of which 2 KB are used by the bootloader)

• At 45 mm long and 18 mm wide, the Nano is the smallest Arduino board and weighs only 7 grams.

• Nano is designed for breadboard use and has soldered connectors for all pins, making it easy to attach the board to any breadboard.

Technical specifications:

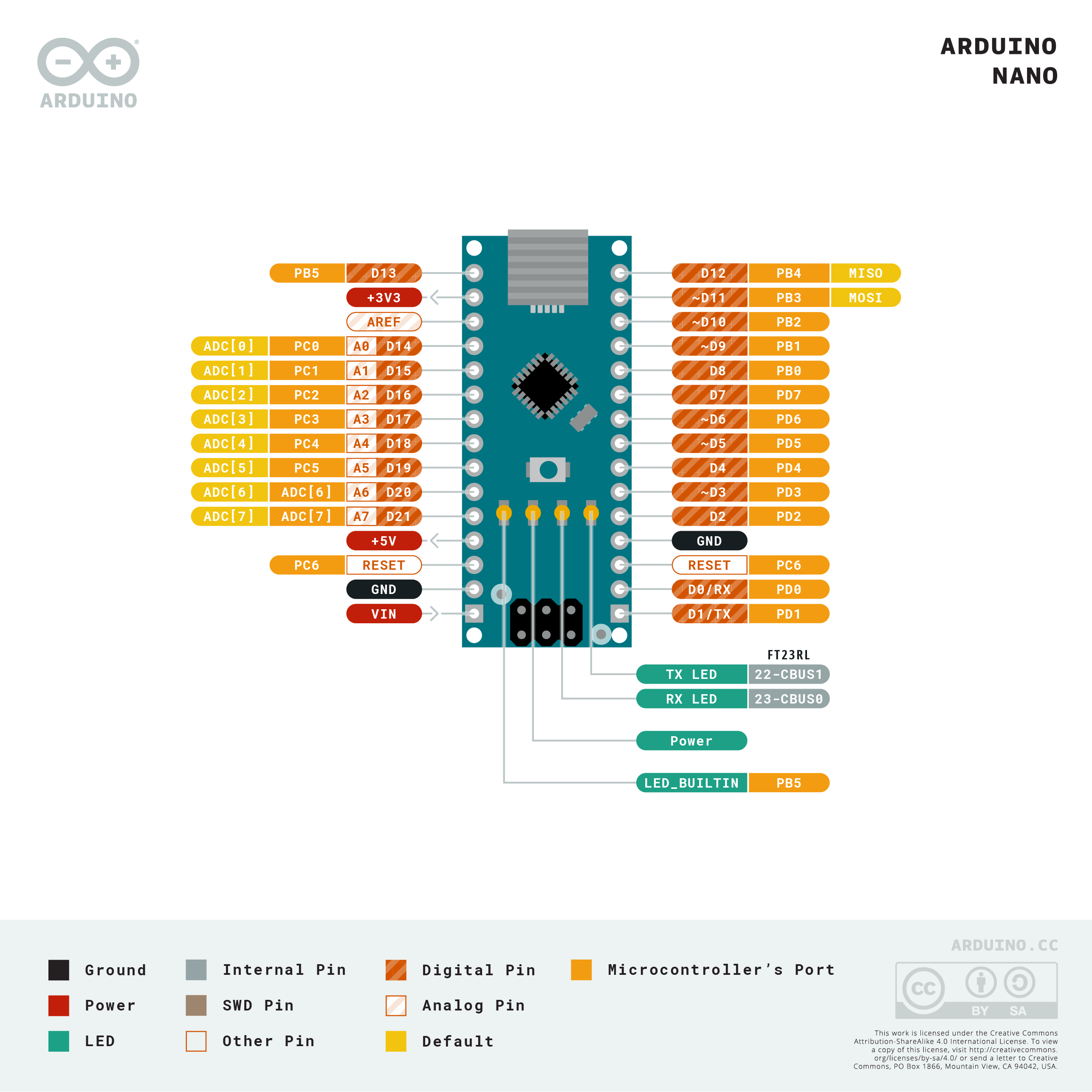

Purpose of the board pins:

Overall dimensions: 45mm x 18mm

Weight: 0.007 kg
