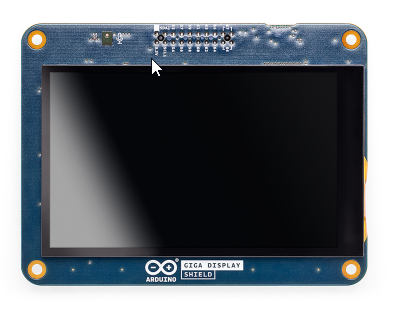

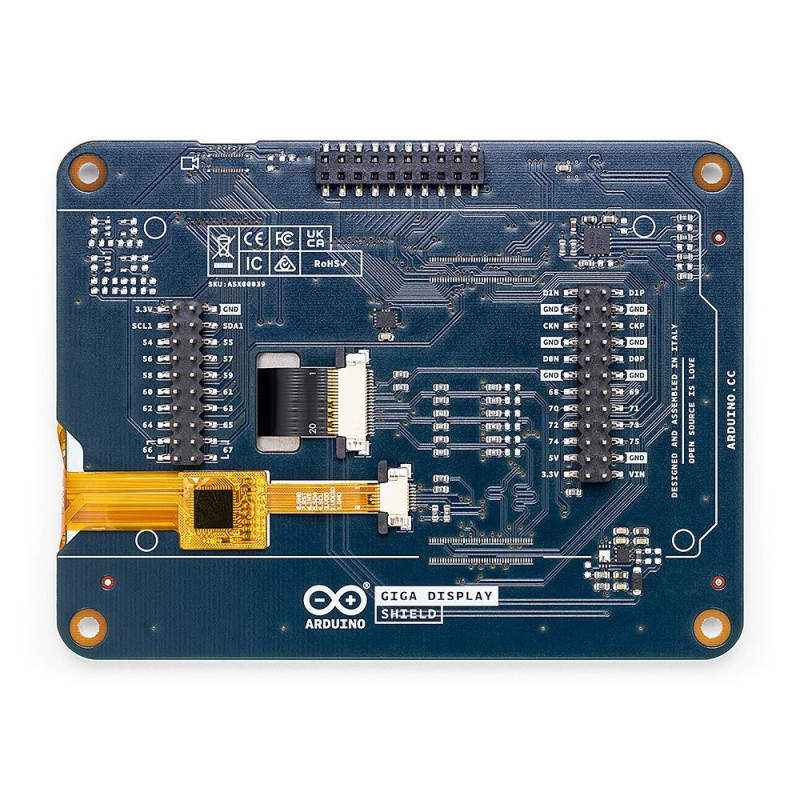

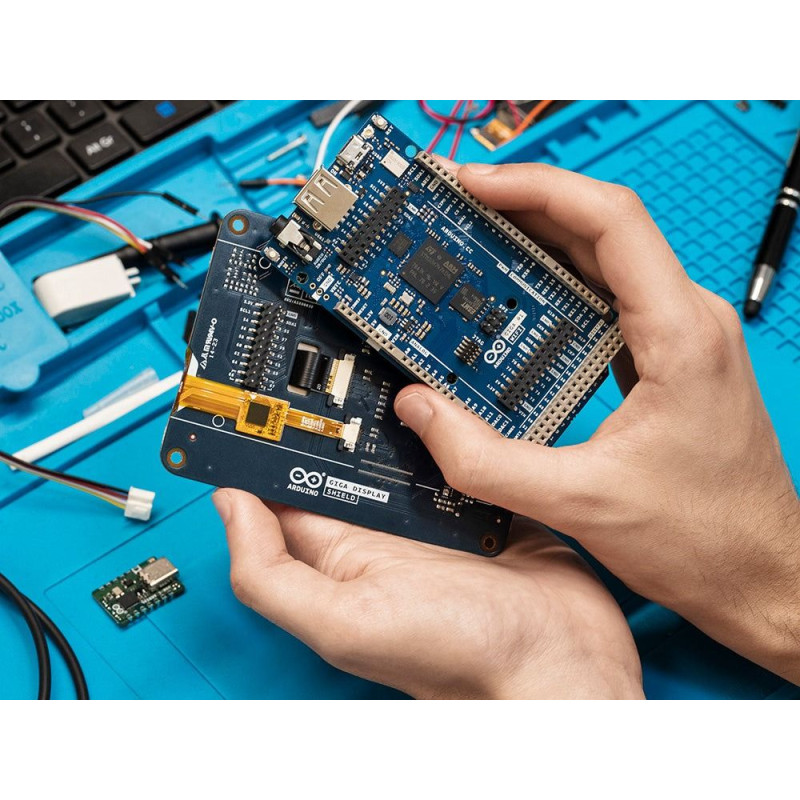

Arduino GIGA Display Shield / ASX00039

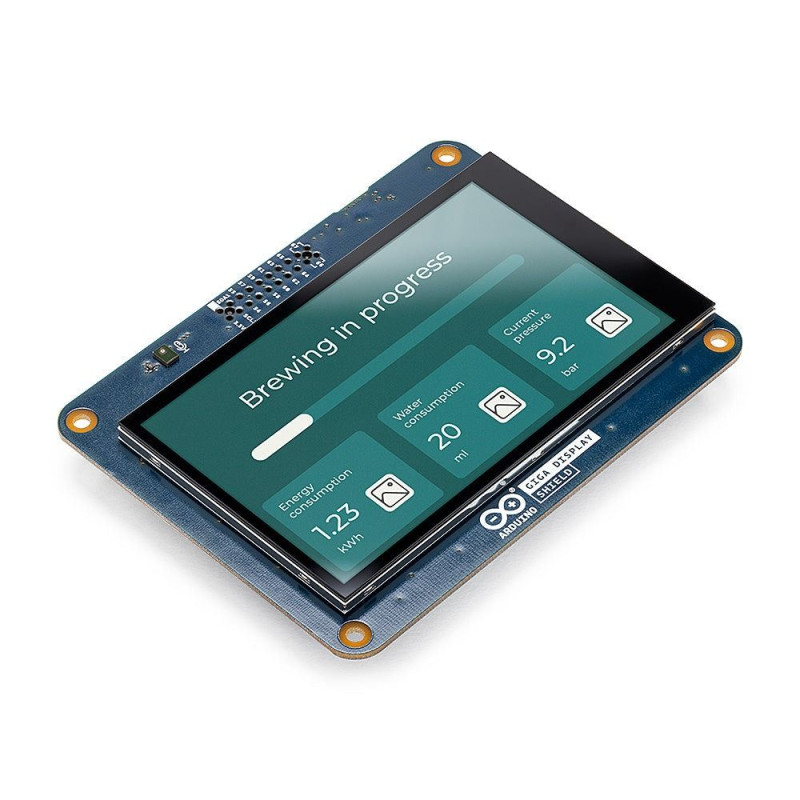

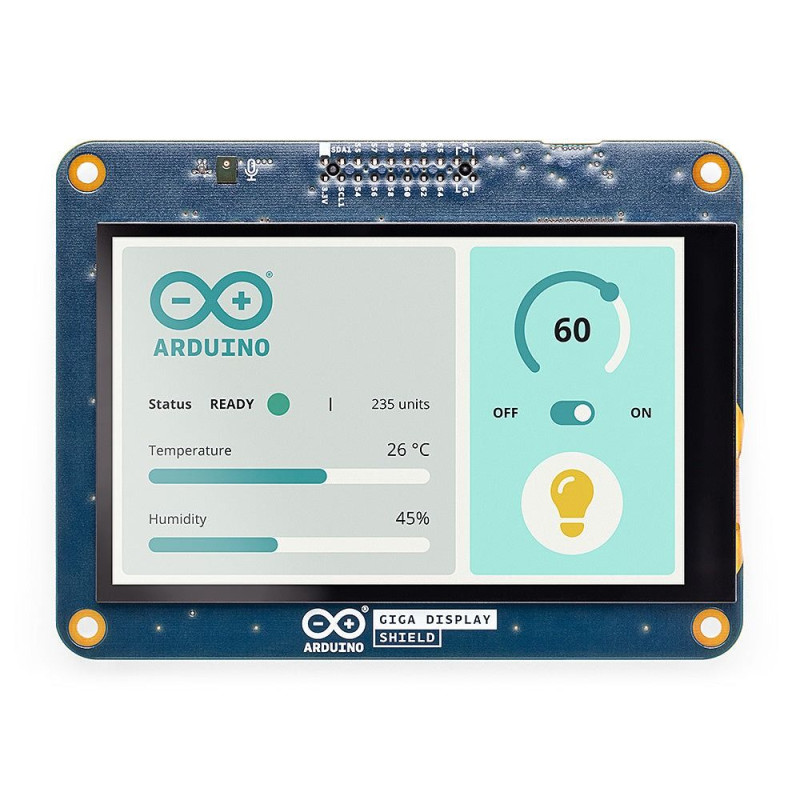

TheArduino GIGA Display Shield / ASX00039 is a large and interactive touchscreen display expansion module for the Arduino platform that allows you to create complex and informative visual interfaces for your projects.

With the Arduino® GIGA Display Shield, you can display text, graphics, numbers, and other elements on a large display, making it easier to interact with and display information on your device. This module can be useful for creating a variety of projects including monitoring systems, control panels, clocks, and many other applications where a large and intuitive interface is important.

Specifications:

KD040WVFID026-01-C025A TFT display 3.97"

• 480x800 resolution
• 16.7 million colors
• Pixel size 0.108 mm
• Capacitive touch sensor
• Support for 5 points and gestures
• Edge LED backlighting

BMI270 6-axis IMU (accelerometer and gyroscope)

• 16-bit
• 3-axis accelerometer with a range of ±2g/±4g/±8g/±16g
• 3-axis gyroscope with a range of ±125dps/±250dps/±500dps/±1000dps/±2000dps

SMLP34RGB2W3 RGB LED

• Common anode
• IS31FL3197-QFLS2-TR driver with built-in charge pump

Digital microphone MP34DT06JTR

• AOP = 122.5 dbSPL
• Signal-to-noise ratio of 64 dB
• Omnidirectional sensitivity
• -26 dBFS ± 3 dB sensitivity

I/O

• GIGA connector

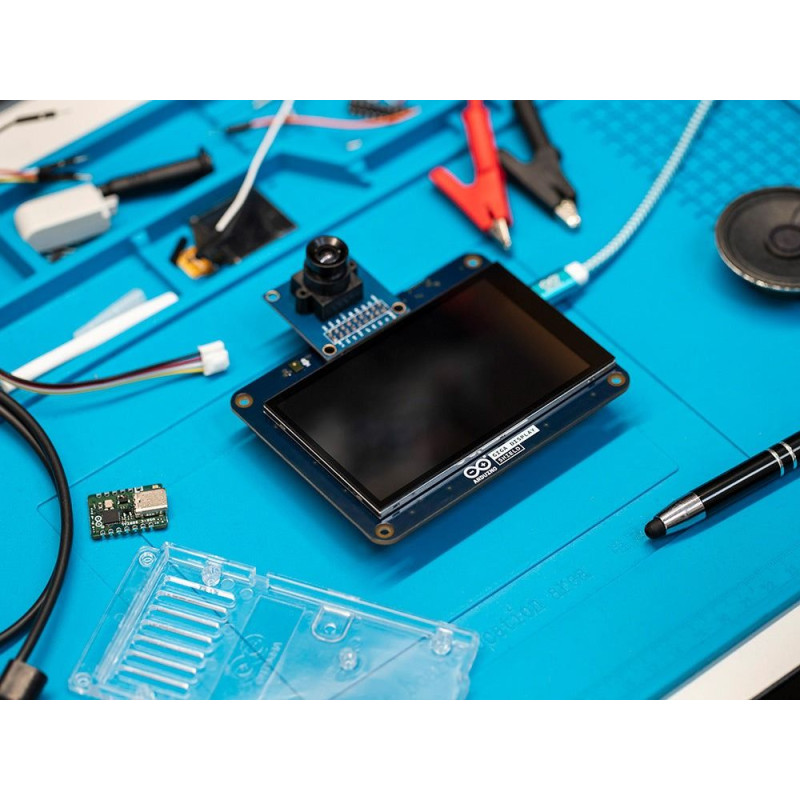

• Camera connector 2.54 mm

The KD040WVFID026-01-C025A has a 3.97-inch TFT display with two connectors. A J4 connector for video signals (DSI) and a J5 connector for touch panel signals. The resolution of the TFT display and capacitive touch panel is 480 x 800 with a pixel size of 0.108 mm. The touch module is connected to the main board via I2C.
The edge LED backlight is controlled by the LV52204MTTBG (U3) LED driver.

6-axis IMU
The GIGA Display Shield provides a 6-axis IMU via the BMI270 6-axis IMU (U7). The BMI270 contains both a three-axis gyroscope and a three-axis accelerometer. The information obtained can be used to measure raw motion parameters as well as for machine learning. The BMI270 connects to the GIGA R1 WiFi via a shared I2C connection.

RGB LED
The RGB common anode (DL1) is controlled by a dedicated RGB LED driver IC IS31FL3197-QFLS2-TR (U2), which provides sufficient current for each LED. The RGB LED driver is connected via a common I2C connection to the GIGA main board. The built-in charge pump ensures sufficient voltage is supplied to the LED.

Digital microphone
The MP34DT06JTR is an ultra-compact, low-power, omnidirectional MEMS digital microphone built with a capacitive sensing element and PDM interface. The sensing element, which is capable of detecting acoustic waves, is fabricated using a special silicon micromachining process designed for the production of audio sensors. The microphone is in a single-channel configuration with the audio signals transmitted via the PDM.

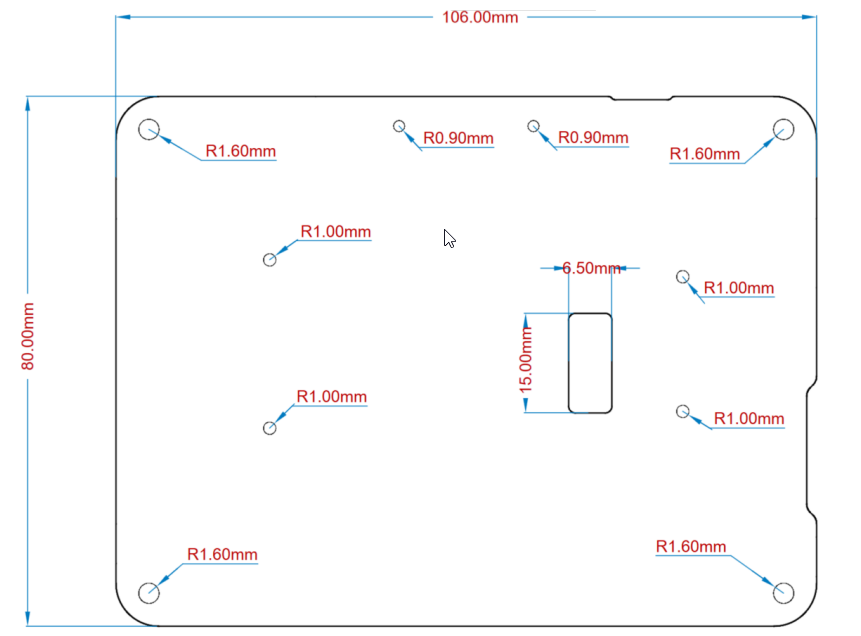

Overall dimensions: 106mm x 80mm

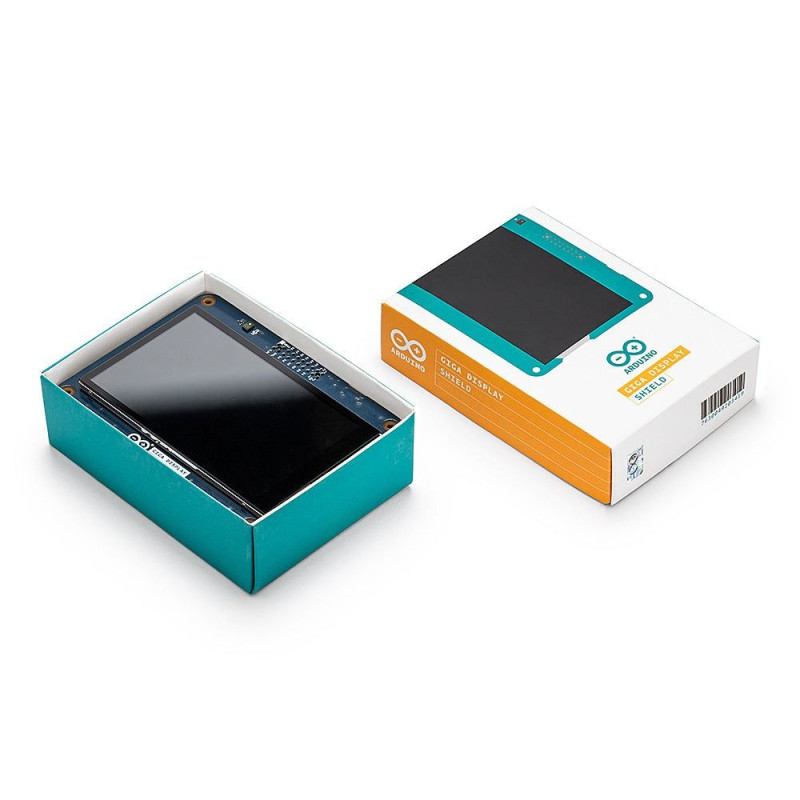

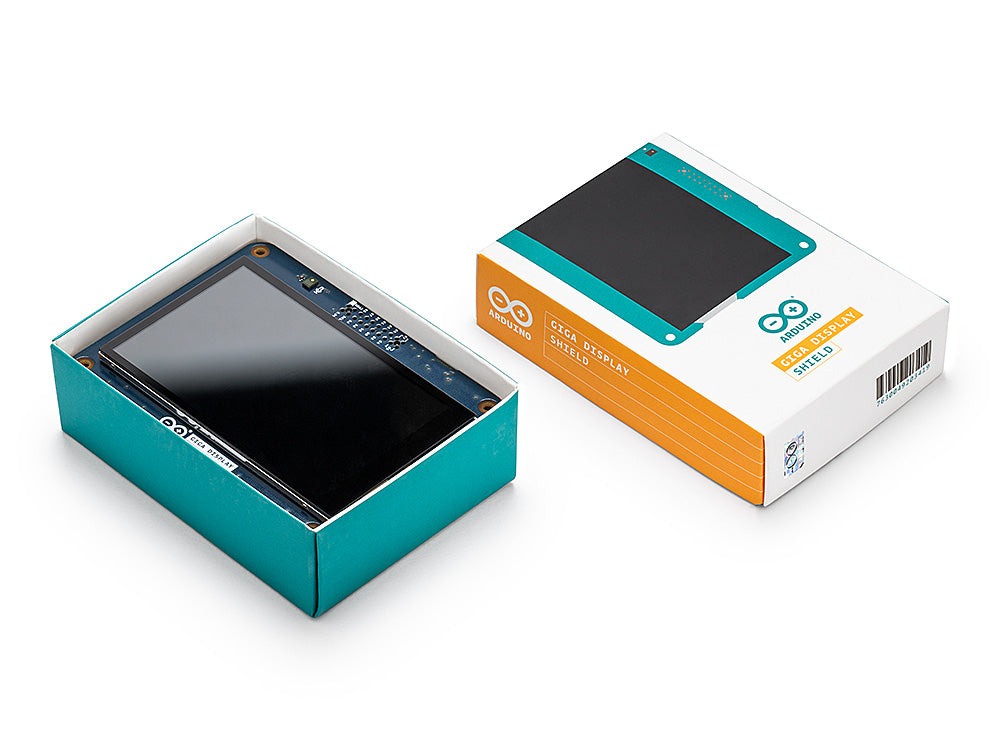

Scope of delivery:

1. Arduino GIGA Display Shield x 1
