Display Raspberry Pi Pico 2.23inch OLED 128x32 (19750)

£10.30

Description

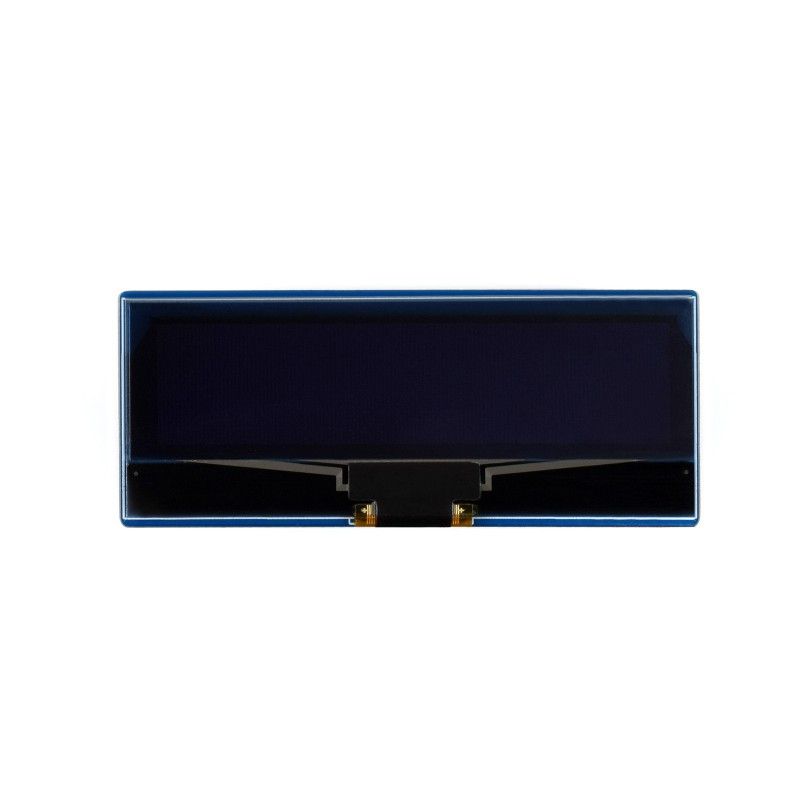

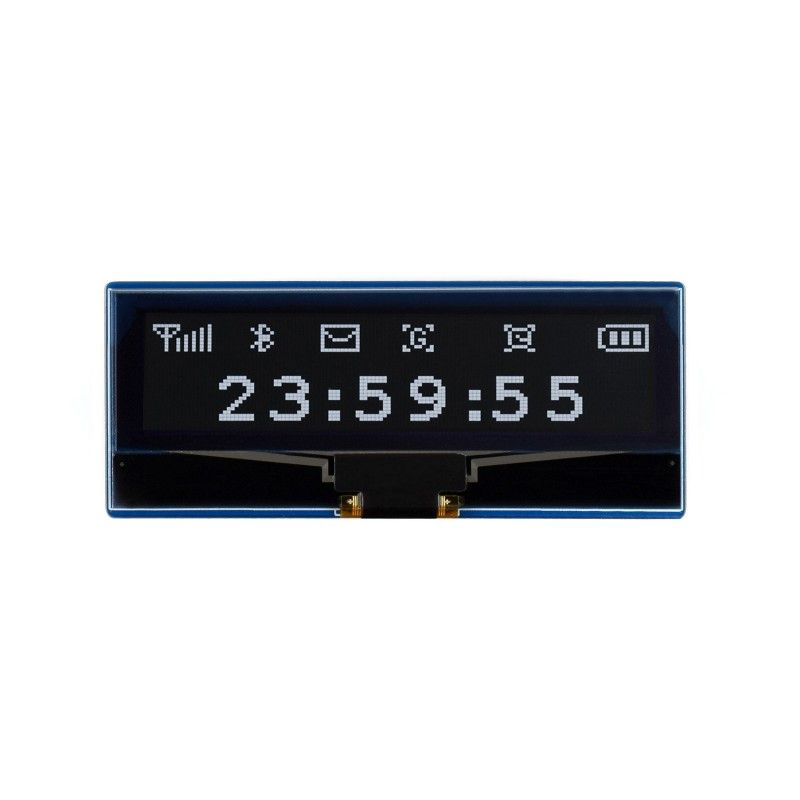

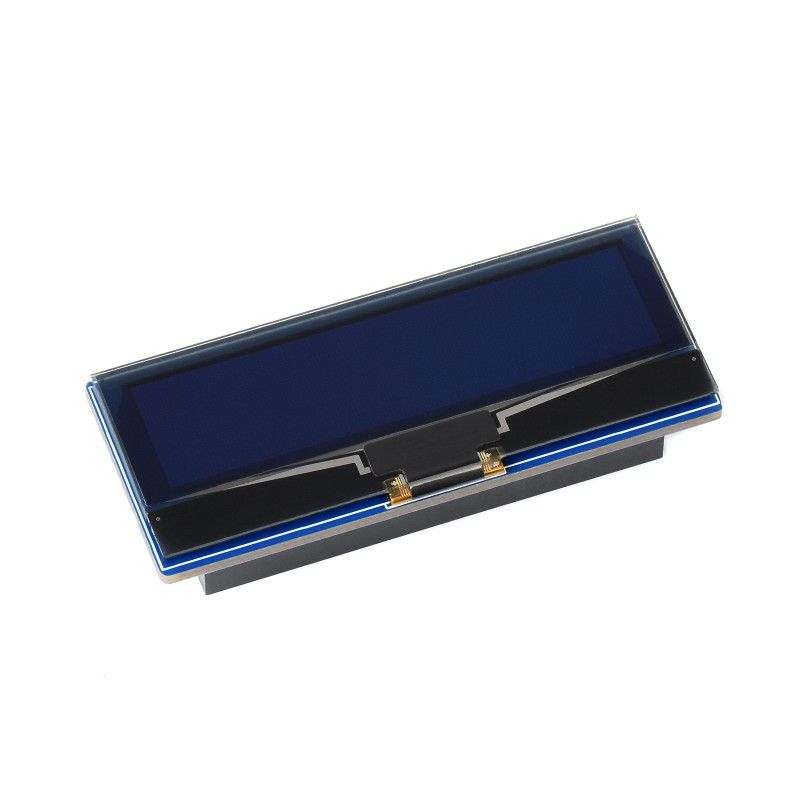

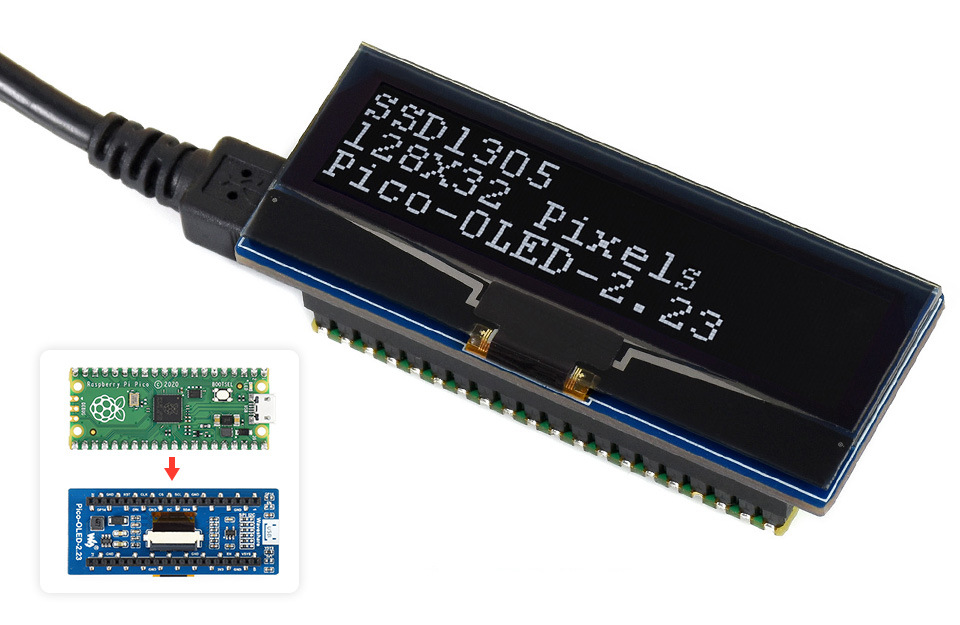

Raspberry Pi Pico 2.23inch OLED 128x32 Display (19750 ) is an expansion board specially designed for Raspberry Pi Pico with a monochrome OLED display and a screen resolution of 128x32 pixels with a screen diagonal of 2.23 inches. For connection, the SPI or I2C interface is used. This expansion board is designed to display digital and graphical information and can be used as signage, industrial tool displays, etc.

Main features:

Display color: black and white

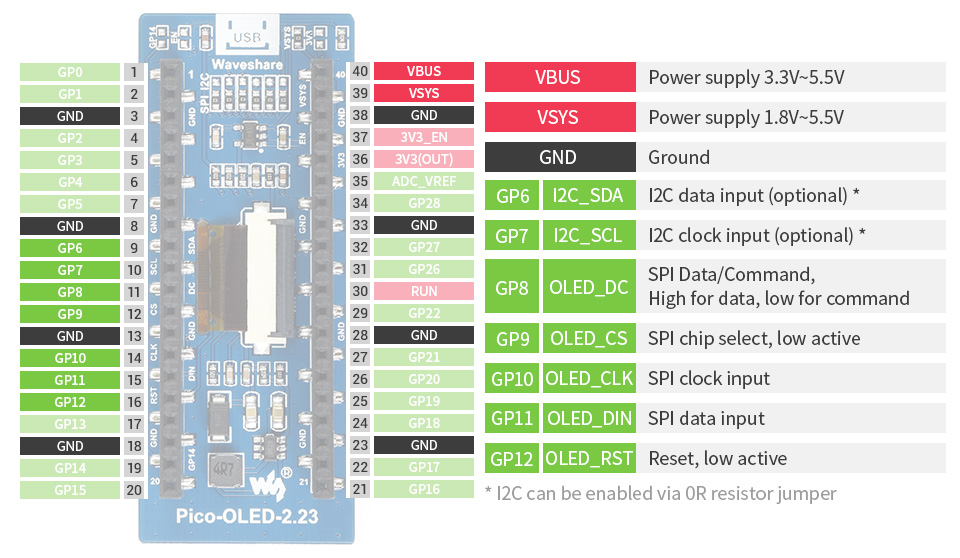

Has a 4-wire SPI interface and an I2C interface, providing easy connection and high data transfer rate

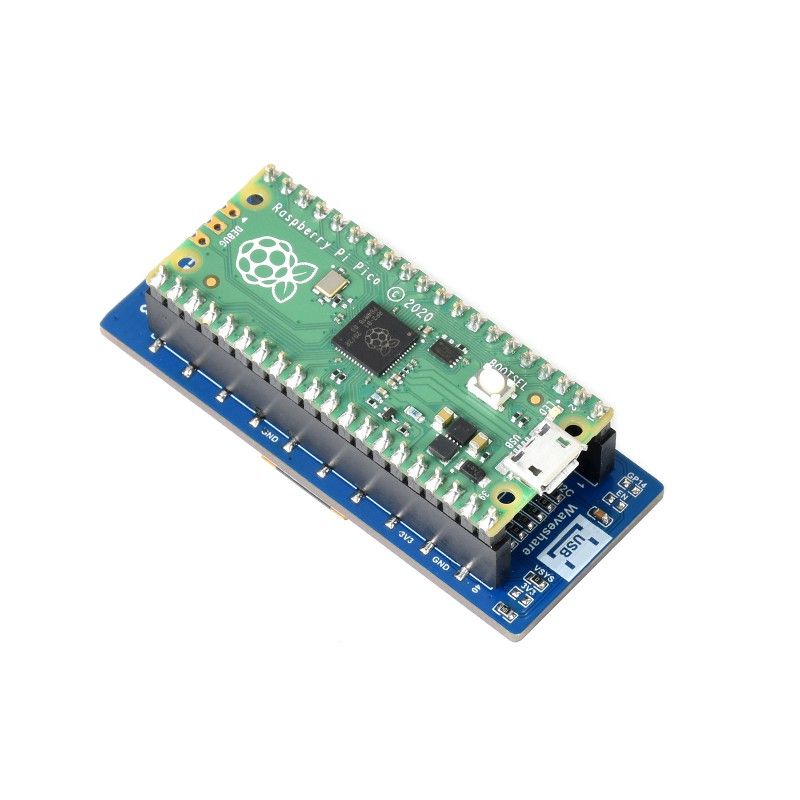

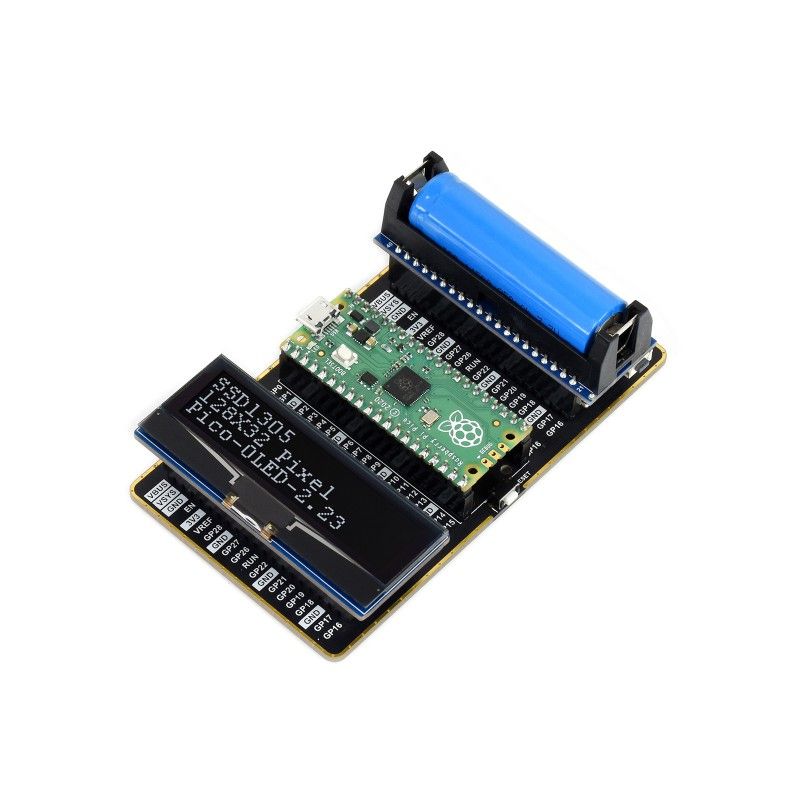

Has a standard Raspberry Pi Pico connector (supports Raspberry Pi Pico series boards)
Comes with development resources and guidance (Raspberry Pi Pico C/C++ and MicroPython examples)

Technical specifications:

Logic voltage.	3.3V	Viewing angle.	>160°
Operating voltage	3.3V/5V	Resolution	128×32 pixels

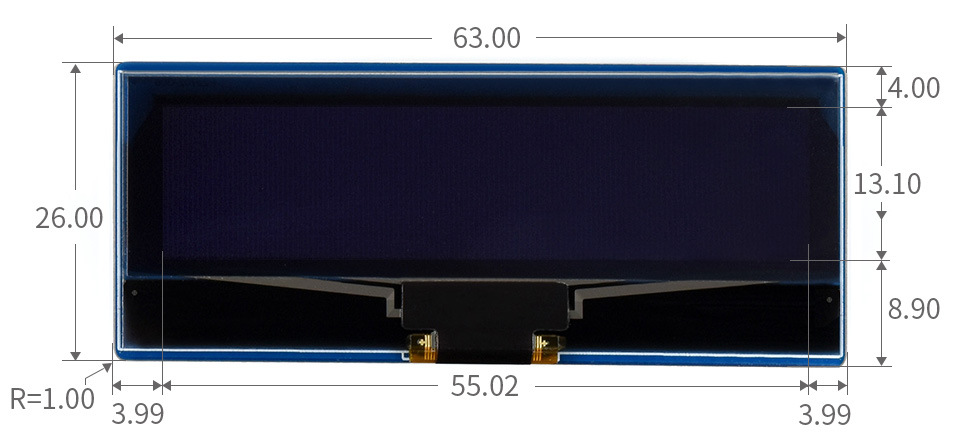

Communication interface	4-wire SPI, I2C	Display size	55.02 × 13.10mm
Display matrix type	OLED	Pixel size	0.41 × 0.39mm
The driver	SSD1305	Overall dimensions	63.00 × 26.00mm
