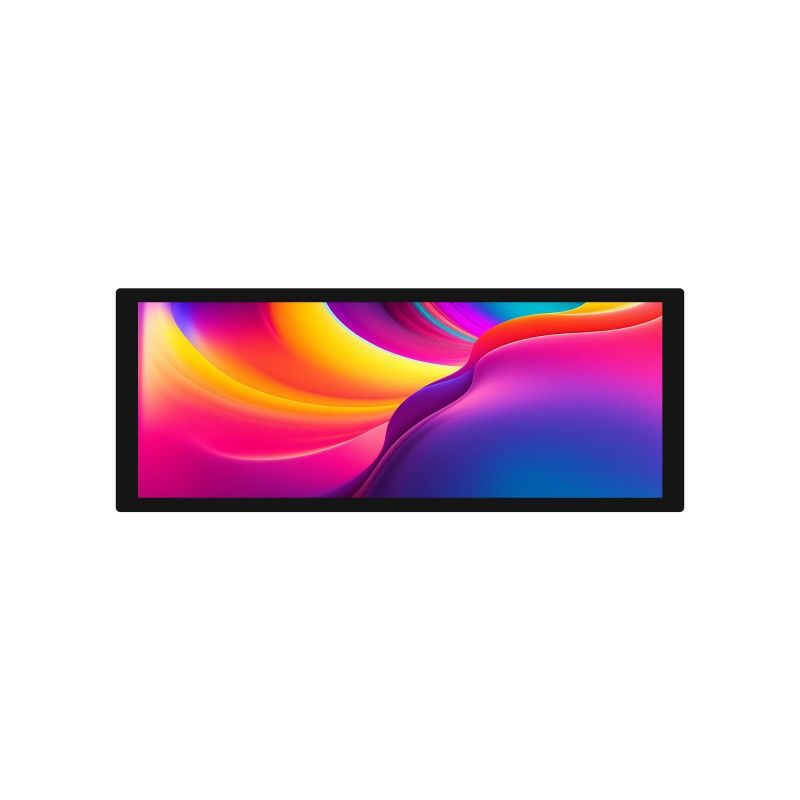

Display 9.3inch 1600x600 HDMI Capacitive Touch (24644)

The9.3inch 1600x600 HDMI Capacitive Touch Display (24644 ) is a high-quality screen with a 1600x600 pixel resolution and a capacitive touch screen. This display supports the HDMI interface and can be used with a variety of devices such as Raspberry Pi, computers, laptops, media players, and more.

The display has a bright and clear picture, which makes it ideal for playing videos and images with high detail. The capacitive touch screen allows you to interact with the device using gestures that are supported by operating systems that work with the display.

The display can be easily mounted on a frame or used in various projects. It has a compact size and low power consumption, which makes it ideal for use in devices that run on batteries or rechargeable batteries.

This display can be used in a variety of applications such as video games, multimedia devices, video information systems, embedded systems, automated systems, and many others.

Specifications:

• Screen diagonal: 9.3"
• Resolution: 1600x600 pixels
• Port: HDMI
• Matrix type: IPS
• Viewing angle: 178 deg.
• Sensor type: capacitive with 10 touch points (depending on the operating system)
• Number of control points: 10 points
• Sensor port: USB Type-C
• Audio output 1: 3.5mm Jack
• Audio output 2: 4PIN Header
• The display has a tempered glass panel with optical bonding
• Built-in menu for adjusting brightness (DCC/CI control) and contrast

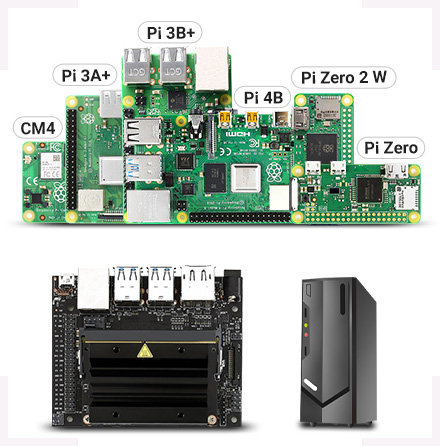

Supported devices and systems

Raspberry Pi
Supports Raspberry Pi OS, 10 touch points, no driver required
Support Ubuntu/Kali/WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports ALL versions of Raspberry Pi.

Jetson NANO
Supports Ubuntu, one touch, no drivers required

PC
Supports Windows 11/ 10 / 8.1 / 8 / 7, 10 touch points, no drivers

An example of connection:

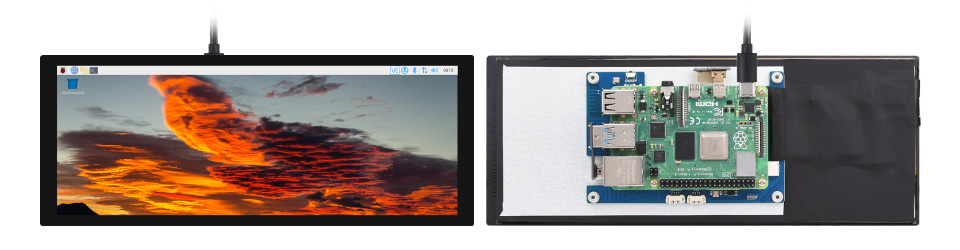

Working with a Raspberry Pi 4

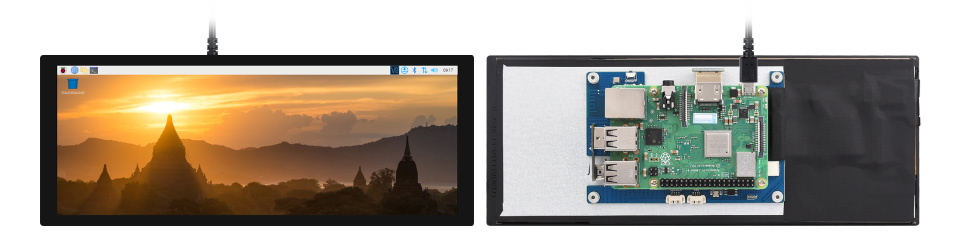

Working with Raspberry Pi 3B+

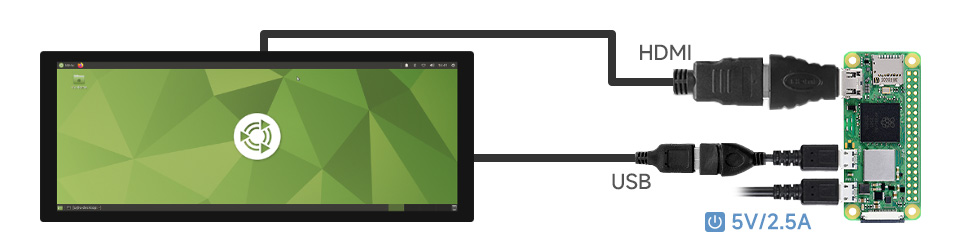

Working with Raspberry Pi Zero 2W

Attention: To connect to Raspberry Pi Zero 2W, you need to purchase a USB cable and a mini-HDMI adapter separately.

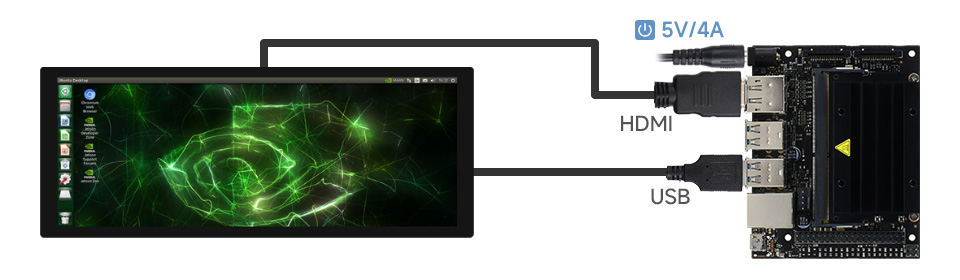

Working with NVIDIA Jetson NANO

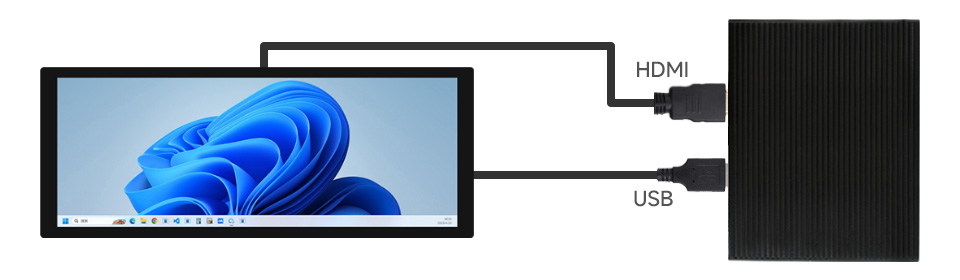

Working with a Mini PC

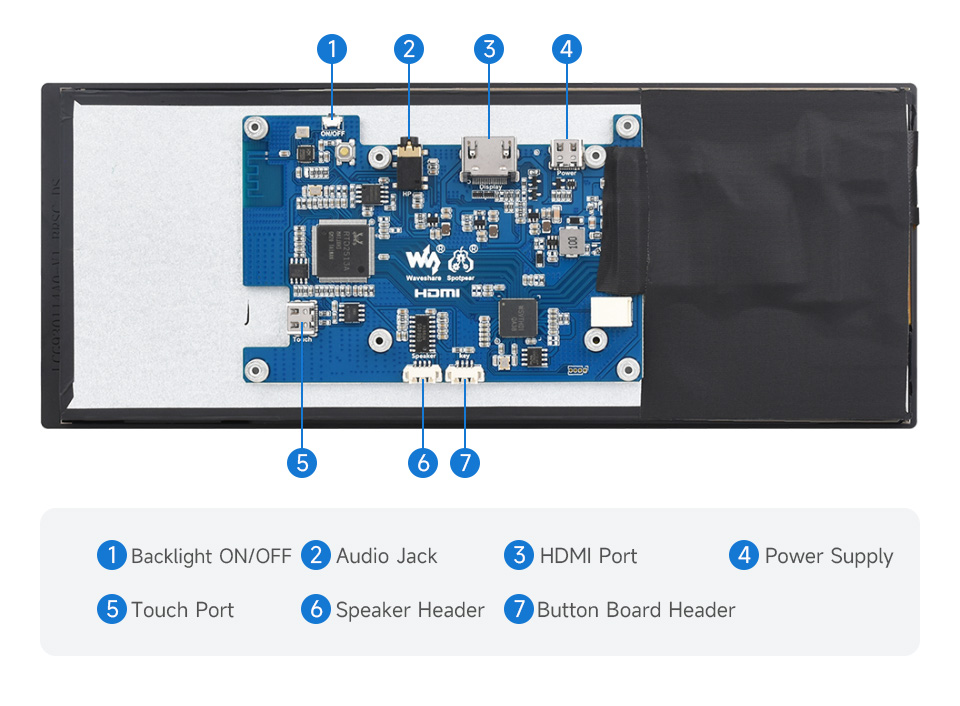

Interfaces:

1. Backlight ON/OFF - turns on the screen backlight
2. Audio Jack - audio port
3. HDMI Port - multimedia port
4. Power Supply - powersupply port
5. Touch Port - sensor port
6. Speaker Header - speaker connector
7. Button Board Header - connector of the board with buttons

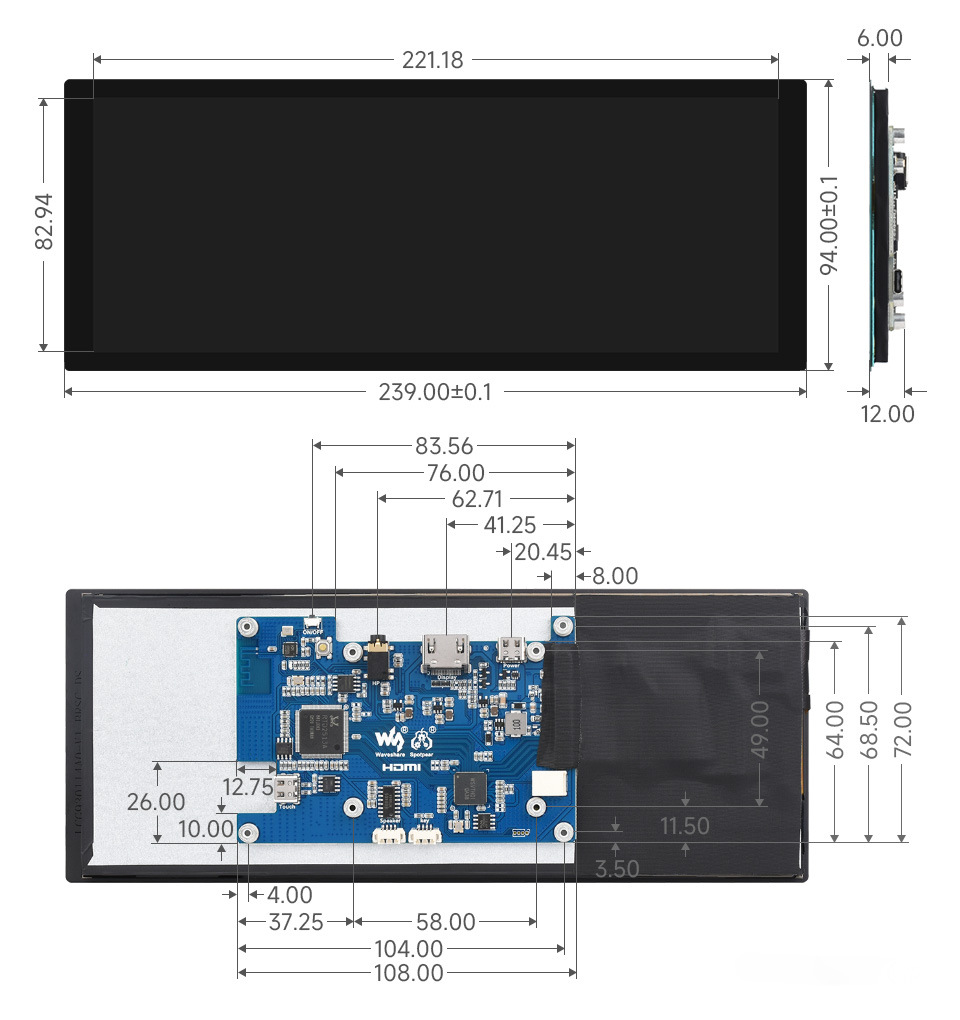

Overall dimensions: 239mm x 94mm

Information for developers (Wiki): www.waveshare.com/wiki/9.3inch_1600x600_LCD

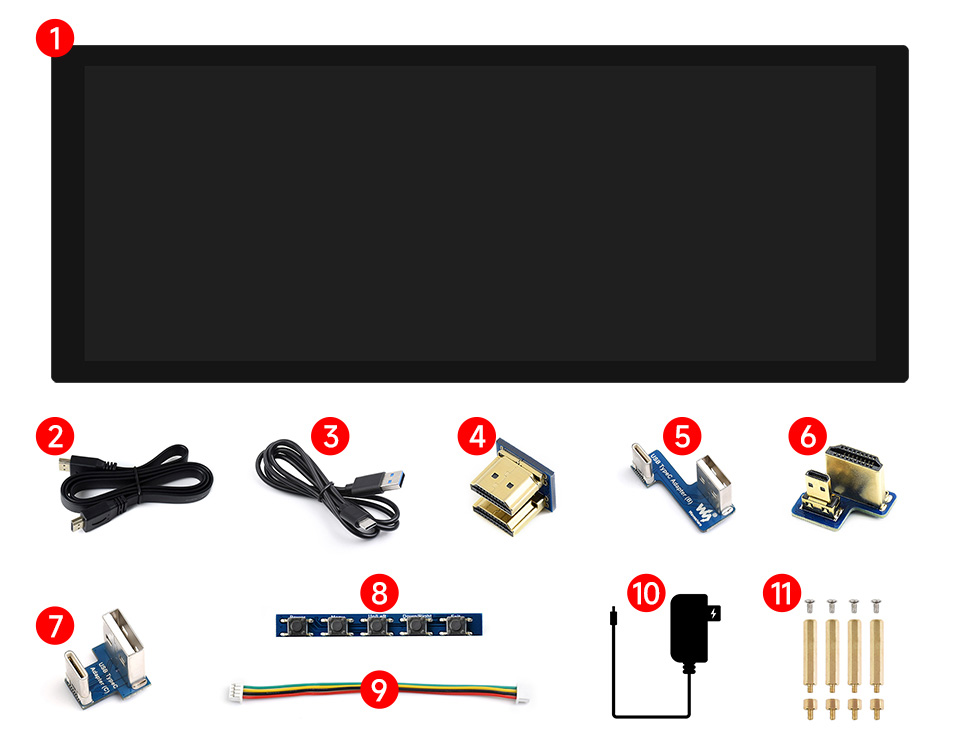

The package includes:

1. 9.3-inch 1600x600 × 1 LCD display
2. HDMI flat cable 1 m × 1
3. USB-A to USB-C cable 1 m × 1
4. HDMI adapter ×1
5. USB to Type-C (B) adapter ×1
6. HDMI to Micro HDMI adapter × 1
7. USB to Type-C (C) adapter ×1
8. Button board ×1
9. Button board cable × 1
10. 5V 3A type C power supply ×1
11. Package of screws × 1 pc

Weight: 0.712 kg
