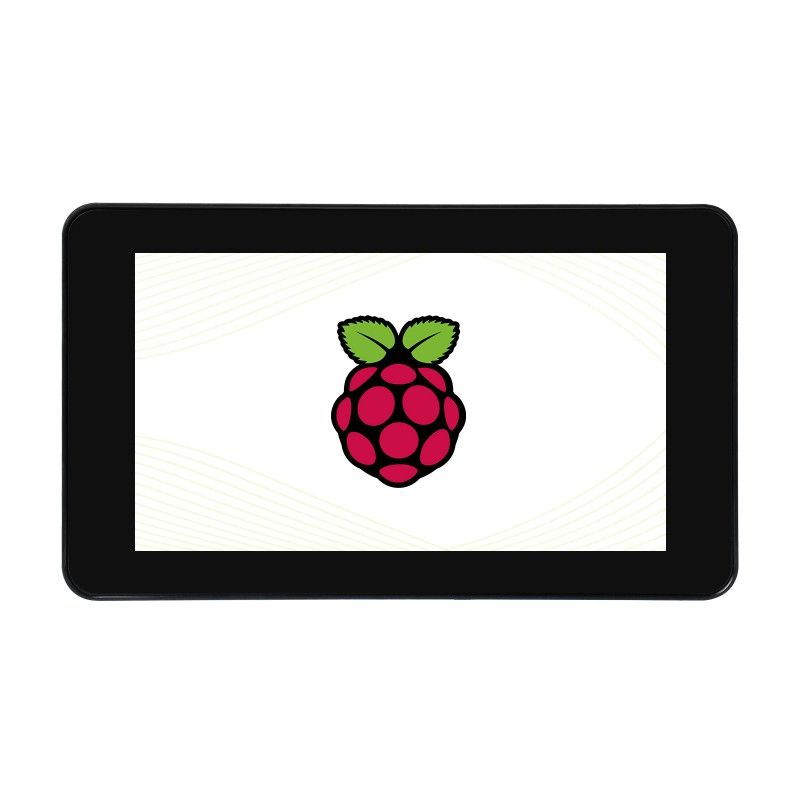

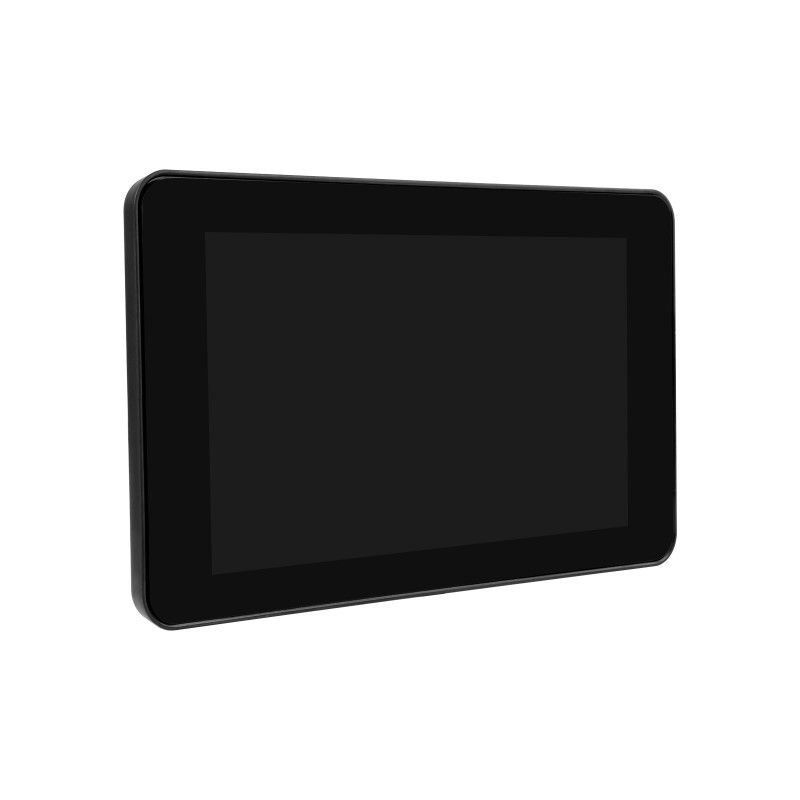

Display 7inch LCD 800x480 DSI Capacitive Touch Screen (19886) in a protective case

The7inch LCD 800x480 DSI Capacitive Touch Screen (19886) in a protective case for the Raspberry Pi 4B model is an expanded version of the 7inch LCD 800x480 DSI Capacitive Touch Screen (19885) due to the use of a special polycarbonate case that protects the display and the Raspberry Pi 4B microcomputer board from external influences. The display has a resolution of 800x480 pixels, a capacitive type sensor, DSI interface for communication and provides operation in an energy-efficient mode.

Main features:

• Screen diagonal: 7"
• Resolution: 800x480 pixels
• Display port: DSI
• Display panel: LED
• Viewing angle: 170 deg.
• Sensor type: capacitive
• Number of control points: 5 points
• Sensor port: I2C
• Front panel: tempered glass
• Screen brightness can be adjusted via software

Supported devices and systems

Raspberry Pi
Support Raspbian, 5-point control, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver
Supports Retropie, no drivers required

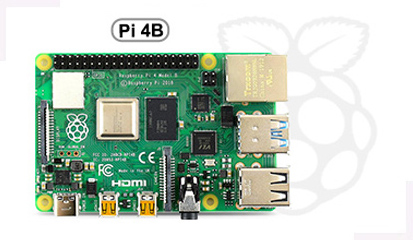

Supports Raspberry Pi 4B versions

An example of connection:

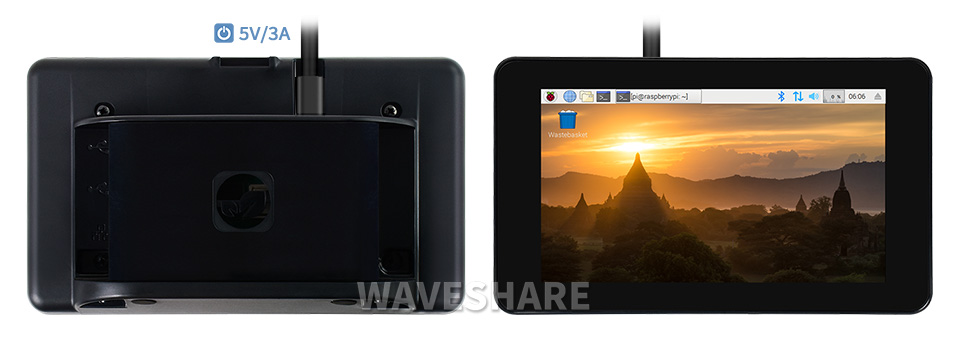

Working with Raspberry Pi 4

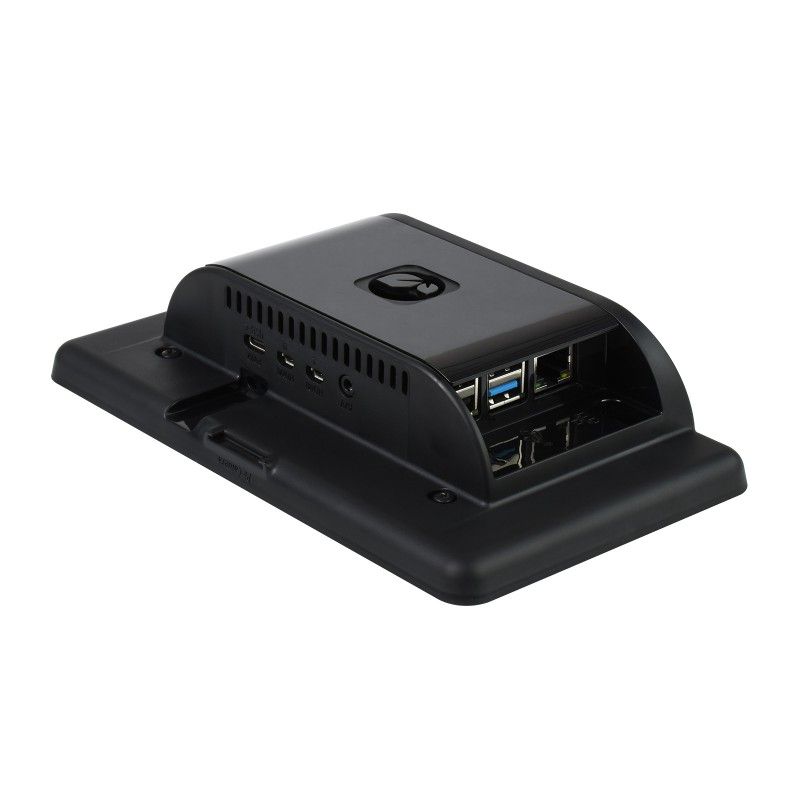

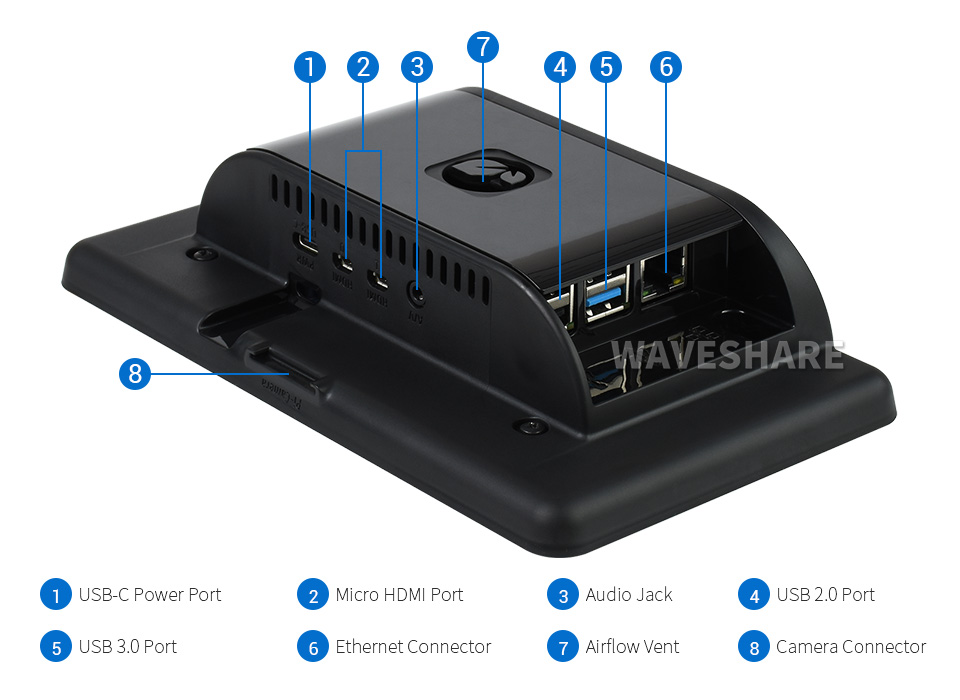

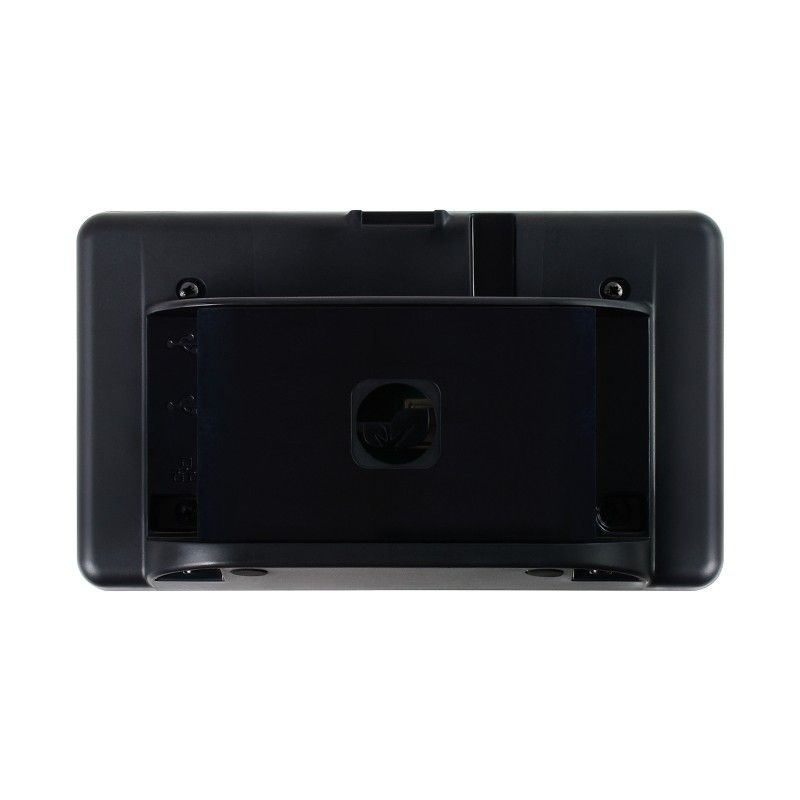

Construction elements:

1. USB-C port for power supply
2. Micro-HDMI port
3. Audio output
4. USB 2.0 port
5. USB 3.0 port
6. Ethernet connector
7. Ventilation holes
8. Camera connector

Installation procedure:

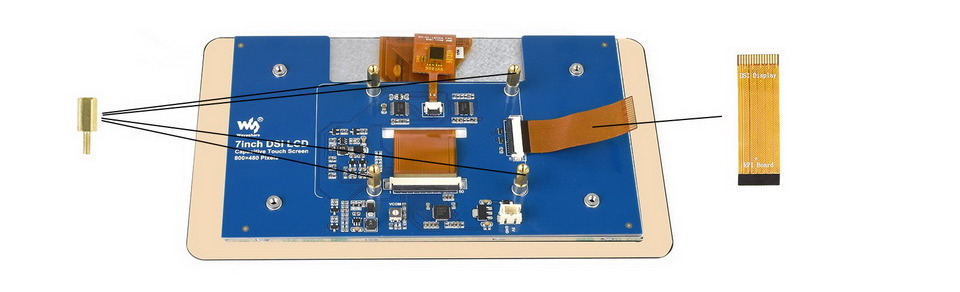

1. Attach the racks and connect the daisy chain cable to the display

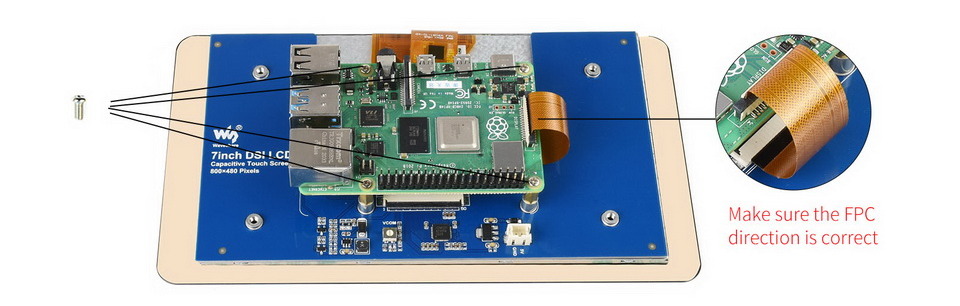

2. Secure the Raspberry Pi 4B microcomputer board to the racks with screws and connect the daisy chain cable to the display connector. (Make sure the cable is installed with the correct side facing up)

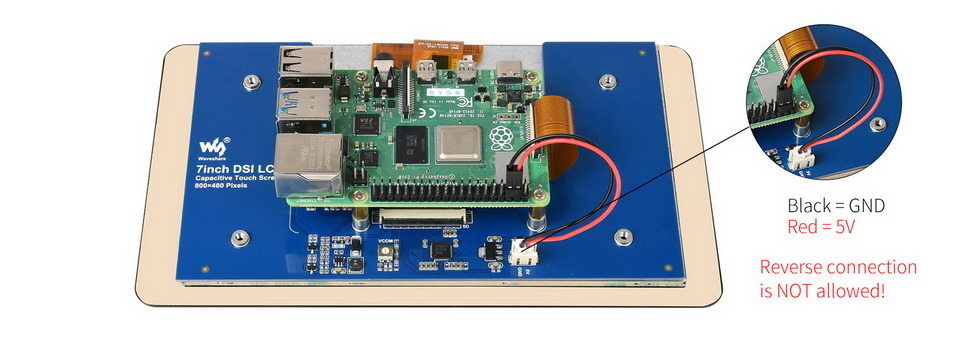

3. Connect the power cable. Black is ground, red is 5V.
   ATTENTION! Reverse polarity is not allowed.

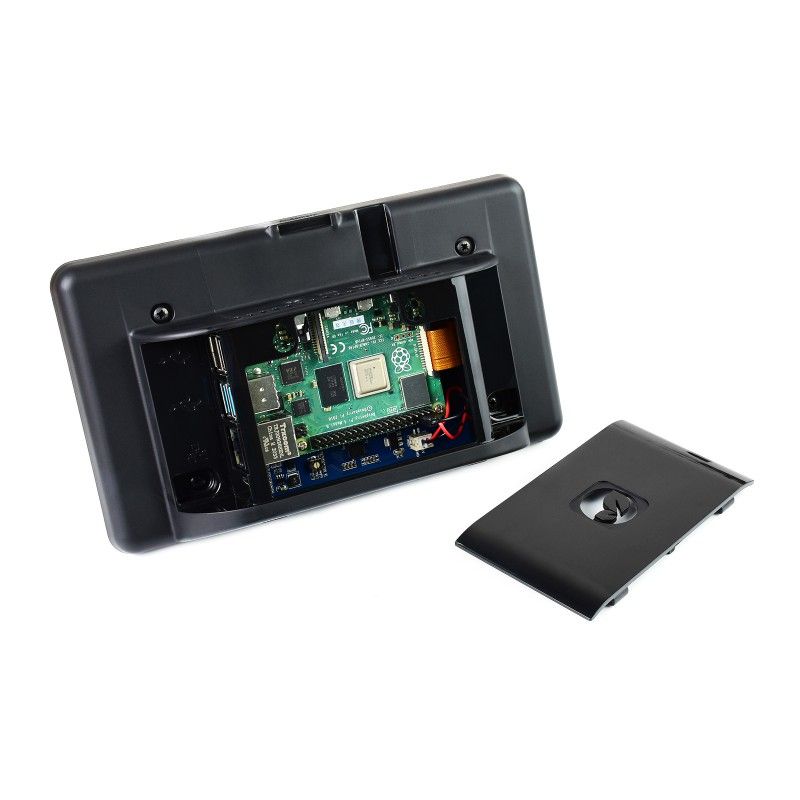

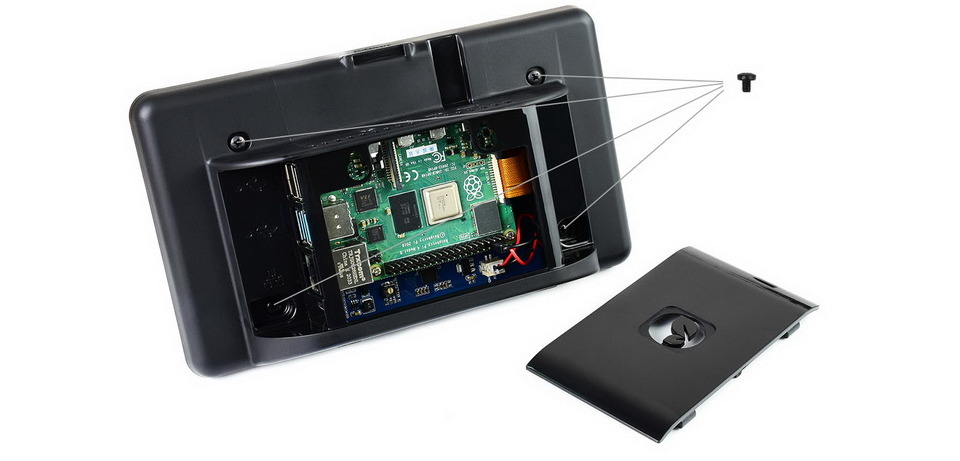

4. Attach the case cover and secure it with screws.

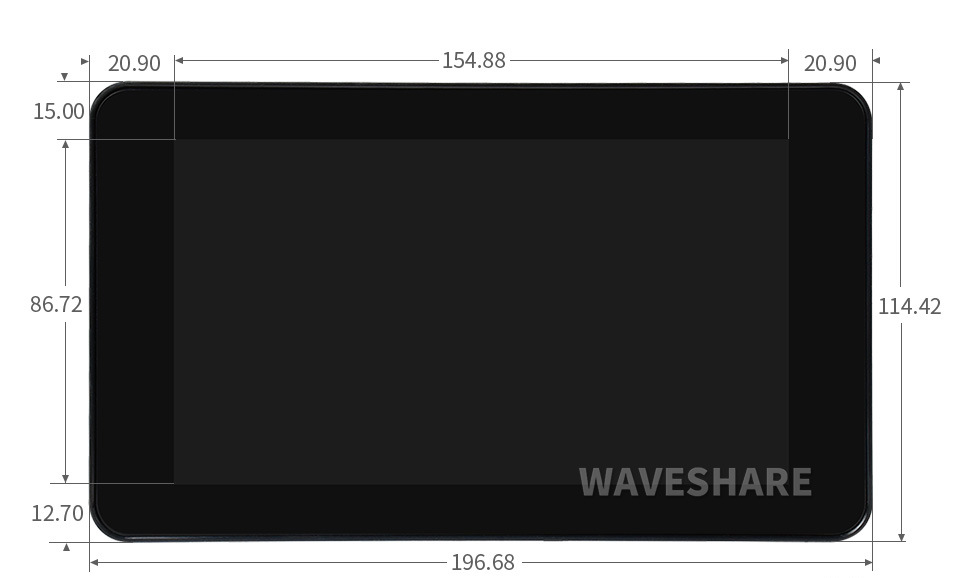

Overall dimensions: 196.68mm x 114.42mm

Resources for developers Wiki: 7inch_DSI_LCD

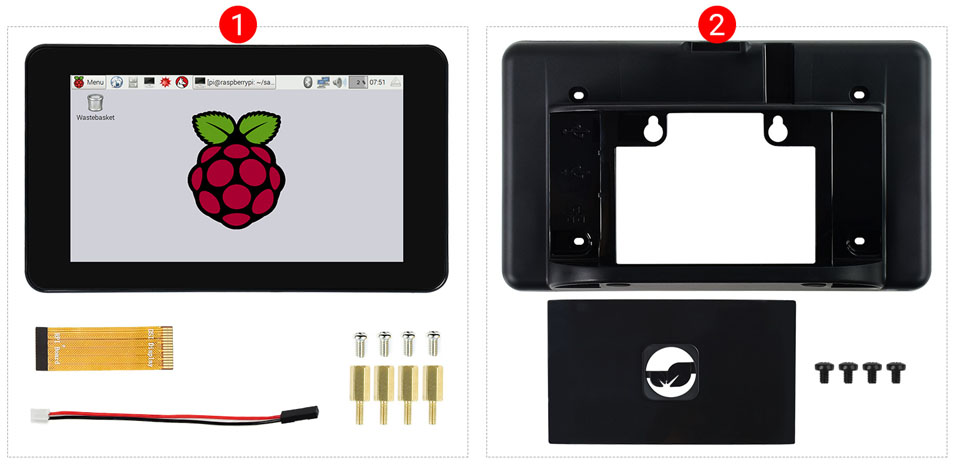

The package includes:

1. Set of 7inch DSI LCD display elements x1
2. Set of housing elements x1

Weight: 0.39 kg
