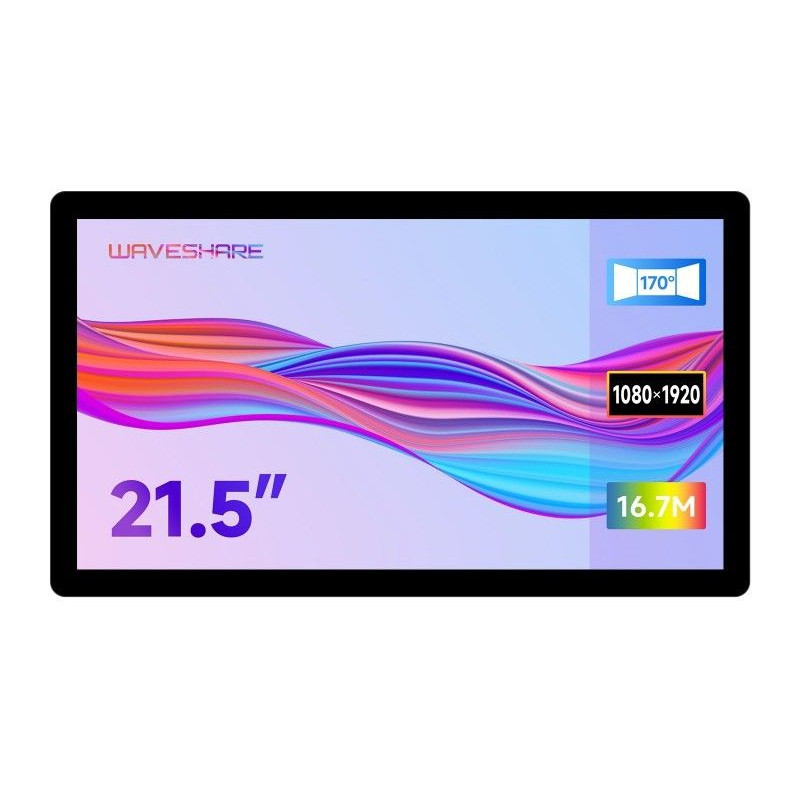

Display 21.5inch FHD LCD

The21.5inch FHD LCD display is a high-quality touchscreen display with a 21.5-inch diagonal, Full HD 1080×1920 resolution and protective tempered glass with optical bonding technology. This display is ideal for use with the Raspberry Pi and Jetson Nano, providing ample opportunities for a variety of projects and applications.

Key Features:

• Display Diagonal: 21.5 inches, providing a large workspace.
• Resolution: 1080×1920 pixels (Full HD), which guarantees a clear and detailed image.
• Sensor type: Capacitive touch screen that supports multi-point touch.
• Optical bonding: Provides better image clarity and reduces glare.
• Screen protector: Tempered glass provides additional protection against mechanical damage.
• Compatibility: Supports Raspberry Pi and Jetson Nano, making the display versatile for a variety of projects.

Advantages:

• Large screen: The 21.5-inch diagonal provides ample space for working and watching multimedia.
• High resolution: Full HD resolution guarantees high-quality images for any task.
• Touchscreen accuracy: The capacitive touchscreen provides accurate and responsive touch.
• Durability and protection: Tempered glass protects the screen from scratches and shocks, and optical bonding improves visibility.
• Wide compatibility: Easily integrates with popular platforms such as Raspberry Pi and Jetson Nano.

Applications:

• Education and development: Ideal for educational projects and app development.

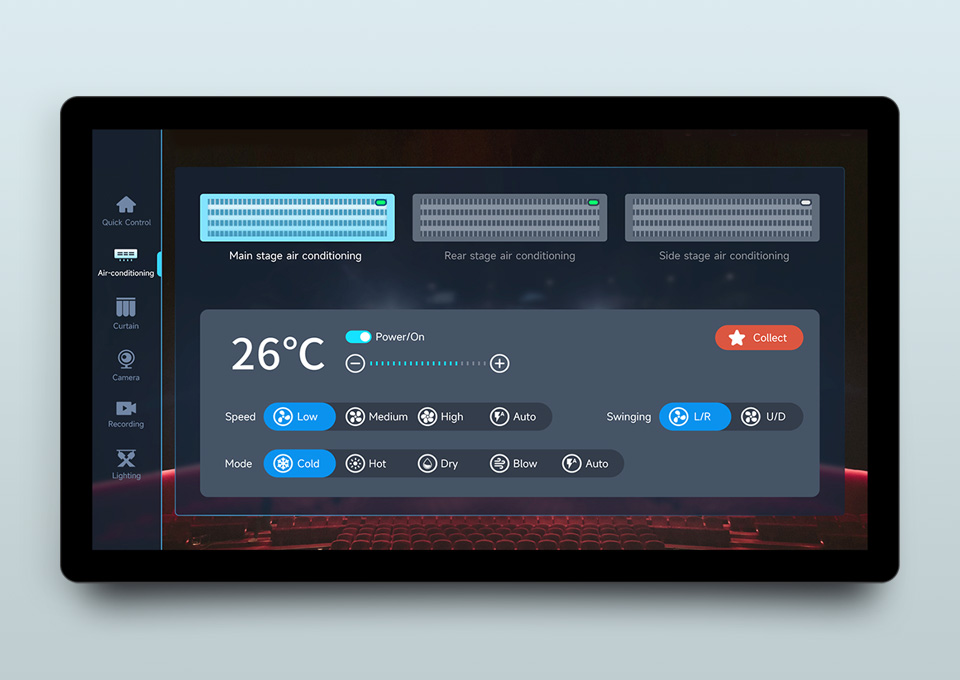

• Interactive kiosks: Used in touchscreen information stands and kiosks.
• Multimedia systems: Suitable for use in home entertainment systems and multimedia centers.
• Industrial applications: Used in automated control and monitoring systems.

Connection examples

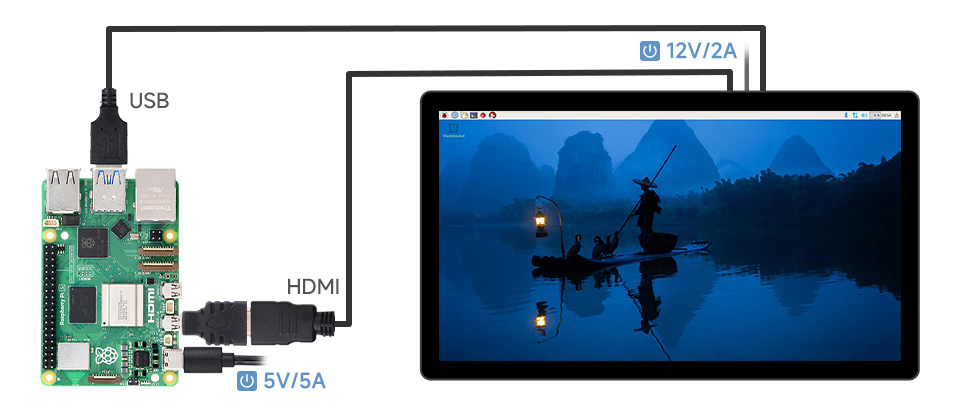

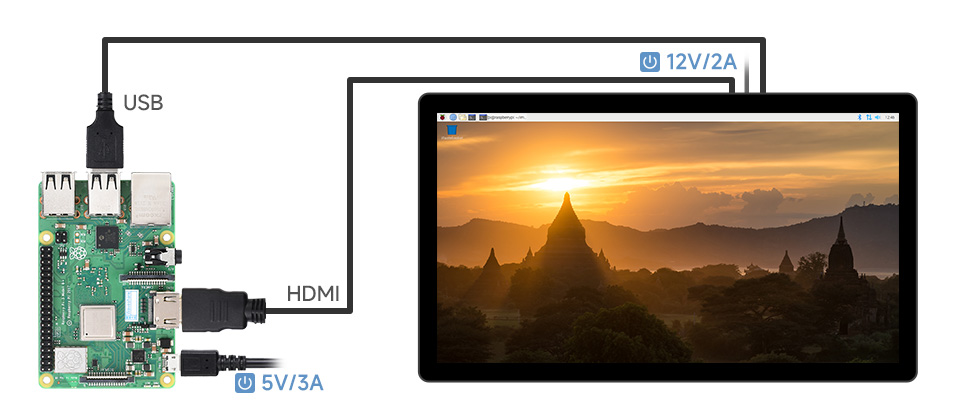

Working with Raspberry Pi 5

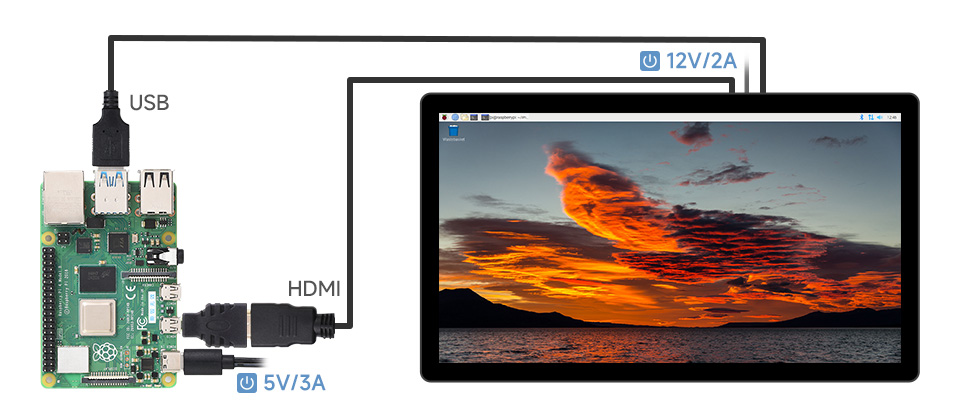

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

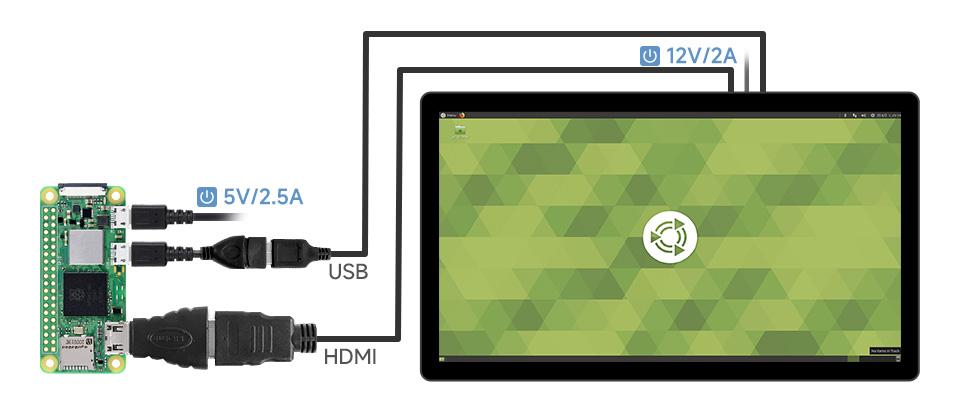

Working with Raspberry Pi 2 W

*An additional mini HDMI adapter and USB cable are required

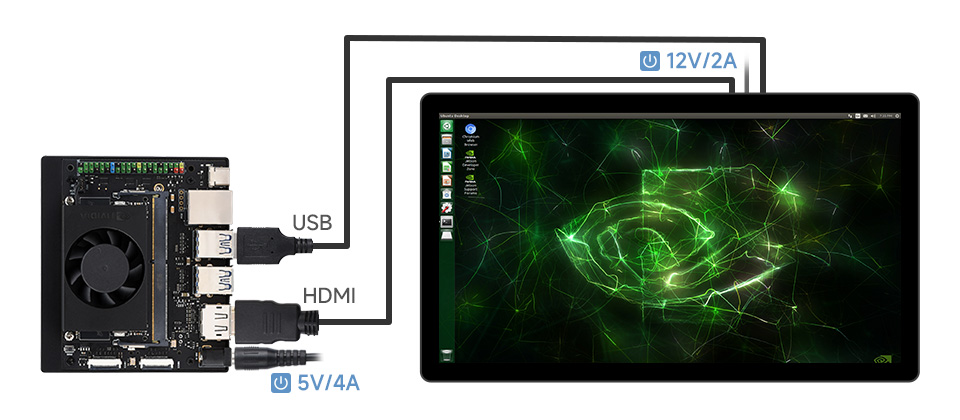

Working with Jetson Nano

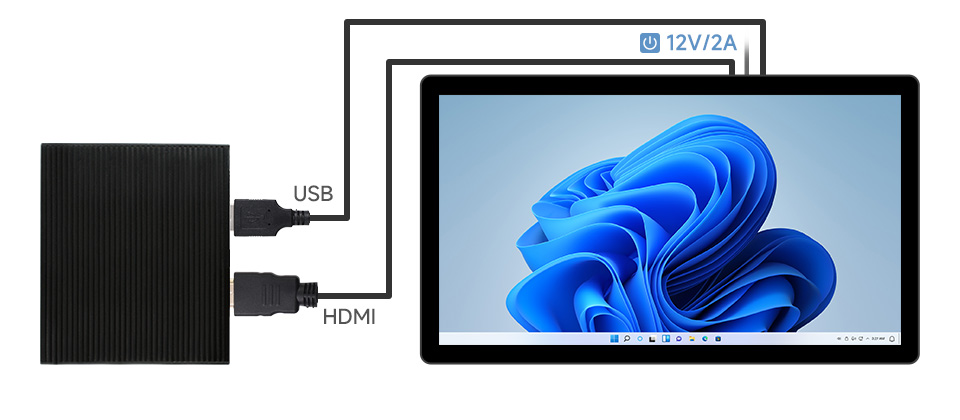

Working with a mini-PC

*For reference only, Raspberry Pi boards and hosts above are NOT included.

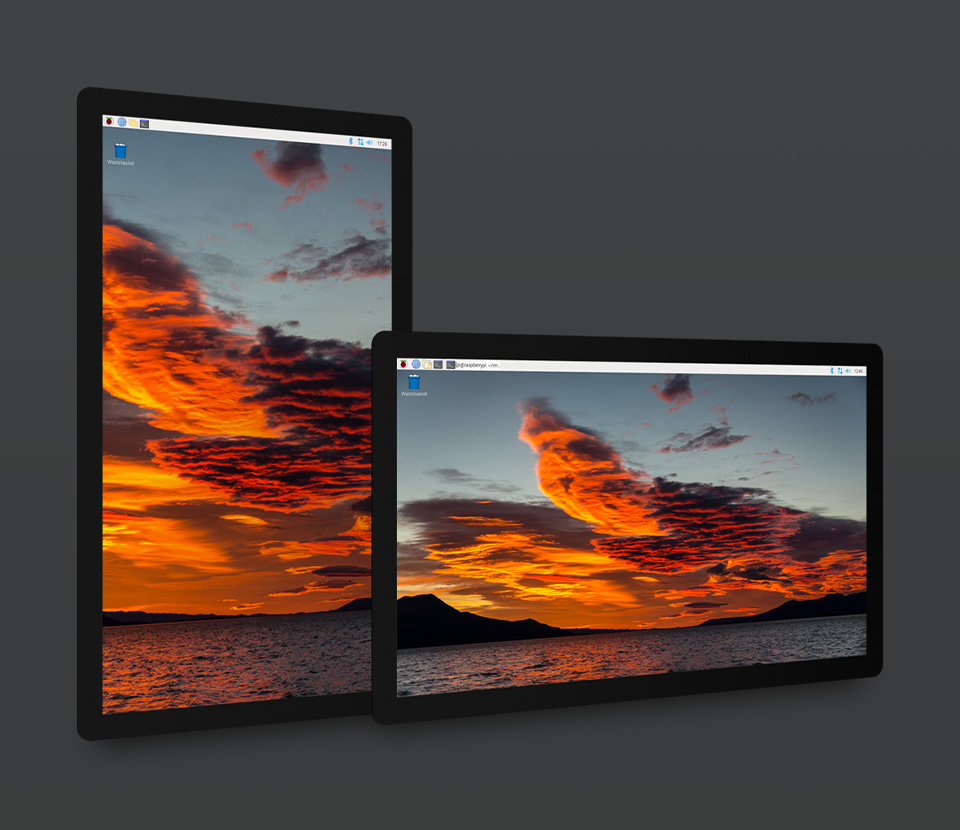

By default, the display orientation is portrait, the resolution is 1080×1920 (H×W).
Change the software configuration for landscape display

10-point capacitive sensor

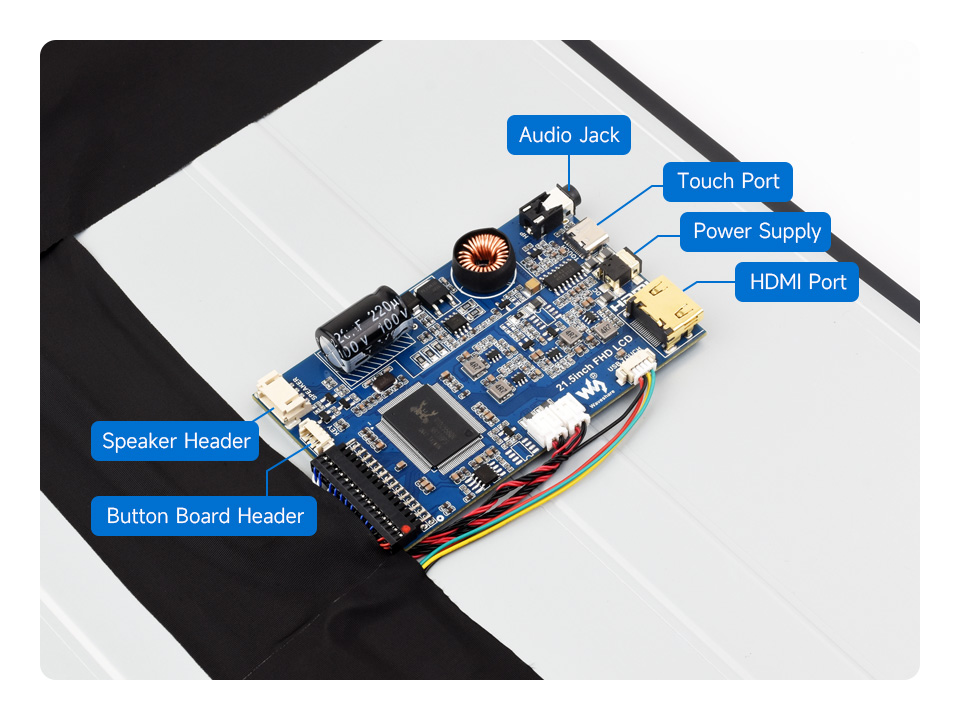

Interfaces:

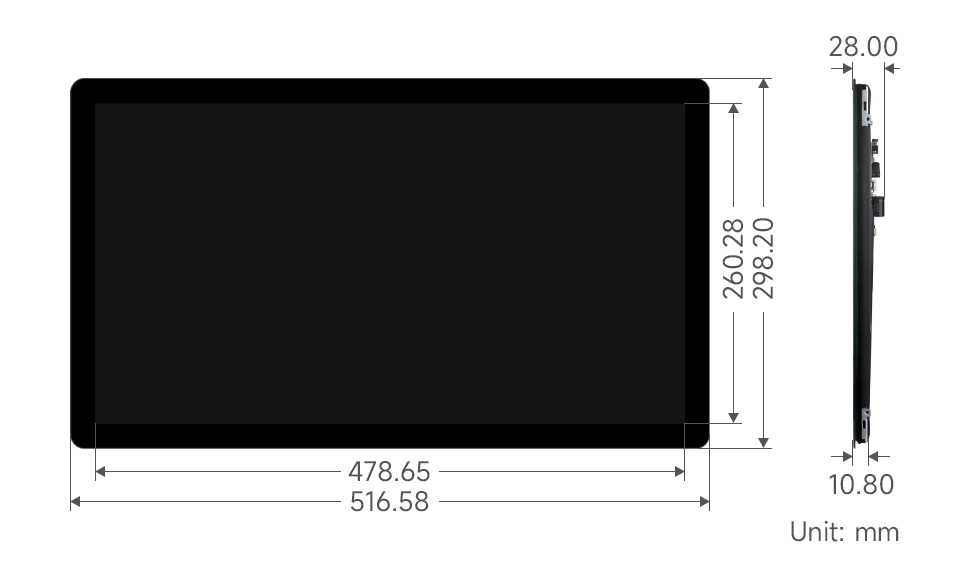

Overall dimensions: 517 mm x 299 mm x 28 mm

Wiki: www.waveshare.com/wiki/21.5inch_FHD_LCD

Weight: 4,573 kg

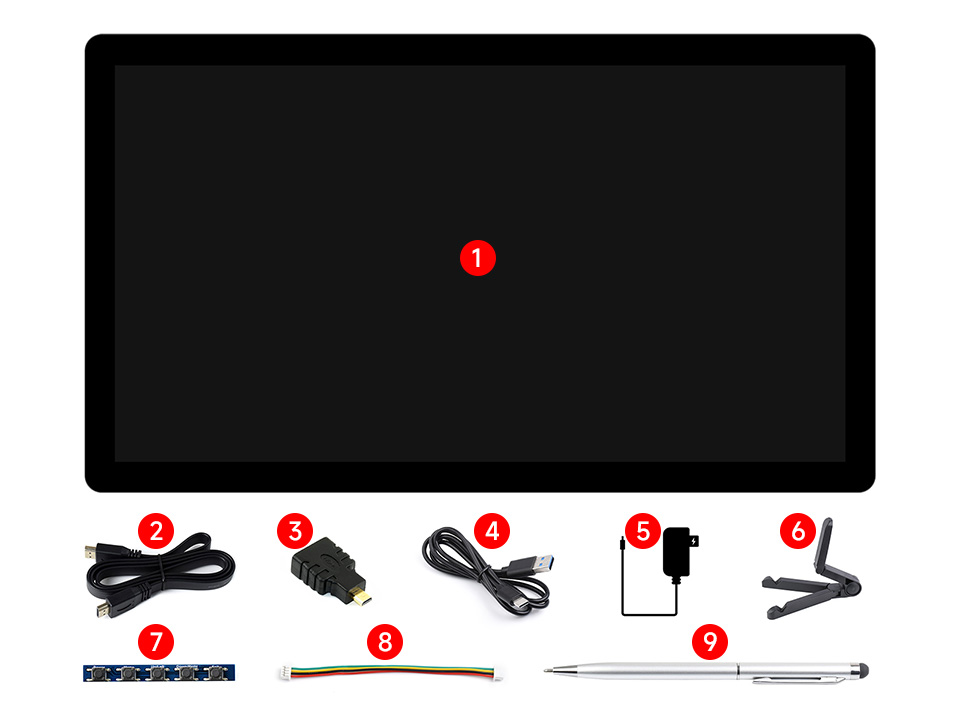

Scope of delivery:

1. 21.5" FHD LCD x1
2. HDMI cable 1m x1
3. HDMI to Micro HDMI adapter x1
4. USB Type A to Type C cable 1 m x 1 m
5. 12 V 2 A power adapter x1
6. Triangular stand x1 pc
7. Button panel x1
8. 1.27H 4PIN button board cable x1
9. Capacitive touch pen x1
