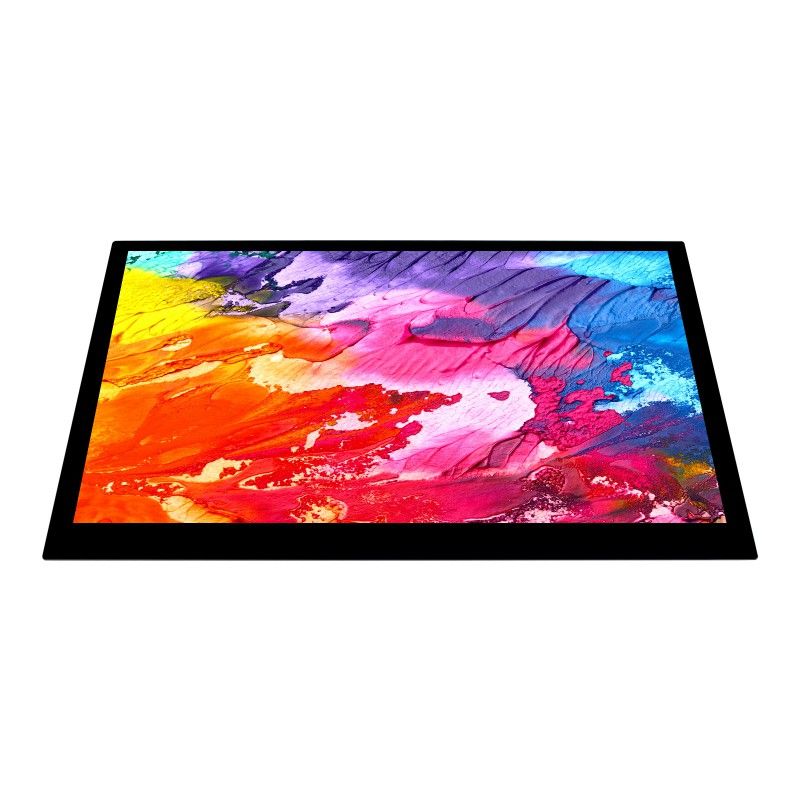

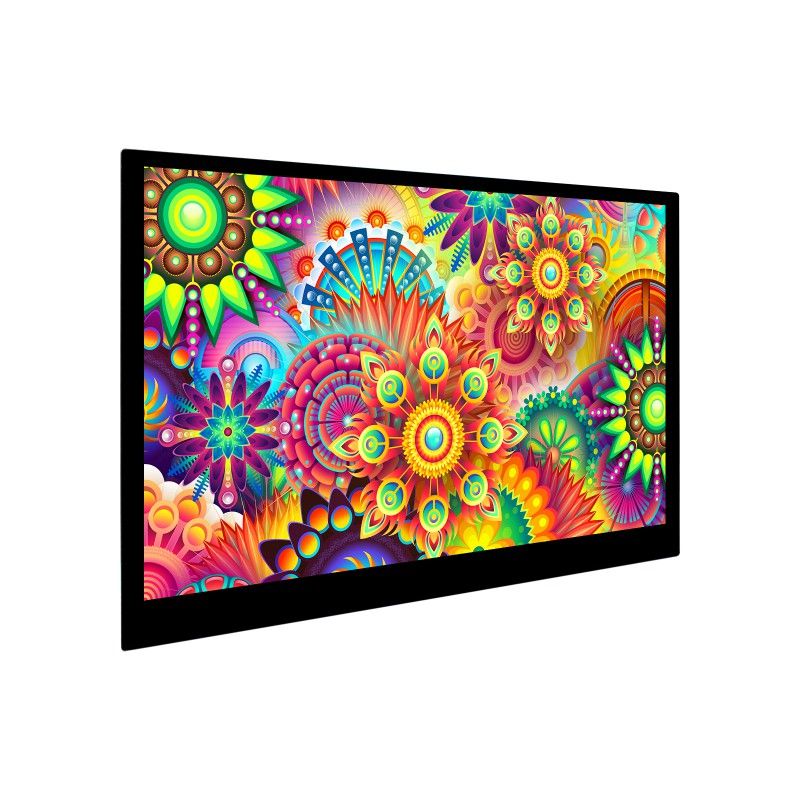

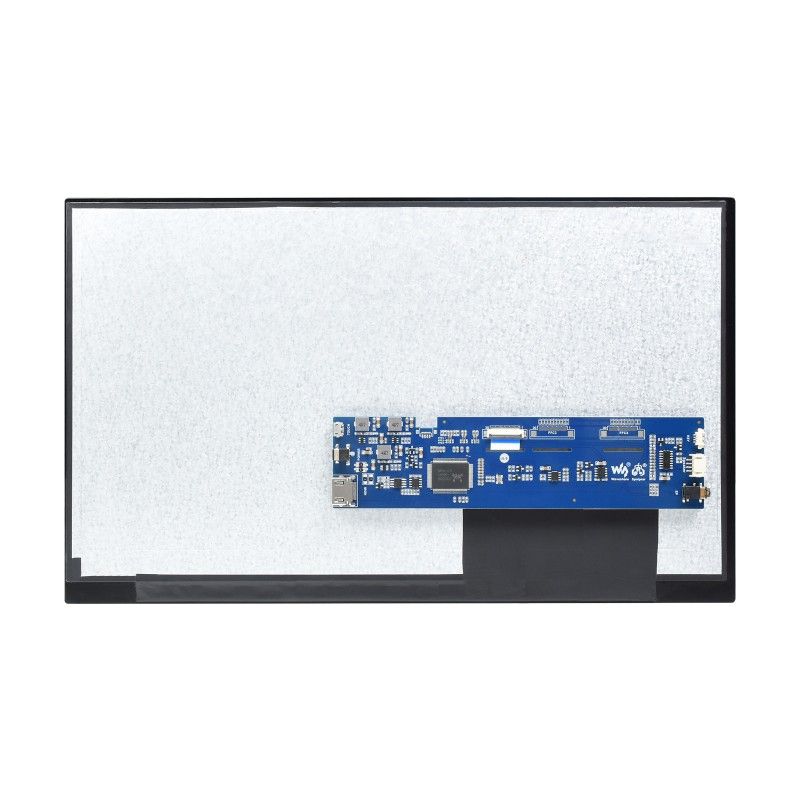

Display 15.6HP-CAPQLED (EU) (23015)

The15.6HP-CAPQLED (EU) (23015 ) is a 15.6-inch QLED display with a resolution of 1920 × 1080 pixels. It uses quantum dot technology (QLED) to achieve a wider color gamut, enhanced contrast, and brightness. The display has In-Plane Switching (IPS) technology, which provides wide viewing angles and accurate color reproduction. Additionally, optical bonding is used to bond the glass to the display, reducing glare and improving contrast.

The display panel is made of toughened glass, which gives it high strength and resistance to damage. This display is capable of reproducing 100% of the sRGB color palette, ensuring accurate color reproduction according to the standard.

Additionally, this display is a touch screen, allowing you to interact with it directly by touching the screen to perform actions and manage content.

Key Features:

• Size: 15.6″
• Resolution: 1920×1080
• Display interface: HDMI
• Display panel: IPS
• Viewing angle: 178°
• Backlight: QLED Quantum Dot
• Type of touch: capacitive
• Touch points: 10 points
• Touch port: USB
• Touch panel: tempered glass
• On-screen menu: Brightness / Contrast
• Audio output: 13.5 mm jack
• Audio output: 24PIN connector
• Touch panel technology: optical bonding
• Games: Xbox360/PS4/Switch

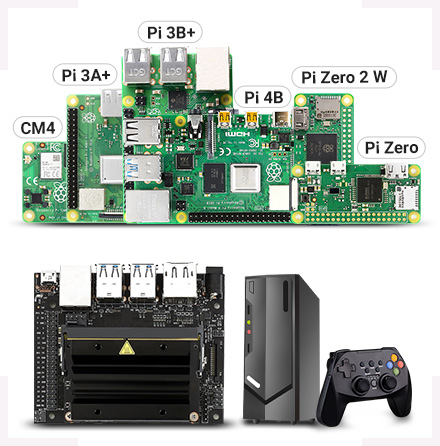

Supported devices and systems

Raspberry Pi

Support Raspberry Pi OS, 10-point control, no driver
Support Ubuntu / Kali / WIN10 IoT, one touch, no driver required
Supports Retropie, no drivers required

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point control, no drivers required

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point control, no drivers

Game console
Xbox360, PS4, SWITCH ...

Example of connection:

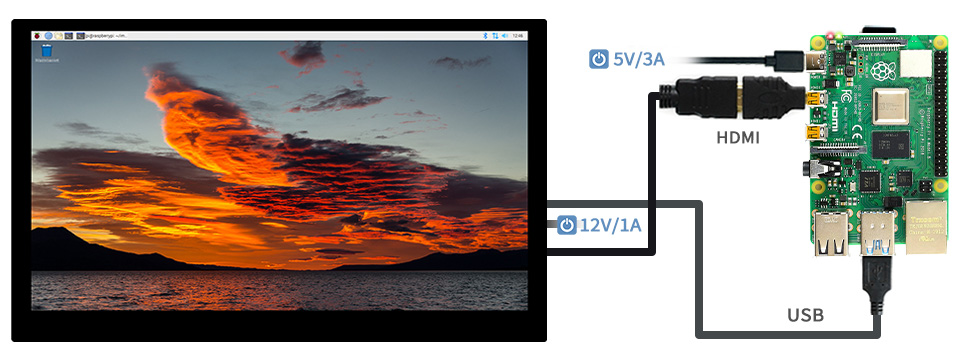

Working with a Raspberry Pi 4

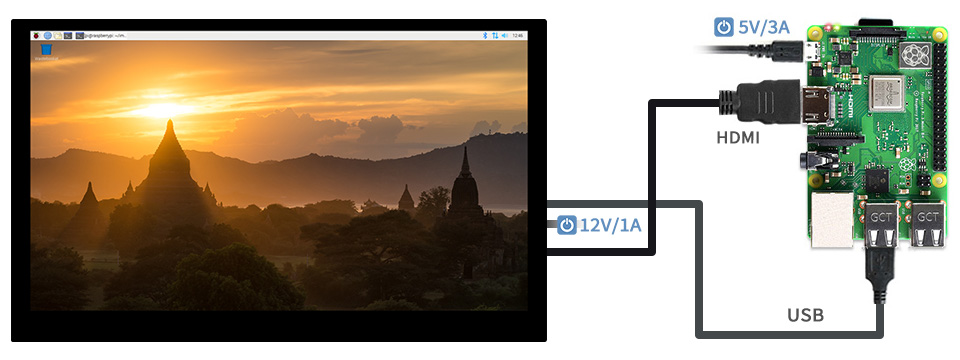

Working with Raspberry Pi 3B+

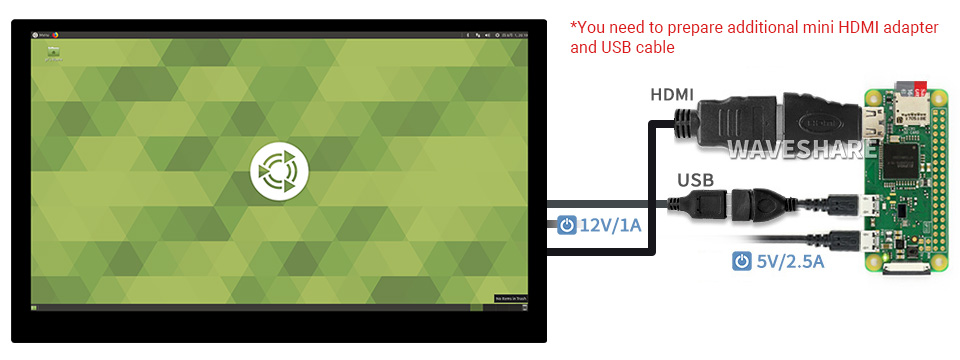

Working with Raspberry Pi Zero 2W

Attention: Use the HDMI to Micro HD adapter with the HDMI cable.

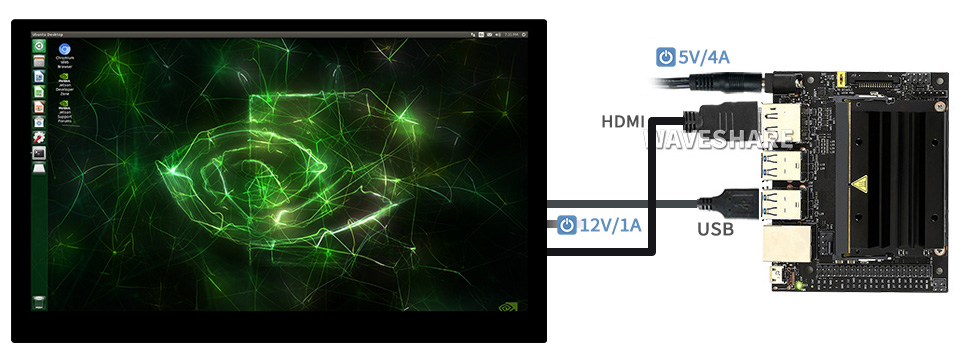

Working with Jetson Nano

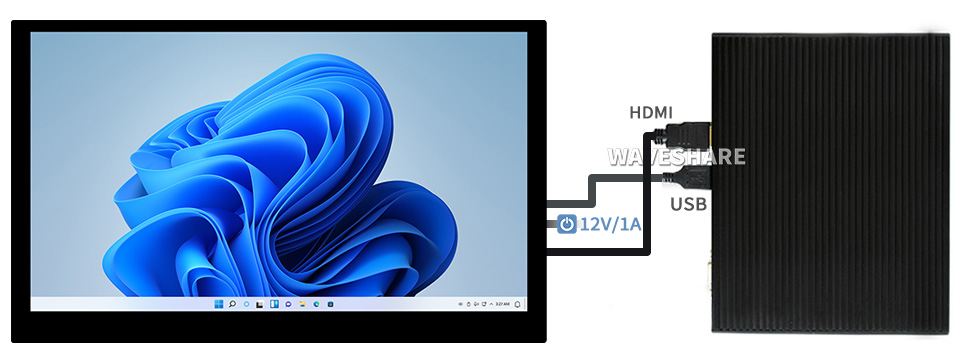

Working with mini PC

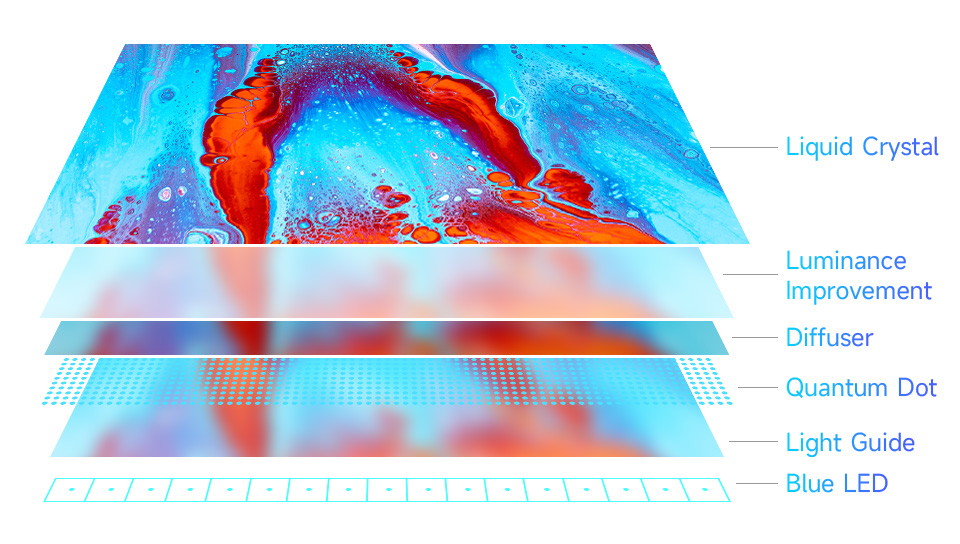

QLED Quantum Dot Technology (QLED Quantum Dot Technology)

Extended Gamut: The color gamut of this QLED display reaches: NTSC 100%, SRGB 100%, Adobe RGB 99%, DCI-P3 97%

Improved color reproduction: QLED colors are increased by 58.3%, makes the color more pure, vivid

EXTENDED SERVICE LIFE: Due to the inorganic characteristics, the lifespan of QLED LED can be up to 60,000 hours without color degradation.

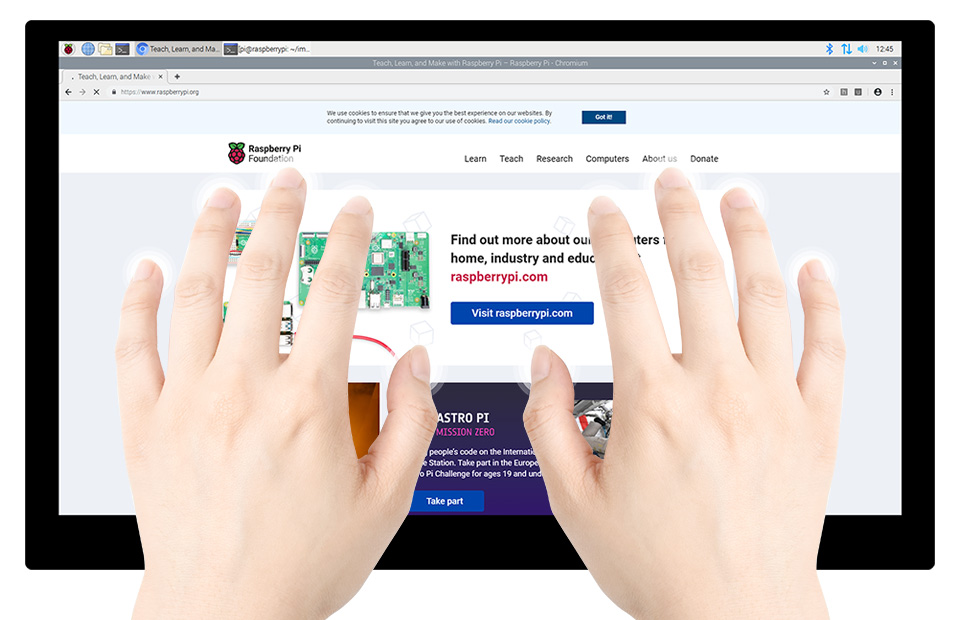

Touch control (capacitive sensor). Up to 10 control points. The front panel is made of tempered glass.

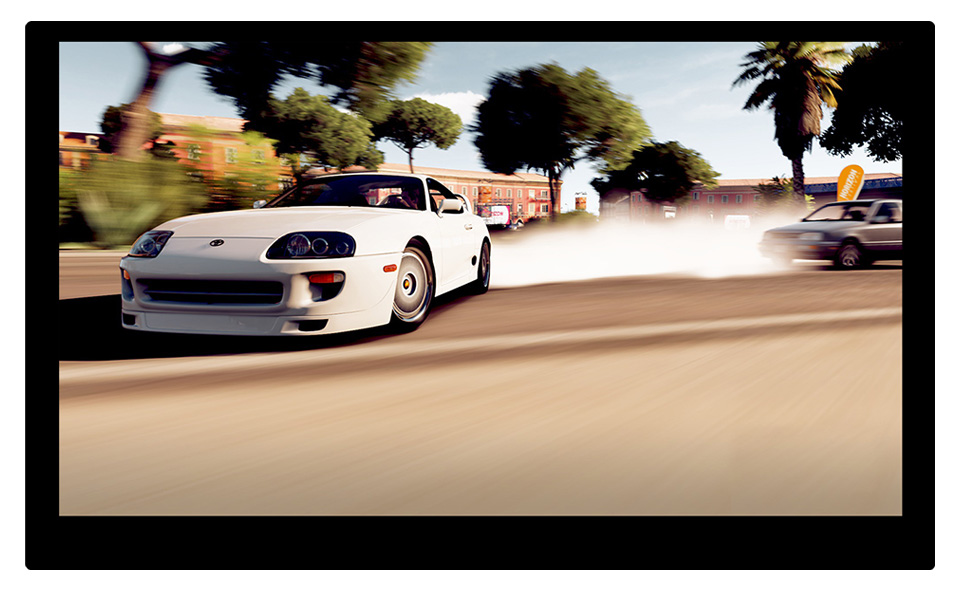

The display supports operation with Xbox360 / PS4 / SWITCH game consoles... (display and sound only. Sound via headphone output or speaker jack)

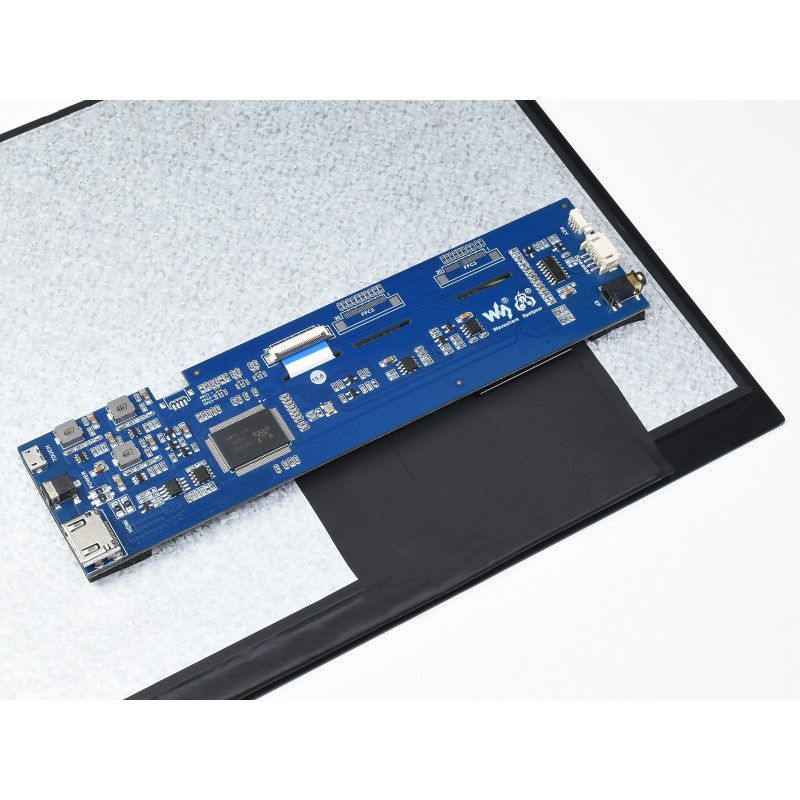

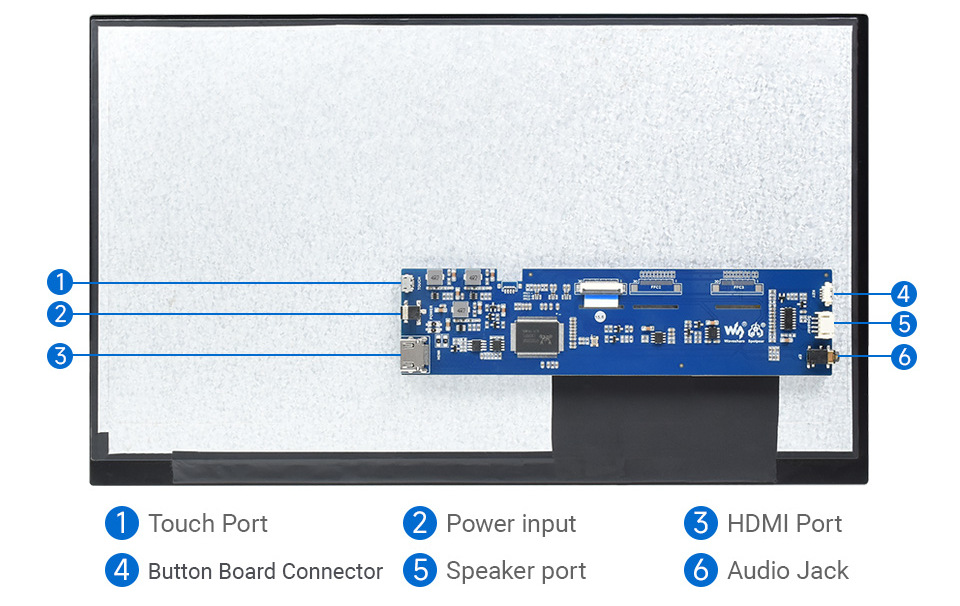

Elements of construction:

1. Touch port
2. Power connector
3. HDMI port
4. Button panel connector
5. Speaker connector
6. Audio jack

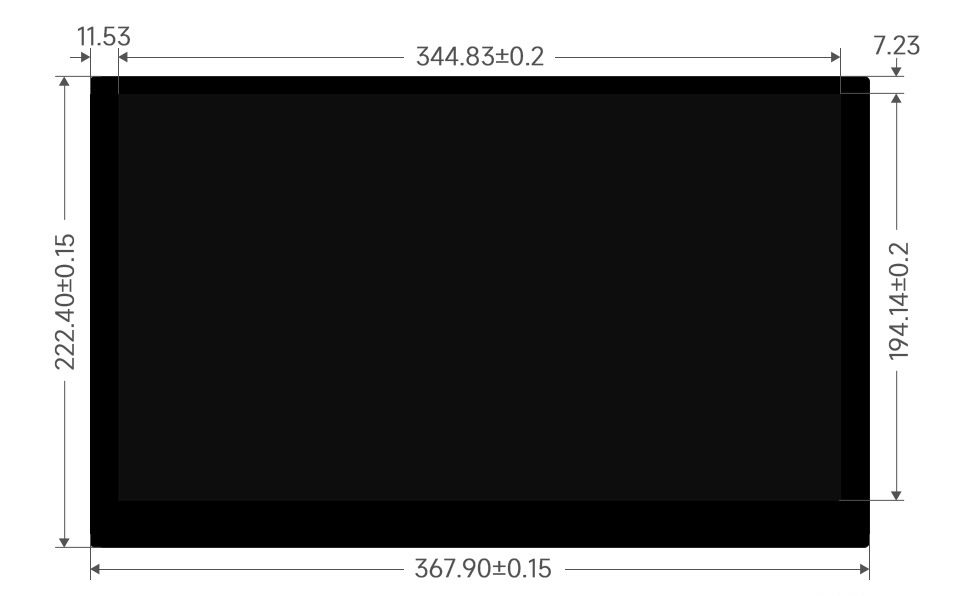

Overall dimensions: 367.9mm x 222.4mm

Resources for Wiki developers: 15.6HP-CAPQLED

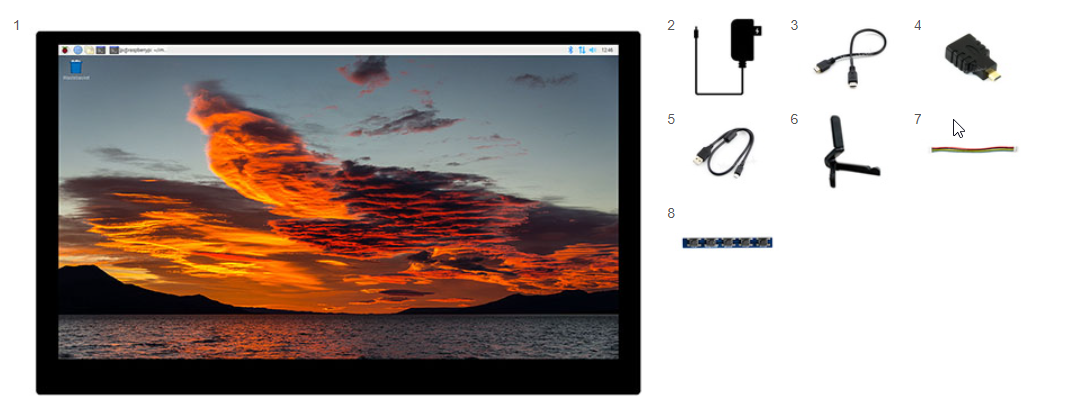

Package contents:

1. 15.6 HP-CAPQLED x1
2. Power adapter x1
3. HDMI cable x1
4. HDMI to Micro HDMI adapter x1
5. USB-A to Micro-B cable x1
6. Triangular stand x1 pc
7. Button board cable x
8. Button panel x1

Weight: 1,508 kg
