Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)

Brand: Waveshare Product Code: 11557
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
Out Of Stock
£79.20
Compatibility:Raspberry Pi, Jetson Nano, Arduino, Banana Pi, BeagleBone, Asus
Connectivity:HDMI
Country of origin:Made in China
Display type:TFT/IPS
Resolution:1024 x 600
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Display 10.1inch LCD 1024x600 HDMI Capacitive Touch Screen (11557)
£79.20
Description

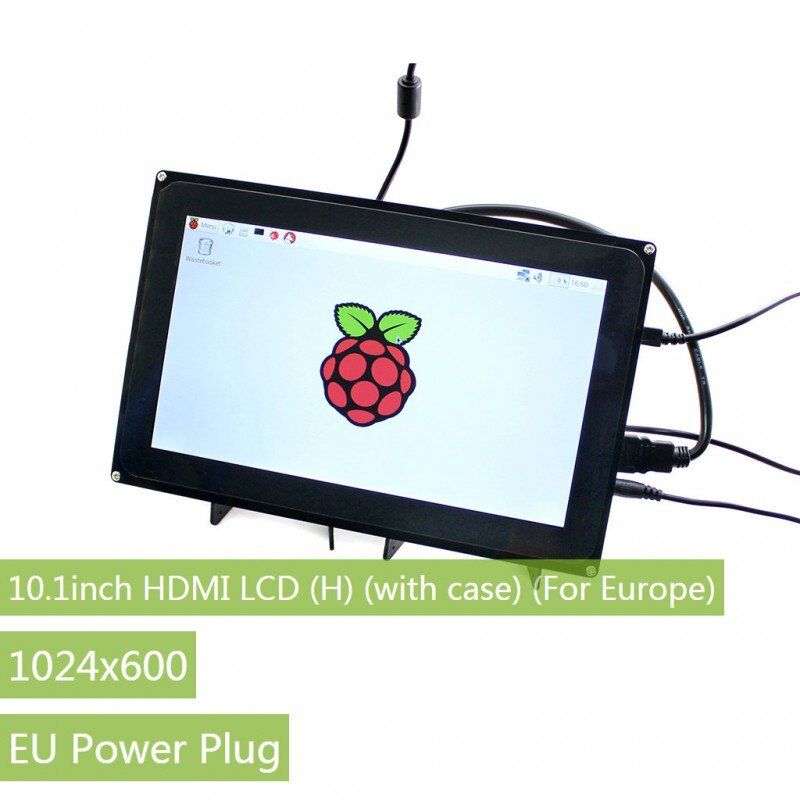

The 10.1inch HDMI LCD (H) (with case) (For Europe) has the following specifications:

  • 1024x600 resolution
  • Capacitive touch control
  • Supports popular mini-PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as regular desktop computers.
    When working with Raspberry Pi, it supports Raspbian / Ubuntu, one-touch and driverless
    When working with BB Black, the Angstrom image is provided
  • When working as a computer monitor, supports Windows 10 / 8.1 / 8/7, one touch and no drivers
  • Multiple video input interfaces: HDMI, VGA and AV (CVBS)
  • Multilingual OSD menu for power management, brightness / contrast adjustment, etc.
  • Supports 100-level backlight adjustment
  • Firmware can be upgraded to support new features (constantly updated)

Note: Additional cables are required to use the LCD with the following mini-PCs and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB type A to Micro-B connector
BB Black: HDMI cable

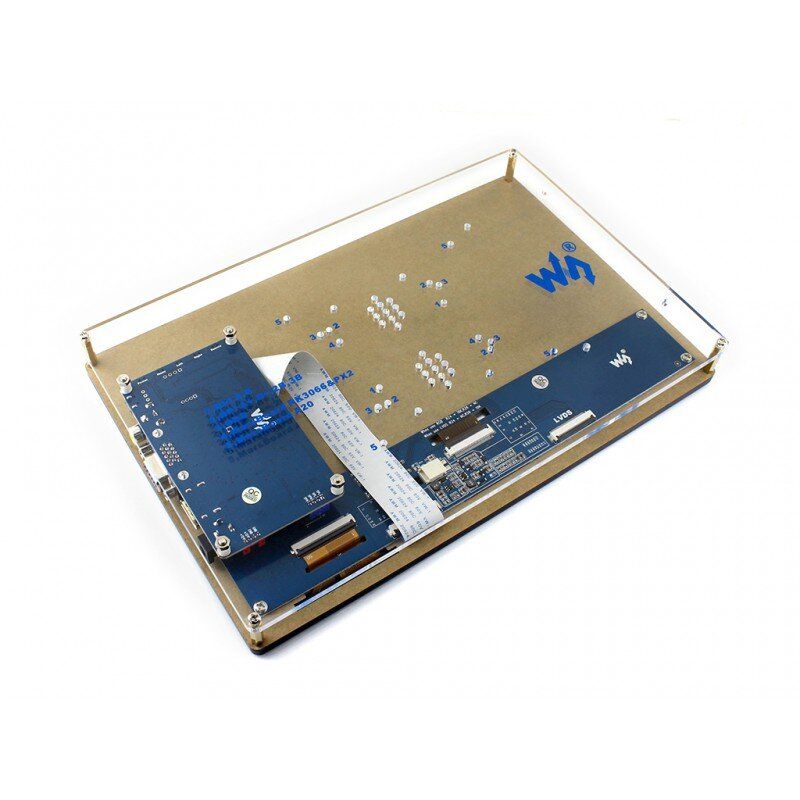

case:
Material: high quality transparent acrylic

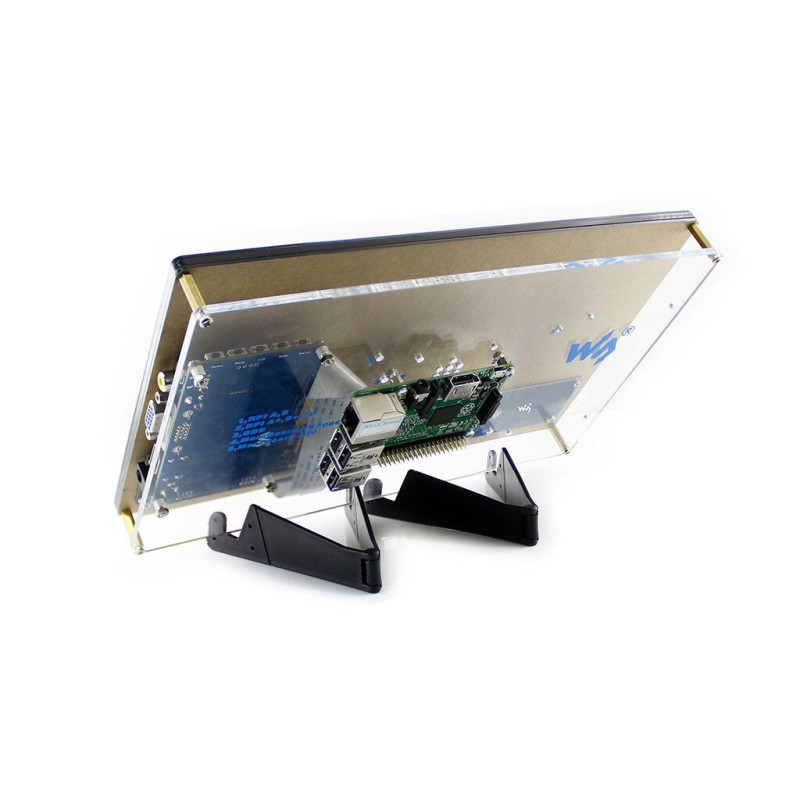

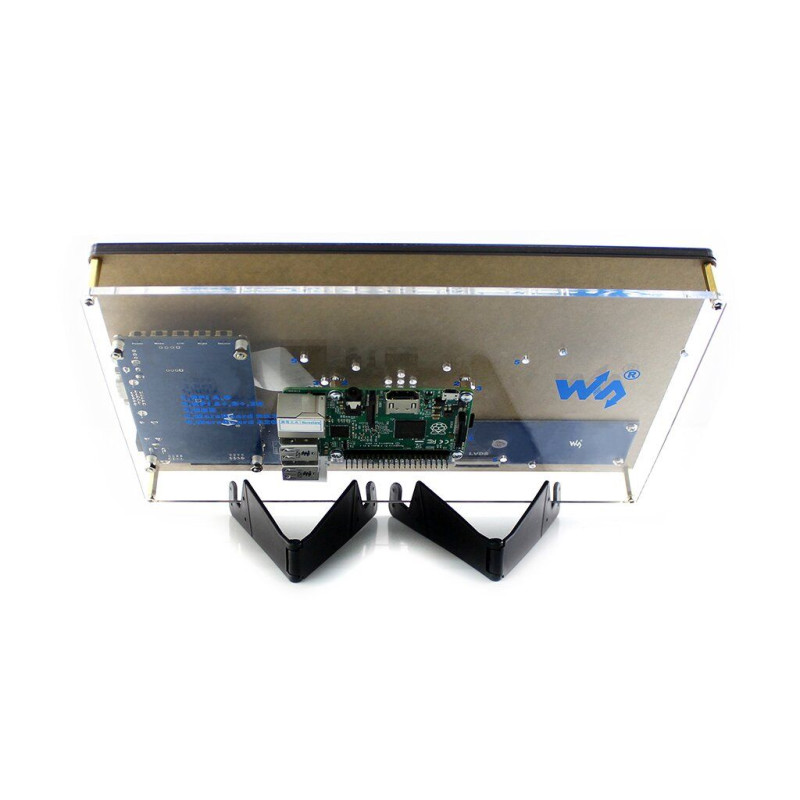

Comes with a bottom holder, 45° tilt angle
Features mounting holes for Raspberry Pi 3B + / 3B / 2B / B + / A + / B and BB Black

Used with game consoles:

Type. Microsoft XBOX Sony PS4 Nintendo Switch
Display. Sound Display Sound Display Sound
3.5inch HDMI LCD √ √ √ √ √ √
4.3inch HDMI LCD (B) √ √ √ √ √ √
5inch HDMI LCD (G) √ √ √ √ √ √
5inch HDMI LCD (H) √ √ √ √ √ √
7inch HDMI LCD √ × √ × √ ×
7inch HDMI LCD (H) √ √ √ √ √ √
10.1inch HDMI LCD √ × √ × √ ×
10.1inch HDMI LCD (B) × × × × √ ×
10.1inch HDMI LCD (H) √ √ × × √ √
11.6inch HDMI LCD (H) √ √ √ √ √ √
13.3inch HDMI LCD (H) V2 √ √ √ √ √ √
15.6inch HDMI LCD (H) √ √ √ √ √ √

Note:

  • Game console OS limited, touch function not available.
  • Audio support means that the game console can output audio through the built-in LCD speaker, external speaker interface, or headphone jack.

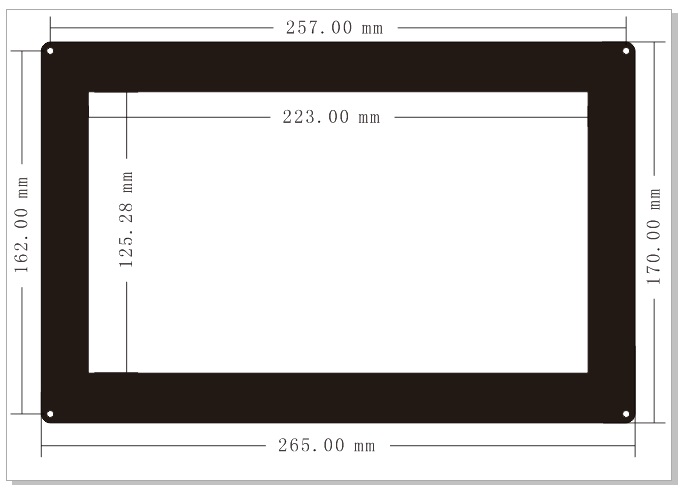

Overall dimensions:

Information for developers: demo codes, schematics, data tables, etc.

www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Package includes:

  1. 10.1inch HDMI LCD (H) - 1 pc.
  2. HDMI LCD control board - 1 pc.
  3. HDMI cable - 1 pc.
  4. HDMI to Micro HDMI adapter - 1 pc.
  5. USB type A plug to micro B cable - 1 pc.
  6. 40-pin FFC cable - 1 pc.
  7. Case - 1 pc.
  8. Mounting kit - 1 pc.
  9. Stand legs - 2 pcs.
  10. Power adapter (Euro standard) - 1 pc.
  11. Instruction manual - 1 pc.

1. 2. 3. 4. 5. 6.

7+8. 9. 10. 11.

Weight: 1.179 kg

Model selection guide:

Name Display Sensor Sound Supported devices
Resolution Prt display Panel
of the display		 viewing angle
viewing angle		 Type
sensor		 port
of the sensor		 The panel
sensor		 speaker output
signal		 Pi JETSON NANO PC
GPIO Displays
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT - resistive SPI - × × √ × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° resistive SPI - × × √ × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT - resistive SPI - × × √ × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT - resistive SPI - × × √ × ×
3.5inch HDMI LCD 480×320 HDMI IPS 160° resistive SPI - × √ √ × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° resistive SPI - × √ √ × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° capacitive USB - × √ √ √ √
4.3inch DSI LCD 800×480 DSI IPS 160° capacitive I2C Tempered glass × × √ × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × √ × ×
5inch HDMI LCD 800×480 HDMI TFT - resistive SPI - × × √ × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT - resistive SPI - × × √ × ×
5inch HDMI LCD (B) 800×480 HDMI TFT - resistive USB - × × √ × √
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT - resistive USB - × × √ × √
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT - resistive USB - × √ √ × √
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT - capacitive USB Tempered glass × √ √ √ √
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° capacitive USB Tempered glass × √ √ √ √
5.5inch HDMI AMOLED (with case) 1080×1920 HDMI AMOLED 170° capacitive USB Tempered glass × √ √ × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × √ × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT - capacitive USB - × × √ × √
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT - capacitive USB - × × √ × √
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° capacitive USB - × × √ × √
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° capacitive USB - × × √ × √
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° capacitive USB - × √ √ √ √
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° capacitive USB Tempered glass × √ √ √ √
10.1inch HDMI LCD 1024×600 HDMI IPS 170° resistive SPI - × × √ × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT - capacitive USB - × × √ √ √
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° capacitive USB Tempered glass × × √ × √
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° capacitive Type-C / USB Tempered glass √ √ √ √ √
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° capacitive USB Tempered glass √ √ √ √ √
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° capacitive Type-C / USB Tempered glass √ √ √ √ √

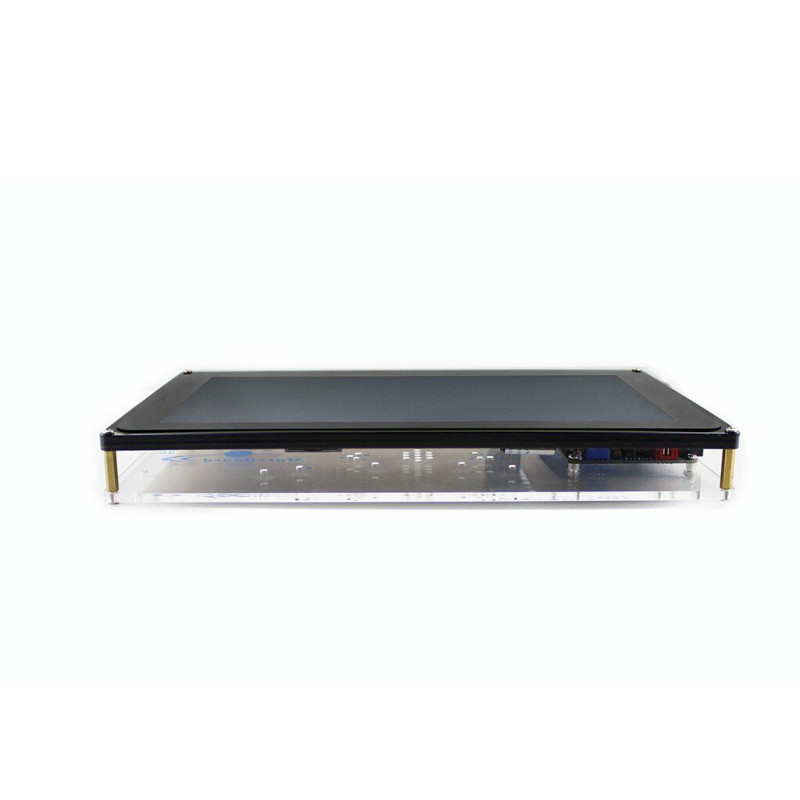

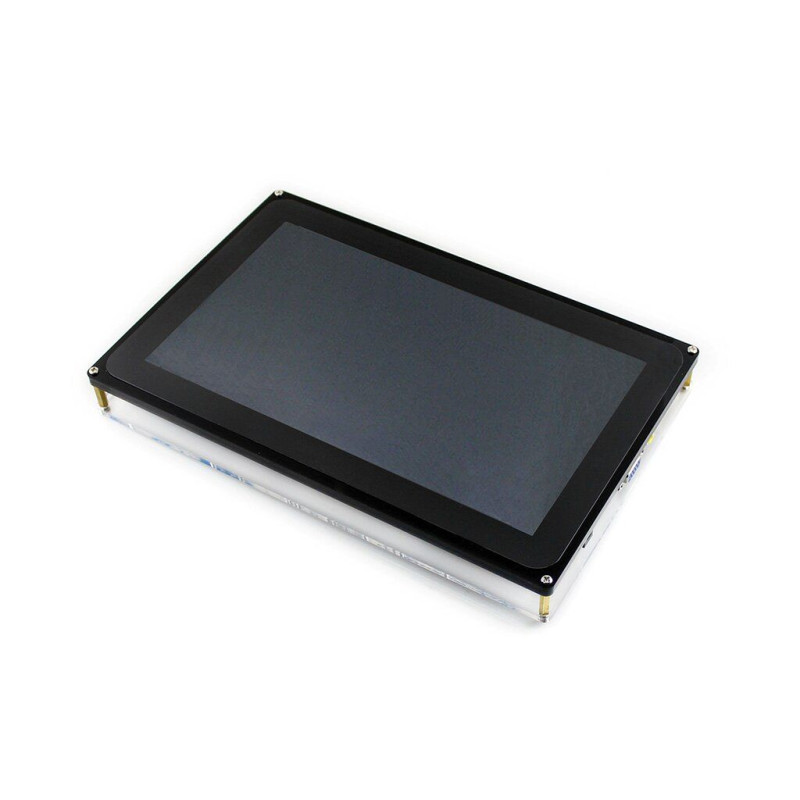

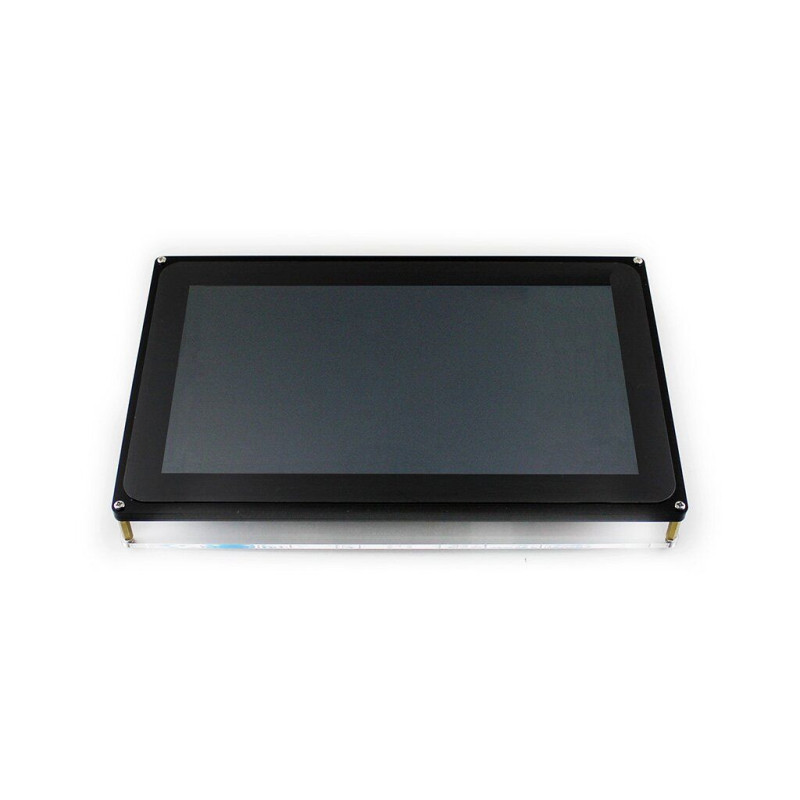

Appearance:

Specifications
Main characteristics
Compatibility
Raspberry Pi, Jetson Nano, Arduino, Banana Pi, BeagleBone, Asus
Connectivity
HDMI
Country of origin
Made in China
Display type
TFT/IPS
Resolution
1024 x 600
Size in inches
10.1 inch
Touch Screen
Capacitive
