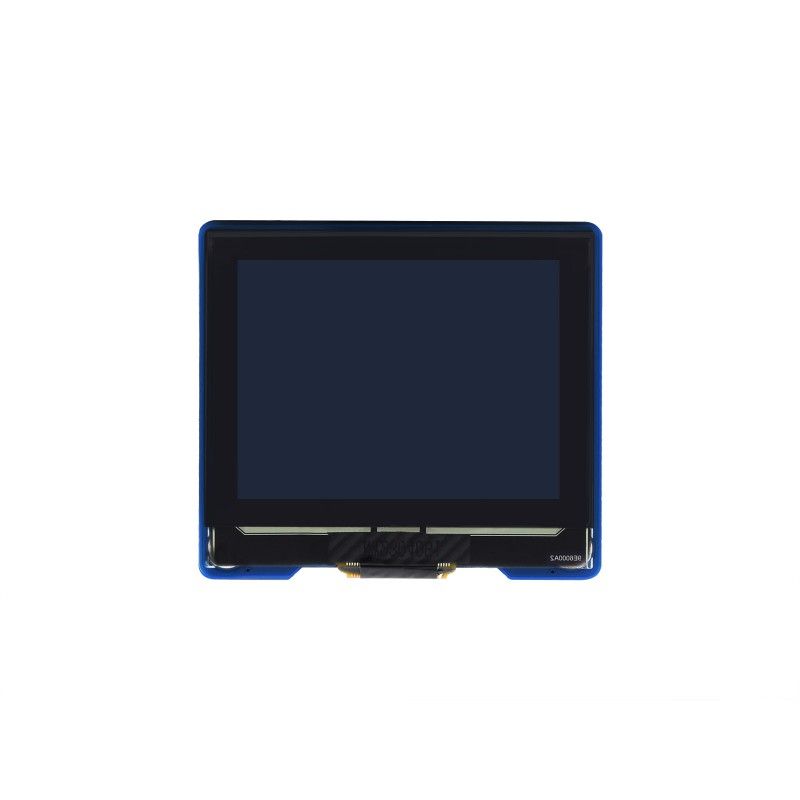

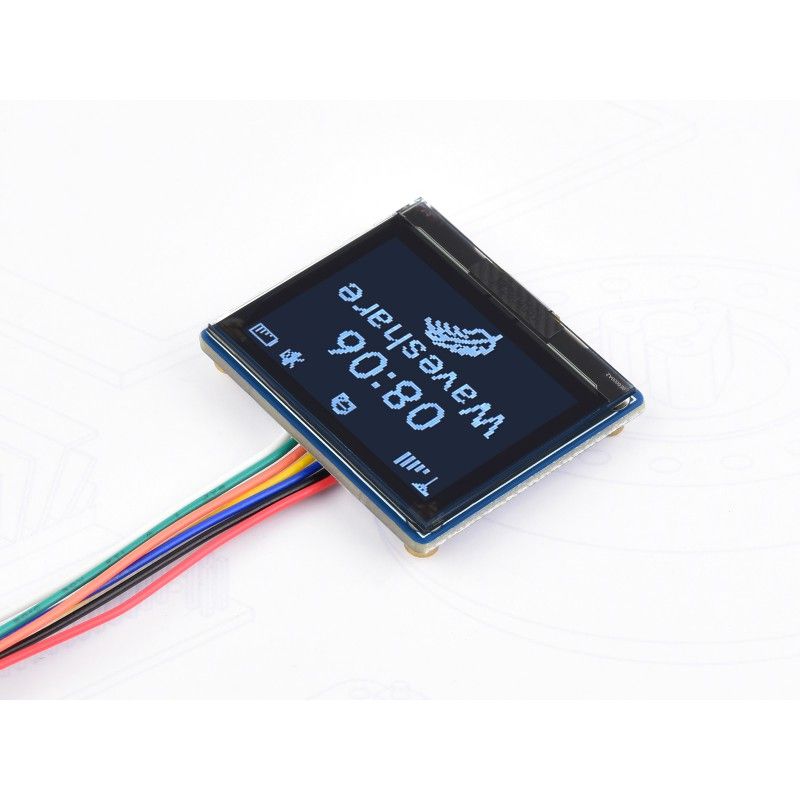

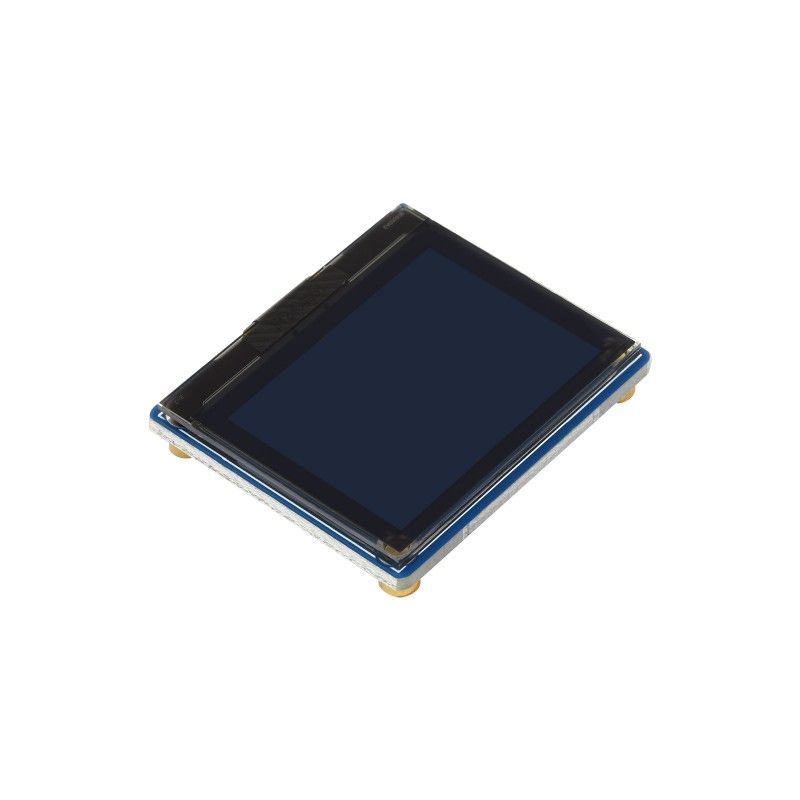

Display 1.32 inch OLED Display Module 128x96 SPI / I2C (24777)

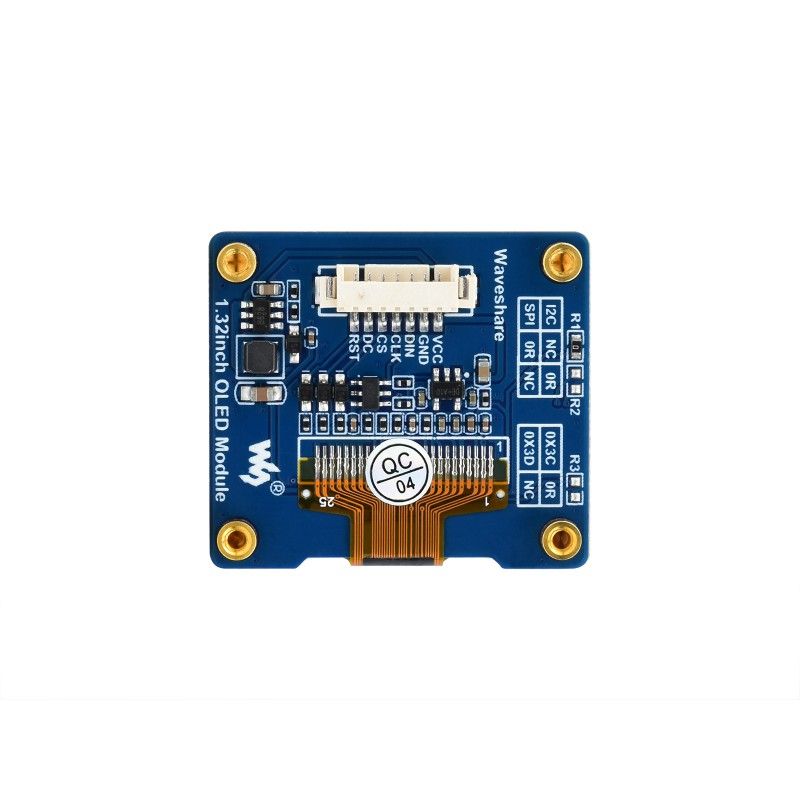

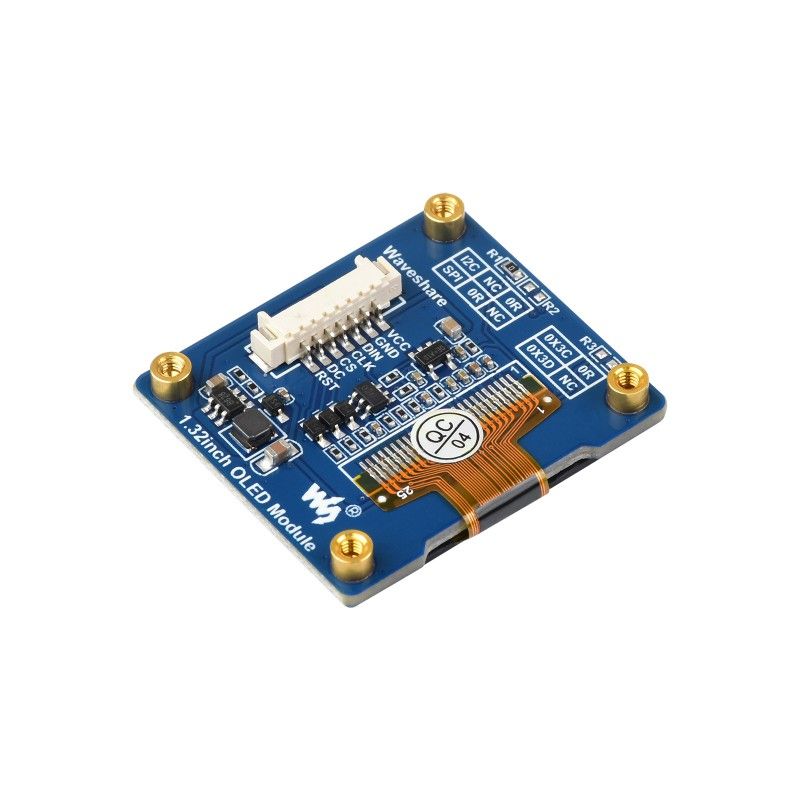

The1.32 inch OLED Display Module 128x96 SPI/I2C (24777 ) is a 1.32 inch OLED module that uses OLED (Organic Light Emitting Diode) technology. This module measures 1.32 inches (frozen 3.3 cm) and offers a resolution of 128×96 pixels.

Key Features:

• Size: 1,32"
• Resolution: 128×96
• Display color: black/white
• Grayscale: 16
• Display panel: OLED
• Driver: SSD1327
• Interface: SPI (Serial Peripheral Interface) and I2C (Inter-Integrated Circuit)
• Connector: GH1.25 7Pin
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

The main features of the module include 16 grayscale, which allows you to display different shades of gray, and support for two communication methods: SPI (Serial Peripheral Interface) and I2C (Inter-Integrated Circuit). This means that the module can be connected to microcontrollers or other electronic devices using one of these interfaces.

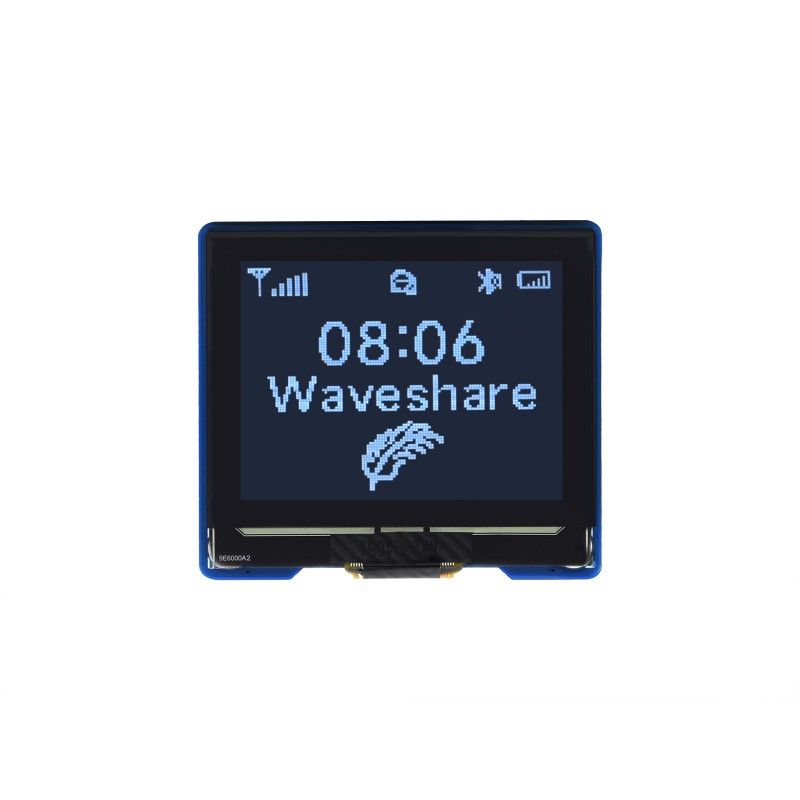

OLED technology has several advantages, including high contrast, wide viewing angles, fast pixel response, and reduced power consumption. This makes it possible to use OLED modules to display text, graphics and other visual elements in a variety of devices, including industrial, consumer electronics, medical devices, IoT projects, and more.

Applications for OLED modules can include displaying device status information, text messages, icons, graphs, and other visual elements. Its size and high image quality make it suitable for use in small devices with limited display space.

Specifications

• OPERATING VOLTAGE 3.3V / 5V
• OLED DISPLAY PANEL
• DIVISION 128 × 96 pixels
• PIXEL SIZE 0.19 × 0.19 mm
• COMMUNICATION INTERFACE 4-wire SPI / I2C
• SSD1327 driver
• DISPLAY SIZE 26.86 × 20.14 mm
• MODULE SIZE 34.30 × 30.50 mm

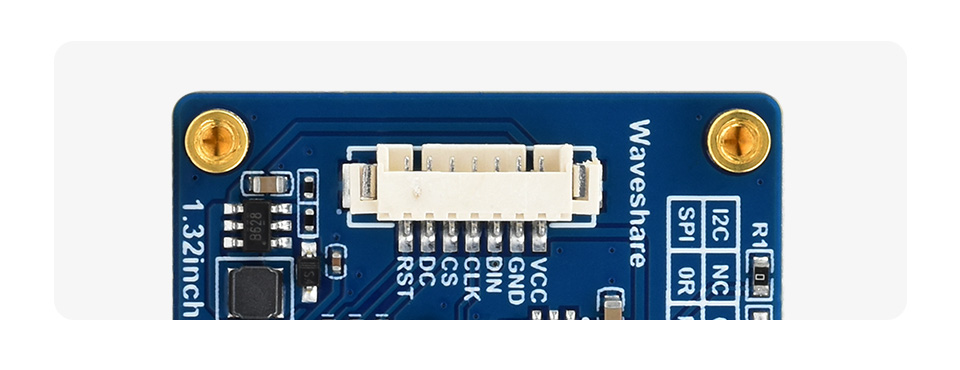

Interface:

RES: reset, low activity level
DC: data/command selection (high for data, low for commands)
CS: chip selection, low activity level
CLK: Clock input
DIN: data input
GND: ground
VCC: power supply (3.3 V / 5 V input)

Hardware connection

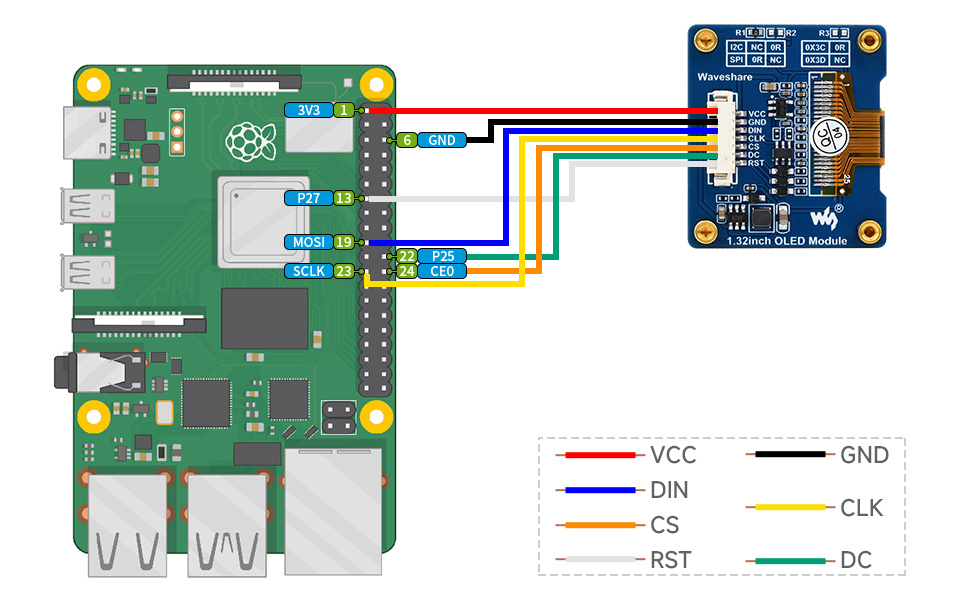

Connection to Raspberry Pi via SPI interface

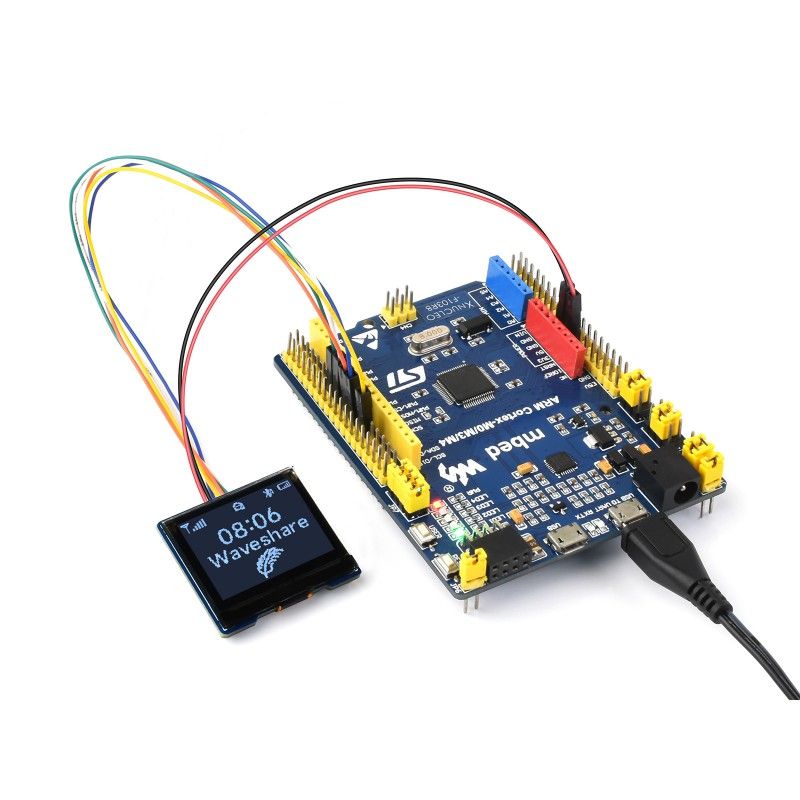

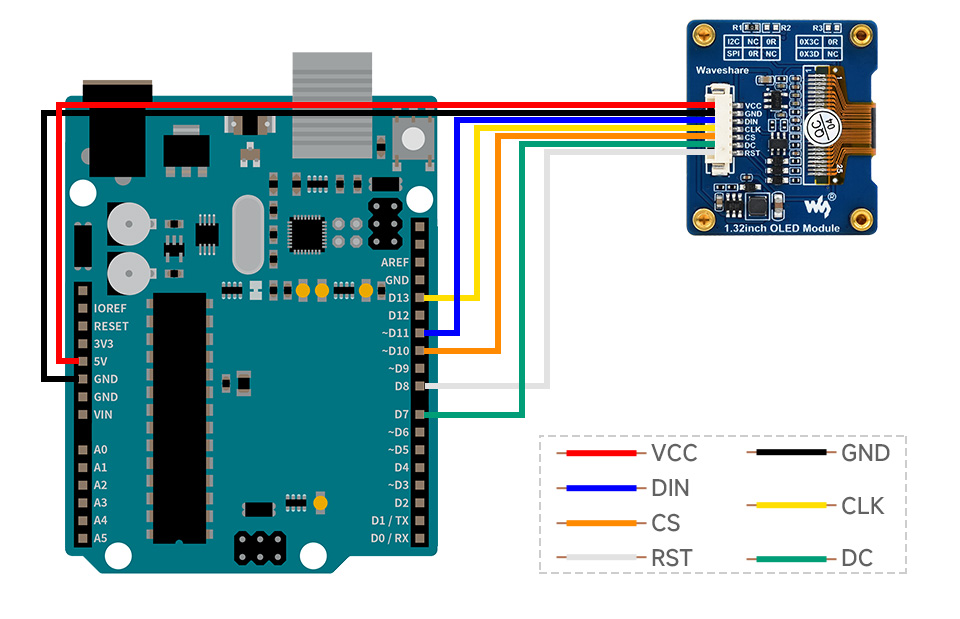

Connection to Arduino board via SPI interface

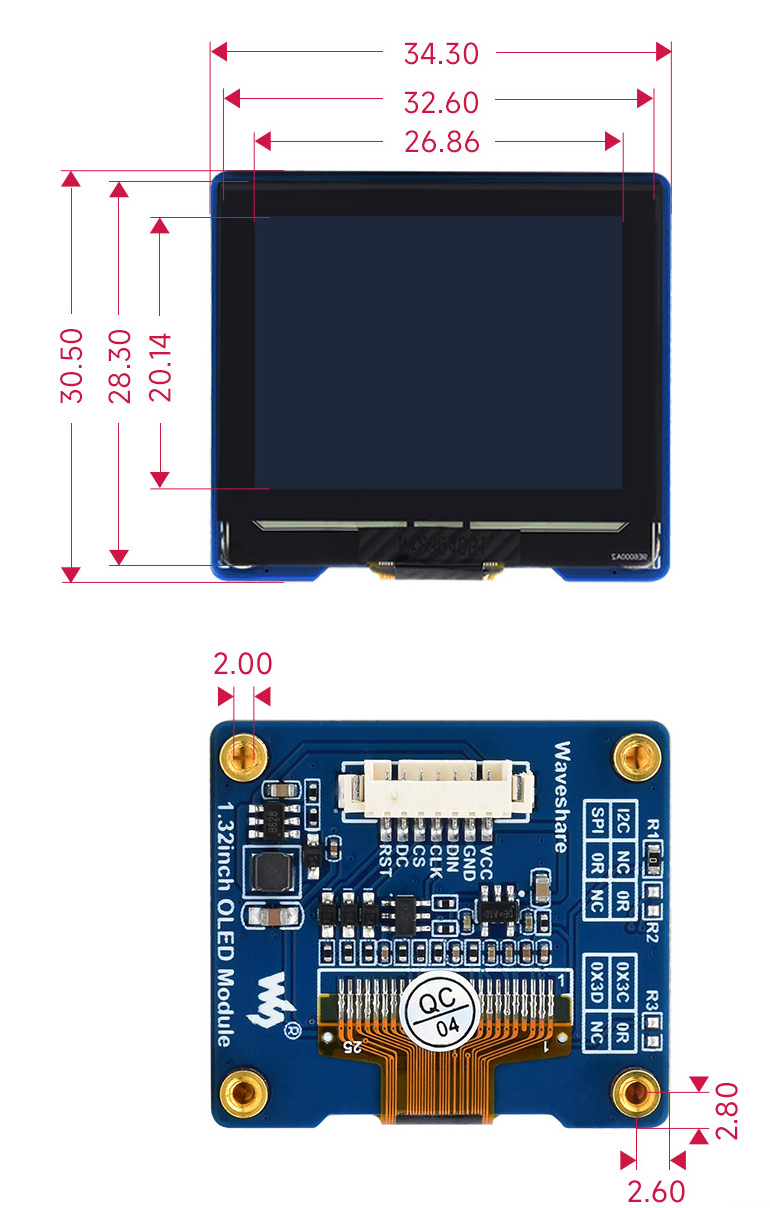

Overall dimensions: 34.30 × 30.50 mm

Wiki: www.waveshare.com/wiki/1.32inch_OLED_Module

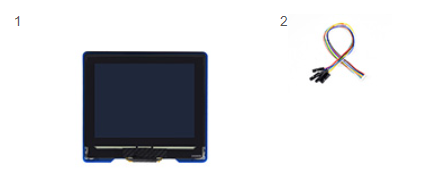

Scope of delivery:

1. 1.32-inch OLED module x1
2. GH1.25 7PIN cable x1

Weight: 0.011 kg
