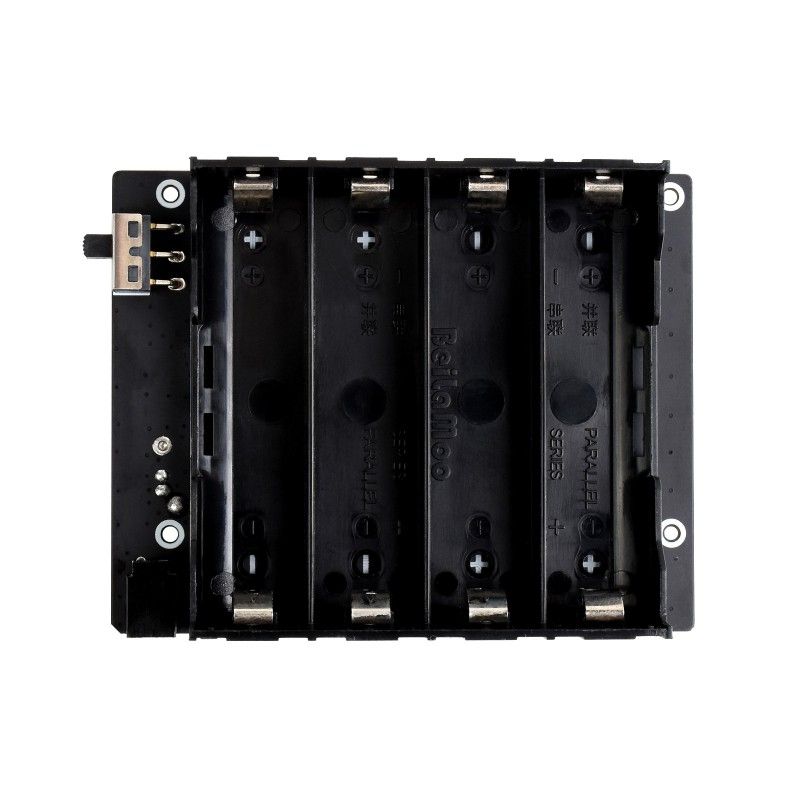

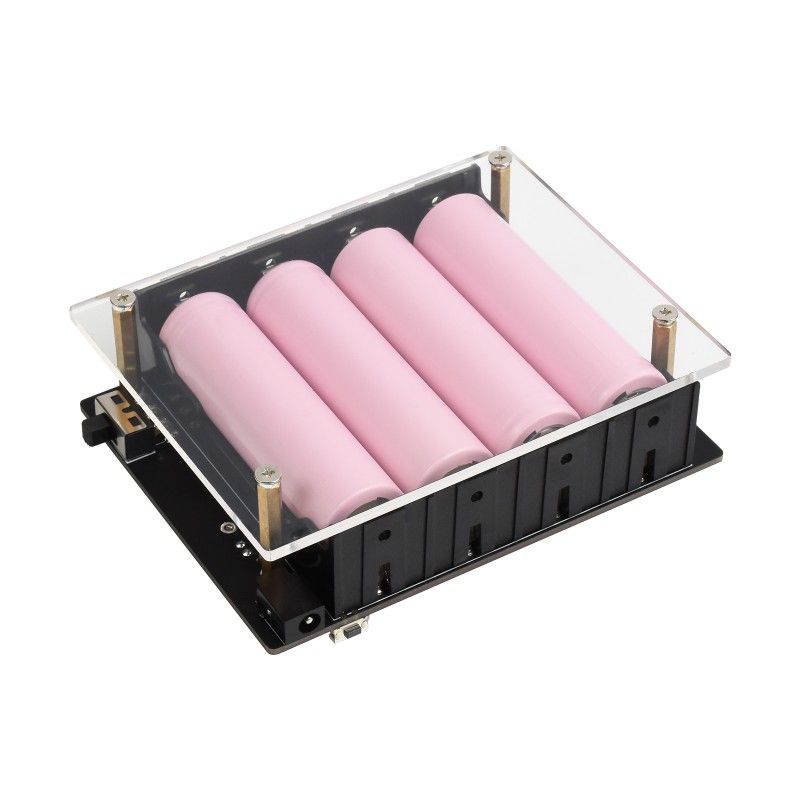

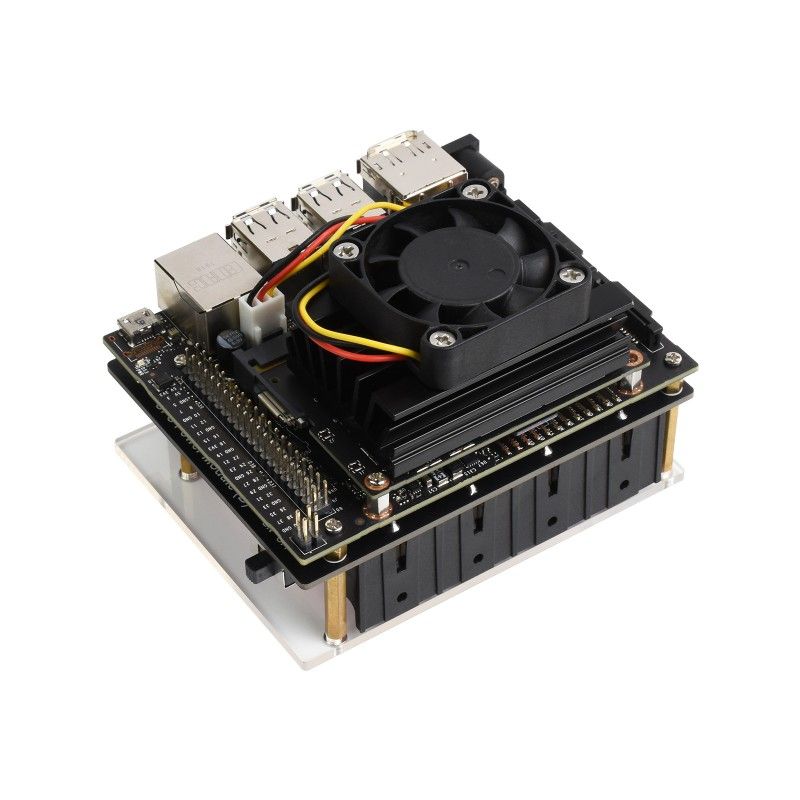

NVIDIA Jetson Nano UPS Pogo Pins Connector expansion card (20663)

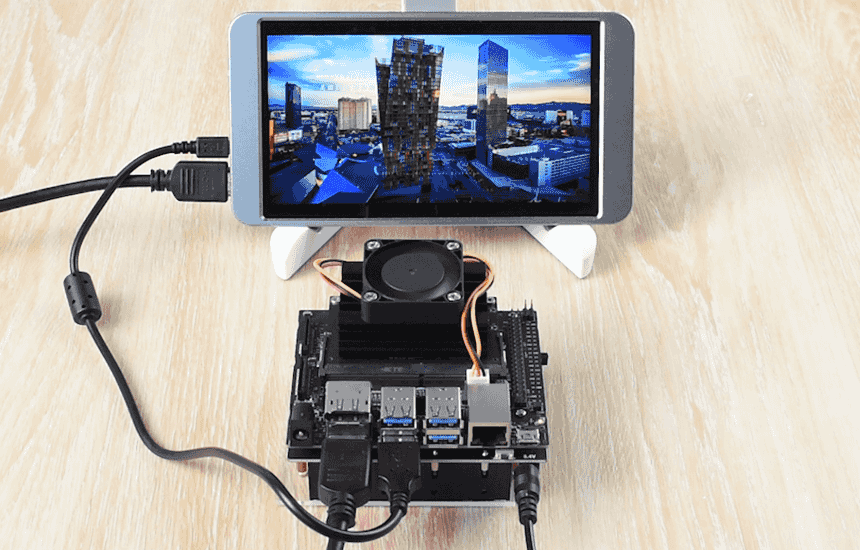

TheNVIDIA Jetson Nano UPS Pogo Pins Connector (20663 ) is a UPS module that provides convenient and uninterrupted power to the NVIDIA Jetson Nano microcomputer with a voltage of 5V and a maximum current of 5A. This module can be easily and quickly docked to the microcomputer board using the Pogo Pins connector. This module can charge the batteries and simultaneously provide output power from an external power source. Provides automatic switching to battery output if external power supply is not available, keeps the system running without any problems.

Main features:

• I2C bus communication, real-time monitoring of voltage, current, power and remaining battery capacity
• Multiple battery protection circuits: overcharge/discharge protection, overcurrent protection, short circuit protection and reverse protection, and equalizing charge function
• Built-in 5 V regulator, constant output current up to 5 A (max.)
• Battery warning indicators, easy to check if the battery is connected correctly
• Supplied with development resources and manual
• Mounting holes are compatible with the Jetson Nano Developer Kit (B01) and the Jetson Nano 2GB Developer Kit

Specifications:

Pogo Pins connector

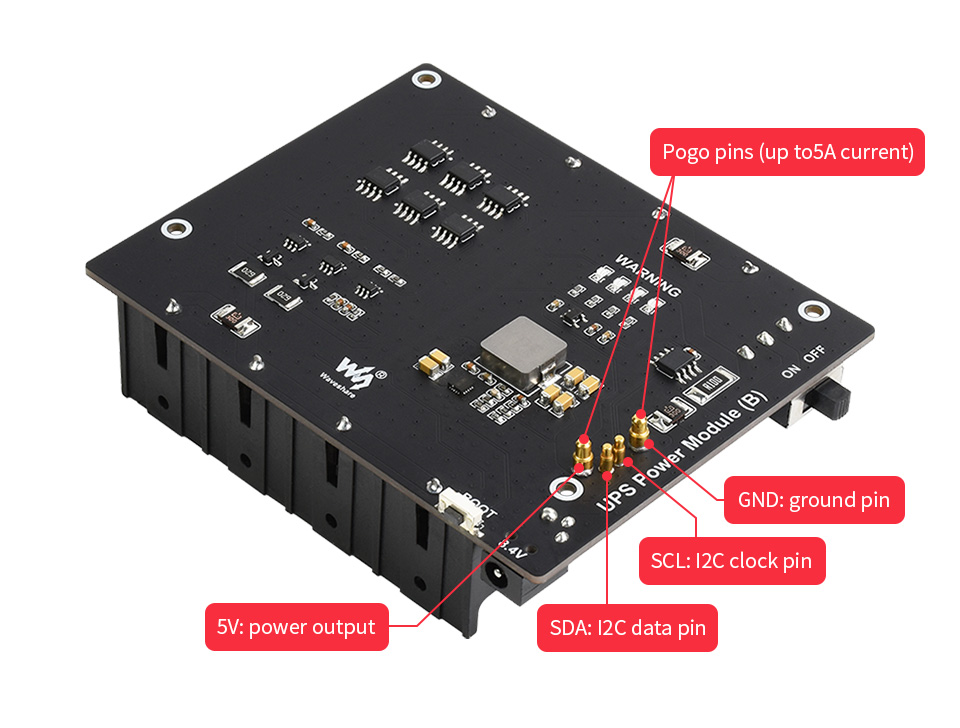

Communication via I2C bus via Pogo Pins, no other IO pins required

Real-time monitoring

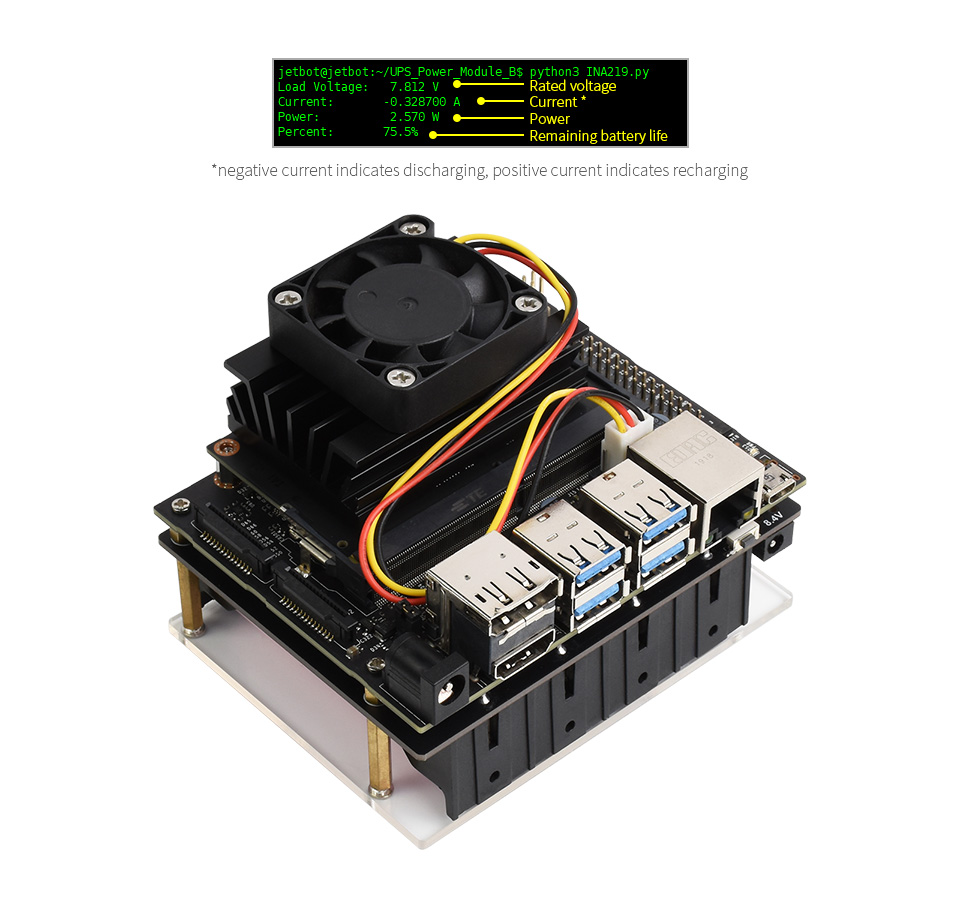

The module monitors voltage, current, power and remaining battery capacity via I2C. When the voltage drops too low, it is possible to save files correctly and then shut down the system via software to avoid data loss.

Safe and stable circuitry
Has overcharge/discharge, overcurrent, short circuit and reverse polarity protection circuits

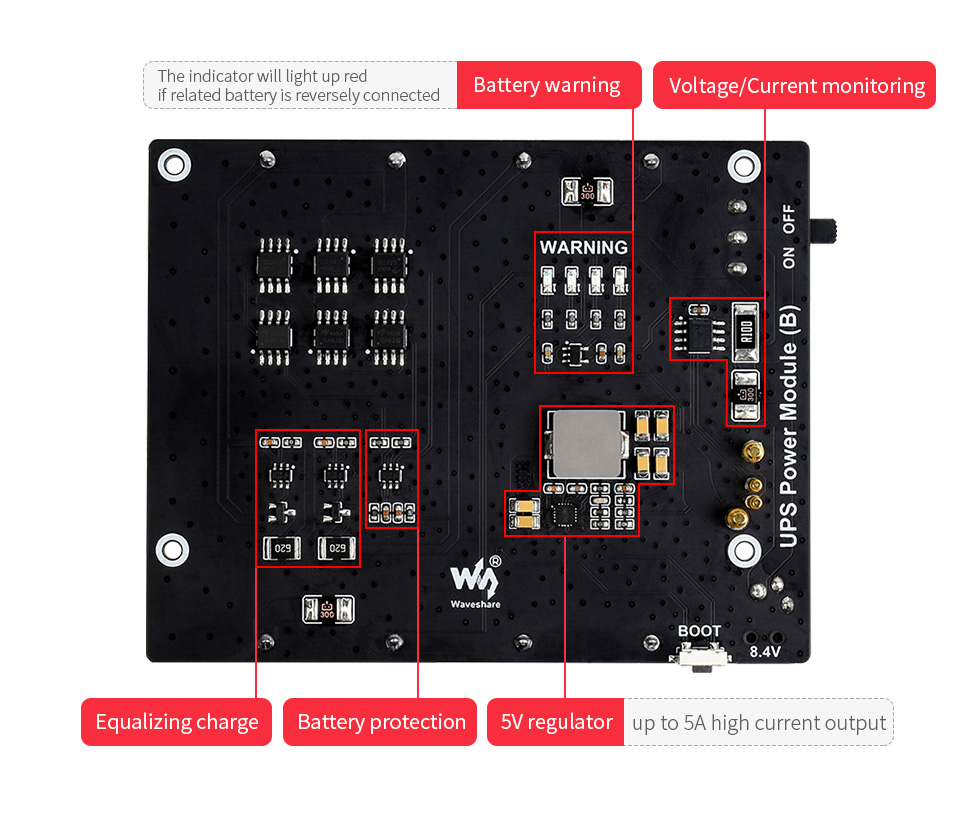

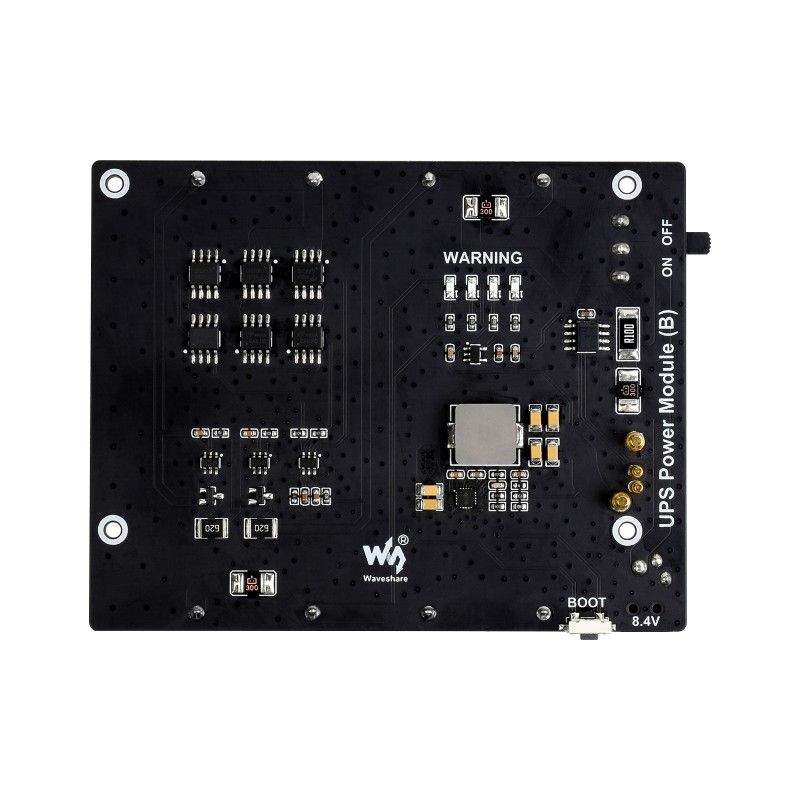

Battery warning - an indicator of correct polarity. In case of incorrect polarity when installing the battery, this indicator will signal with a red light.

Voltage / Current monitoring - monitoring of voltage and current

Equalizing charge

Battery protectioon - battery protection

5V regulator - 5V voltage regulator

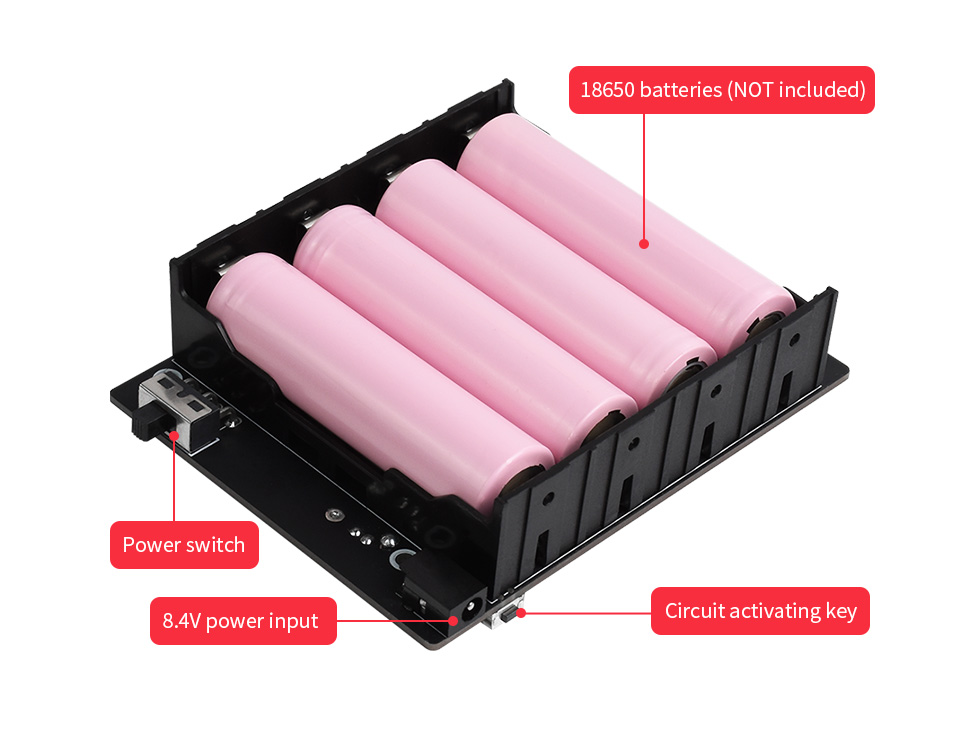

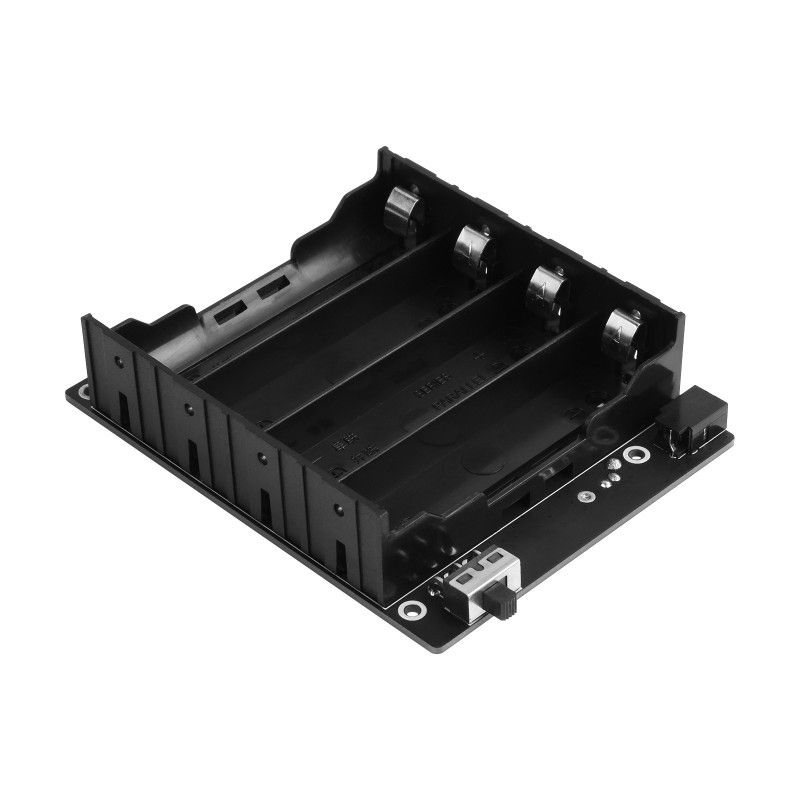

18560 batteries - 18650 batteries NOT included

Power switch

8.4V power input - 8.4V input

Circuit activating key - circuit activation key

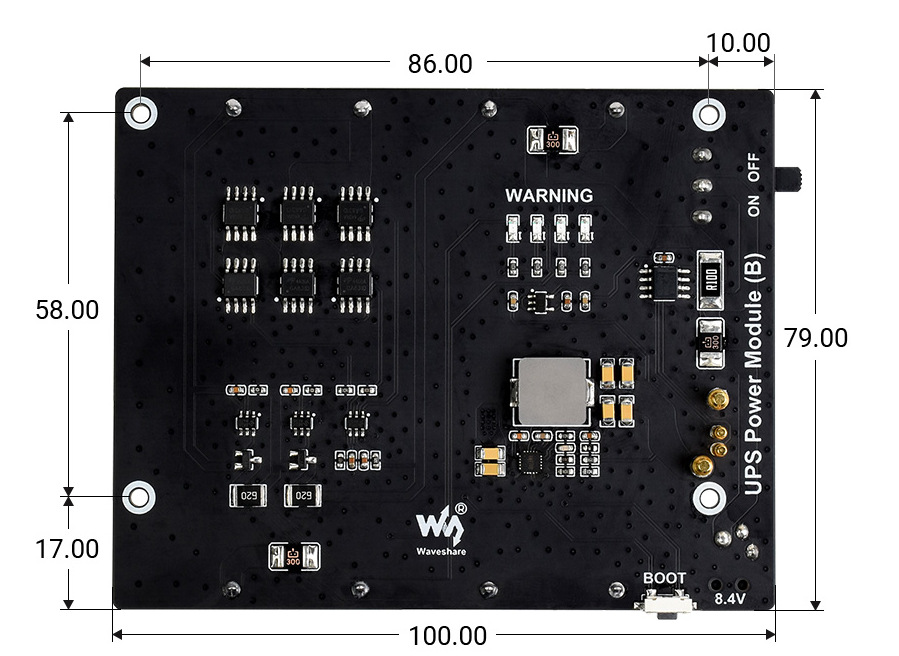

Overall dimensions: 100mm x 79mm

Information for developers (Wiki) UPS_Power_Module_(B)

Scope of delivery:

1. UPS Power Module (B) x1
2. Acrylic protective panel x1
3. 8.4V battery charger x1 (optional)
4. Mounting kit x1

1. 2. 3. 4.
