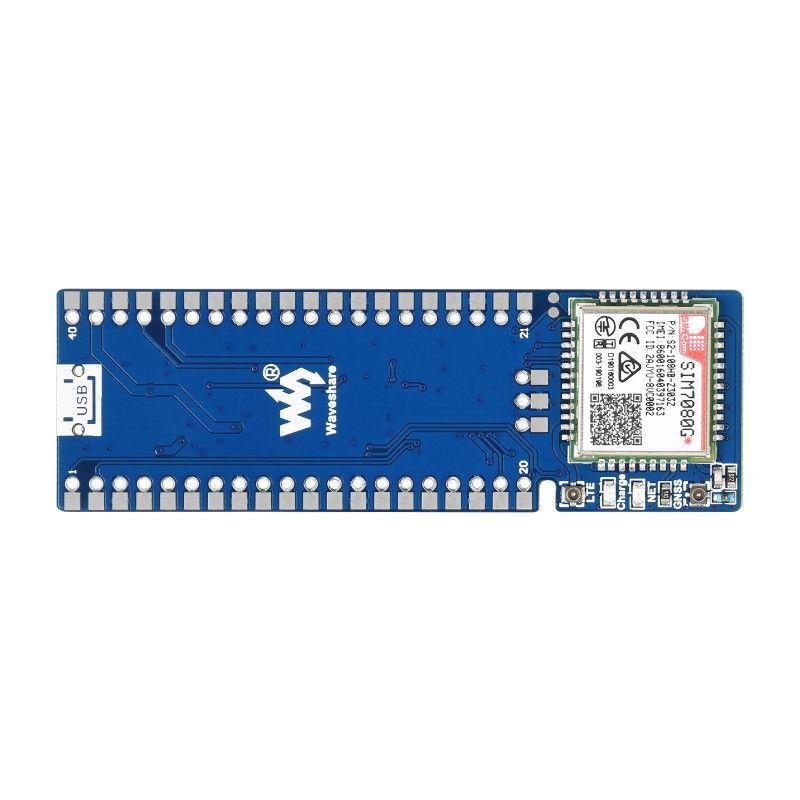

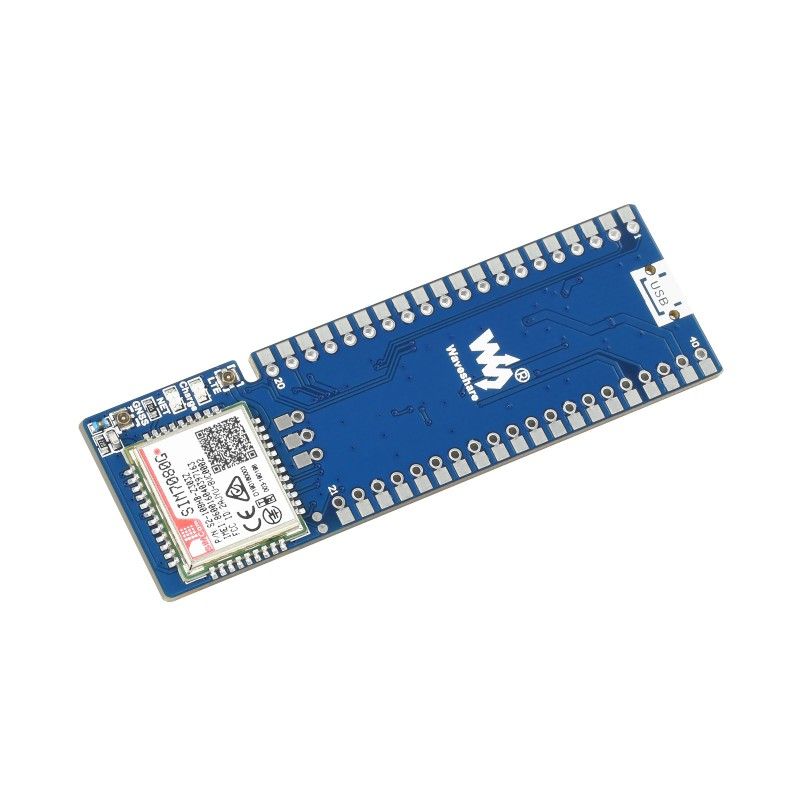

Raspberry Pi Pico SIM7080G NB-IoT HAT expansion board (20036)

TheRaspberry Pi Pico SIM7080G NB-IoT HAT (20036) expansion board is an NB-IoT (Narrowband Internet of Things), Cat-M (also known as eMTC, Machine Type Communication) and GNSS (Global Navigation Satellite System) module for the Raspberry Pi Pico. It supports multiple NB-IoT frequency bands, can be controlled by serial AT commands, and supports communication protocols such as HTTP/MQTT/LWM2M/COAP, etc. With the advantages of low latency, low power consumption, low cost, and wide coverage, it is an ideal choice for IoT applications such as smart tools, asset tracking, remote monitoring, etc.

Supports global NB-IoT/Cat-M range:

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Module compatibility:

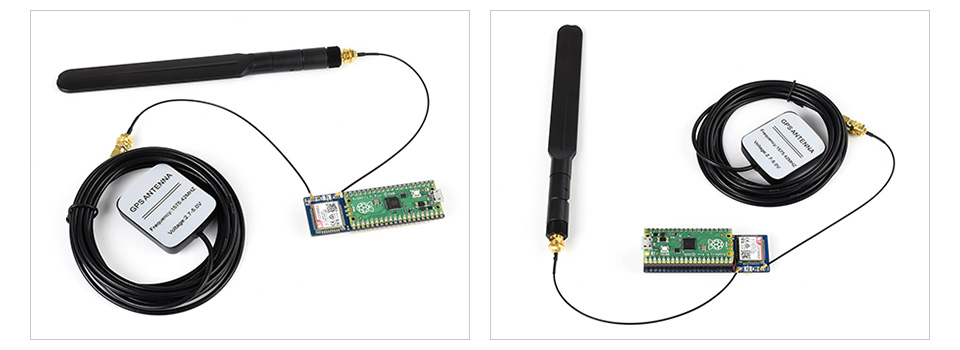

The Raspberry Pi Pico microcontroller can be mounted on an SMD (left) or attached via a female connector (right):

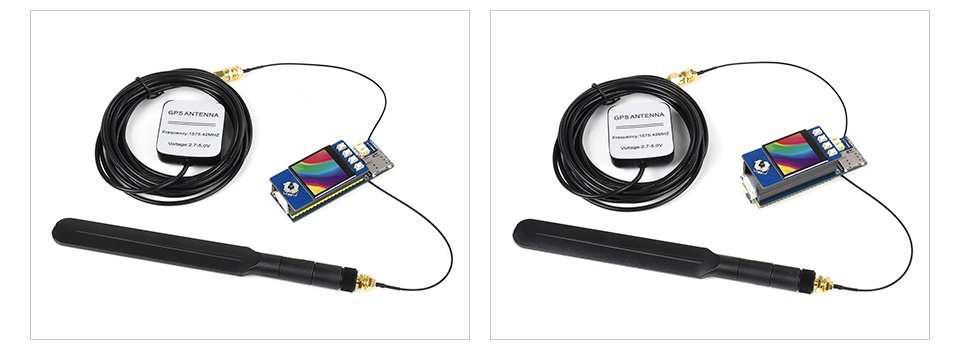

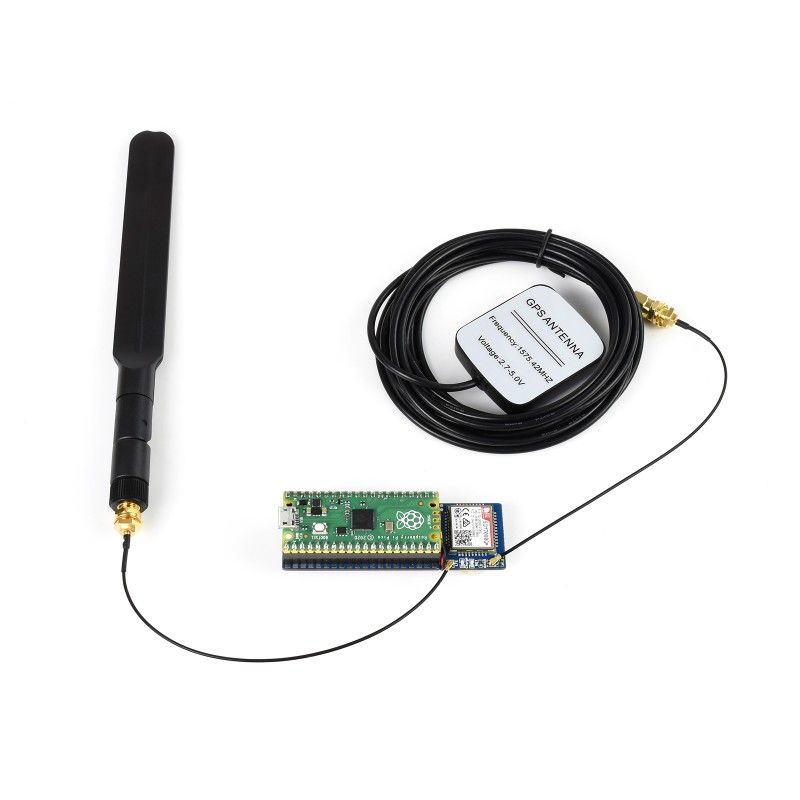

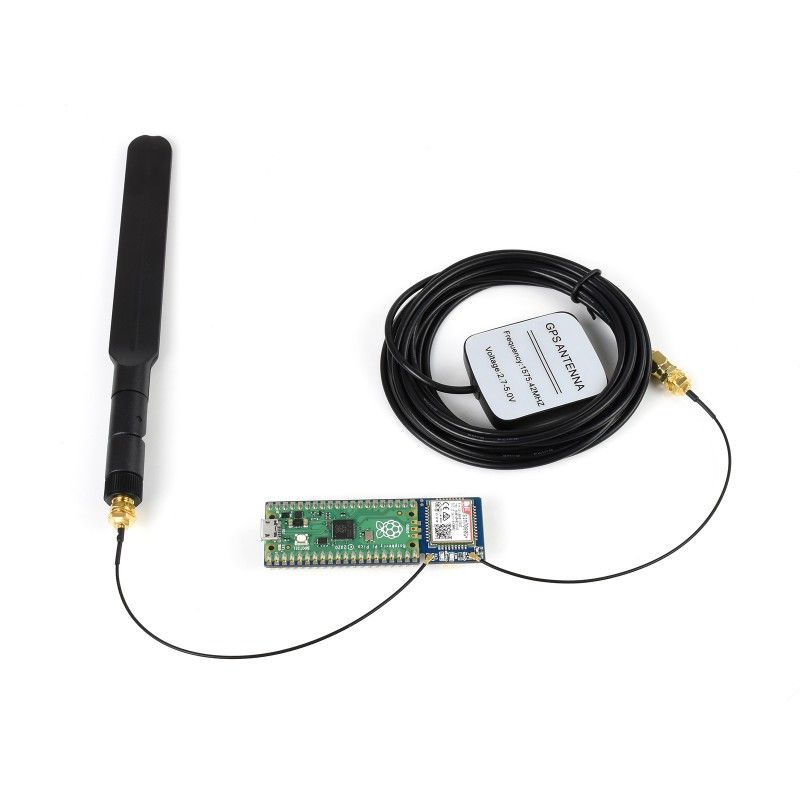

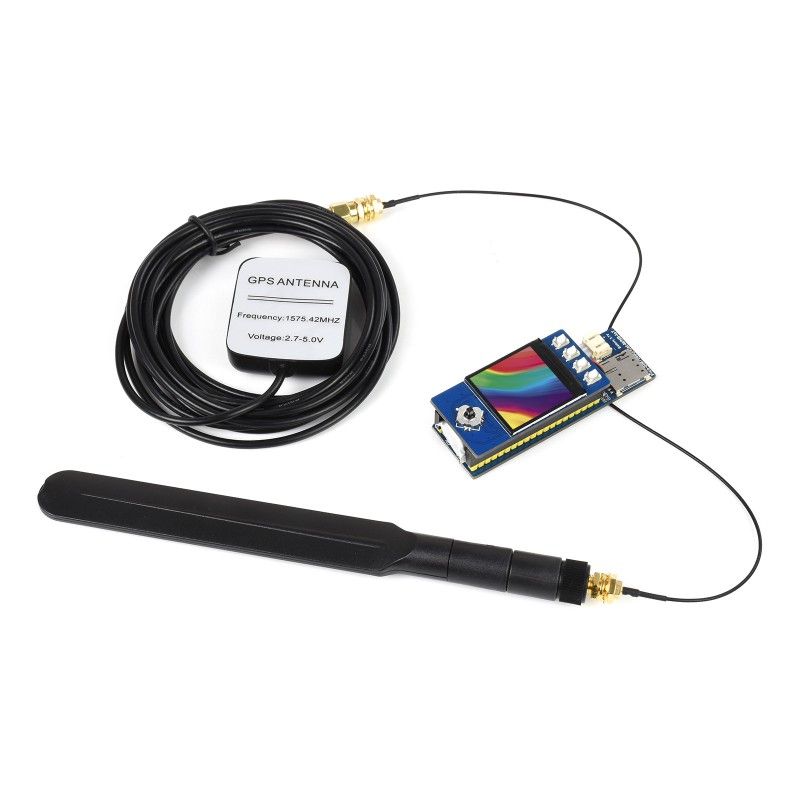

Connect to another expansion module and antenna:

Note: The Raspberry Pi Pico is for demonstration purposes only and is not included in the package.

Communication via the cloud: Supports communication protocols including TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

Example of use

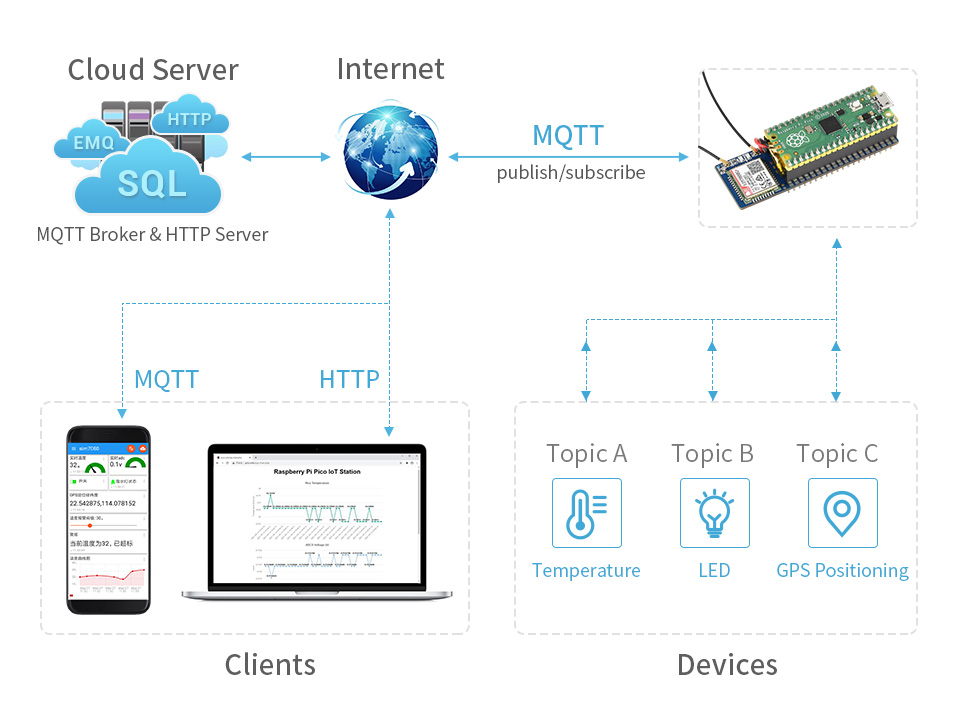

When connected to the Internet via SIM7080G, the Raspberry Pi Pico will be able to send data to a cloud server via MQTT protocol, allowing users to monitor the Pico in real time via a smartphone app or web page.

Key features:

• Standard Raspberry Pi Pico connector, supports Raspberry Pi Pico series

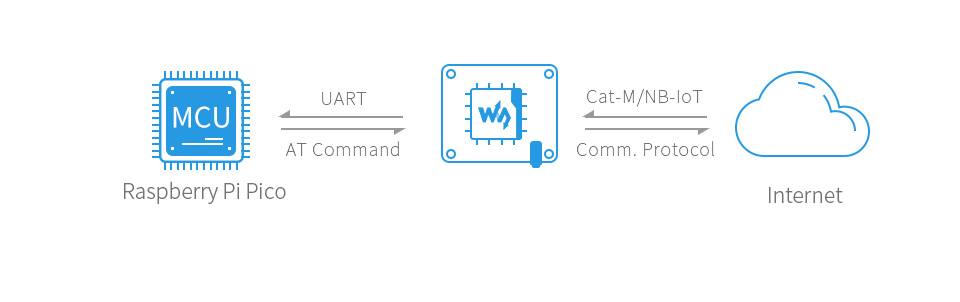

• UART communication, serial control by AT commands
• Communication protocol support: TCP / UDP / HTTP / HTTPS / TLS / DTLS / PING / LWM2M / COAP / MQTT ...
• Support GNSS positioning: GPS, GLONASS, BeiDou and Galileo
• Integrates a 3.7V Li-Polymer battery connector and recharge circuit, allows you to receive power from an external rechargeable Li-Polymer battery or recharge it alternately
• 2x LED indicator to monitor the operating status of the module
• Built-in nano-SIM card slot supports 1.8V SIM card ONLY (3V SIM card not available)
• Comes with development resources and manual (MicroPython examples)

Specifications:

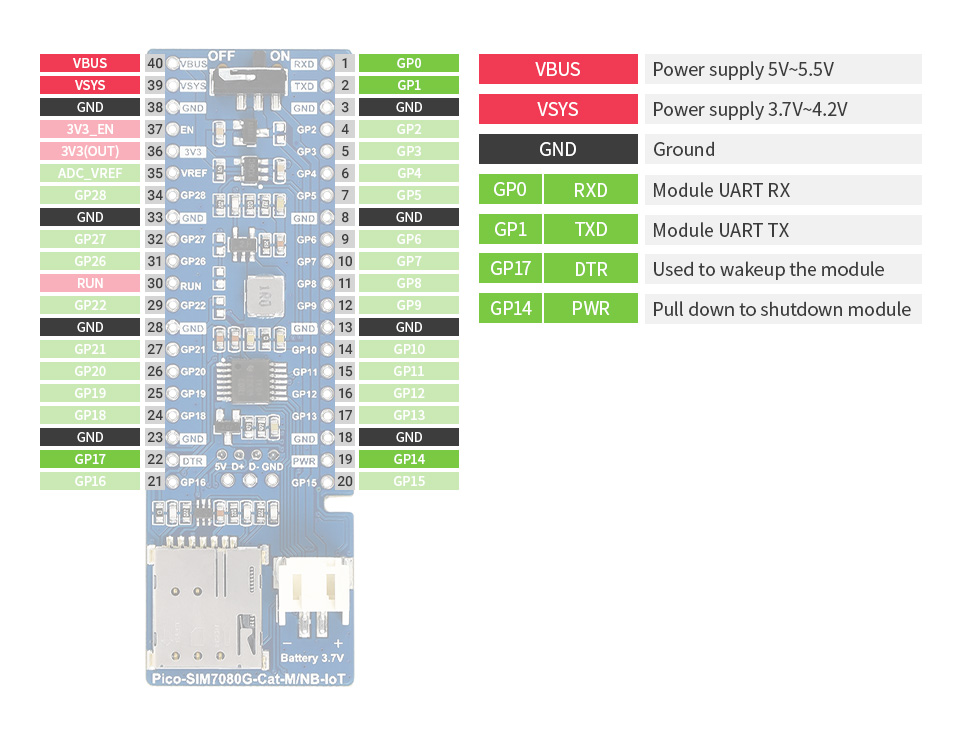

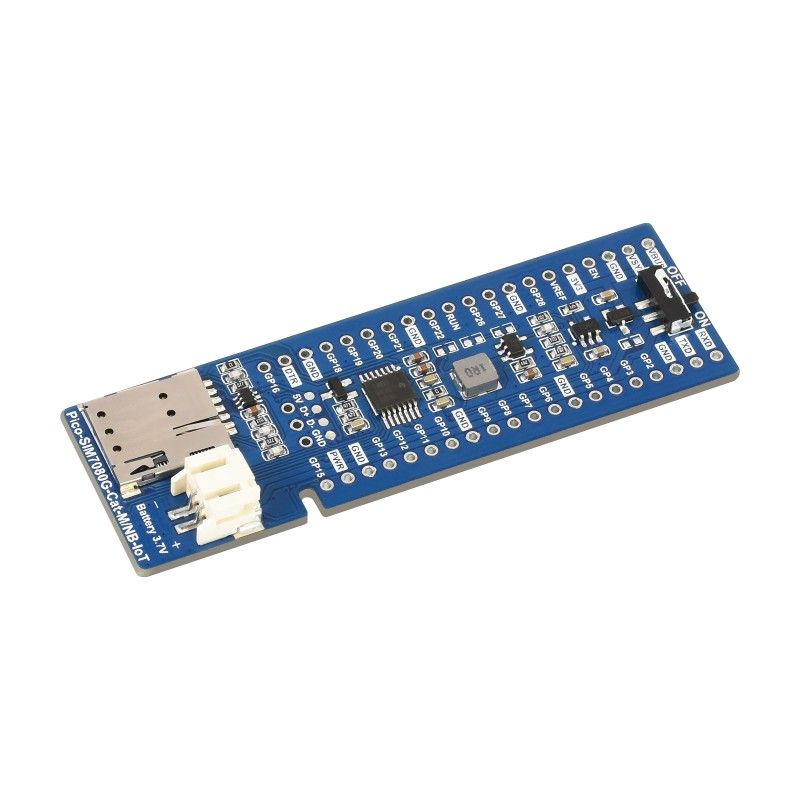

The purpose of the connectors:

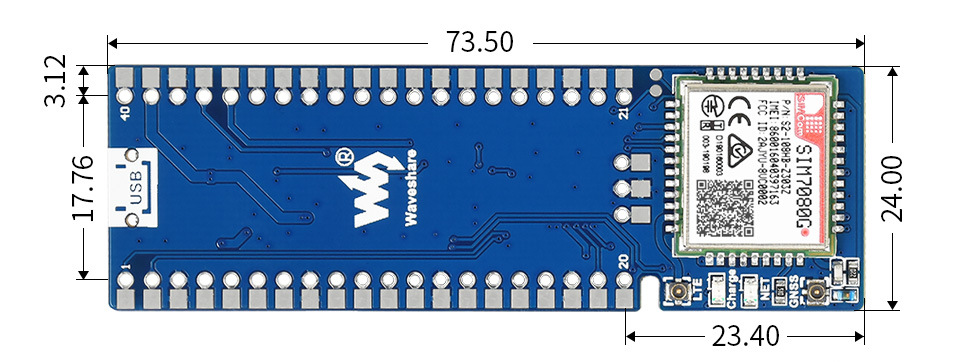

Overall dimensions: 73.5mm x 24mm

Information for developers (Wiki): Pico-SIM7080G-Cat-M/NB-IoT

Scope of delivery:

1. Pico-SIM7080G-Cat-M/NB-IoT expansion board x1
2. LTE antenna x1
3. GPS antenna x1
4. 20PIN connector (female) x2
5. 40PIN connector (male) × 1
6. 3.7V rechargeable Li-po battery x1

1. 2. 3. 4. 5. 6.

Weight: 0.112 kg
