Raspberry Pi Pico RGB Full-color LED Matrix Panel expansion board (20170)

The Raspberry Pi Pico RGB Full-color LED Matrix Panel Expansion Board (20170 ) is a specialized board designed to connect and control an RGB matrix with full-color light-emitting diodes (LEDs) using the Raspberry Pi Pico microcontroller. This board allows you to create impressive visual effects and display a variety of graphics on the LED matrix.

The Raspberry Pi Pico RGB Full-color LED Matrix Panel has a built-in driver to control a 16x10 RGB matrix.

The expansion board has convenient connectors for connecting the LED matrix and the Raspberry Pi Pico microcontroller. It also provides additional GPIO pins for connecting other devices and components, allowing you to expand the capabilities of your project.

The board supports various modes of operation, including displaying text, graphics, animations, and other effects on the LED matrix. You can program the Raspberry Pi Pico microcontroller to control each LED individually, creating multicolor images and effects.

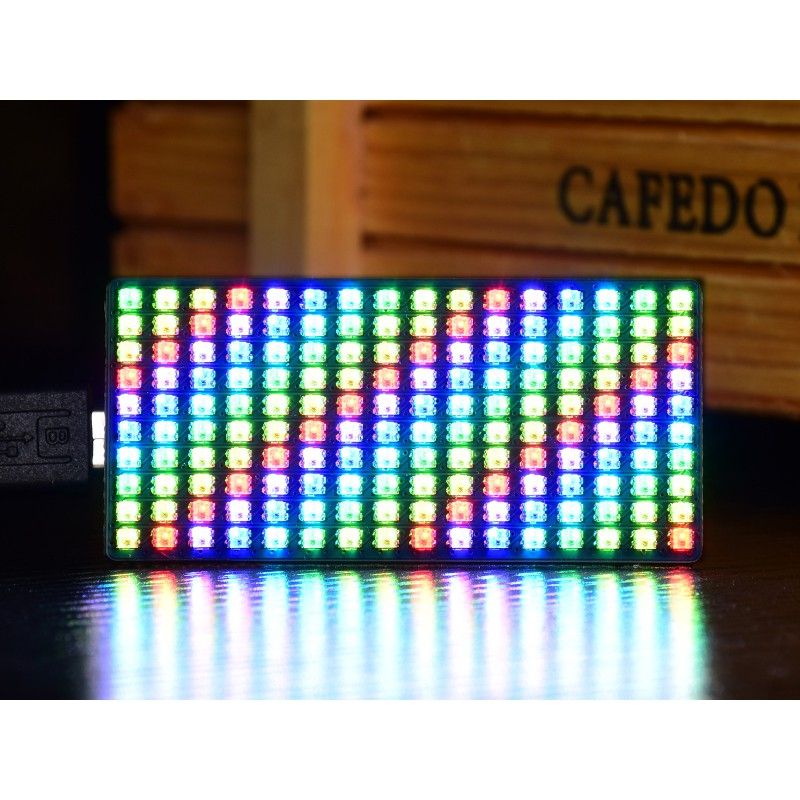

With the Raspberry Pi Pico RGB Full-color LED Matrix Panel, you can create a variety of projects with impressive lighting effects. It is ideal for use in visual installations, advertising panels, status indicators, light displays, and many other applications where a bright and colorful display is required.

Key features:

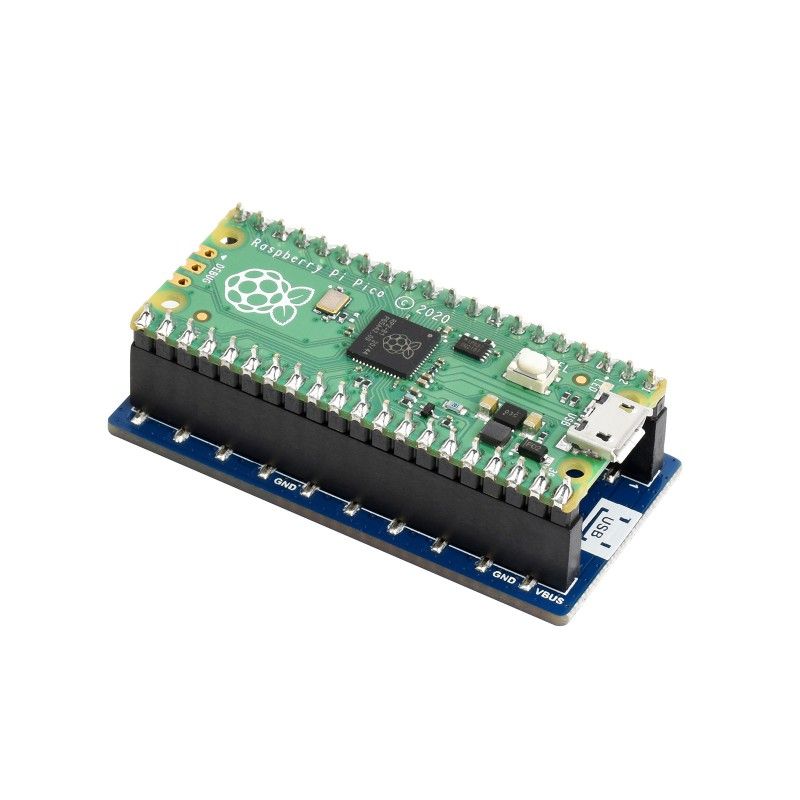

• Has a standard Raspberry Pi Pico connector supporting the Raspberry Pi Pico series

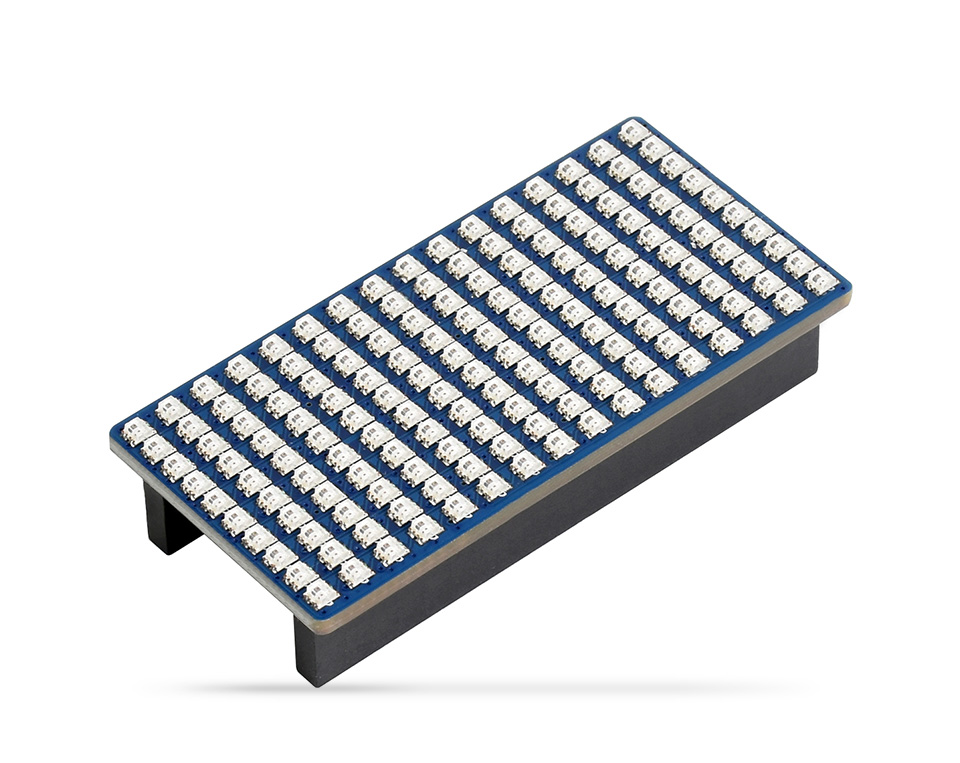

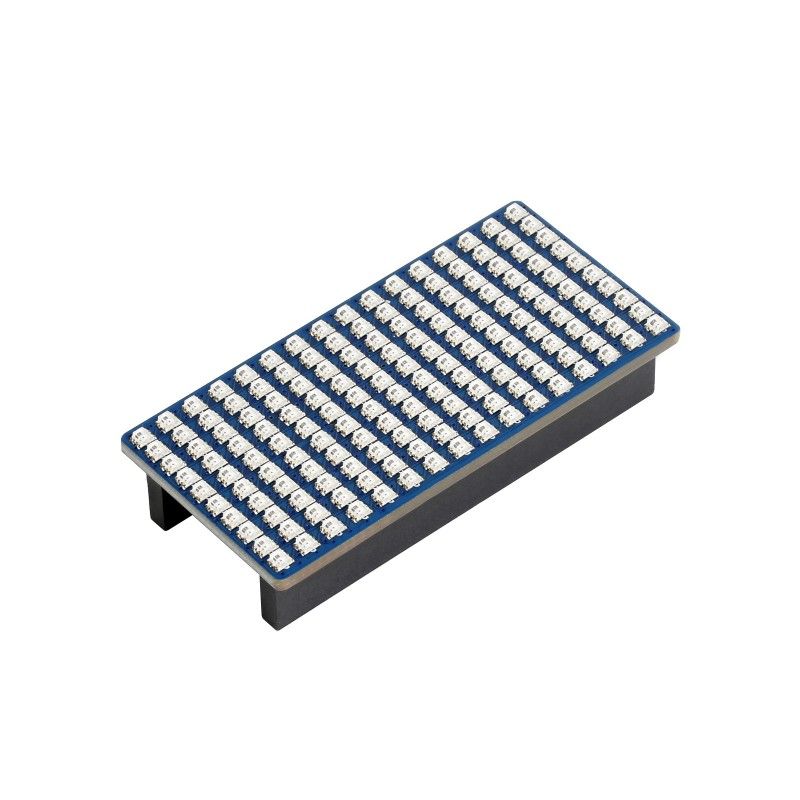

• 160 RGB LEDs arranged in a 16 × 10 grid

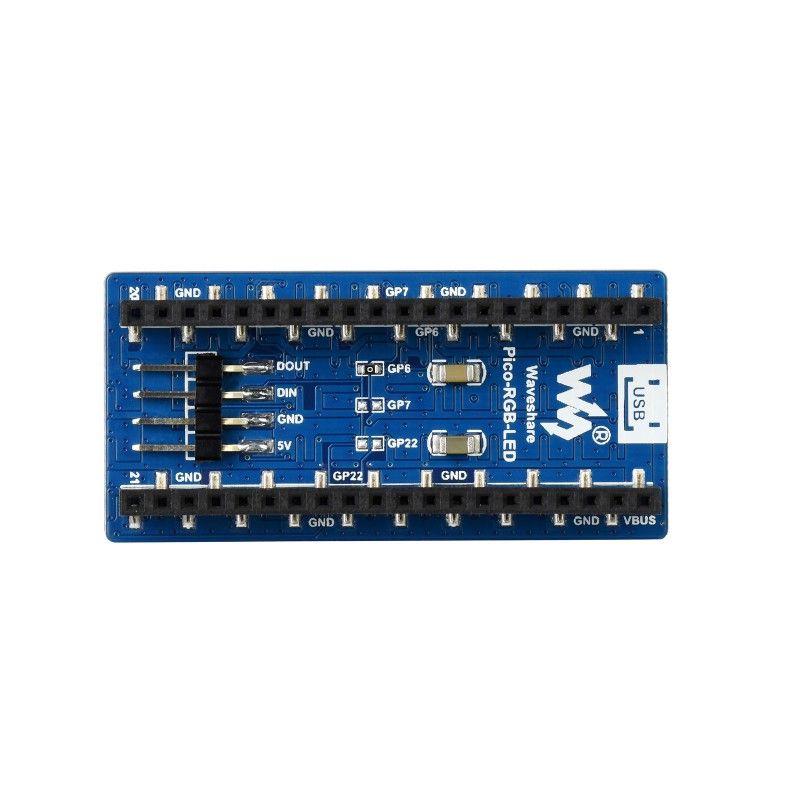

• Has a rectangular pin connector with a 2.54 mm pitch at the bottom for easy microcontroller sliding out
• 0807 color LEDs that integrate a high-quality single-wire cascaded DC driver IC and a high-quality RGB LED chip, also integrates externally controlled DC LEDs
• Built-in controller chip with features such as high reliability, high anti-interference performance, high DC accuracy and low power consumption
• Built-in high quality LED chip with high stable brightness and pure white light effect, lower light reduction
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

• OPERATING VOLTAGE: 5В
• CONNECTION: one-wire return to zero code
• COLOR DEPTH: 24 bits (every 8 bits of RGB)
• DATA RATE: 800 Kbps
• BRIGHTNESS: adjustable level 256
• PIXELS: 16 × 10 pixels
• DIMENSIONS: 54.00 × 26.00 mm

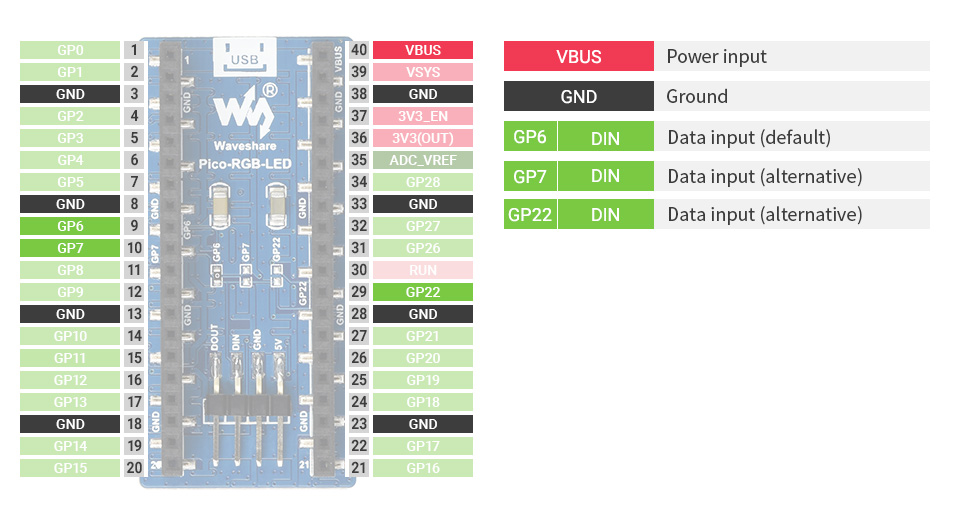

Layout:

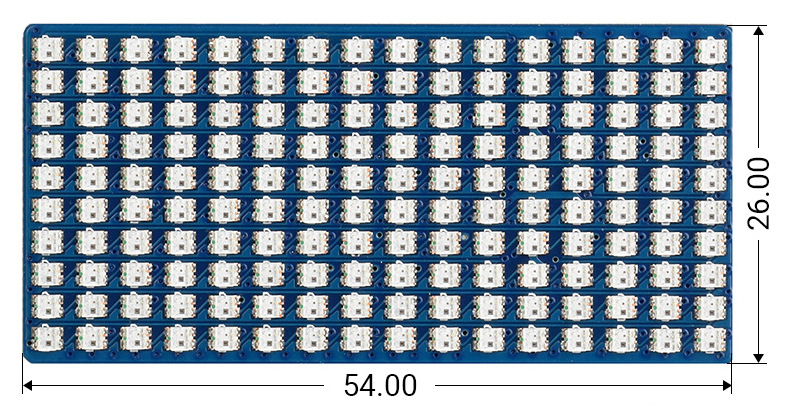

Overall dimensions: 54mm x 26mm

WIKI: Pico-RGB-LED

Scope of delivery:

1. Pico-RGB-LED x1

Weight: 0.010 kg
