Raspberry Pi Pico 2-Channel RS485 HAT expansion board (19717)

Name: Raspberry Pi Pico 2-Channel RS485 HAT expansion board (19717)
Brand: Waveshare
SKU: V110158
Price: 4.20 GBP
Availability: OutOfStock

Brand: Waveshare Product Code: 19717

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Raspberry Pi Pico 2-Channel RS485 HAT expansion board (19717)

Out Of Stock

£4.20

Country of origin:Made in China

Form factor:Pico / Pico W

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Raspberry Pi Pico 2-Channel RS485 HAT expansion board (19717)

£4.20

Description

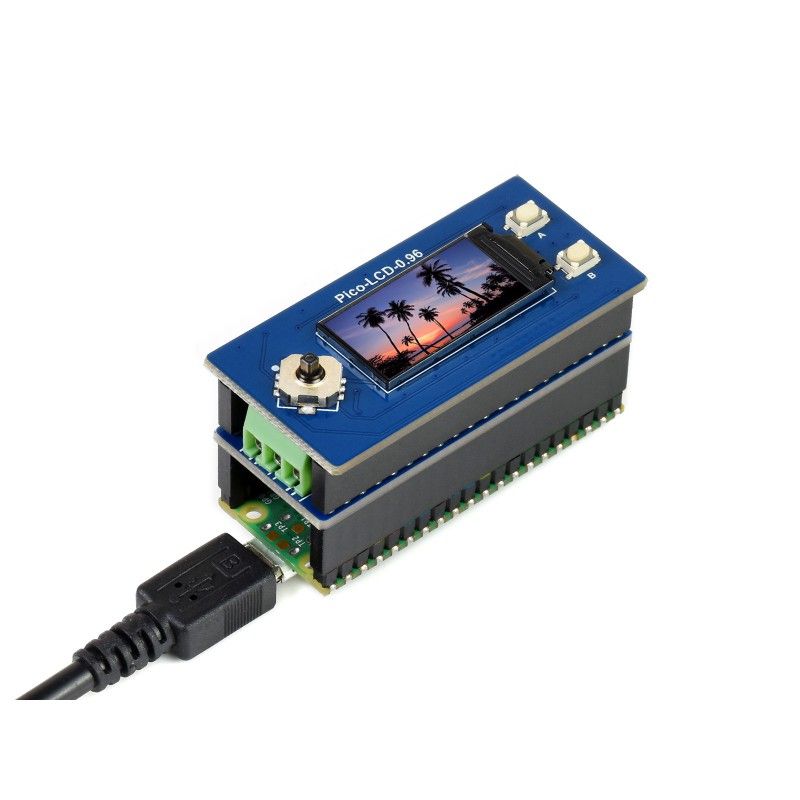

The Raspberry Pi Pico 2-Channel RS485 HAT (19717 ) is a 2-channel RS485 module for the Raspberry Pi Pico, which includes an RS485 SP3485 transceiver using the UART bus. It is equipped with a standard female pin header for connecting the Raspberry Pi Pico and a male pin header for connecting other modules.

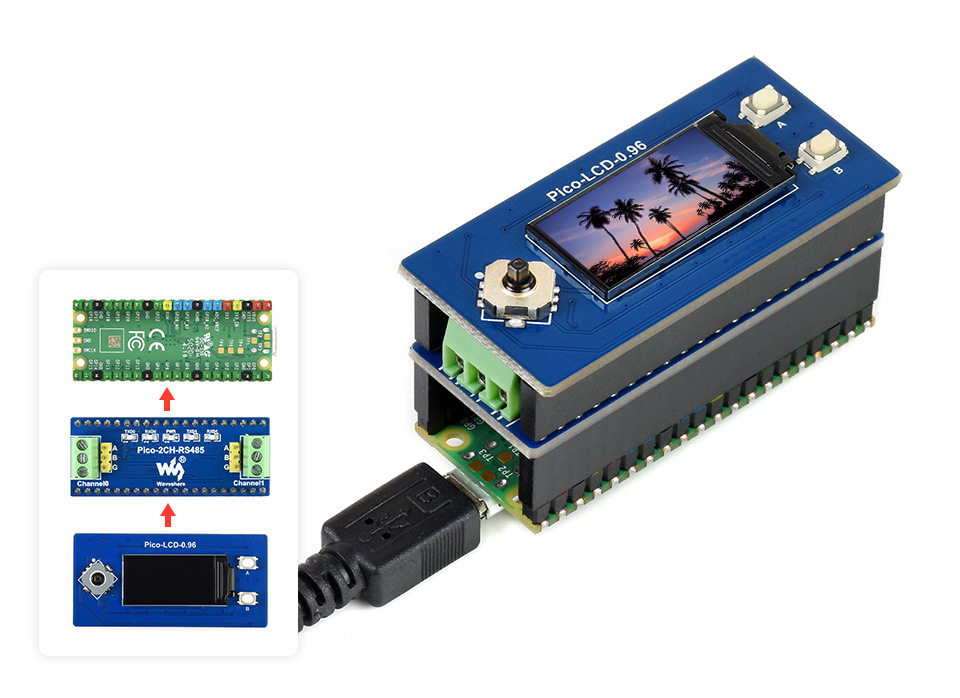

Note: The Raspberry Pi Pico and Pico-LCD-1.14 are for demonstration purposes only and are not included in the package.

Main features:

Standard Raspberry Pi Pico connector, supports the Raspberry Pi Pico series
Using the UART bus, it is easy to convert UART to RS485 and vice versa
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

OPERATING VOLTAGE.	3.3V	RS485 TRANSCEIVER	SP3485
COMMUNICATION BUS	UART	TRANSMISSION SPEED	300500000bps

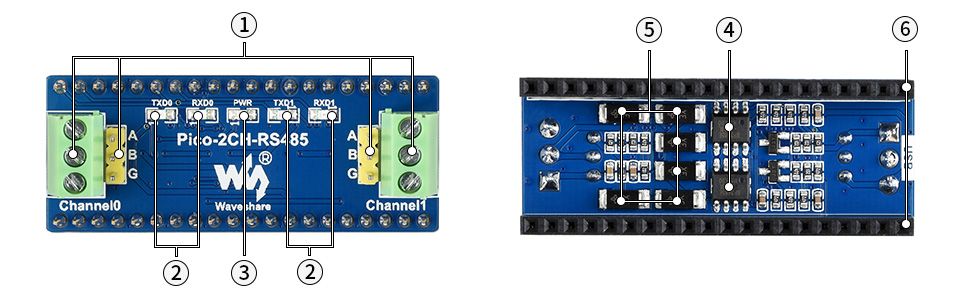

Elements of the board:

RS485 bus interface 2-channel RS485
UART status indicators
RXD0/TXD0: indicators of RX/TX channel 0
RXD1/TXD1: indicators of RX/TX channel 1
Power supply indicator
RS485 receiver SP3485
SMAJ12CA diode matrix for transient suppression
Raspberry Pi Pico connector
