Raspberry Pi Compute Module 4 PoE Mini-Computer (20016)

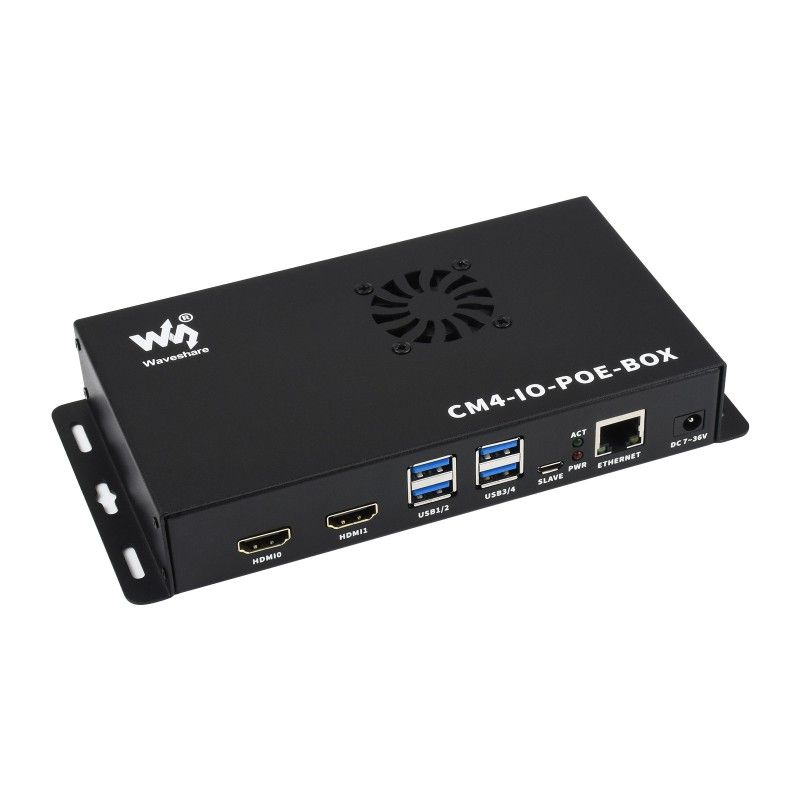

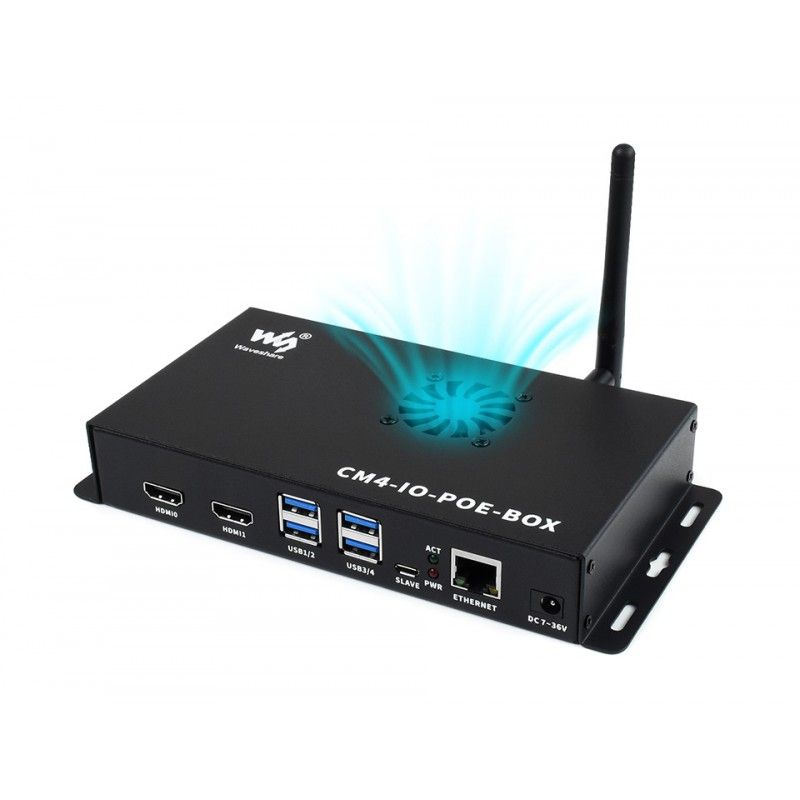

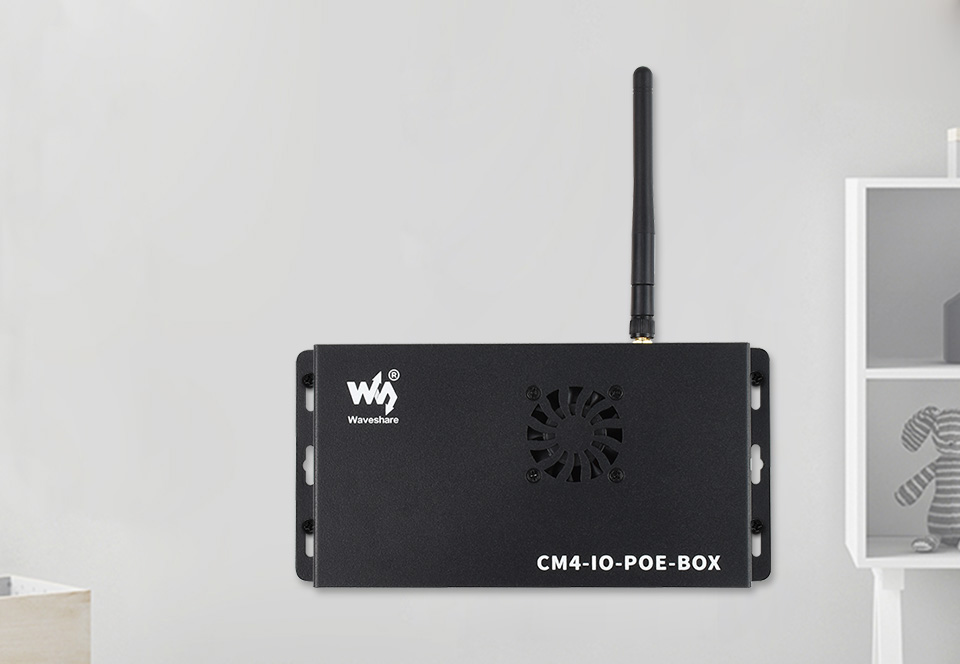

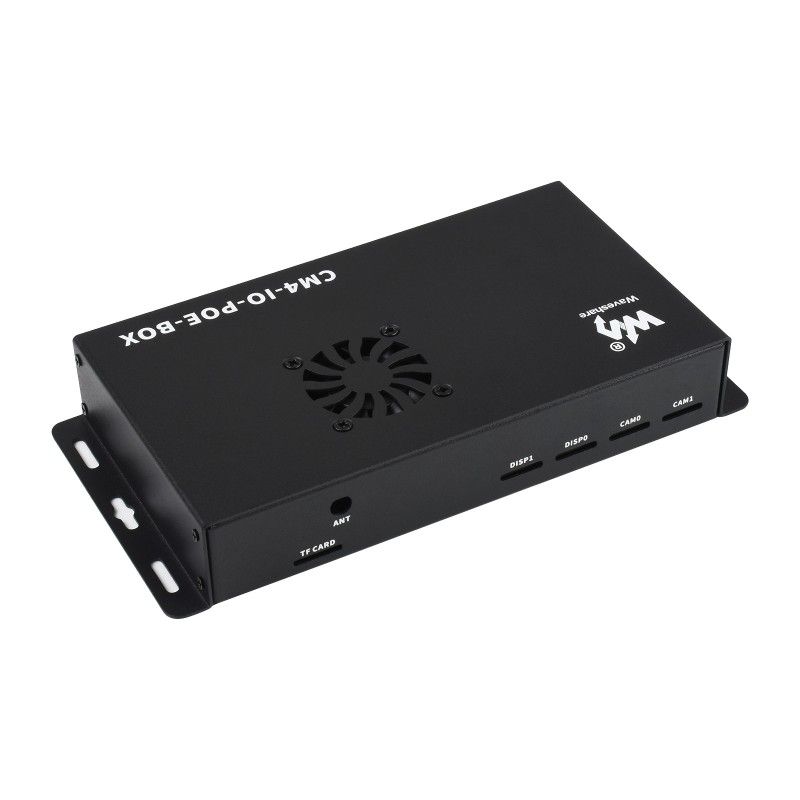

TheRaspberry Pi Compute Module 4 PoE Mini-Computer (20016 ) is a specially designed mini-computer based on the Raspberry Pi CM4 computing module, which has a PoE power function that allows it to work when connected to a network cable only. It is made in a sturdy metal case with special holes for wall mounting and is equipped with a forced ventilation fan for cooling. This mini-computer is perfect for projects with binocular vision, as well as PoE power, etc.

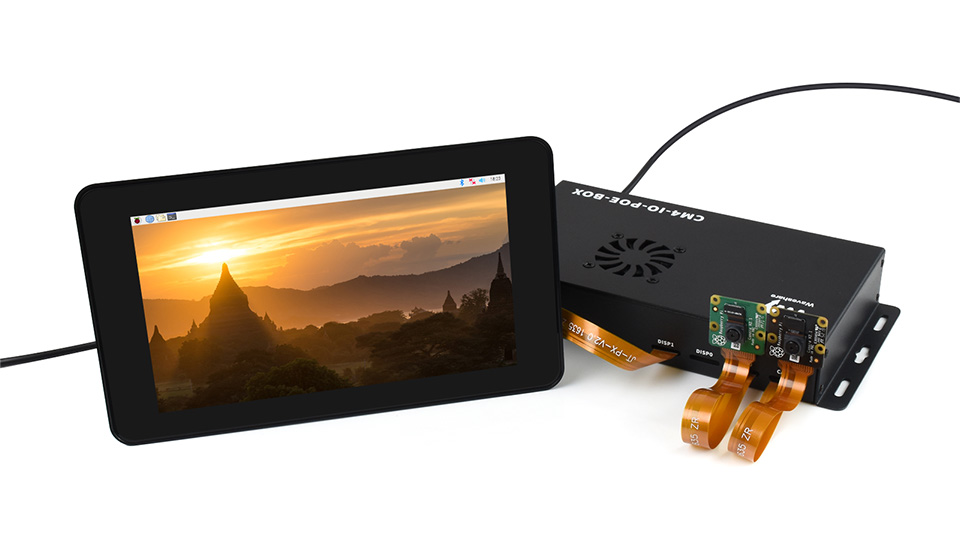

Please note: Display and cameras are not included.

Specifications:

• POE: integrates 802.3af compliant PoE circuitry (5V/2.5A)
• USB: 4 USB 3.2 Gen1 ports
• Micro USB port
• ETHERNET: Gigabit Ethernet RJ45 with PoE support
• 40PIN GPIO connector with color coding
• Standard 5V/12V fan connector r
• Power input: 7 V 36 V
• CM4 SOCKET: suitable for all Compute Module 4 variants
• RTC: real-time clock with battery connector and wake-up capability
• VIDEO: 2 MIPI DSI display FPC connectors (22-pin cable with 0.5 mm pitch)
• CAMERA: 2x MIPI CSI-2 camera connectors FPC (22-pin cable with 0.5mm pitch)
• SD CARD SLOT: MicroSD card slot for Compute Module 4 Lite variants (no eMMC)

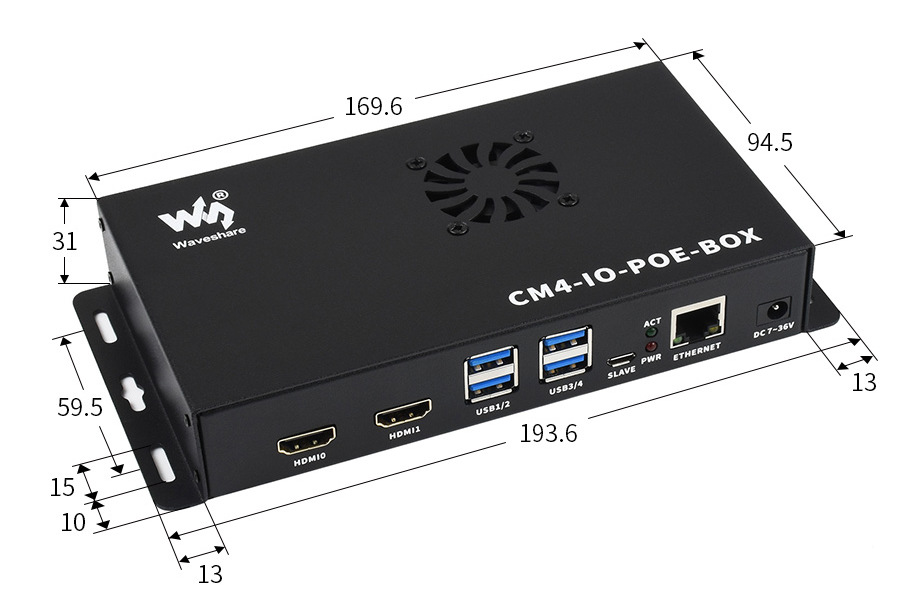

• DIMENSIONS: 160 × 90 mm

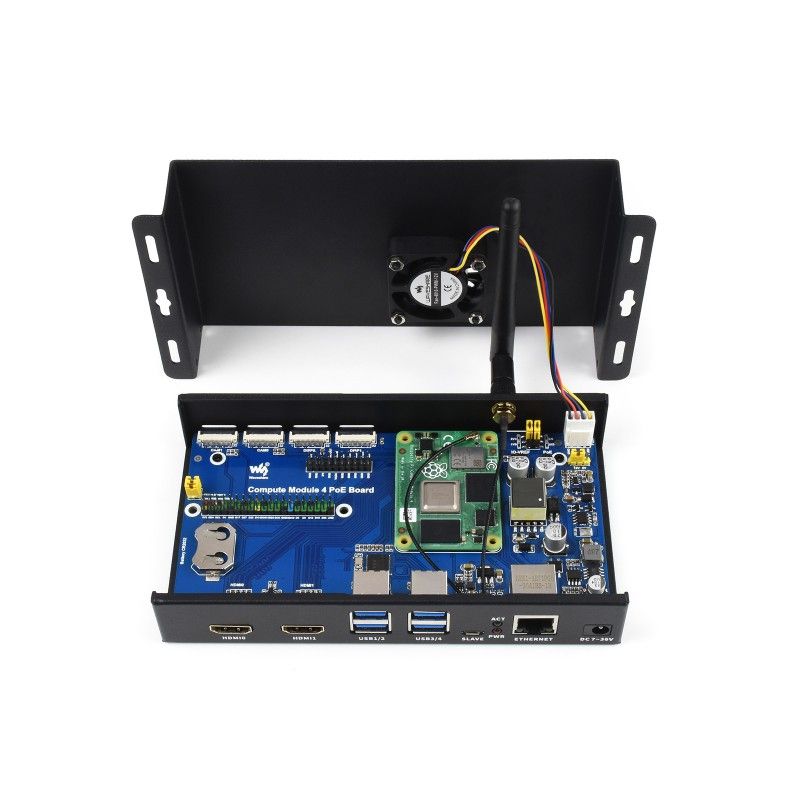

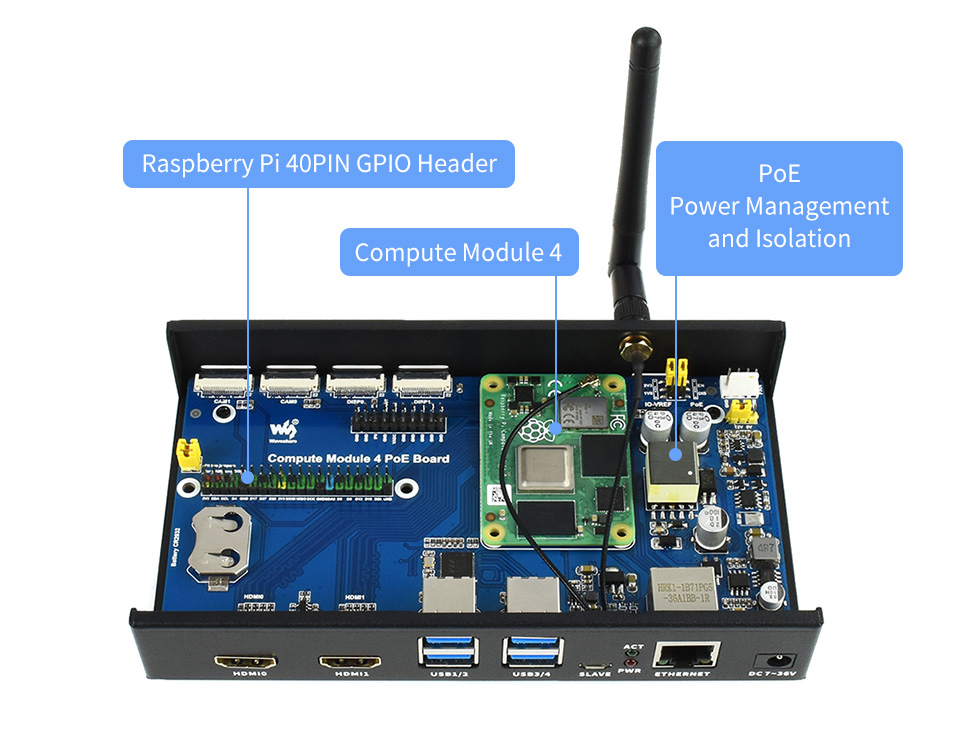

Device elements:

Please note: Antenna and Compute Module 4 are not included in the package.

Raspberry Pi 40-pin GPIO: 40-pin GPIO connector

Compute Module 4: Raspberry Pi compute module CM4

PoE: power management with decoupling

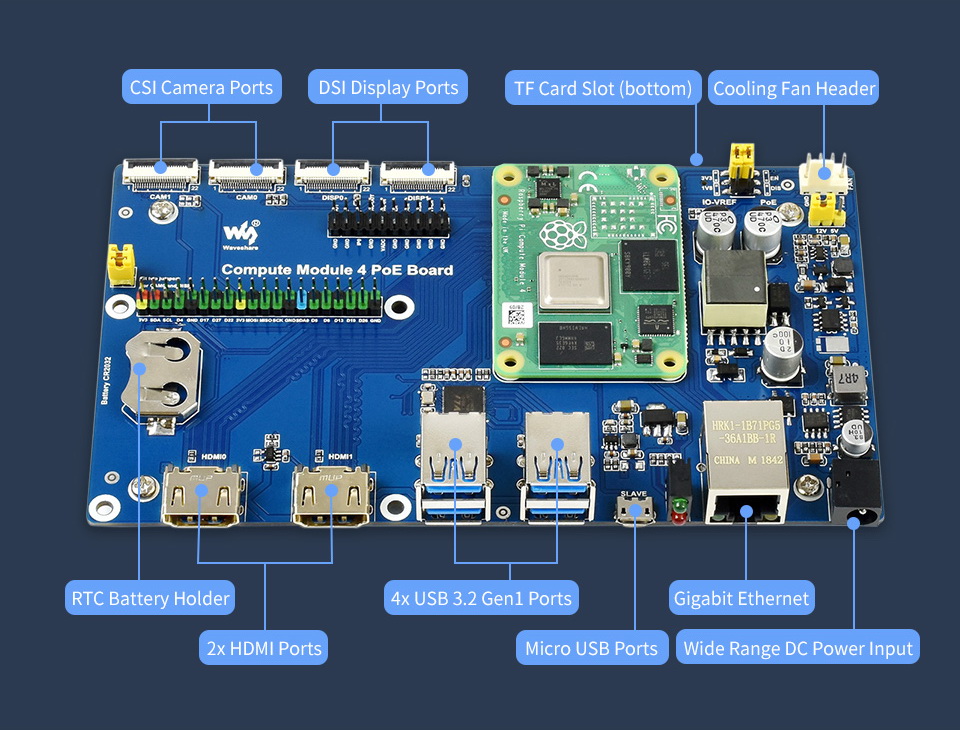

Peripheral connectors:

1. 2x MIPI CSI camera ports
2. 2x MIPI DSI display ports
3. Slot for connecting a TF Card memory card
4. Connector for connecting a cooling fan, allows you to adjust and measure the speed
5. RTC battery holder
6. 2x HDMI ports
7. 4x USB 3.2 Gen1 ports
8. Micro-USB port
9. Gigabit Ethernet RJ45 connector with support for 10/100/1000 Mbps network
10. Power connector

Overall dimensions: 85mm x 56mm

The package includes:

1. Metal case (top and bottom) x1
2. Basic board of the microcomputer PoE x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Screw set x1
6. Power adapter 12V 2A x1

Weight: 0.627 kg
