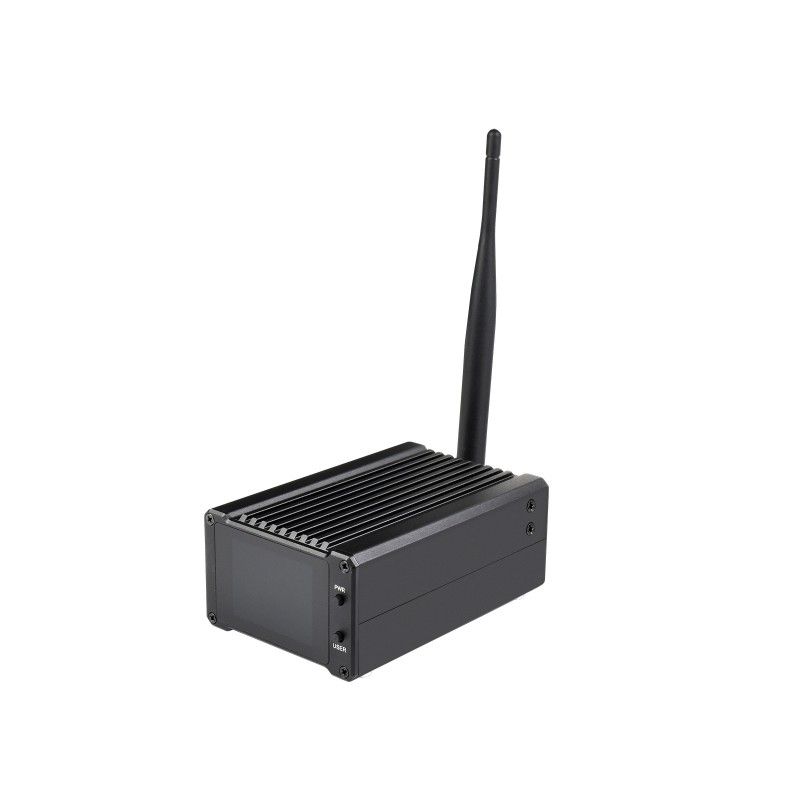

Raspberry Pi Compute Module 4 NAS All-In-One Mini-Computer (23880)

TheRaspberry Pi Compute Module 4 NAS All-In-One Mini-Computer (23880 ) is a device that combines the functions of a network attached storage (NAS) and amini-computer and is designed to be used with the Raspberry Pi Compute Module 4 (CM4). The CM4 provides computing power and the ability to perform various tasks such as working with programs, services, web servers, and others.

The purpose of this device is to store and share files and data over a network. It can be used as a centralized file storage that is accessible to various devices on your network, including computers, smartphones, tablets, and others.

This NAS All-In-One Mini-Computer provides a convenient way to organize network storage and provide access to files from a variety of devices. It can be used as a home server, media center, backup storage, and much more. With the use of Raspberry Pi Compute Module 4, you can also perform various tasks, extend the functionality and adapt it to your needs.

Main features:

• Versatile mini computer, mainly designed for home or small home office, but not limited to the above applications
• No special knowledge of networks and storage systems required out of the box
• Built-in 2 SATA slots for installing 2.5-inch solid-state drives
• 2-inch SPI LCD screen for real-time monitoring of CM4 operating status: CPU, RAM, system disk utilization, network speed and temperature, etc.
• Easy to use, convenient access to documents, videos and music online at any time

Specifications

• PROCESSOR*: Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8) 64-bit 1.5 GHz SoC
• RAM*: 4 GB
• EMMC FLASH *: 8 GB
• INTERFACES:
  • Dual-band (2.4 GHz/5.0 GHz) IEEE 802.11b/g/n/ac wireless Wi-Fi, Bluetooth 5.0, BLE with built-in and external antenna*.
  • Gigabit Ethernet RJ45 connector
  • 2 USB 2.0 ports
  • 2 SATA slots (2.5" SATA)
  • TF card slot for Compute Module 4 Lite variants (without eMMC)
  • HDMI × 1, supports 4K 30fps output
• OPERATING VOLTAGE: 5V DC

* CM4104008 is not included.

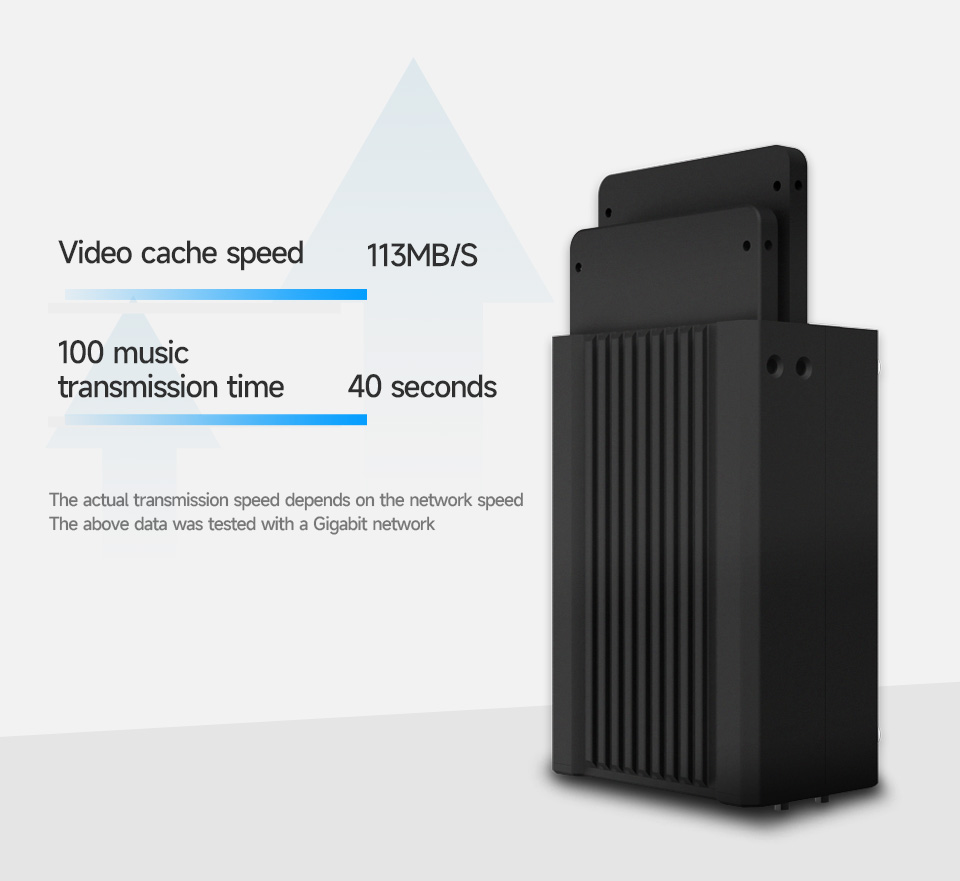

Built-in two hard disk slots
Supports high-capacity hard disk drives

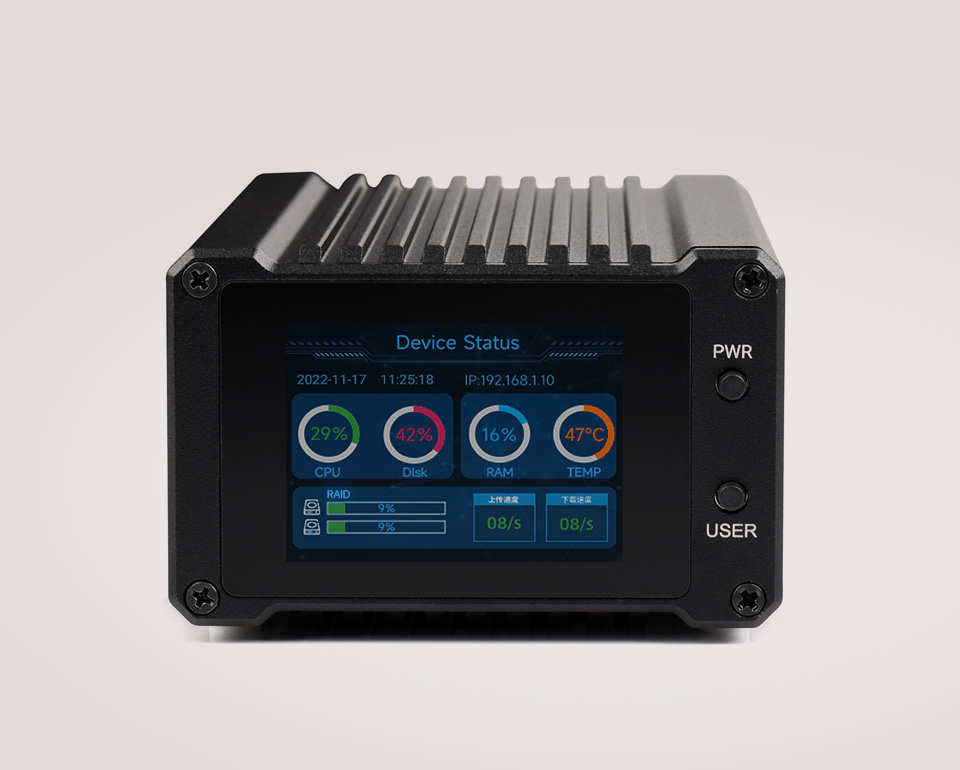

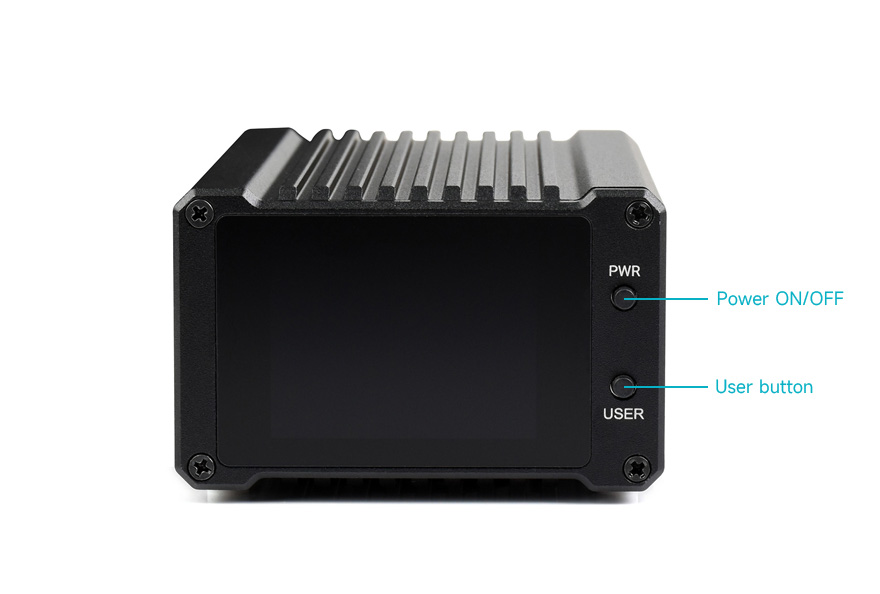

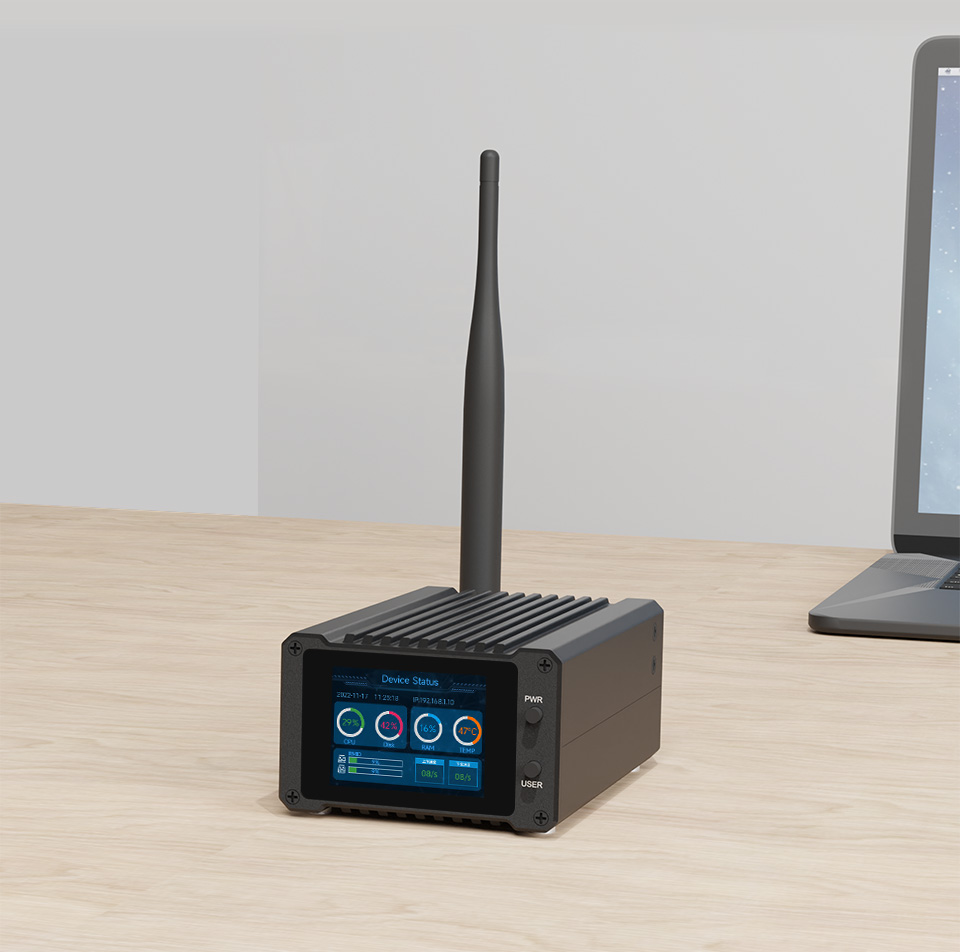

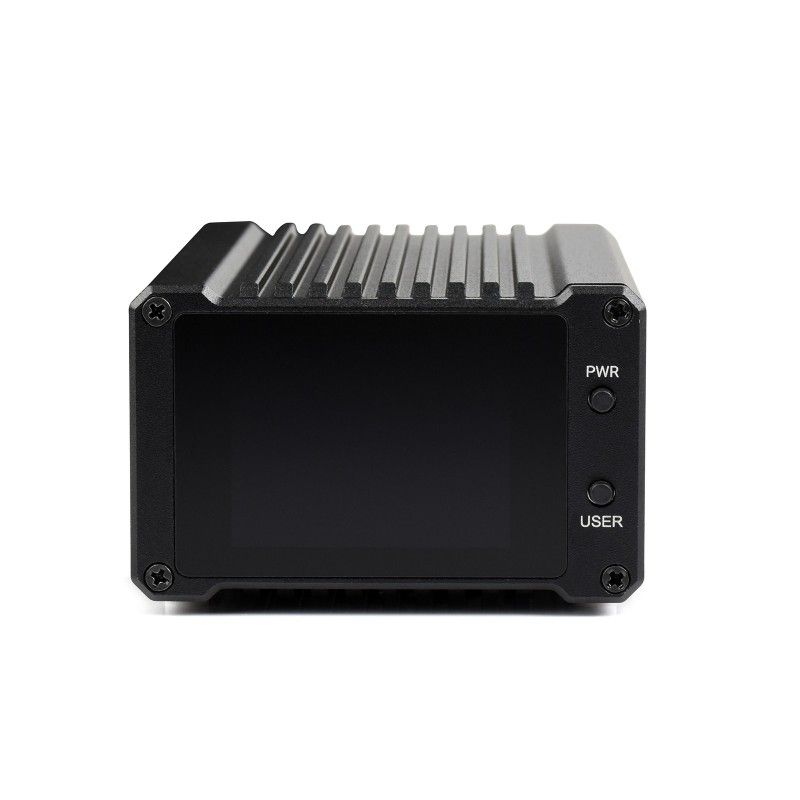

Supplied with 2" SPI LCD display
For real-time monitoring of CM4 operating status

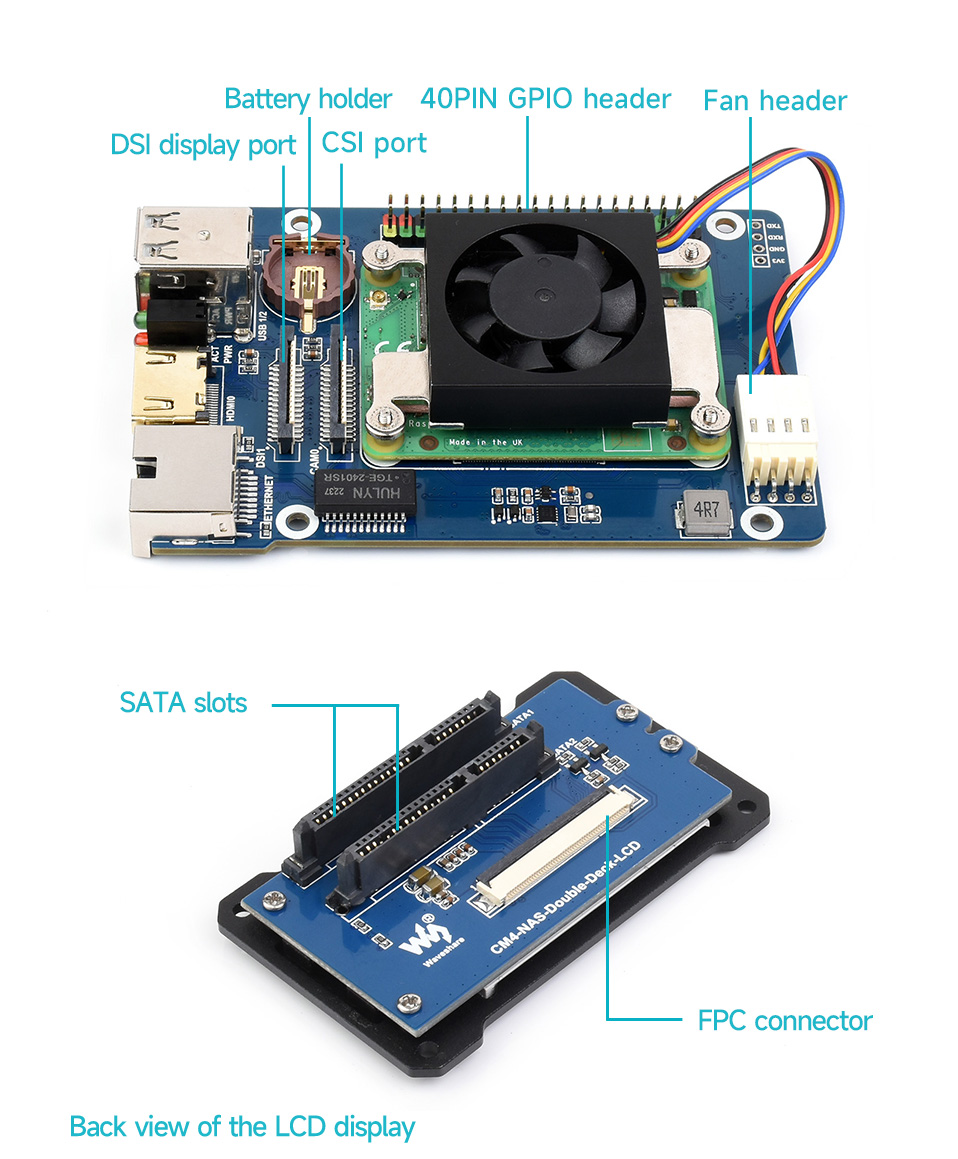

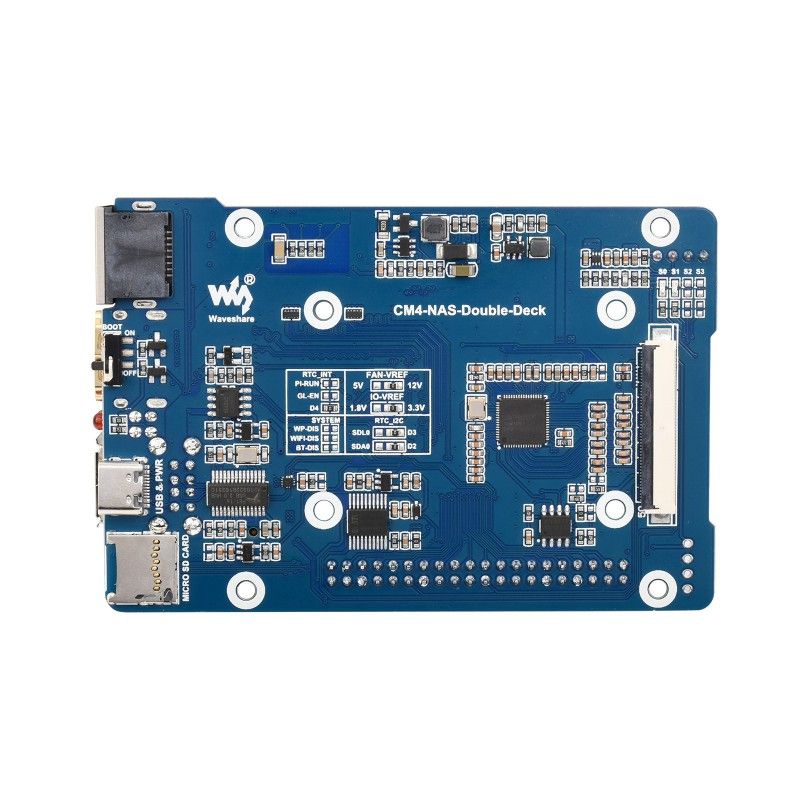

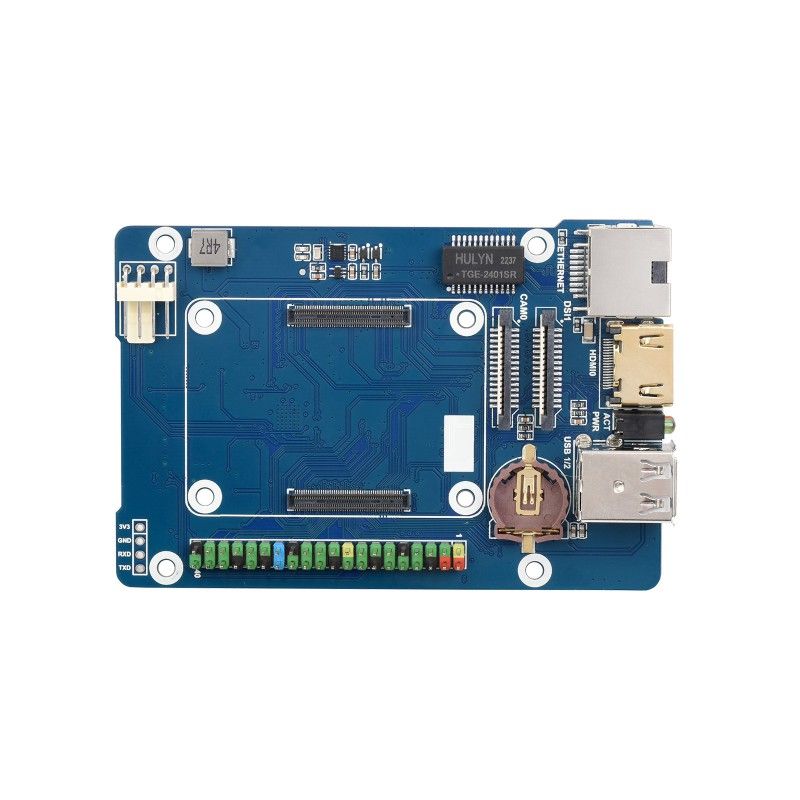

Board Elements:

Aluminum alloy housing design

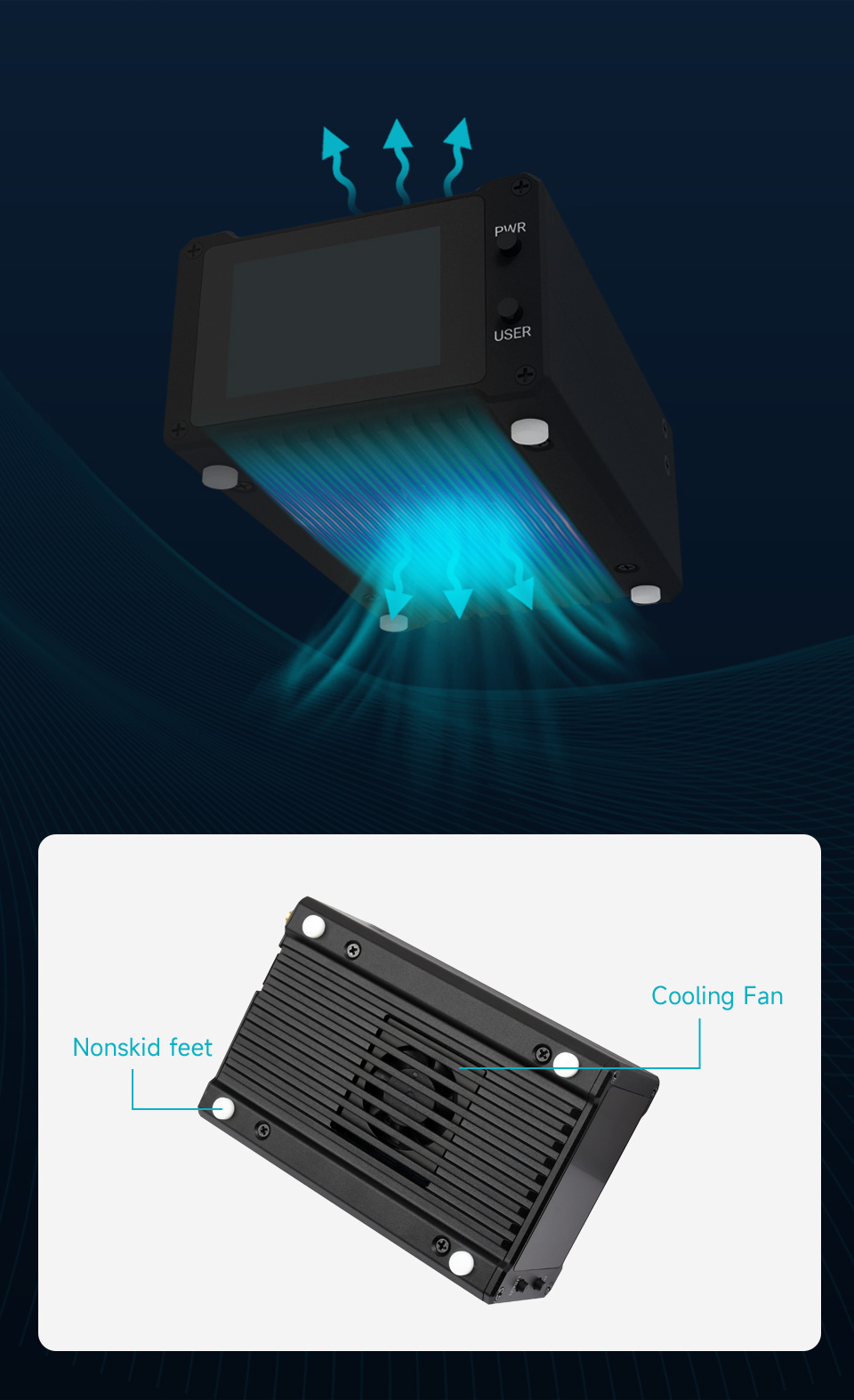

Large-area heat dissipation alloy housing, with ventilation holes and non-slip feet at the bottom, better heat dissipation and more stable positioning

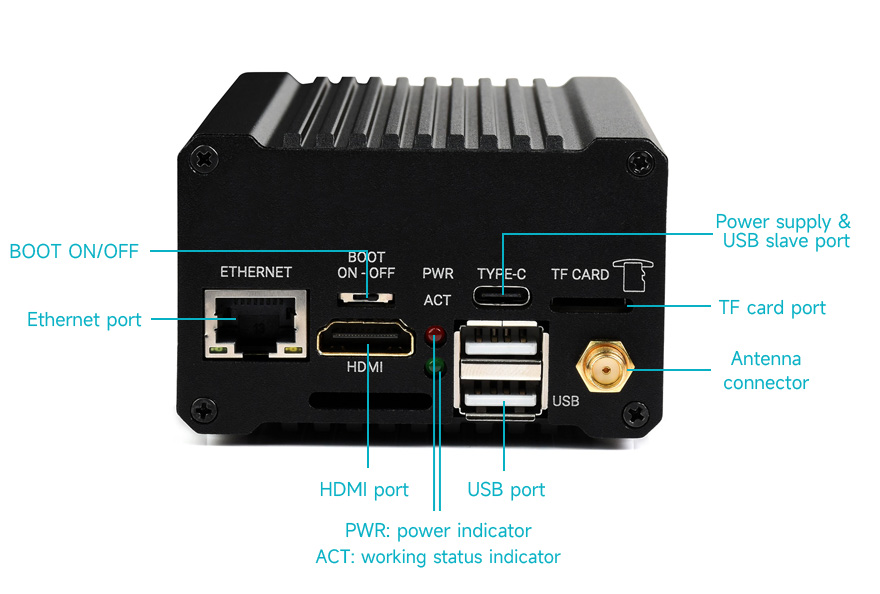

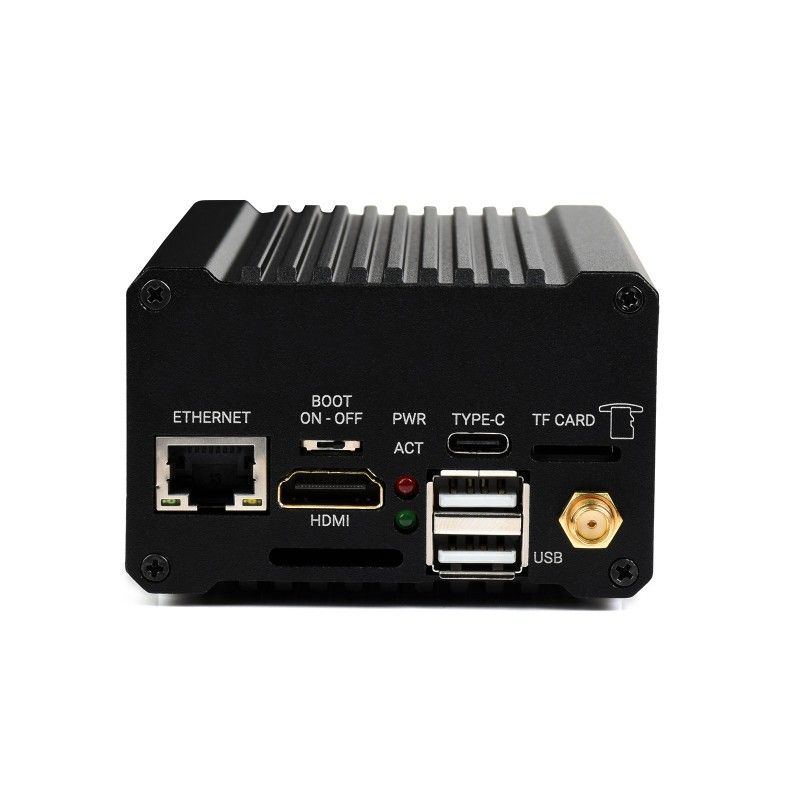

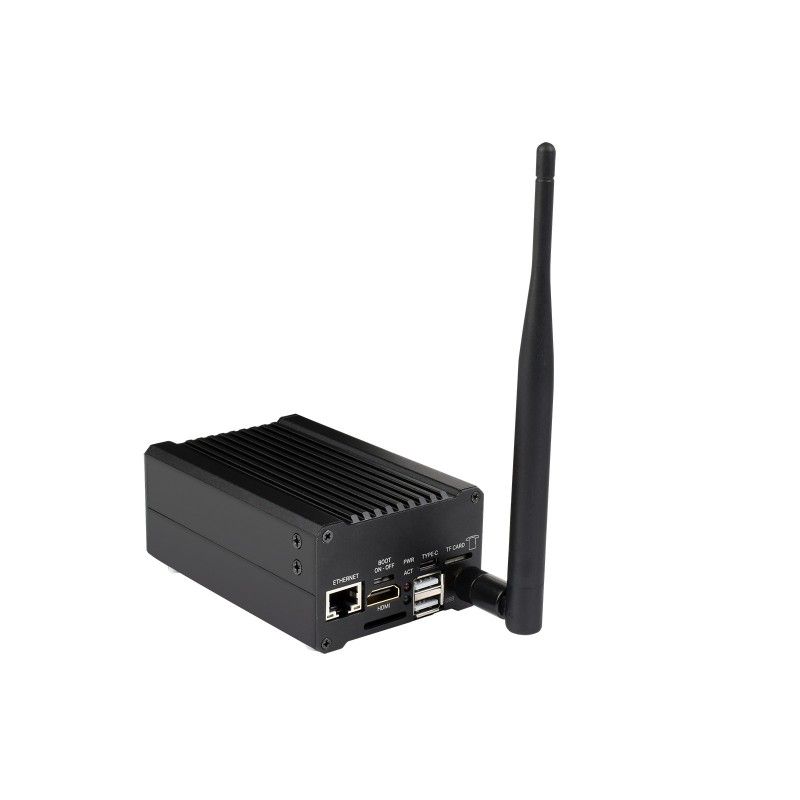

Precise cutout with clear label
Each cutout matches the connector completely

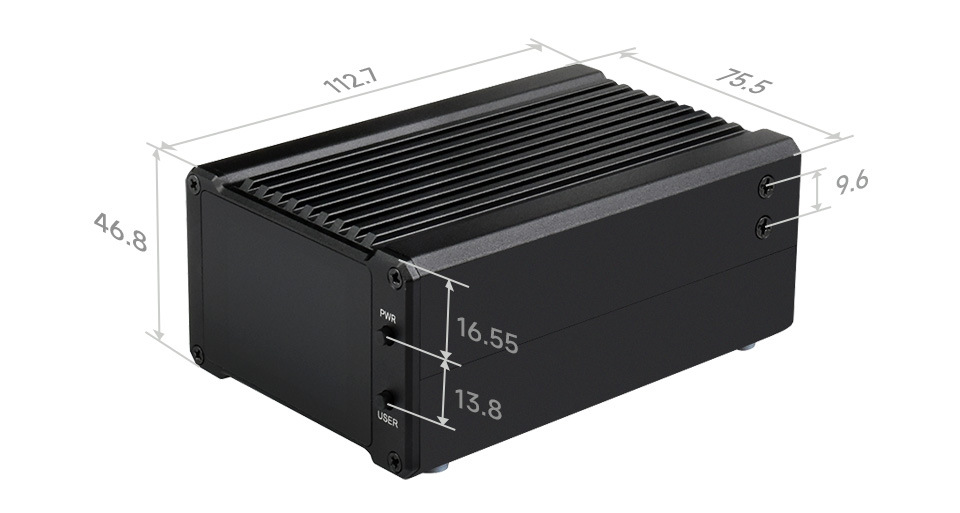

Overall dimensions: 112.7mm x 75.5mm x 46.8mm

WIKI: www.waveshare.com/wiki/CM4-NAS-Double-Deck

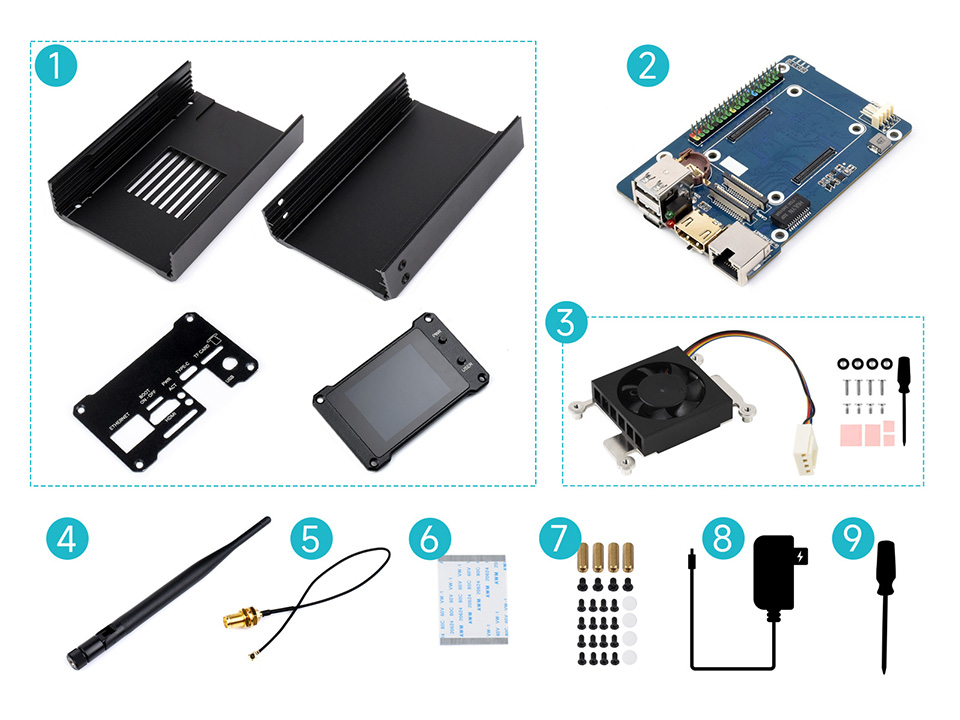

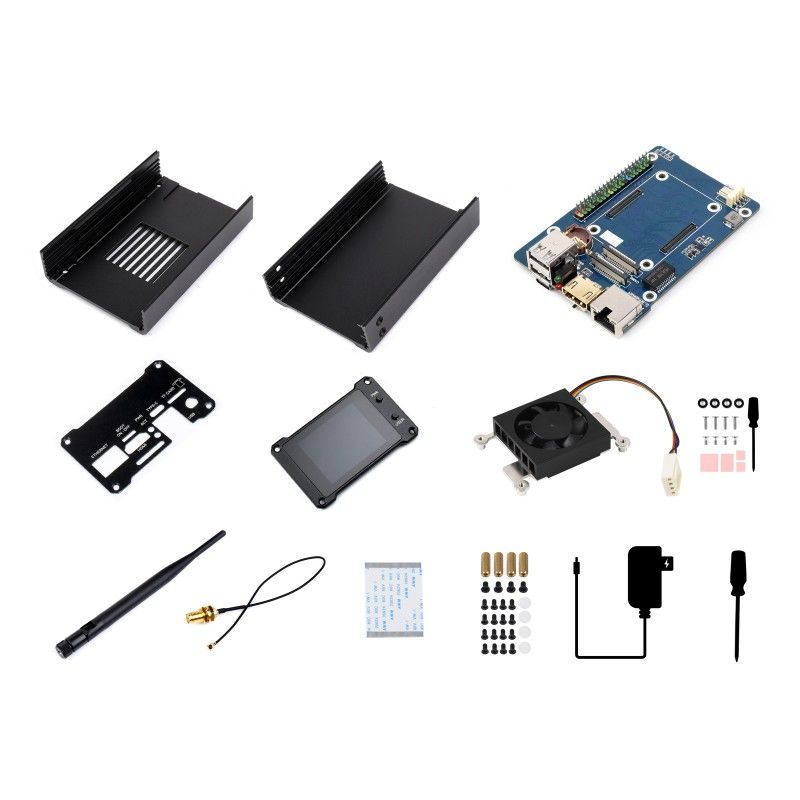

Scope of delivery:

1. Aluminum alloy housing (2" LCD included) x1
2. CM4-NAS-Double-Deck x1

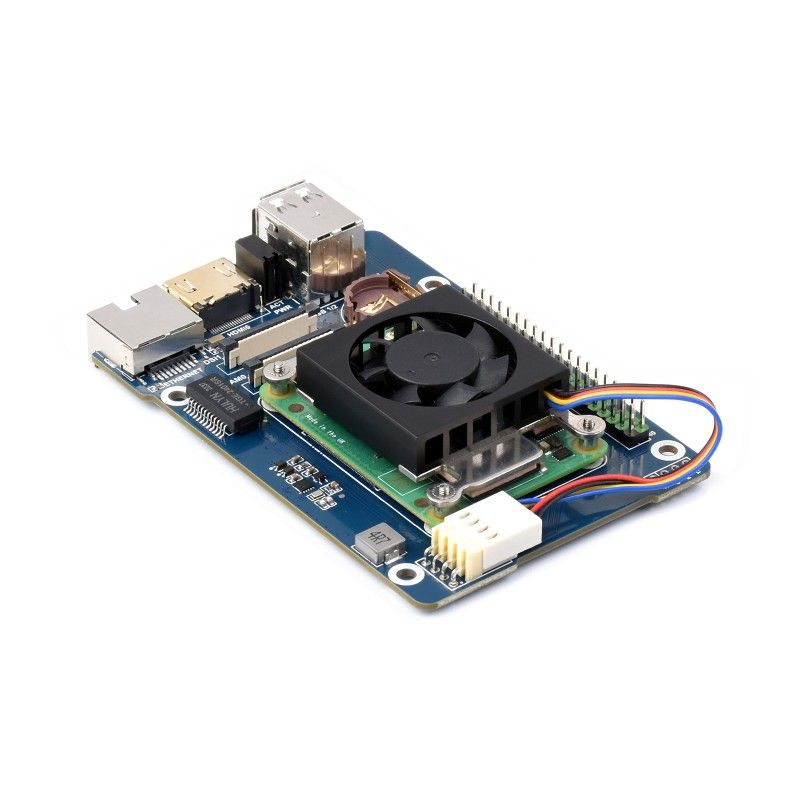

3. CM4-FAN-3007 (fan screw set and screwdriver included) x1
4. Antenna x1
5. IPEX - SMA cable 20 cm x1
6. FPC 50PIN cable 4 cm x1
7. Package of screws x1 pc
8. Power supply 5 V 3 A type C x1
9. Screwdriver x1

Weight: 0.526 kg
