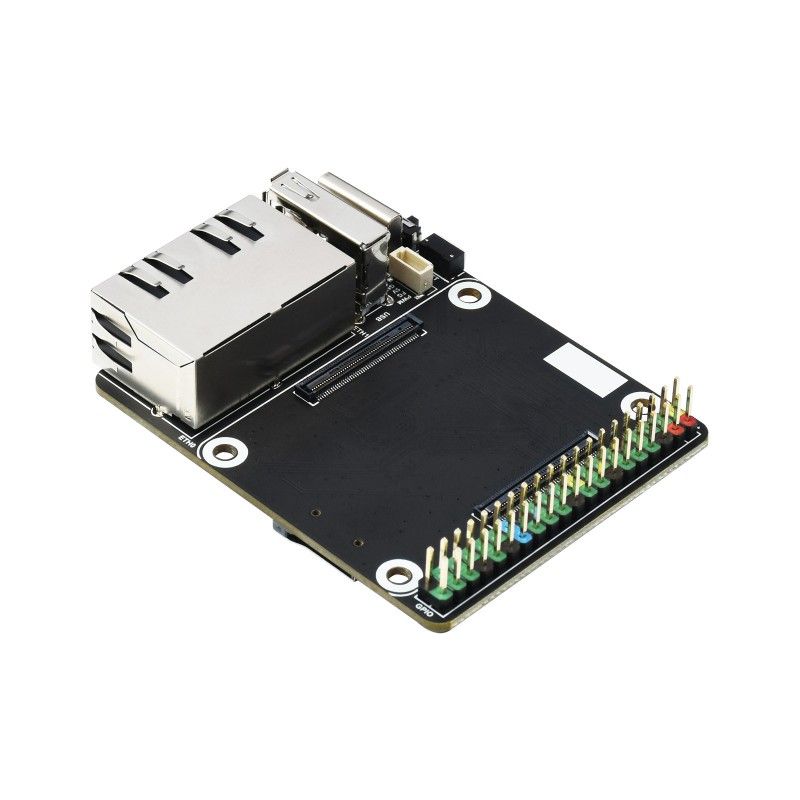

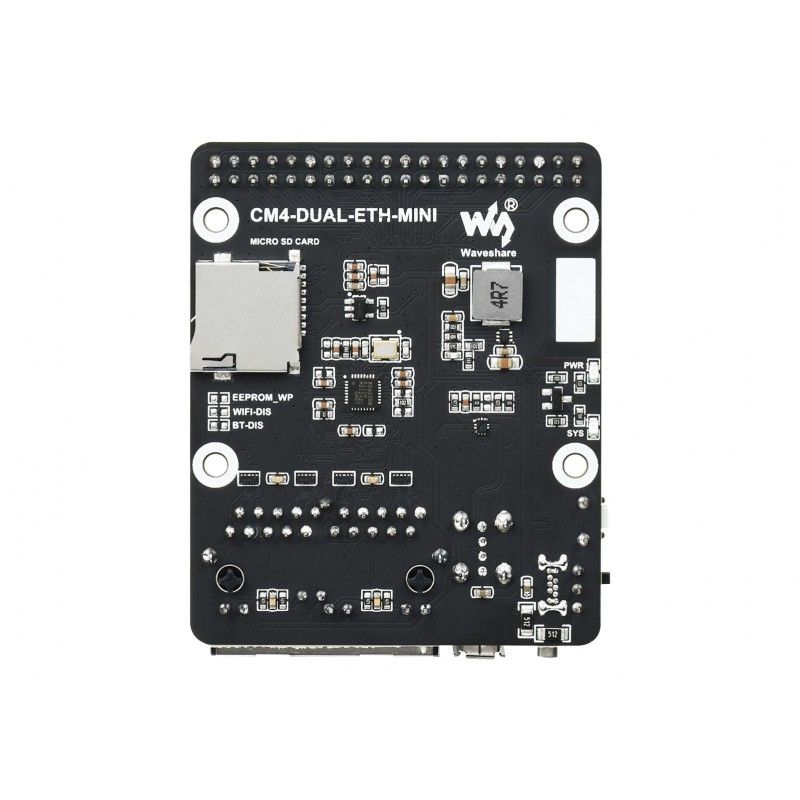

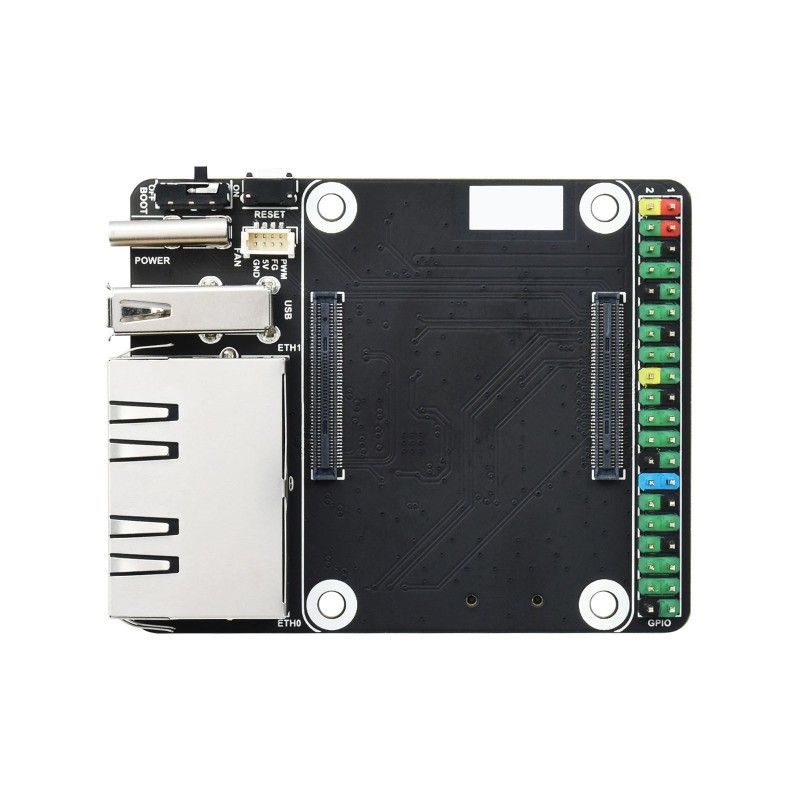

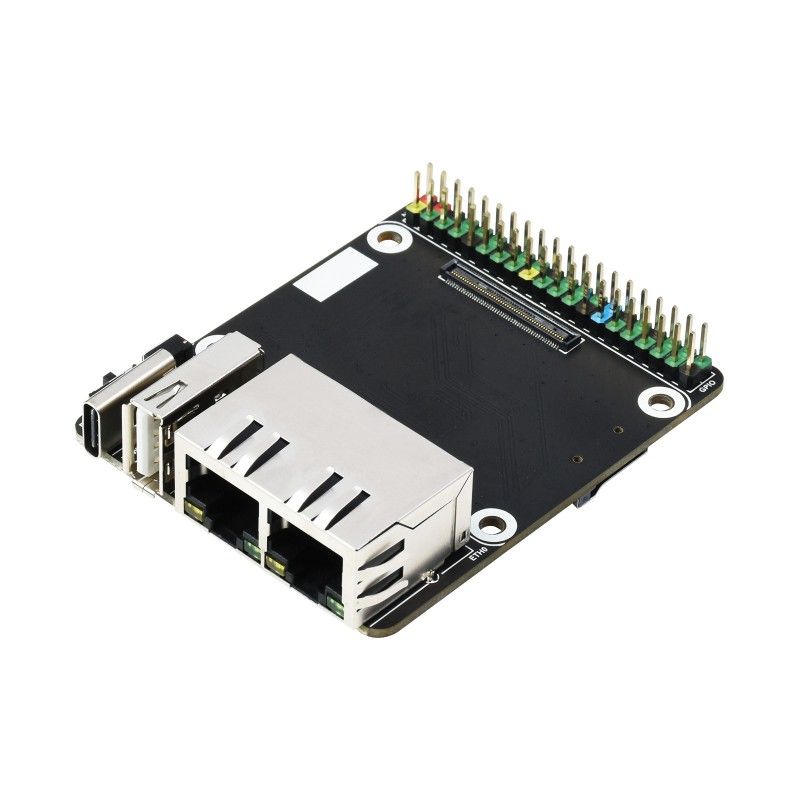

Raspberry Pi Compute Module 4 Mini Dual Gigabit Ethernet Base Board (22360)

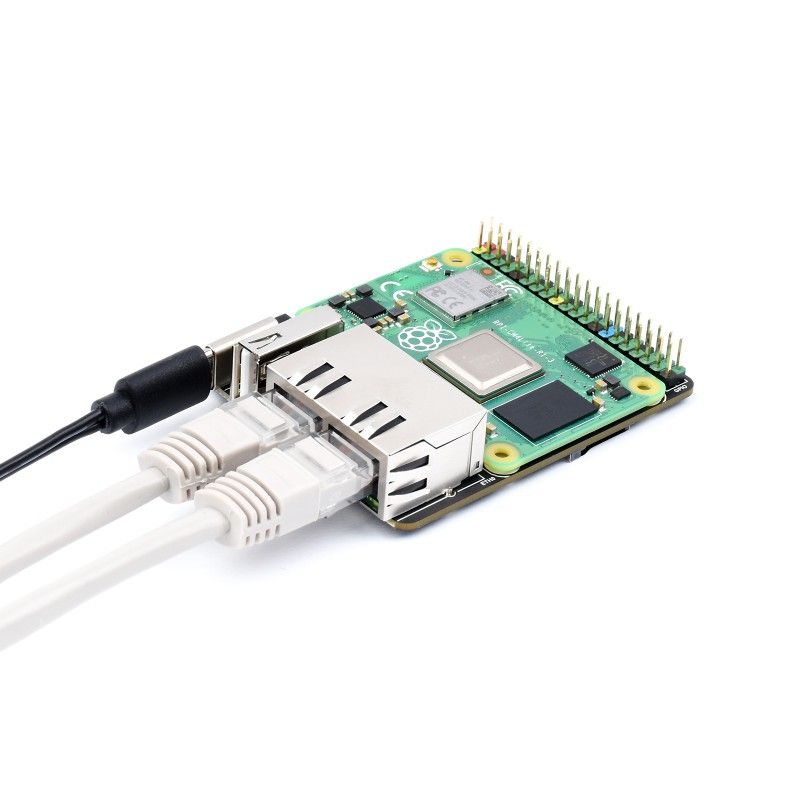

The Raspberry Pi Compute Module 4 is not included

Raspberry Pi Compute Module 4 Mini Dual Gigabit Ethernet Base Board (22360 ) is a base board specially designed for projects based on the Raspberry Pi CM4, as well as for its integration into end products with special functional requirements. The main feature of this model is the availability of two Gigabit Ethernet ports.

Main features:

• CM4 connector fits all Compute Module 4 variants
• Dual Gigabit Ethernet RJ45 connector
• USB port USB 2.0
• Raspberry Pi 40PIN GPIO connector
• Micro SD memory card slot for Compute Module 4 Lite variants (without eMMC)
• 4-wire SH1.0 port for the cooling fan (5V), which allows you to adjust and measure its speed
• 5V power input, Type-C interface
• Overall dimensions: 55.0 × 68.0 mm

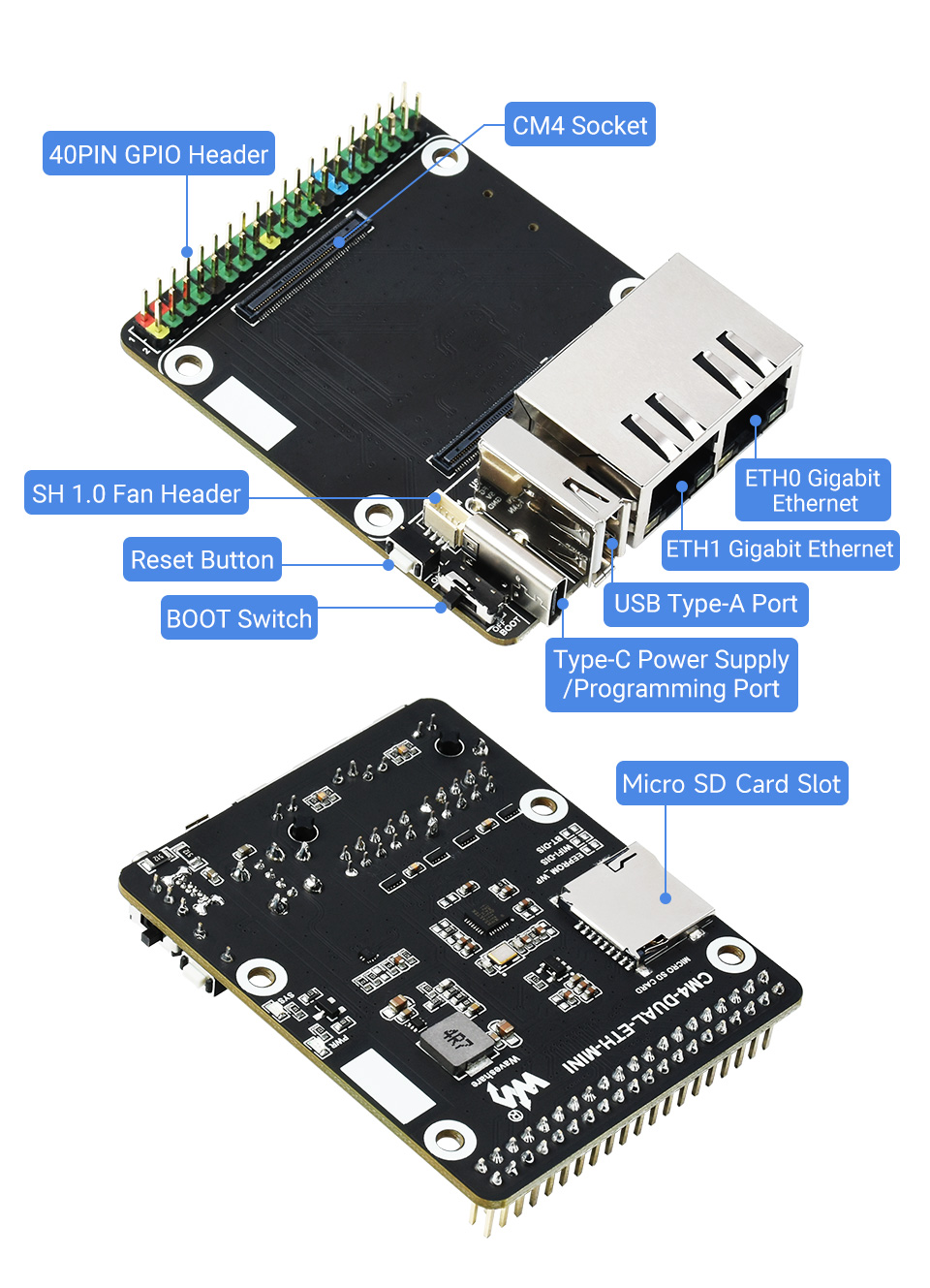

Board interfaces:

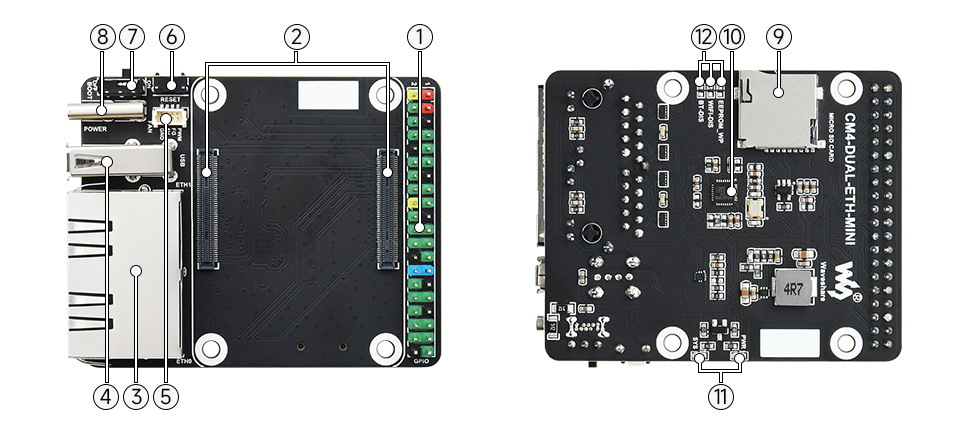

Board elements:

1. 40PIN GPIO connector for connecting various expansion cards
2. CM4 socket is suitable for all variants of Compute Module 4
3. Dual RJ45 Gigabit Ethernet port
- Two RJ45 Gigabit Ethernet ports, compatible with 10/100/1000M
- ETHERNET 0: original CM4 network port
- ETHERNET 1: extended PCIe network port
4. USB 2.0 type A port for connecting various USB devices
5. FAN connector for connecting a cooling fan with speed control and measurement function
6. Reset button
7. Boot switch
- ON: CM4 will boot from the USB-C interface
- OFF: CM4 will boot from an eMMC or Micro SD card
8. Power supply Type-C 5V/2.5A port or used for eMMC programming
9. Micro SD card slot for connecting a Micro SD card with a pre-recorded image (Lite version ONLY)
10. Gigabit NIC chip RTL8111H
11. indicator
- PWR: indicates the power status of the Raspberry Pi
- SYS: indicates the operating status of the Raspberry Pi
12. Switch SYSTEM
- EEPROM_WP: prevents EEPROM from being overwritten
- WiFi_DIS: WiFi is disabled, only for CM4 version with antenna
- BT_DIS: Bluetooth disabled, only for CM4 version with antenna

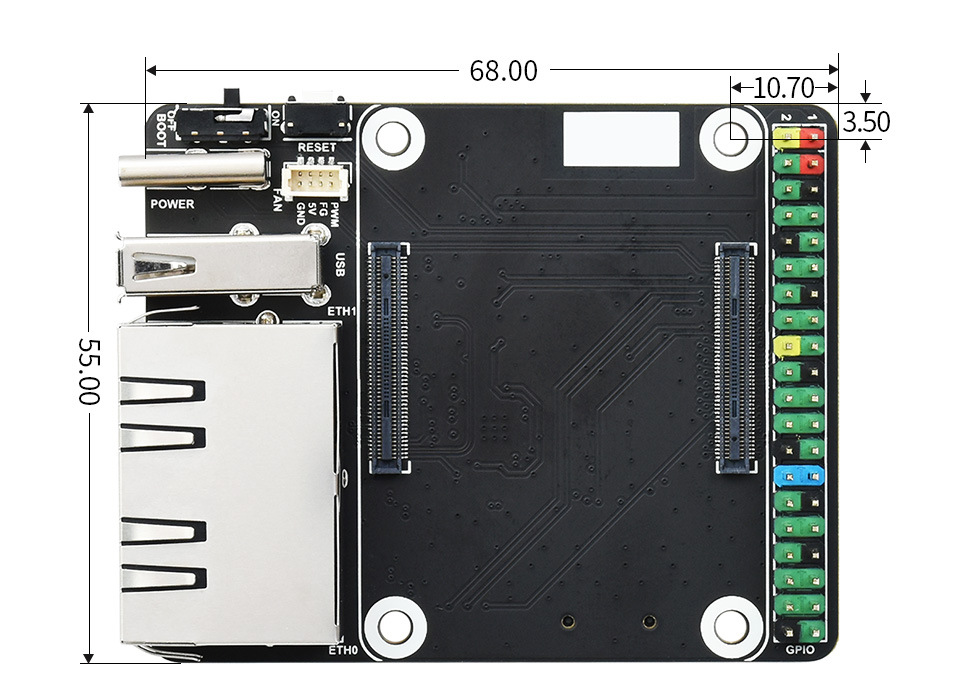

Overall dimensions: 55mm x 68mm

Information for developers (Wiki): www.waveshare.com/wiki/CM4-DUAL-ETH-MINI

The package includes:

1. CM4-DUAL-ETH-MINI x1 board.

1.

Weight: 0.033 kg
