Raspberry Pi Compute Module 4 Mini-Computer Base Board (B) (20256)

The Raspberry Pi Compute Module 4 is not included

Raspberry Pi Compute Module 4 Mini-Computer Base Board (B) (20256 ) is a kit that includes a base board and a metal case with a fan, which allows you to build a full-fledged microcomputer based on the Raspberry Pi CM4 compute module (the compute module itself is not included in this kit). This kit allows you to create industrial-grade projects, including stereo vision projects based on Raspberry Pi.

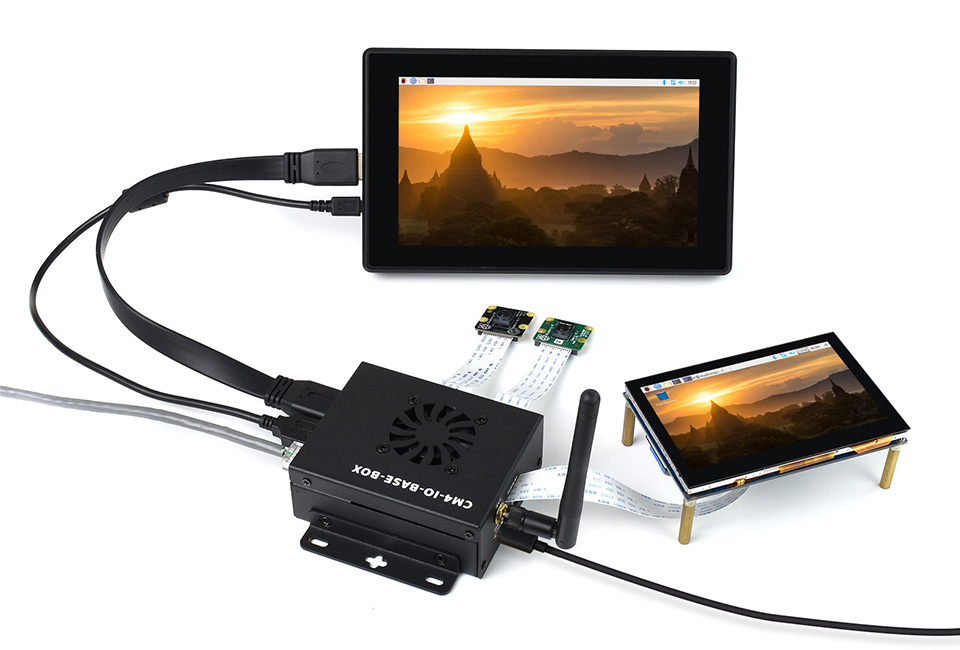

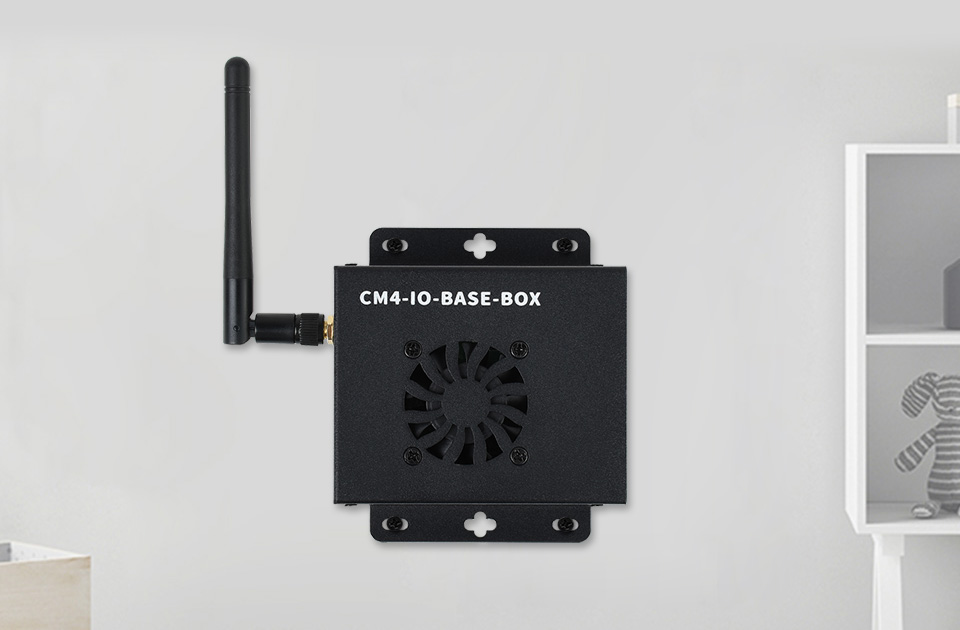

Thanks to the wall-mount design of the case, it can be easily mounted on almost any surface.

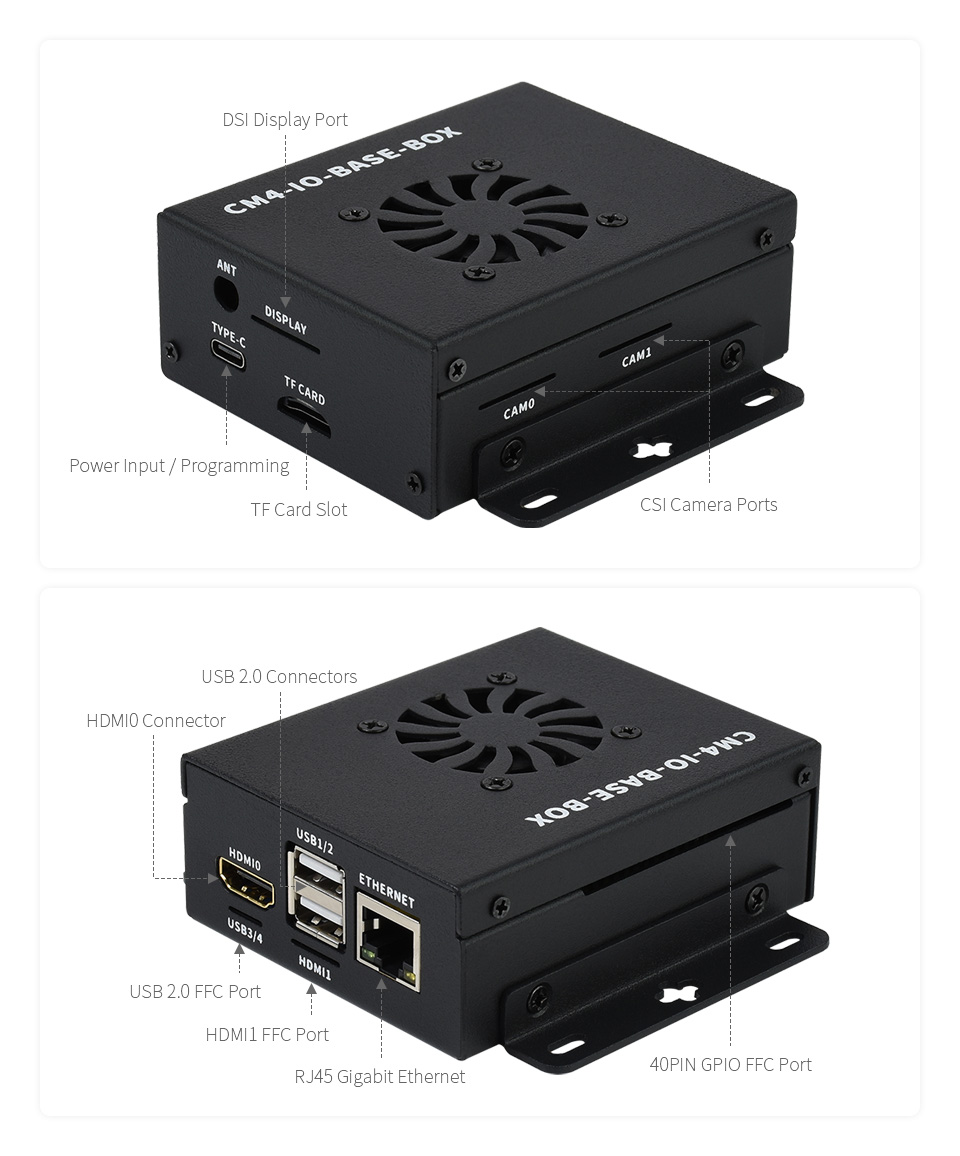

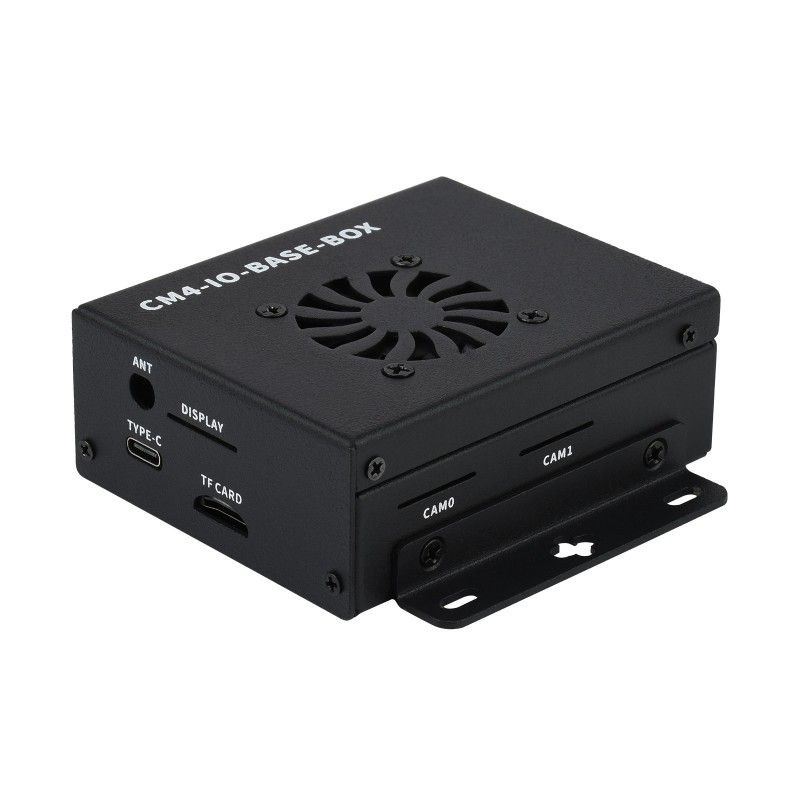

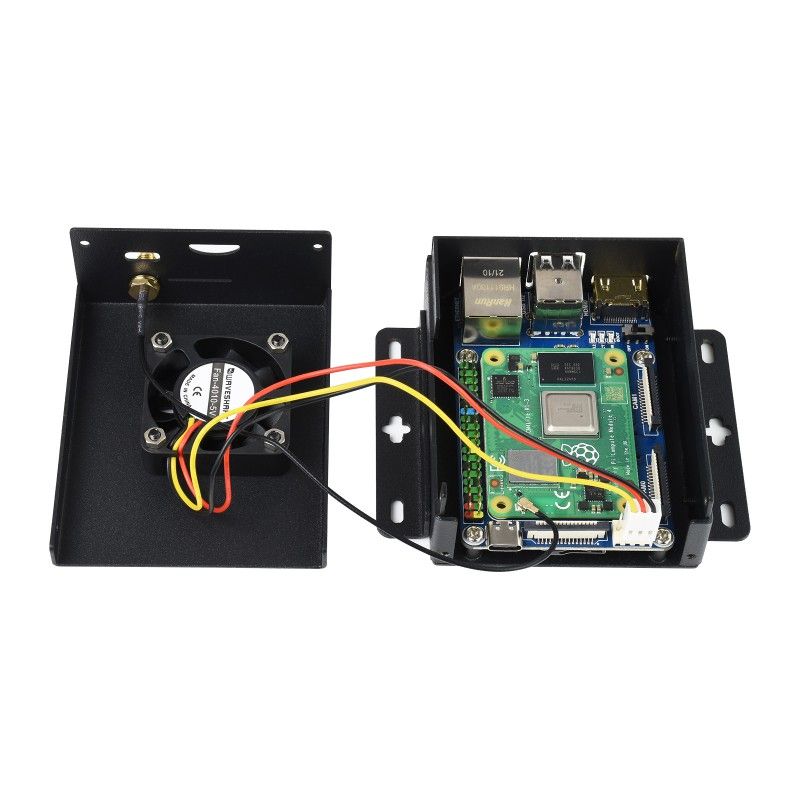

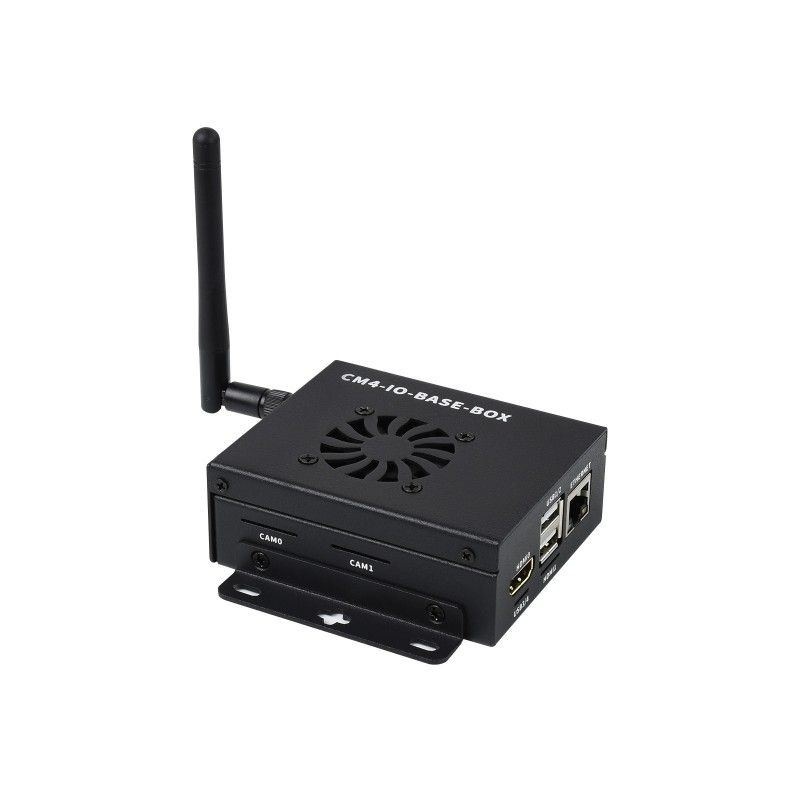

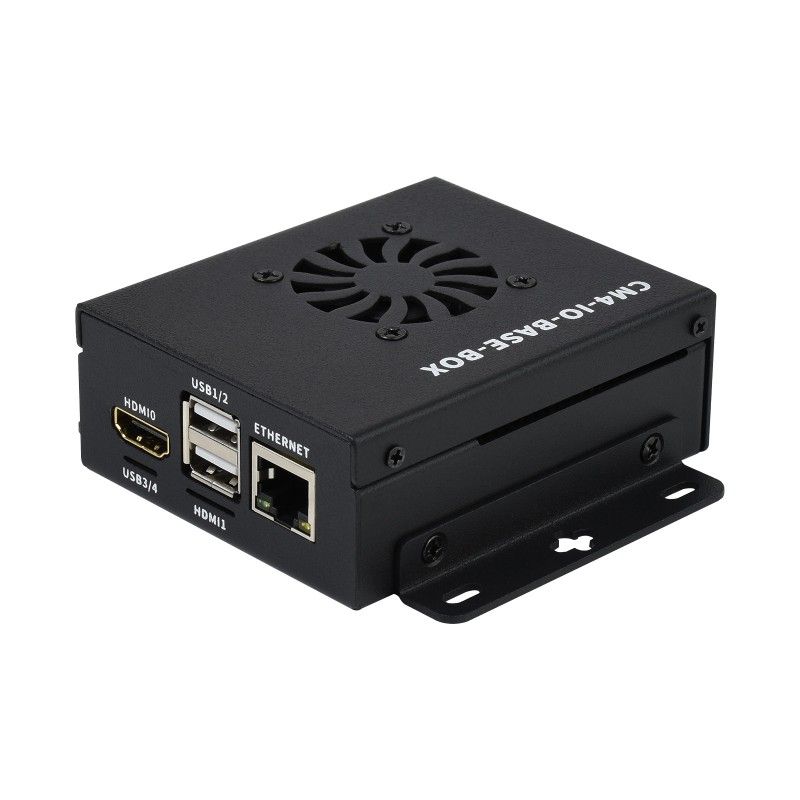

The base board and the computing module are protected by a sturdy two-piece metal case. The case has openings for all major interfaces, including an external antenna (antenna not included). A cooling fan is built into the case for better heat transfer.

For your convenience, all places for external interfaces are labeled.

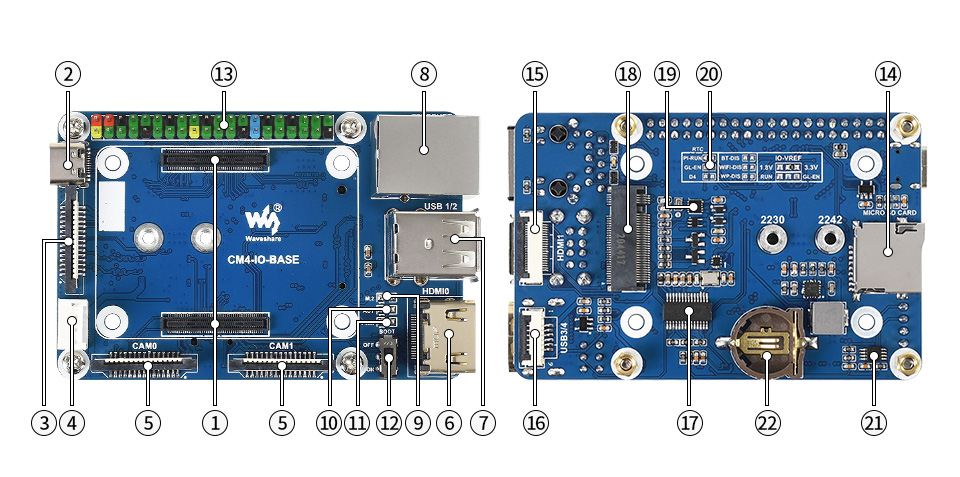

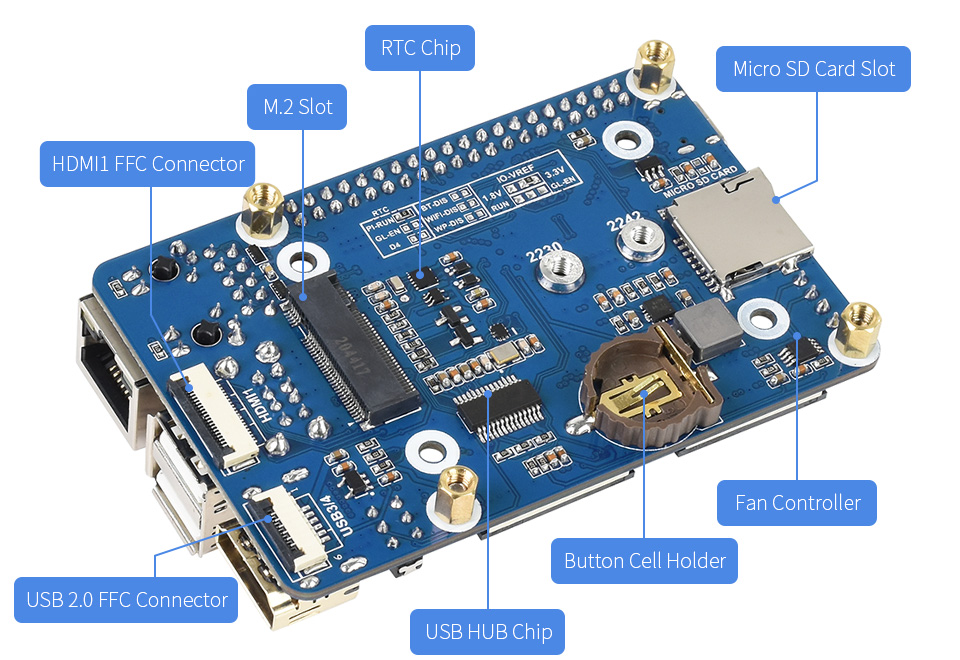

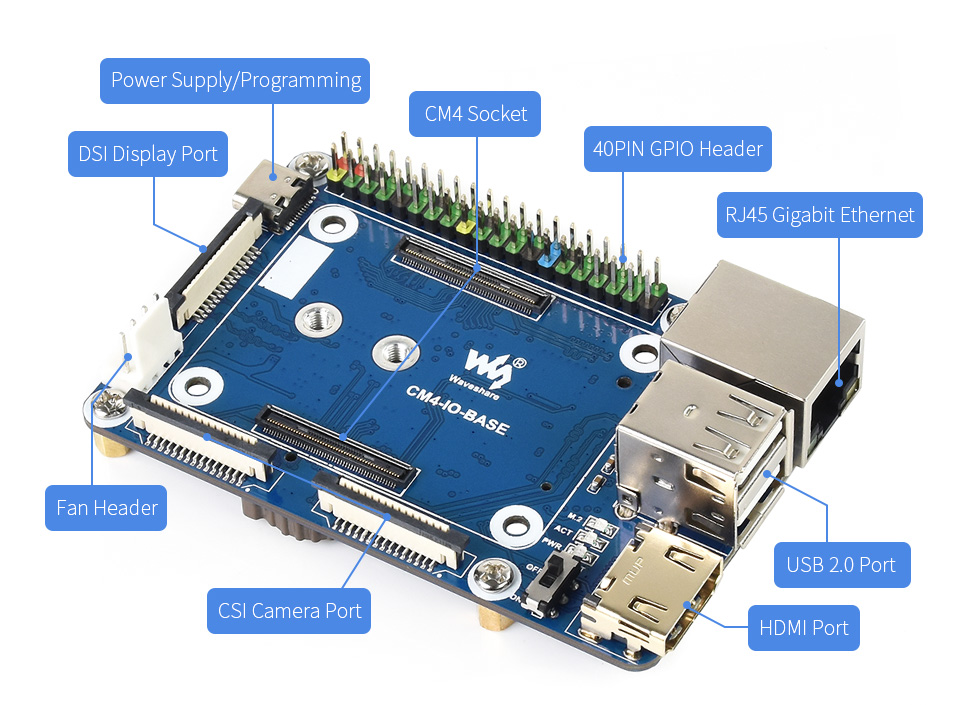

The main elements of the base board:

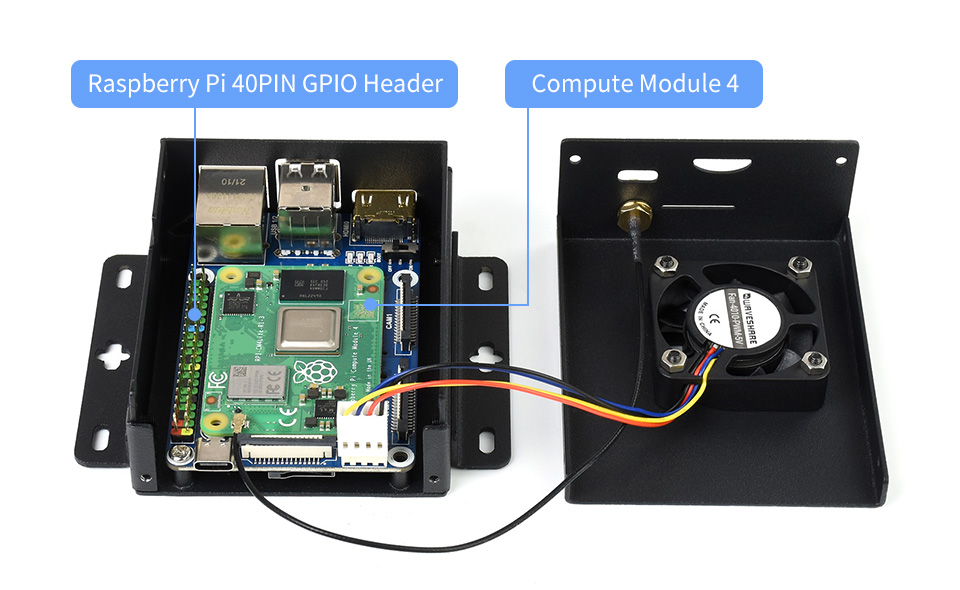

1. CM4 connector for all Compute Module 4 variants
2. Power input/Programming - for 5 V/2.5 A power input or used for eMMC writing
3. DISP - MIPI DSI display port
4. FAN for connecting a cooling fan, which allows you to adjust and measure its speed
5. CAM - 2 MIPI CSI camera ports
6. HDMI0 connector - HDMI0 port, supports 4K 30fps output
7. USB 2.0 ports - 2 USB 2.0 ports for connecting various USB devices
8. Gigabit Ethernet connector - RJ45 Gigabit Ethernet connector with 10/100/1000M network support
9. M.2 indicator - shows the operating status of the M.2 interface
10. ACT indicator - indicates the operating status of the Raspberry Pi
11. PWR indicator - indicates the status of the Raspberry Pi power supply
12. Selecting the BOOT bootloader
    - ON: CM4 will boot from the USB-C interface
    - OFF: CM4 will boot from an eMMC or Micro SD card
13. 40-pin GPIO connector
14. Micro SD card slot
15. HDMI1 FFC connector - HDMI1 port, supports 4K 30fps output
16. USB 2.0 FFC connector - can be connected via an adapter
17. FE1.1S - USB HUB chip that expands one USB port to 4 ports
18. M.2 slot supports NVME SSDs or communication modules with PCIE M.2 KEY-M interface
19. RTC chip enables RTC-related functions such as wakeup, shutdown, reboot, etc.
20. Selecting the RTC interrupt
    - PI-RUN: Restart CM4 after an RTC interrupt
    - GN-EN: Disable CM4 due to an RTC interrupt
    - D4: D4 pin is triggered by an RTC interrupt
21. EMC2301 fan controller for speed control / measurement
22. RTC battery holder supports CR1220 type battery cell

Overall dimensions: 88.1mm x 99.8mm x 33mm

Information for developers (Wiki): CM4-IO-BASE-B

The package includes:

1. CM4-IO-BASE-B base board x1
2. Metal case (top and bottom) x1
3. Fan with PWM Fan-4010-PWM-5V x1
4. 5V / 3A USB-C power adapter x1
5. Screwdriver x1
6. Package of screws x1 pc

Weight: 0.383 kg
