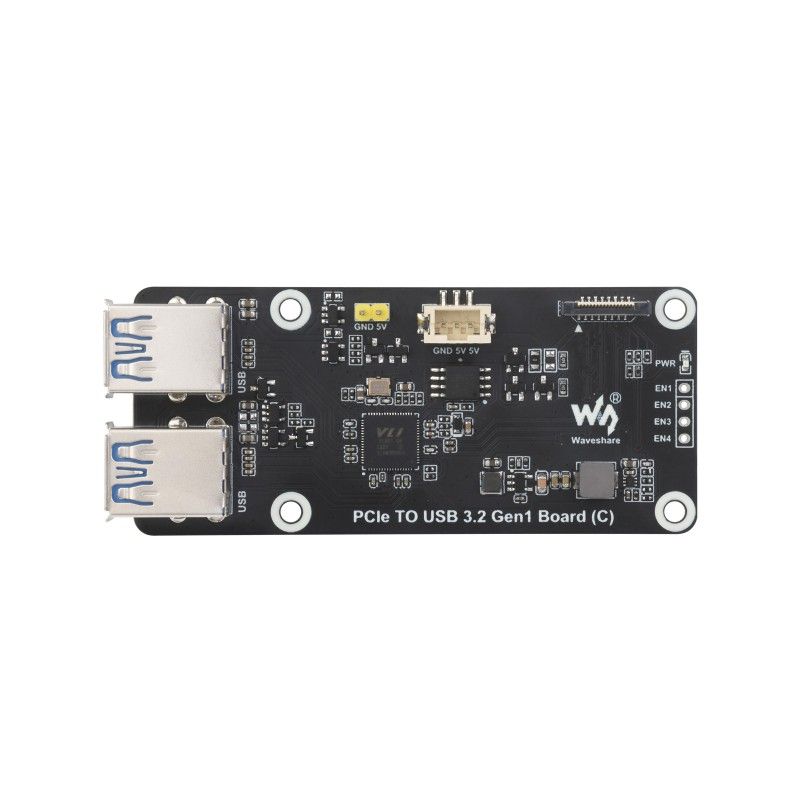

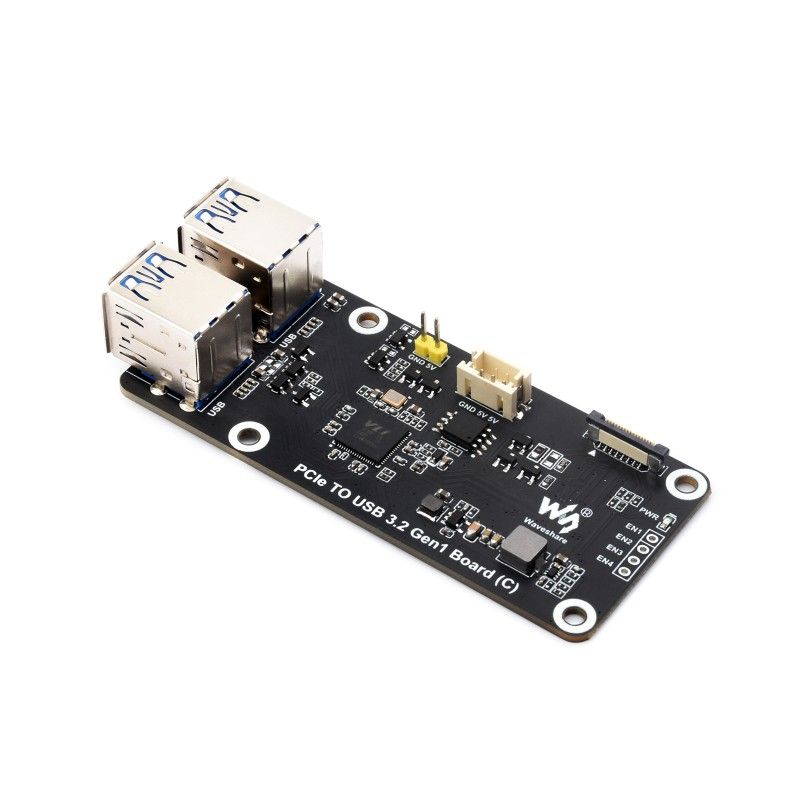

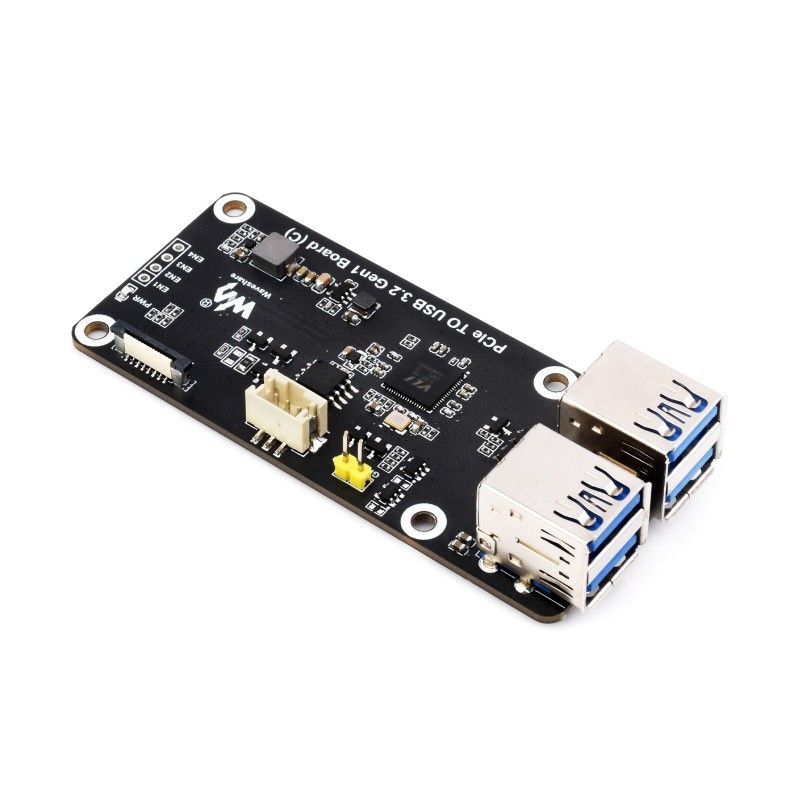

PCIe TO USB 3.2 Gen1 Expansion Board (C)

The PCIe TO USB 3.2 Gen1 Expansion Board (C) is a high-speed expansion board that adds additional USB 3.2 Gen1 ports to your computer, providing fast and convenient data transfer. This module is ideal for those who need more USB ports to connect a variety of devices such as external hard drives, flash drives, printers, and other peripherals.

Key features:

• Supports Raspberry Pi OS, no drivers, Plug and Play
• Supports PCI-E×1 Gen2 mode.
• The board is equipped with the original high-performance VL805 controller.
• Supports USB power management (allows you to control the on/off of each USB port using commands)
• Supports USB 3.2 Gen1 standard for data transfer speeds up to 5 Gbps, which is significantly faster than USB 2.0.
• Adds 4 additional USB ports to your PC, allowing you to connect more devices simultaneously.
• High quality components ensure long and stable performance even under heavy use.

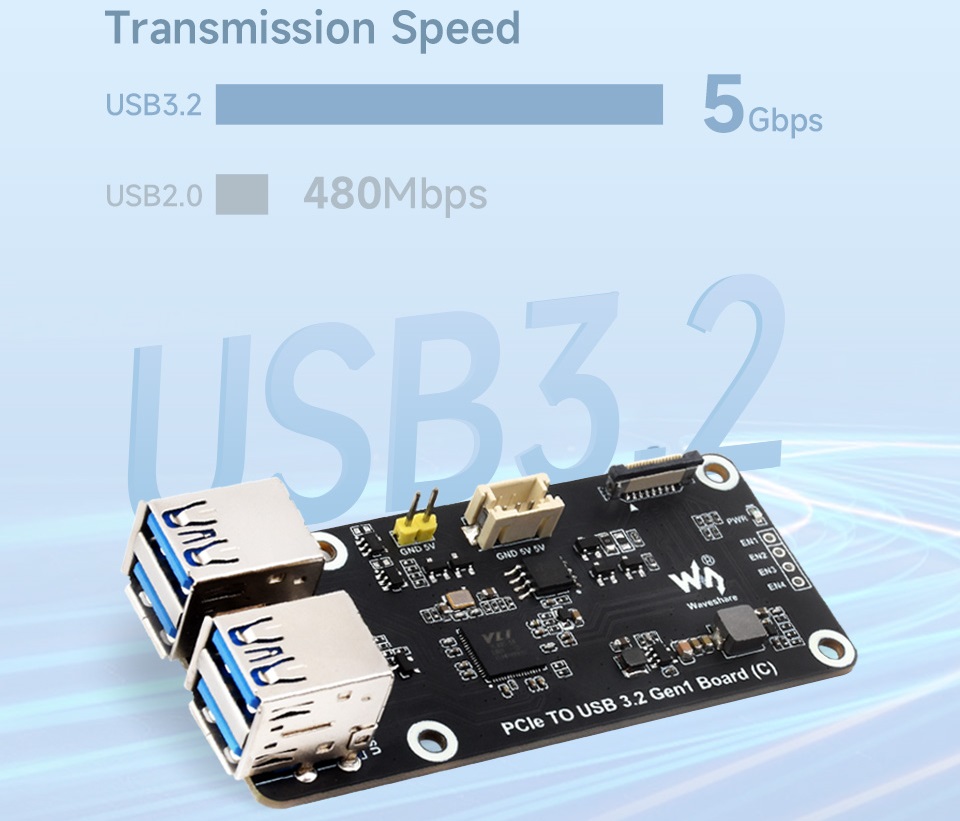

Ultra-fast transfer speeds: up to 5 Gbps

Expands the PCIeinterface to 4 high-speed USB 3.2 Gen1 ports for connecting more peripherals

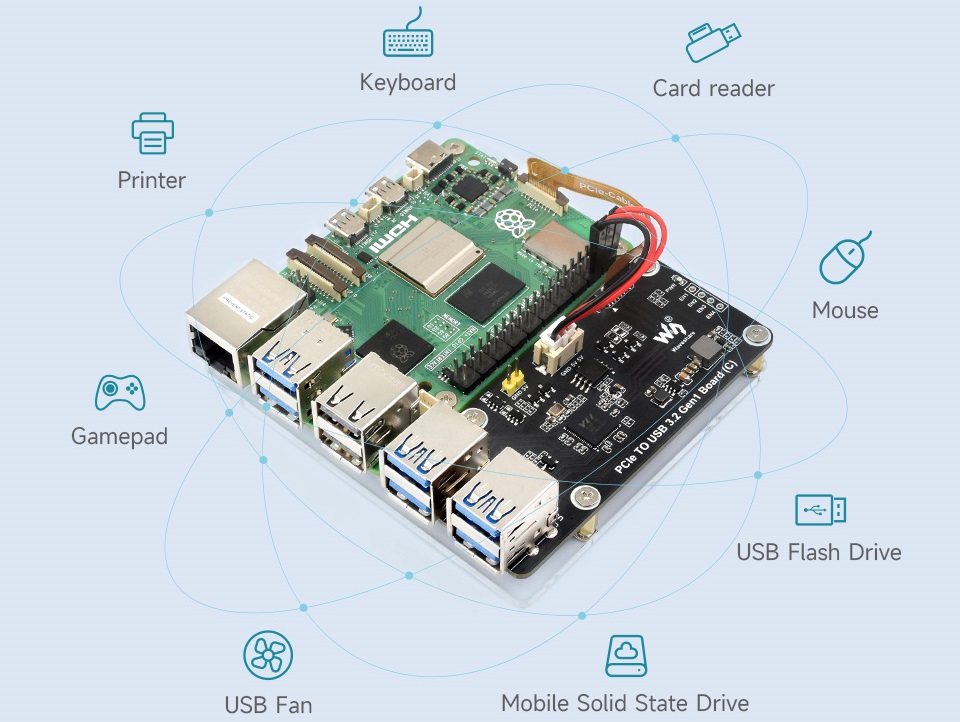

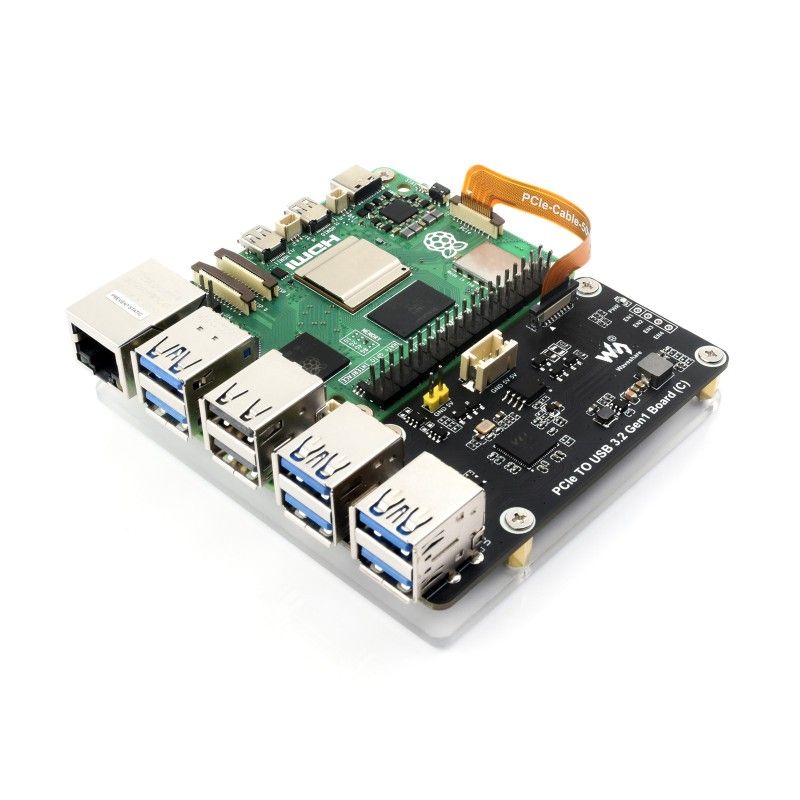

Note: Raspberry Pi 5 board is not included in the package

Specifications:

• Interface standard: high-speed USB 3.2 Gen1
• Communication speed: 5 Gbps for each USB port
• USB output: 5V with Imax up to 2A;
• Connector: USB-A
• Power supply: 5V DC with connector from power supply
• Working temperature: 0℃ 75℃

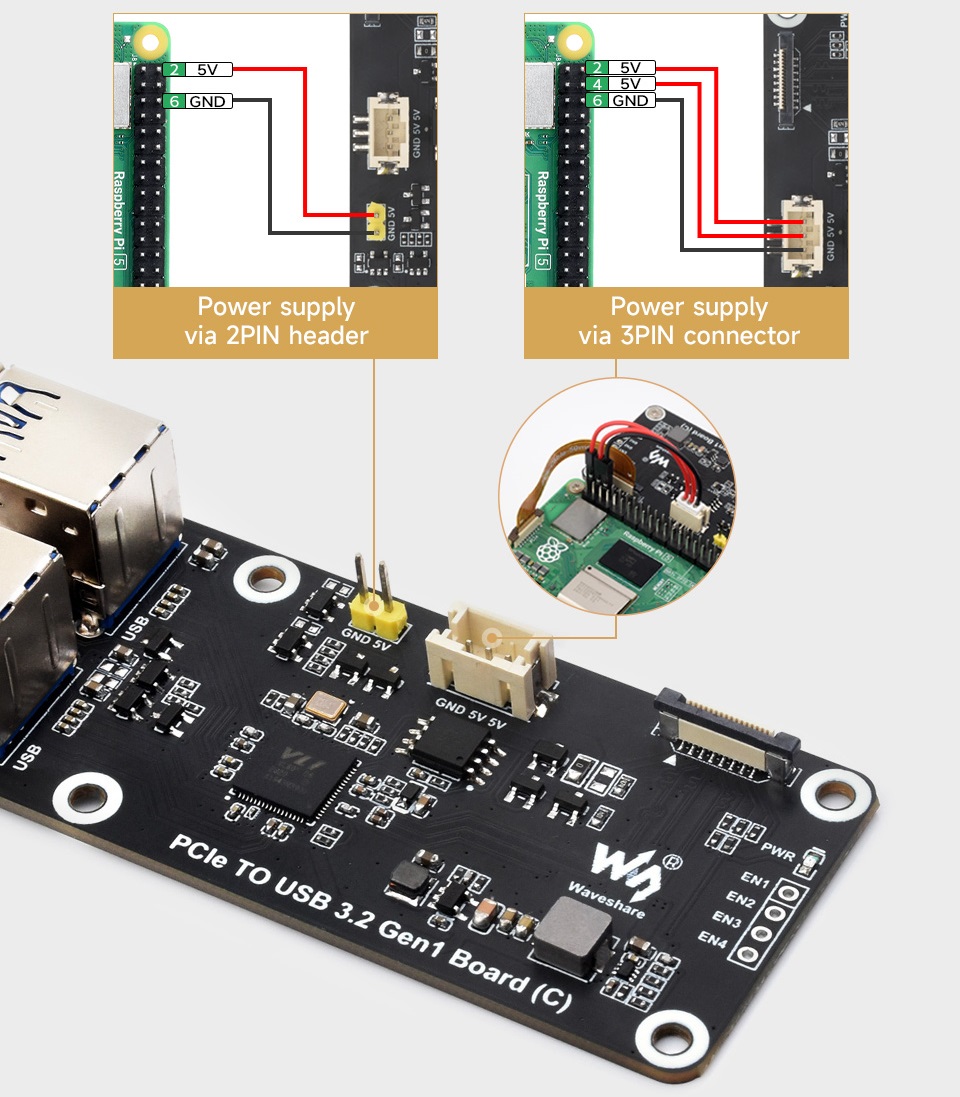

Two ways to connect the power supply:

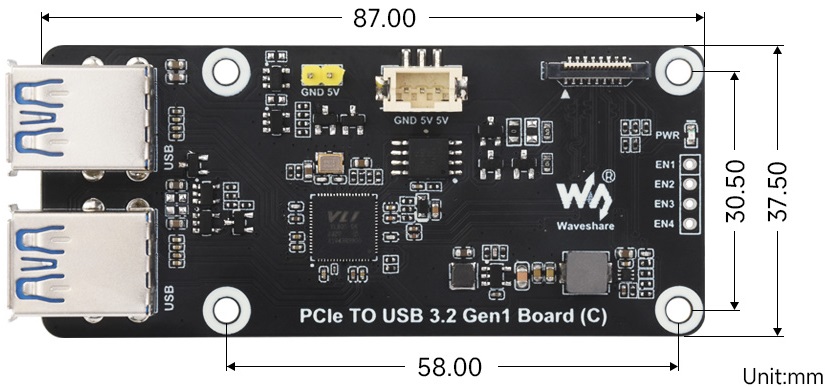

Overall Dimensions: 87mm x 37.5mm

Wiki: http://www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_Board_(C)

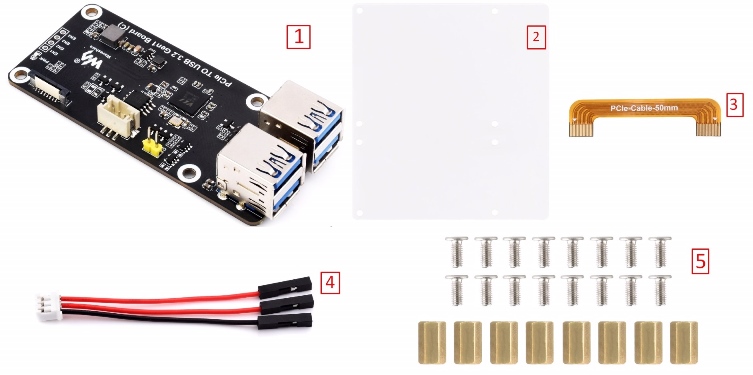

The package includes:

1. PCIe TO USB 3.2 Gen1 (C) card x1
2. Transparent acrylic mounting plate x1
3. 16-pin PCIe cable x1
4. PH2.0 3PIN cable x1
5. Standoff package x1


Weight: 0.065kg
