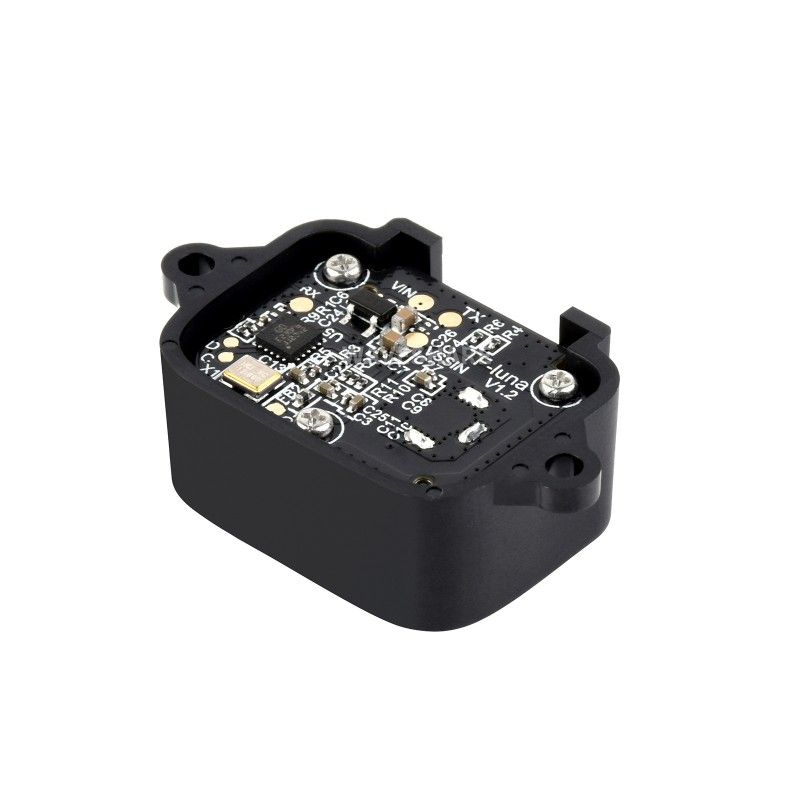

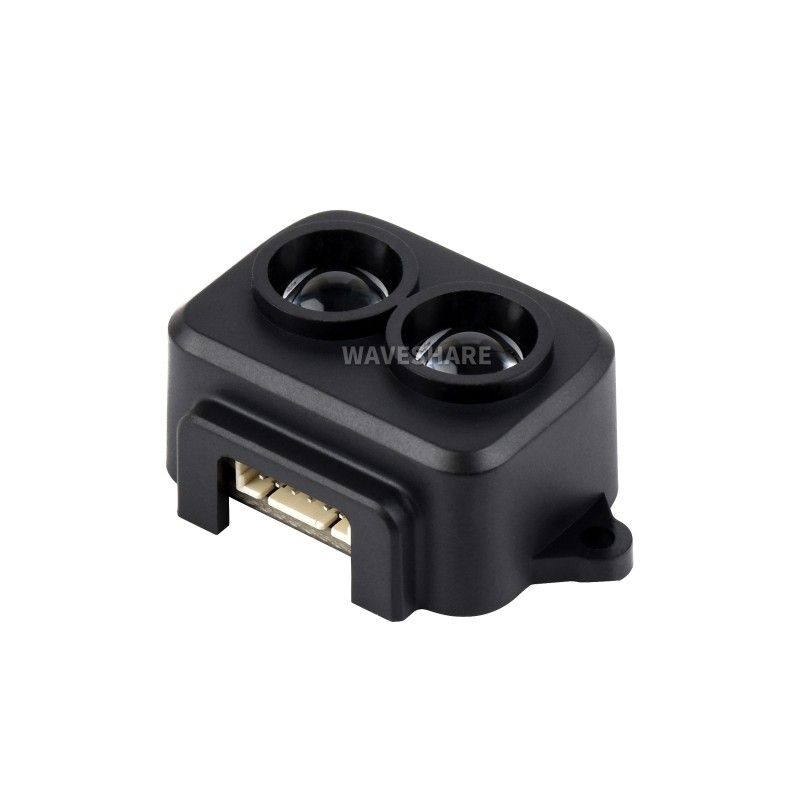

Waveshare Distance Sensor Laser TF-Luna Lidar Ranging Sensor, 8m (24893)

The Waveshare TF-Luna Laser Lidar Distance Sensor, 8m (24893 ) is a laser distance measurement sensor that uses the Time of Flight (TOF) principle to measure distances. This sensor is designed to accurately determine the distances between the sensor and objects in its field of view. This sensor can be used to measure distances in a variety of applications that require accurate and reliable determination of distances between objects.

Key features:

• Distance measurement: The sensor uses a laser beam to measure distances between the sensor and target objects. It uses the TOF principle by calculating the time it takes for the laser beam to return from the object.

• Measurement range: TF-Luna can measure distances up to 8 meters. This makes it suitable for use in a variety of applications where distances need to be measured.

• Energy saving and compact size: The sensor features low power consumption and a compact size, making it suitable for embedded applications in a variety of devices.

• Easy integration: TF-Luna is designed to be easily integrated into a variety of projects. It can be used as a distance sensor for robotics, autonomous vehicles, security systems, industrial projects, and more.

• TOF measurement principle: TOF (Time of Flight) is a distance measurement method that is based on measuring the time it takes for a light signal to travel to an object and return. This principle provides high accuracy and speed of measurements.

Technical characteristics:
EFFICIENCY.
Range of operation:

• 0.28.0 m at 90% reflectance (indoor 0klux)
• 0.22.5 m at 10% reflectance (in a room of 0klux)
• 0.28.0 m with a reflection coefficient of 90% (outdoors 90klux)
• 0.22.5 m at 10% reflectance (outdoors 90klux)

Accuracy %.

• ±6 cm @ (0.2 3 m)
• ±2%@(38м)

Frame rate:

• UART: 1250 Hz (adjustable, default 100 Hz)
• I2C: 1100 Hz (adjustable)

Resolution at a distance: 1 cm
Tolerance to ambient light: 70klux
Operating temperature: -1060℃

OPTICAL PARAMETERS
Light source: VCSEL
Central wavelength: 850nm
Eye safety: Class 1 (IEC60825)
Field of view: 2°

ELECTRICAL PARAMETERS
Power supply: 3,75,2В
Average current: ≤70mA
Power consumption: ≤0.35W
Peak current: 150mA
Communication level: LVTTL (3.3 V)
Communication interface: UART, I2C, I/O

OTHERS
Dimensions: 35.00 × 21.25 × 13.50 mm
Case material: ABS/PC
Storage temperature: -2075 ℃
Weight.
