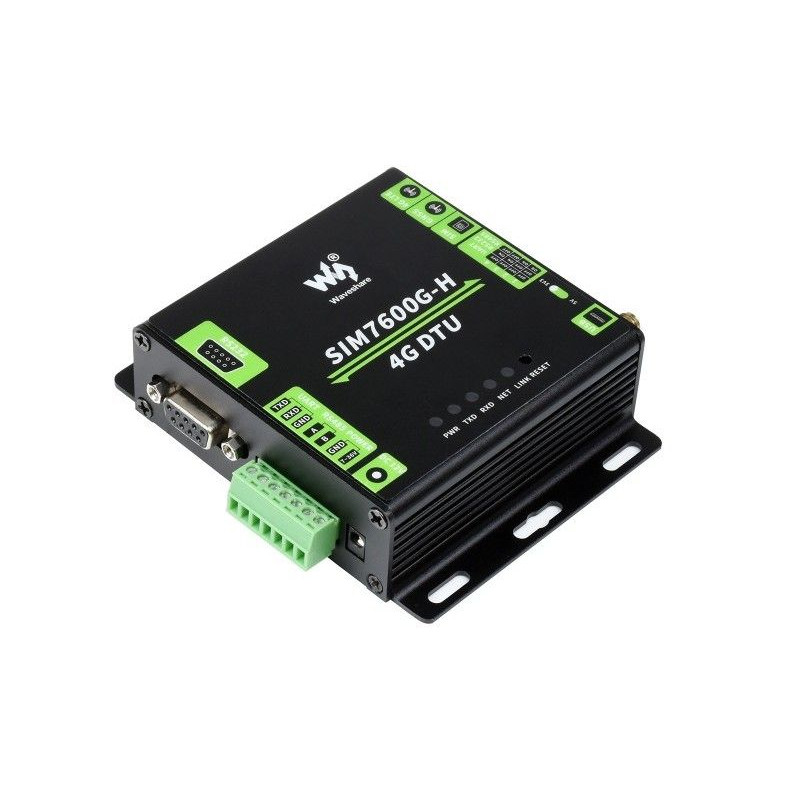

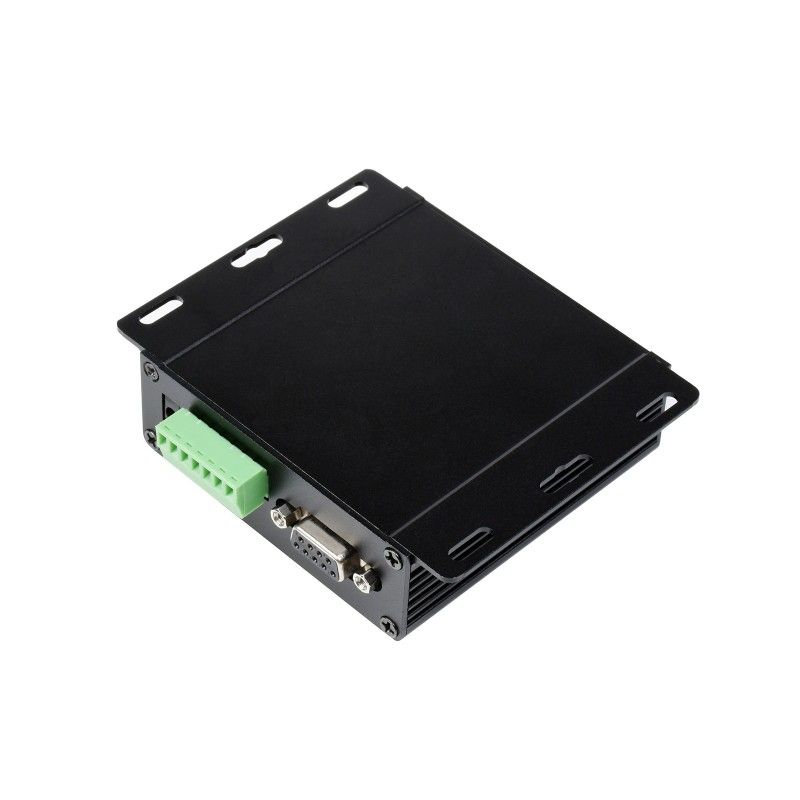

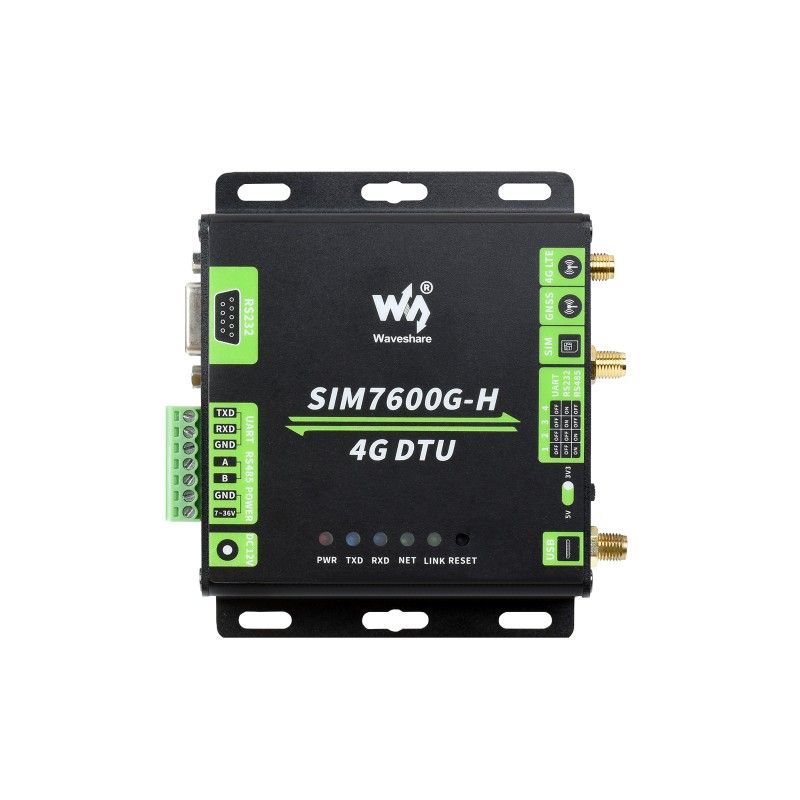

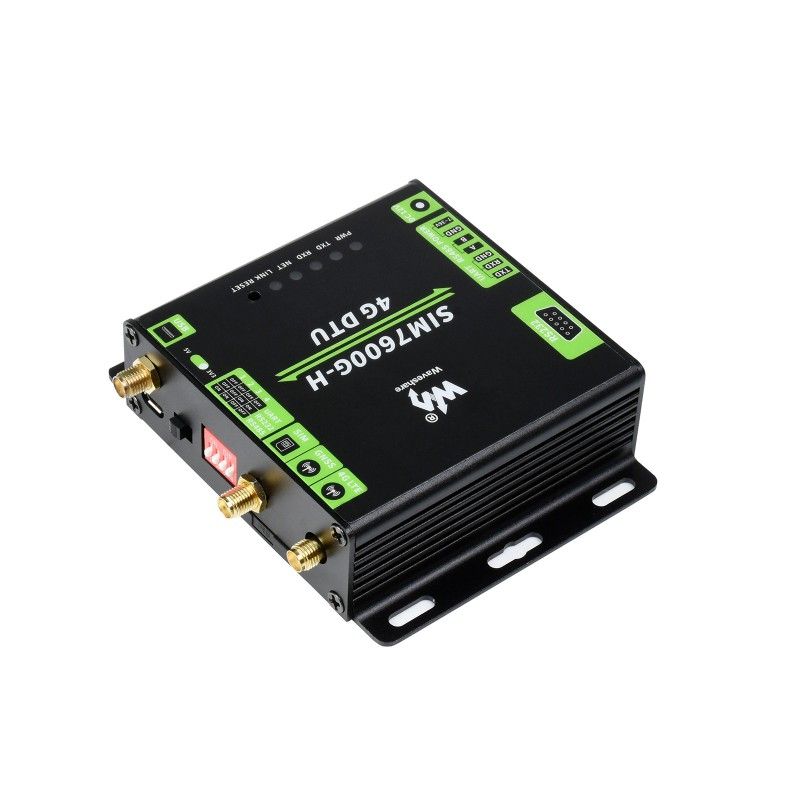

Waveshare SIM7600G-H 4G DTU (EU) (21150)

TheSIM7600G-H 4G DTU (EU) adapter is a 4G-enabled industrial device used for data transmission over various communication interfaces. It provides support for global LTE bands, making it a versatile solution for various markets and applications. The SIM7600G-H 4G DTU is a high-performance industrial device with advanced communication capabilities that is ideal for applications where data rates and communication reliability are important.

Key features:

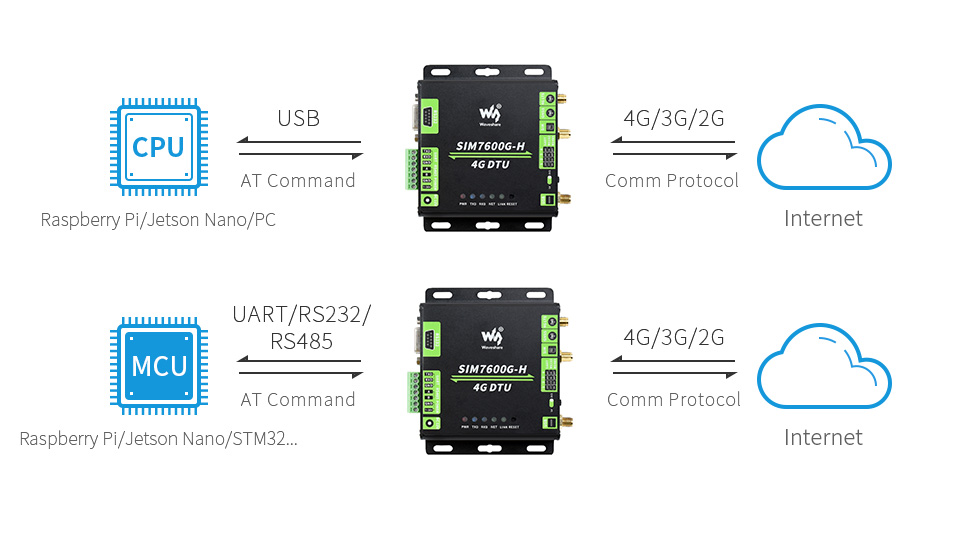

• The device is equipped with USB, UART, RS232 and RS485 interfaces, allowing it to be easily connected to a variety of equipment and communication systems.

• The SIM7600G-H communication module supports 4G communication technology, which ensures fast data transfer and stable connection in the new generation of communication networks.

• The device works in different parts of the world thanks to the support of a wide range of LTE bands.

• Supports GNSS positioning

• SIM7600G-H is designed to meet the requirements of industrial environments, making it robust and resistant to extreme conditions.

• Support for various protocols and functions, such as SMS, GPRS, FTP, UDP, TCP/IP, allows you to expand the range of applications of the device and integrate it into a variety of monitoring and control systems.

• Supports a wide power supply range of 7-36 V

• Has built-in protection circuits such as ESD protection, surge protection, stable and secure communication performance

• Provides transmission speed: 300 bps 4 Mbps (115,200 bps by default)

• Supports AT commands (based on the 3GPP TS 27.007, 27.005 and V.25TER command set)

• Has an industrial-grade anodized aluminum housing

• Supports operation with Windows/Linux OS

Technical specifications:

FREQUENCY RANGE.

• 4G:
  • LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
  • LTE-TDD: B34, B38, B39, B40, B41
• 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
• 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
• GNSS: GPS, Beidou, GLONASS, GALILEO, QZSS

DATA SPEED

• 4G (LTE Cat-4): 150 Mbps (DL) / 50 Mbps (UL)
• 3G (HSPA+): 42 Mbps (DL) / 5.76 Mbps (UL)
• 2G (EDGE): 236.8 Kbps (DL) / 236.8 Kbps (UL)
• 2G (GPRS): 85.6 Kbps (DL) / 85.6 Kbps (UL)

SOFTWARE FEATURES

• Communication protocols TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS (controlled through AT commands, with Open Linux SDK module for secondary development)
• Support for Windows/Linux OS, etc.

HARDWARE DESCRIPTION

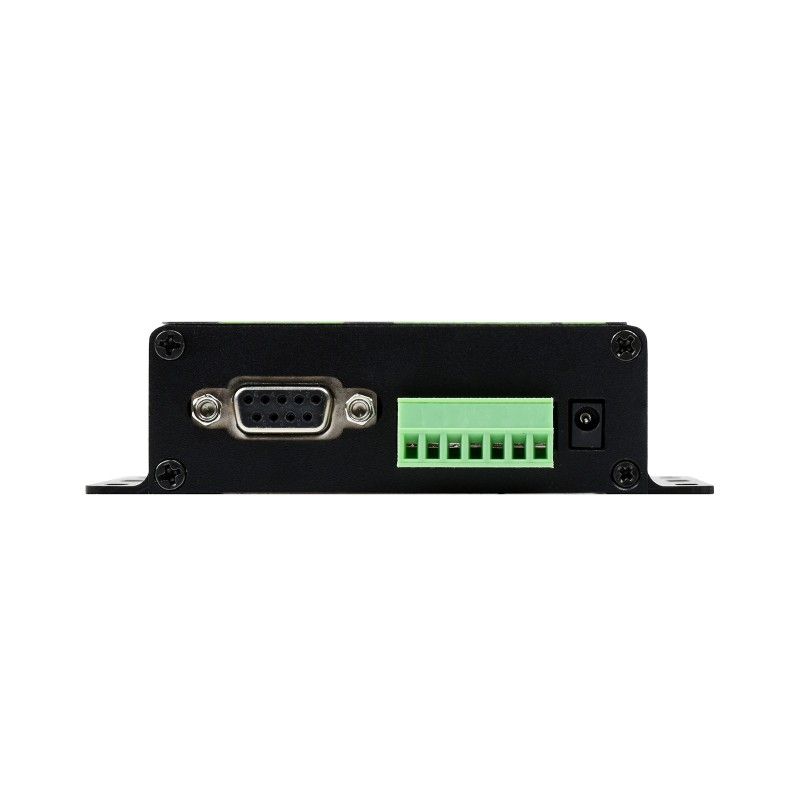

Serial port

• RS232:
  • DB9 female connector
  • protection: TVS protection, overvoltage protection, electrostatic discharge protection
• RS485:
  • connector: screw terminals (A, B)
  • protection: 600 W lightning protection, surge protection and 15 kV ESD protection (reserved contact pads of 120R balancing resistor)
• TTL (UART):
  • operating voltage: 3.3 V or 5 V
  • connector: screw terminals (TXD, RXD, GND)

Serial port speed: 300 bps 921600 bps, 115 200 bps by default

USB port

• Operating voltage: 5V
• connector: Micro USB
• protection: ESD protection diode
• Usage: parameter setting, dial-up access, firmware update

Input connector

• power supply: 736 V screw terminals or DC 12 V connector
• Protection: Schottky diode protection, reverse protection

Hardware protection: built-in MCU, hardware watchdog timer to prevent system failure, industrial aluminum alloy housing

Operating voltage: 7 36V DC

Operating current

• idling current: 1030 mA at 12 V
• transfer: 80450 mA at 12 V (depending on mains condition)

Indicator: PWR (power supply), RXD/TXD (UART RX/TX), NET (network), LINK (user-defined)

Button: reset

SIM card: Standard SIM card (1.8 V / 3 V)

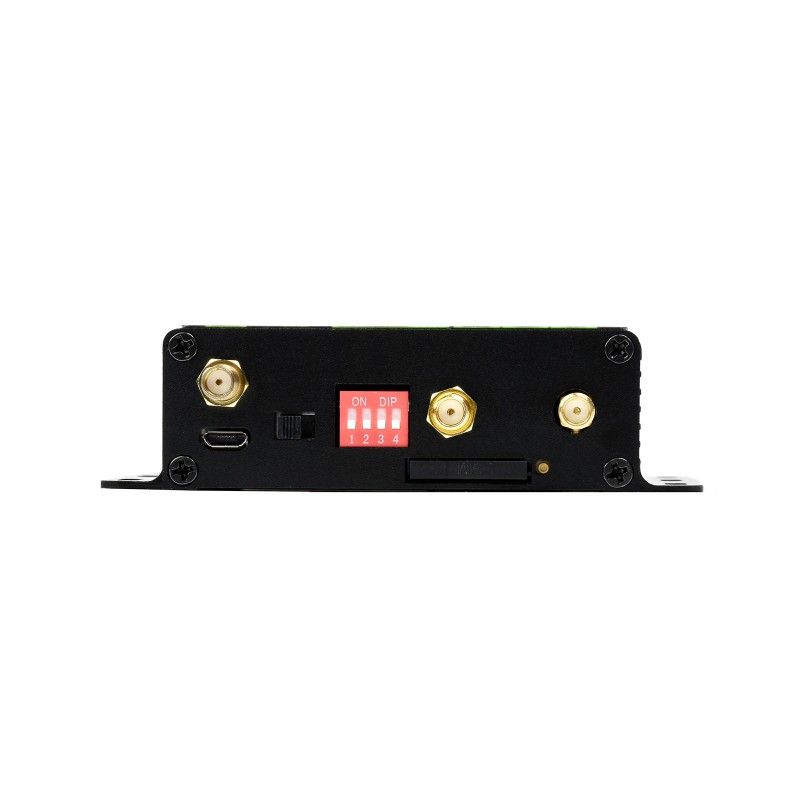

Antenna connector: MAIN LTE, AUX LTE, GNSS

Working temperature: -40℃ 80℃

Supports USB/UART communication interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols

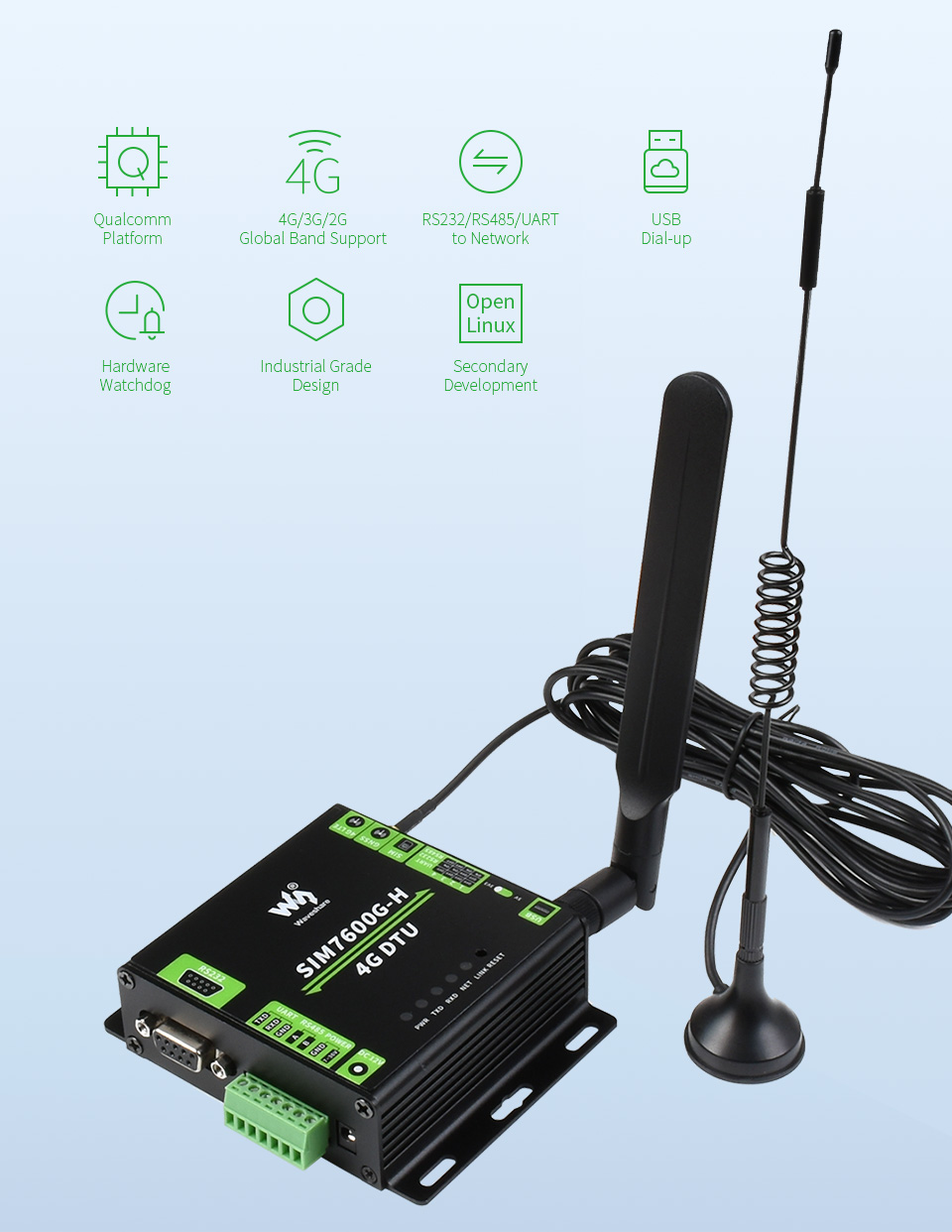

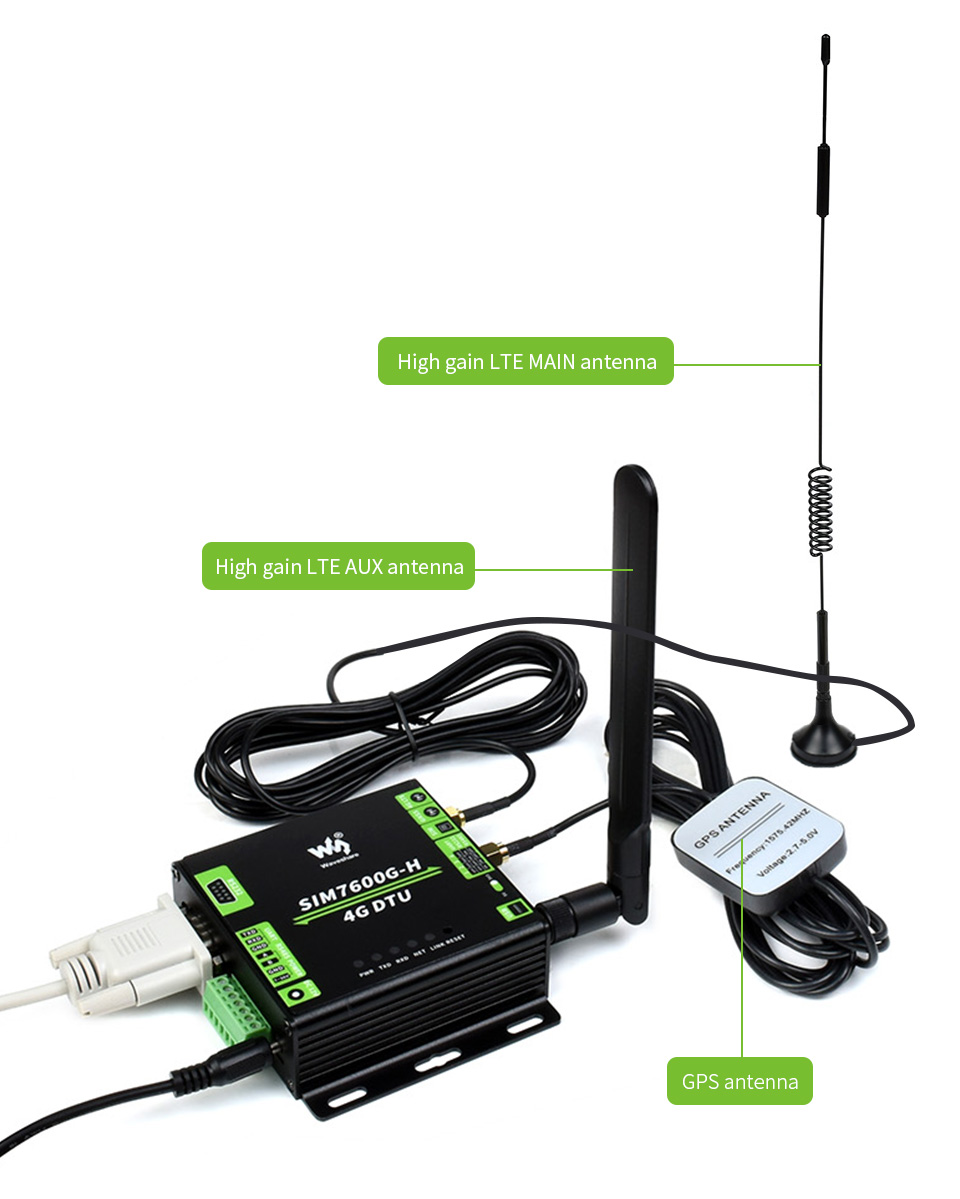

Works with multiple antennas:

• High-gain LTE MAIN ANTENNA: magnetic base, waterproof, supports outdoor use with an extension cable
• LTE AUX antenna with high gain: to improve the signal, speed up data transfer speed
• GPS antenna: 28±2 dB gain, IP65IP67 waterproof

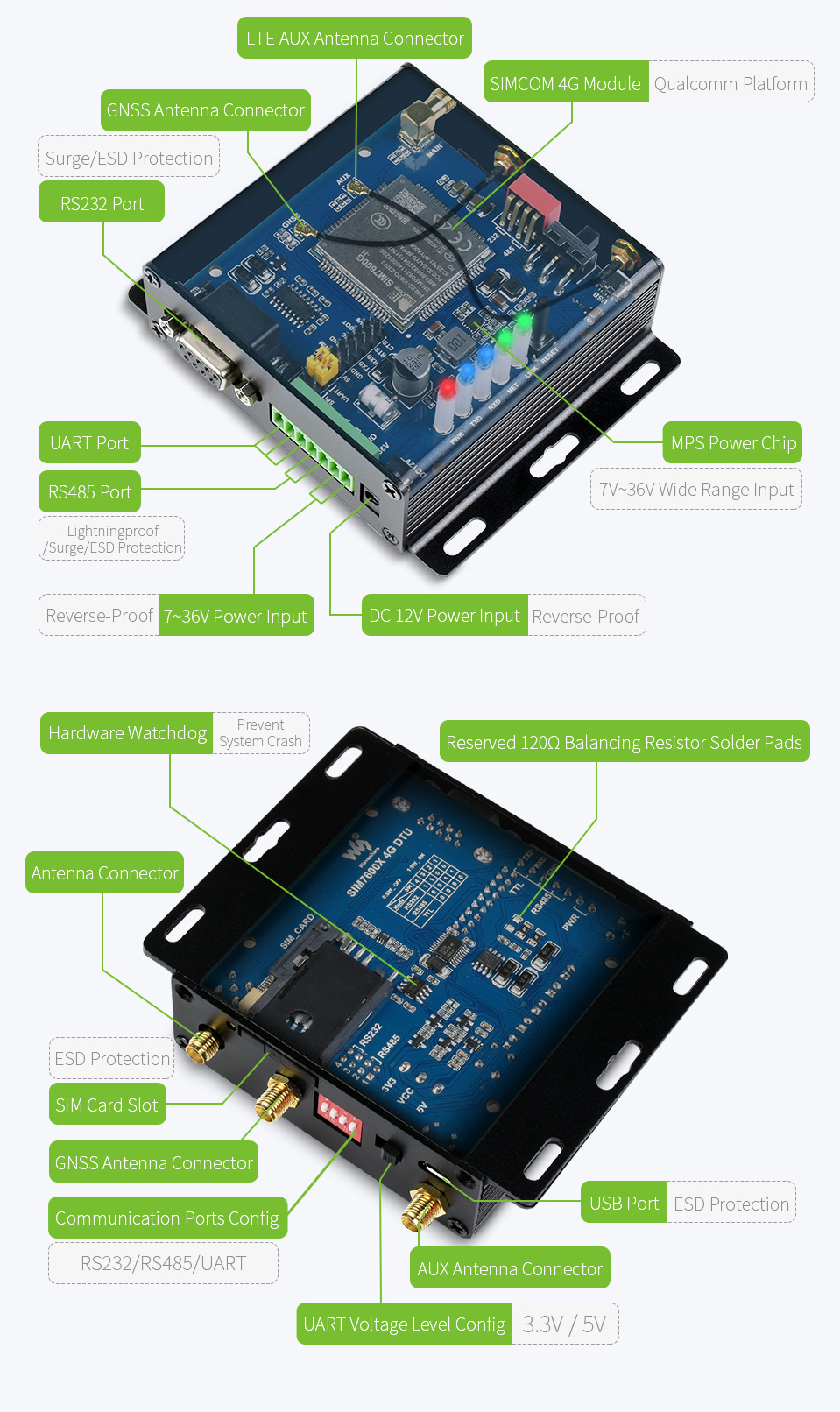

Interfaces and elements:

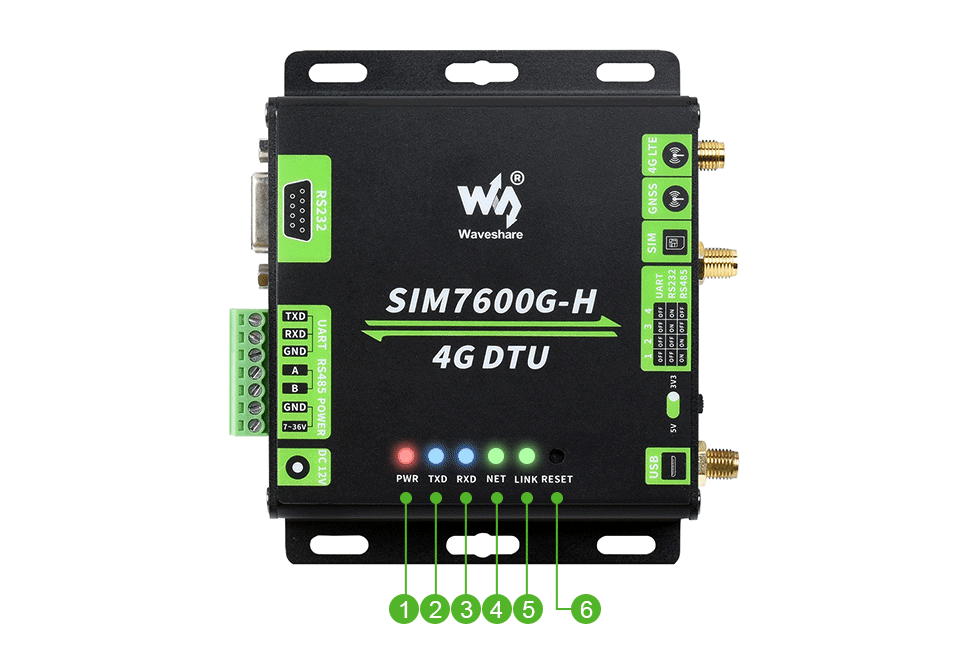

Indicators and buttons
Provides real-time monitoring of the connection and signal status

PWR: lights up red when turned on
TXD: Blinks blue during data transmission
RXD: blinks blue when receiving data
NET: Blinks green when the network connection is established
LINK: user-defined LED
RESET: reset button

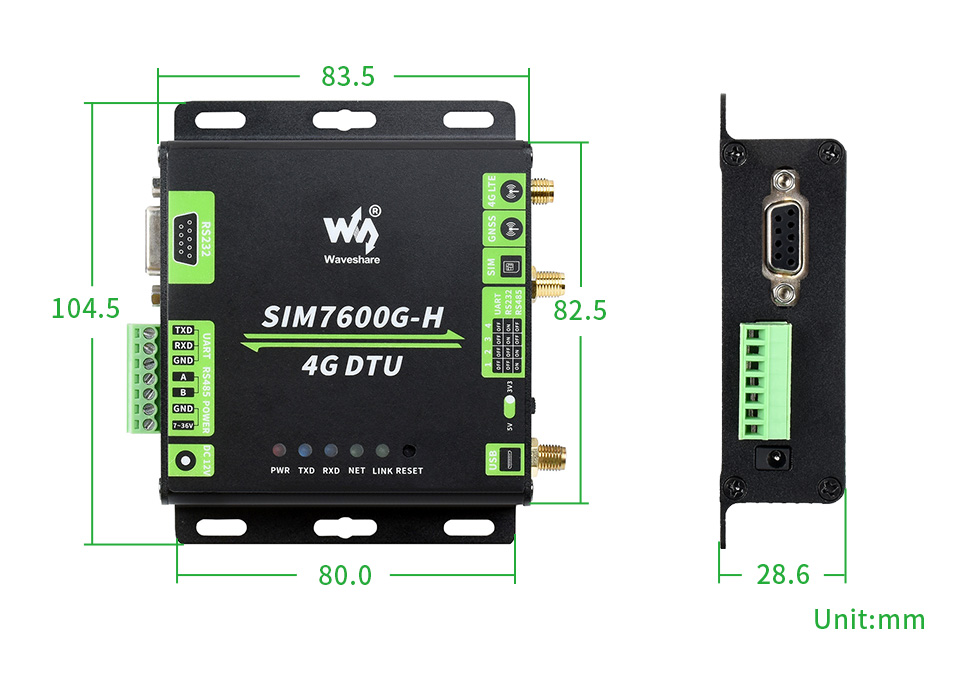

Overall dimensions: 104.5mm x 83.5mm x 28.6mm

Wiki: SIM7600G-H_4G_DTU

Weight: 0.538kg

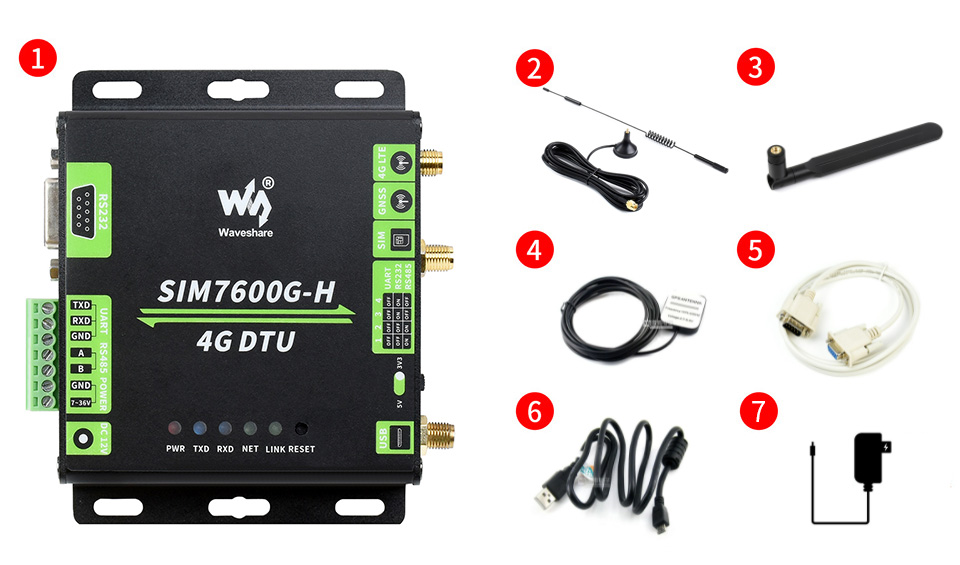

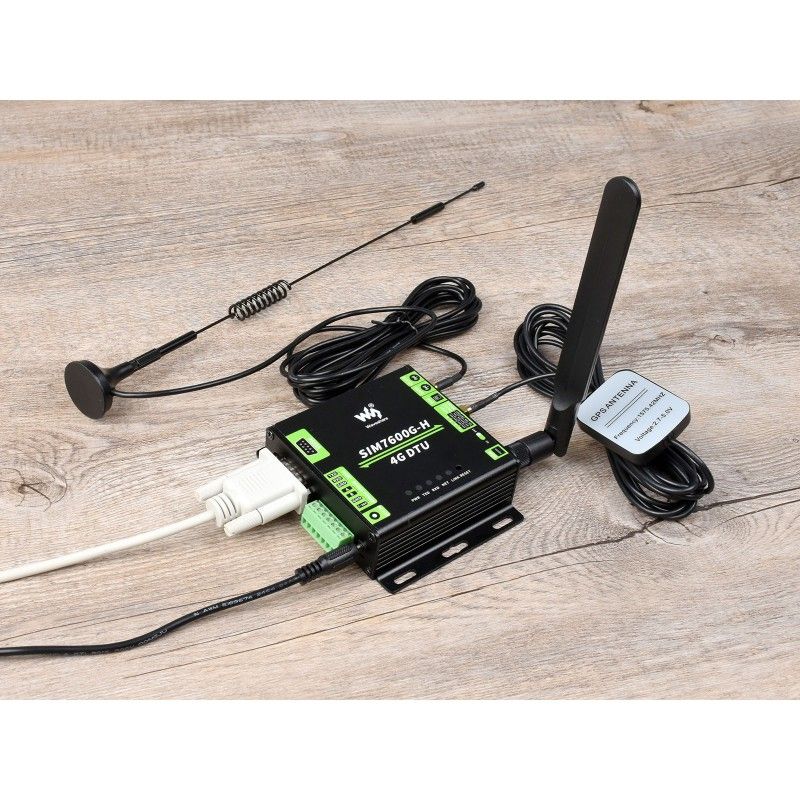

1. SIM7600G-H 4G DTU head unit x1
2. LTE MAIN antenna with high gain (3 m) x1
3. LTE AUX antenna with high gain x1
4. GPS antenna x1
5. Serial male to female cable (1.5 m) x1
6. USB-A to micro-B cable (1.2 m) x1
7. Power adapter 12 V 1.0 A (EU) x1
