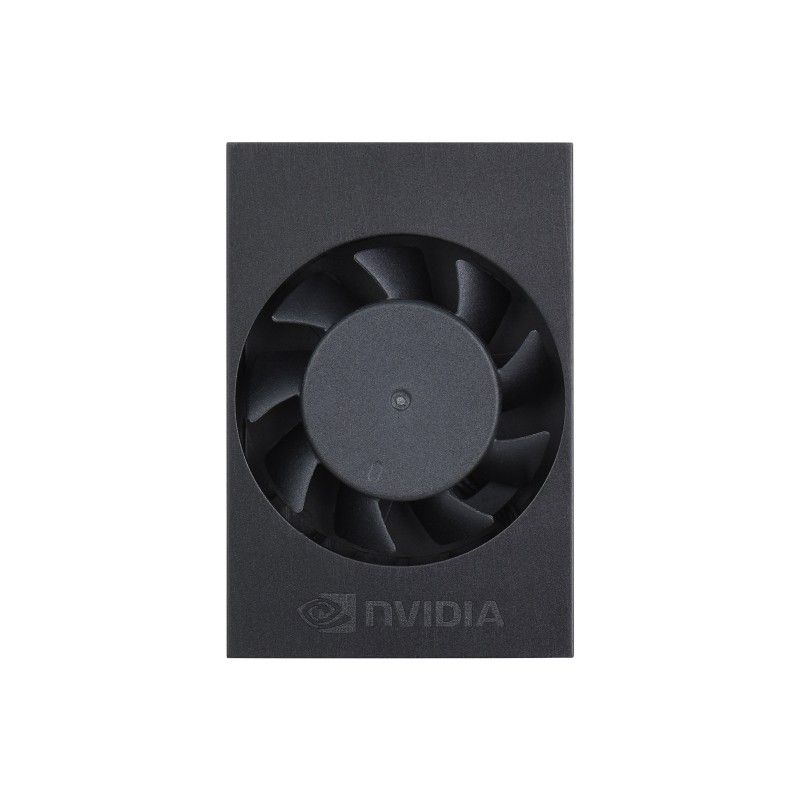

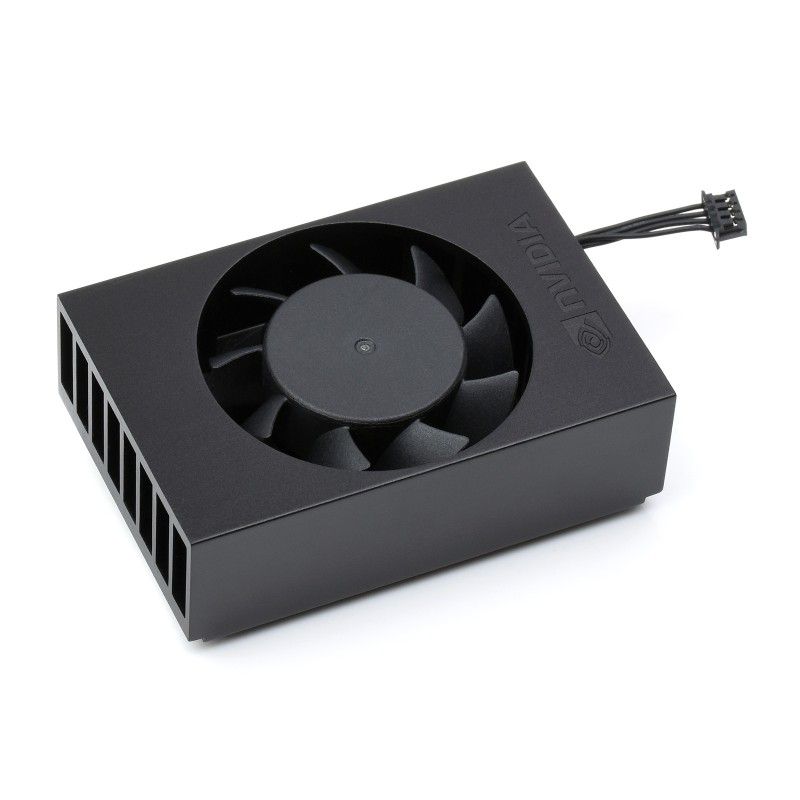

Active cooling system for the Jetson Orin NX / Jetson Orin Nano module

Brand: Waveshare Product Code: V121030
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out

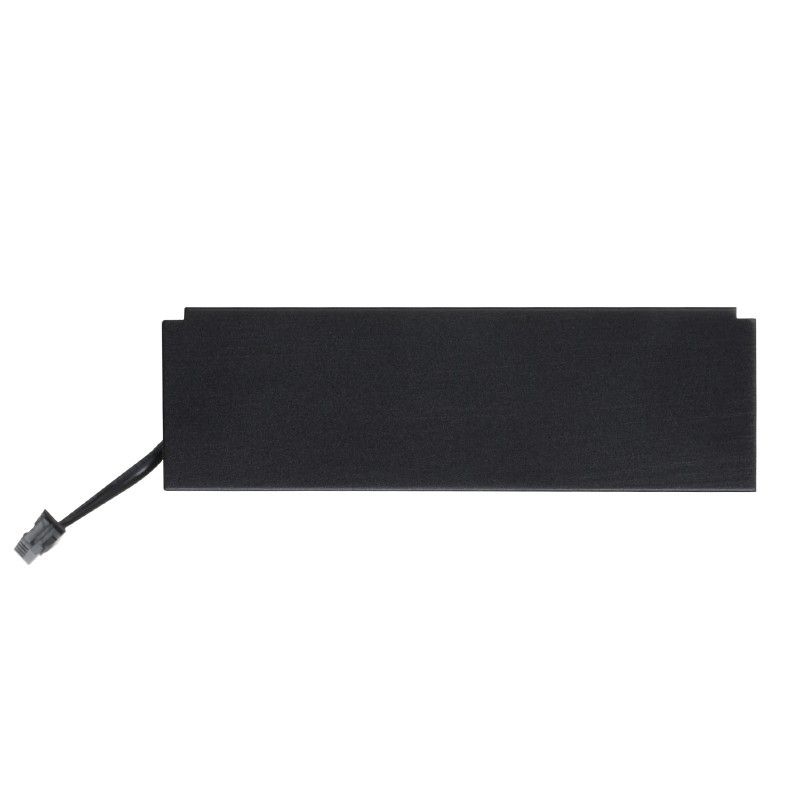

Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
Out Of Stock
£8.40
Compatibility:Jetson Orin Nano
Cooling type:Active cooling
Country of origin:Made in China
Type of accessory:Cooling systems
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Active cooling system for the Jetson Orin NX / Jetson Orin Nano module
£8.40
Description

TheActive Cooling System for Jetson Orin NX / Jetson Orin Nano Module is the official speed-controlled cooling fan for Jetson Orin devices and is designed to provide efficient cooling for the high-performance Jetson Orin embedded computer.

Specifications:

  • MODULE SUPPORT: N-VIDIA Jetson Orin NX module and Jetson Orin Nano module
  • POWER SUPPLY: DC 5V input
  • CONSTRUCTION: Built-in fan, aluminum alloy housing
  • ELECTRICAL PARAMETERS: 0.65 W (5 V/0.13 A)
  • CABLE LENGTH: 37±3 mm
  • FAN: PWM adjustable speed, 5500±10% rpm

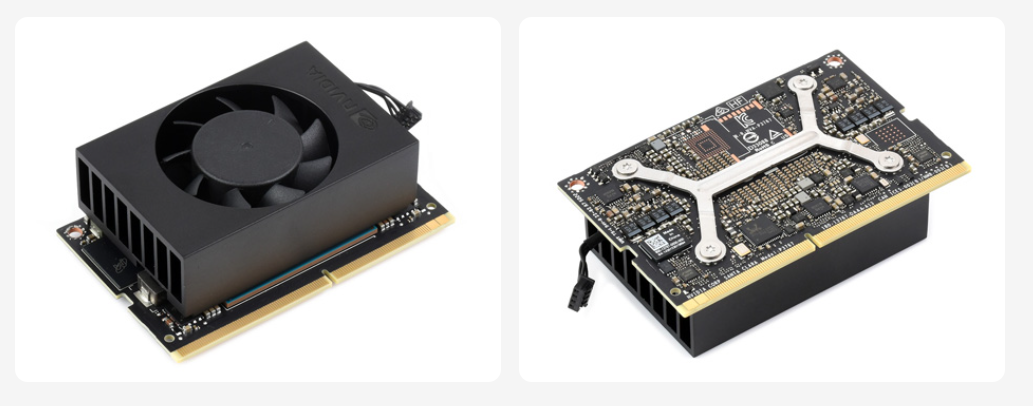

Attachment of the cooling system to the module:

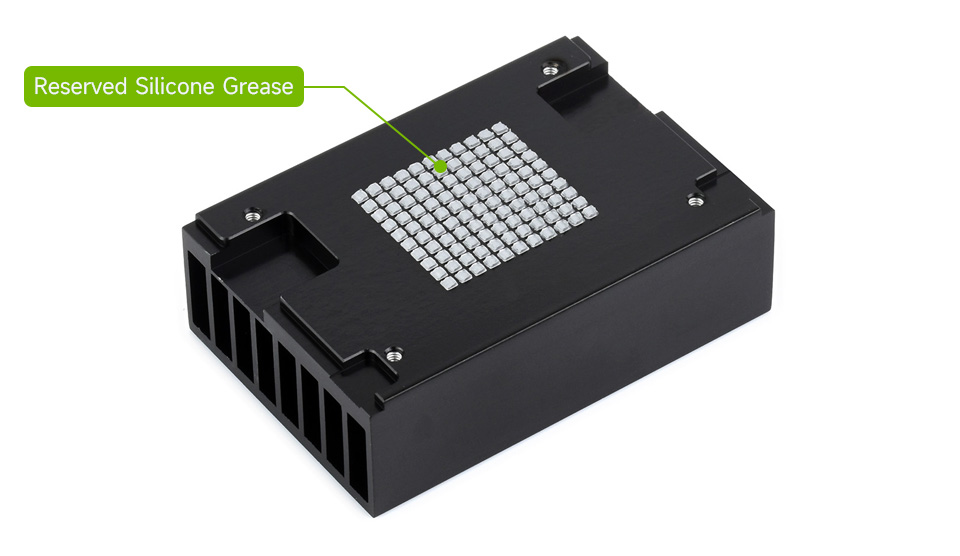

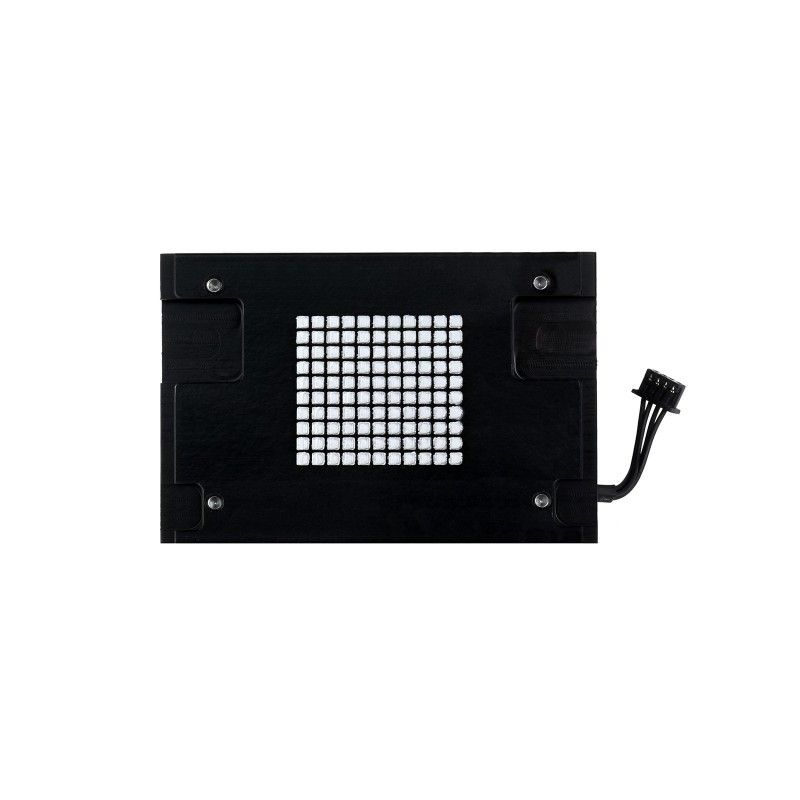

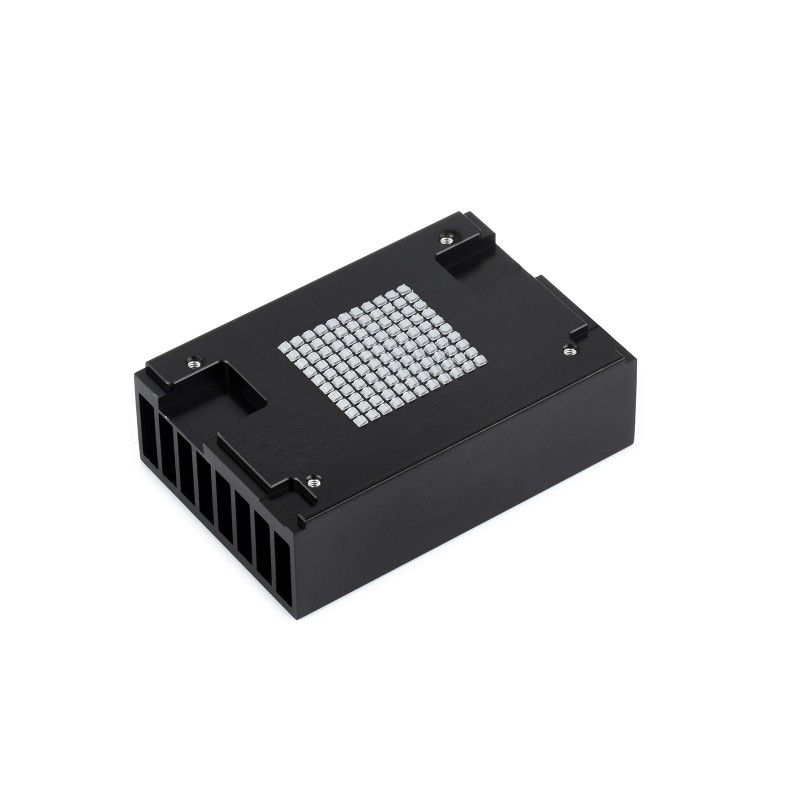

There is silicone on the back side. Do not touch it.

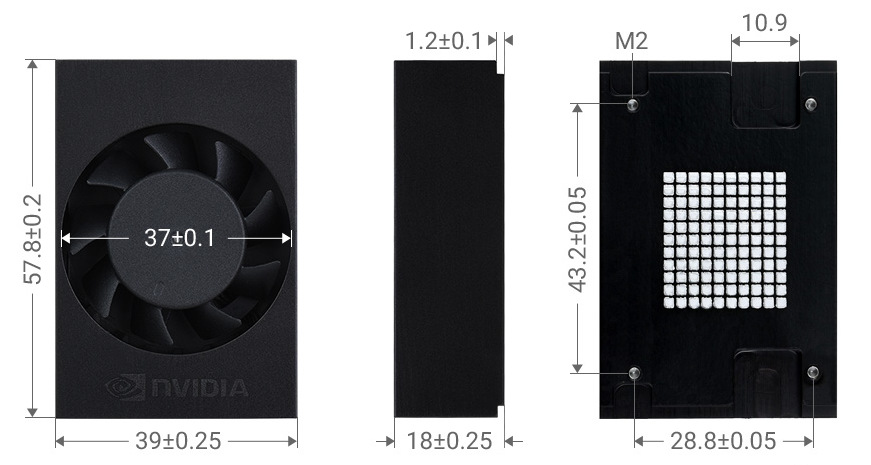

Overall dimensions: 57.8mm x 18mm x 39mm

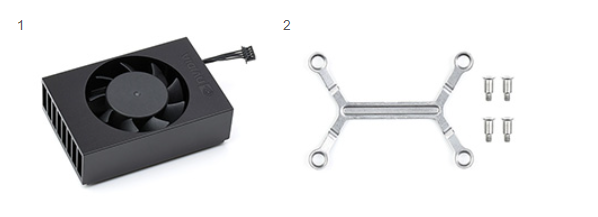

Scope of delivery:

  1. Orin-FAN-PWM x1
  2. Elastic bracket and screws with height restriction x1

Weight: 0.072 kg

Specifications
Main characteristics
Compatibility
Jetson Orin Nano
Cooling type
Active cooling
Country of origin
Made in China
Type of accessory
Cooling systems
Reviews

There are no reviews for this product.

There are no reviews for this product, be the first to leave your review.

Answers & questions
Add your question and we will answer as soon as possible.

No questions about this product, be the first and ask your question.
