Active cooling system Jetson Nano (24142)

NANO-FAN-PWM is an active cooling system for the NVIDIA Jetson Nano Module. This system is specifically designed for use with the Jetson NANO and JETSON NANO MINI, providing efficient and adjustable cooling and is an essential add-on for Jetson Nano users looking to ensure the best possible conditions for their device.

Key features:

• Jetson Nano Compatibility: The fan is designed specifically for use with the Jetson Nano, providing optimal cooling for this device.

• Built-in adjustable fan: The fan has a built-in speed control mechanism that allows the user to customize its operation according to cooling needs.

• Efficient cooling: Provides efficient cooling for the device, helping to avoid overheating and ensuring that the Jetson Nano performs consistently even under heavy loads.

• Design to minimize noise: The fan is designed with noise minimization in mind, allowing for cooling without excessive noise generation.

• Easy installation: Easy installation on the Jetson Nano device, making it user-friendly.

• Increase device efficiency: Cooling is an important aspect to keep the Jetson Nano running smoothly and efficiently, and this fan is designed to do just that.

Specifications:

• POWER: DC 5V input.
• CONSTRUCTION: Built-in fan, aluminum alloy housing
• ELECTRICAL PARAMETERS: 0.65 W (5 V/0.13 A)
• CABLE LENGTH: 37±3 mm
• FAN: PWM adjustable speed, 5500±10% rpm

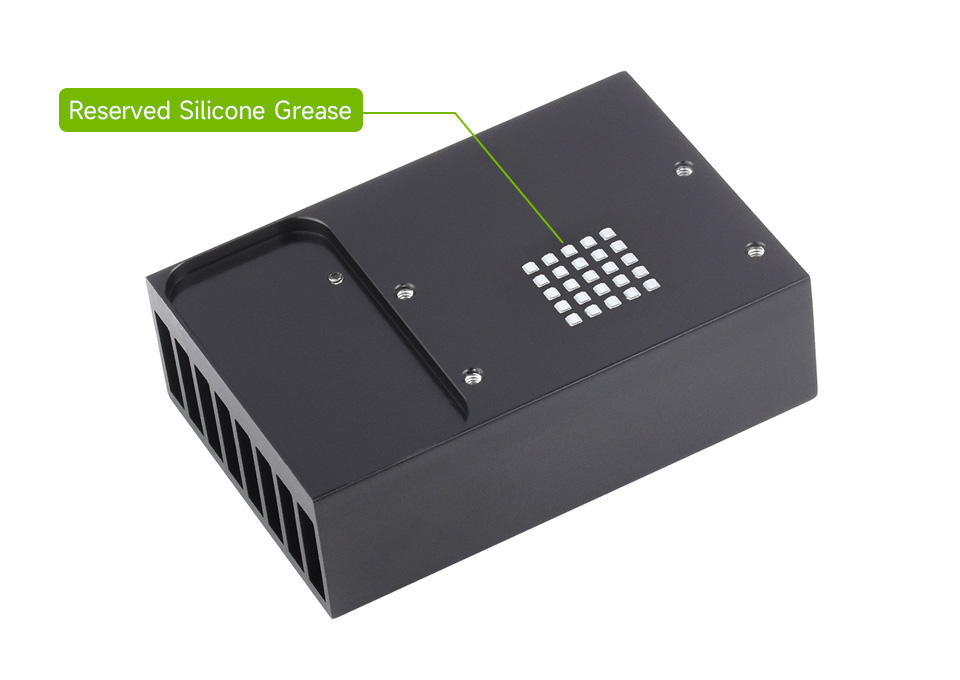

Pre-applied silicone thermal paste:

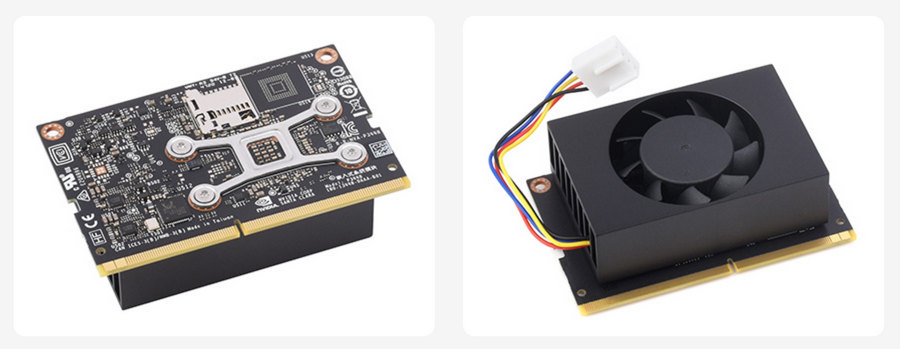

Installation procedure:

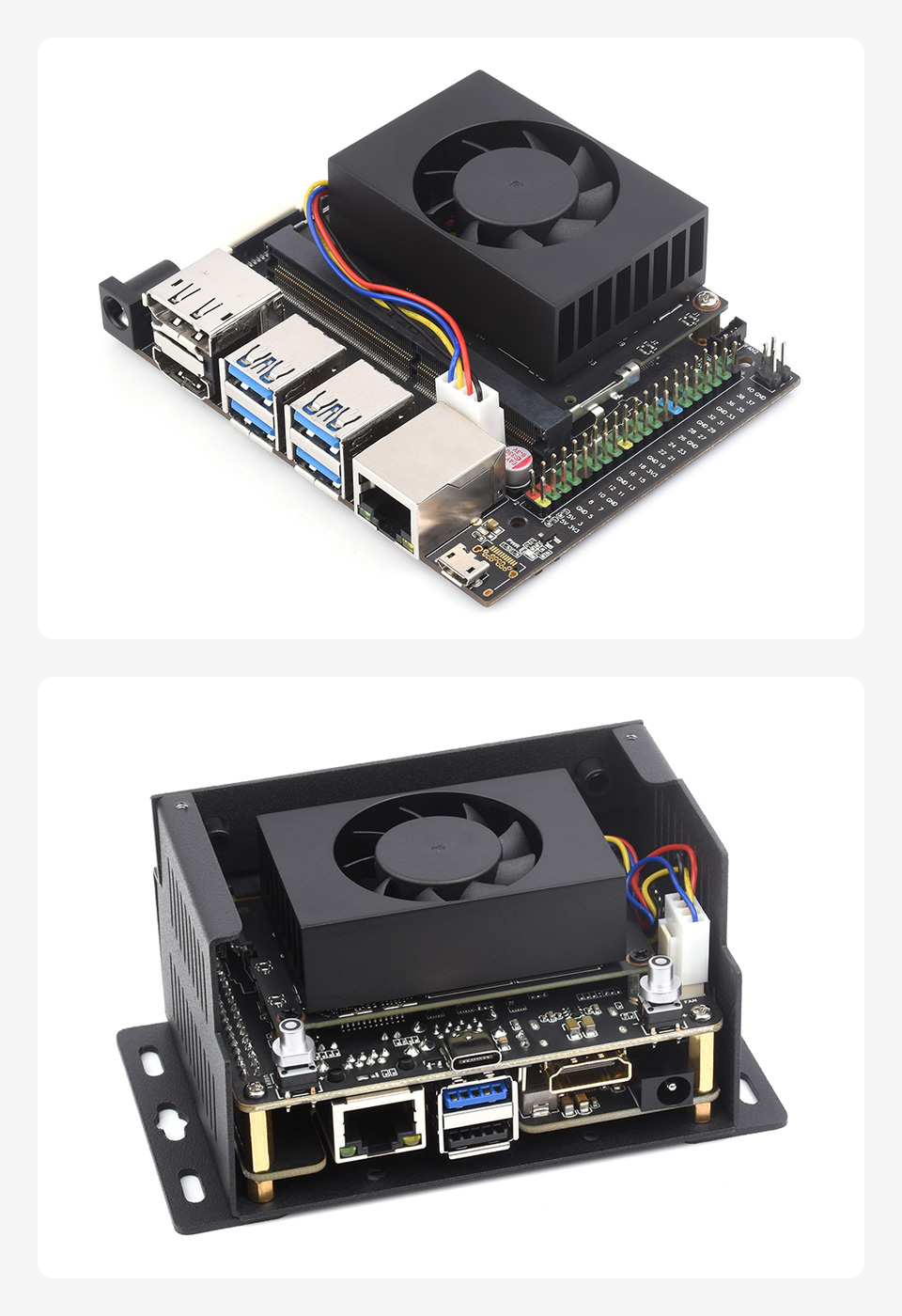

Examples of use (Jetson Nano module, JETSON-IO-BASE-A base board and JETSON NANO MINI kit are NOT included):

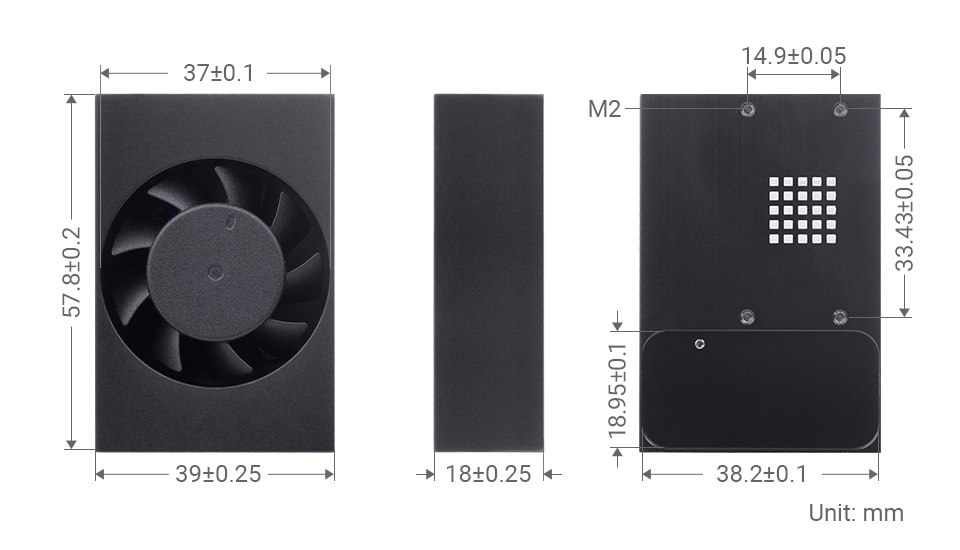

Overall dimensions: 57.8 mm × 39 mm × 18 mm

Weight: 0.071 kg

Scope of delivery:

1. NANO-FAN-PWM x1
2. Elastic bracket and screws with height restriction x1
