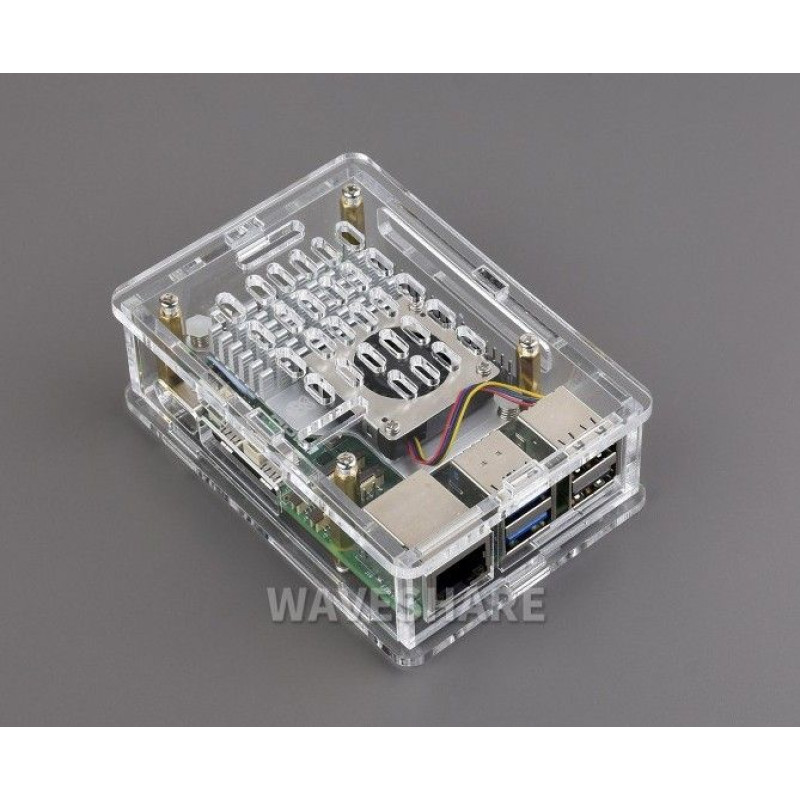

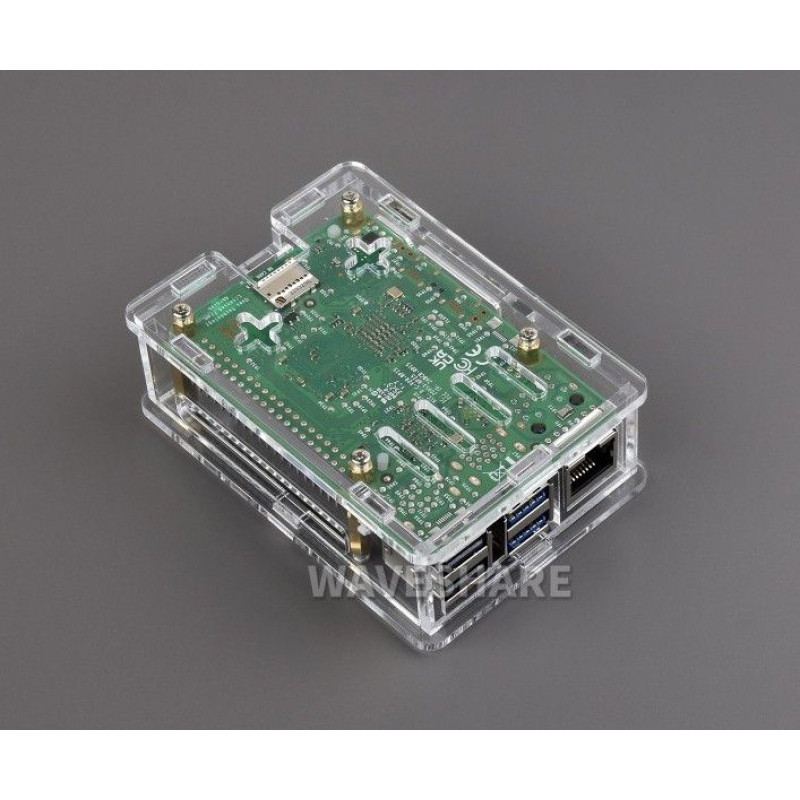

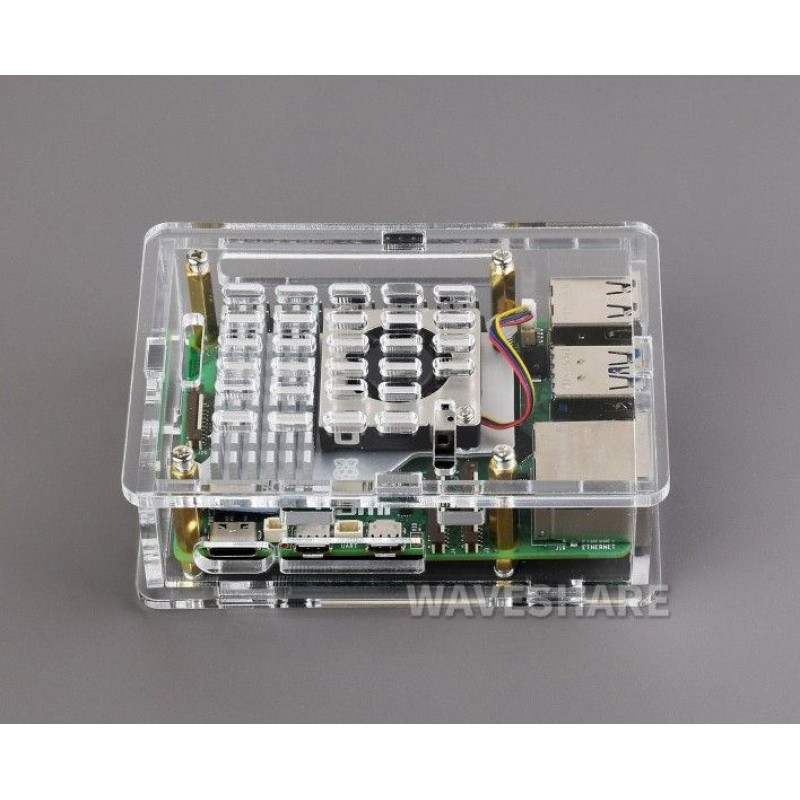

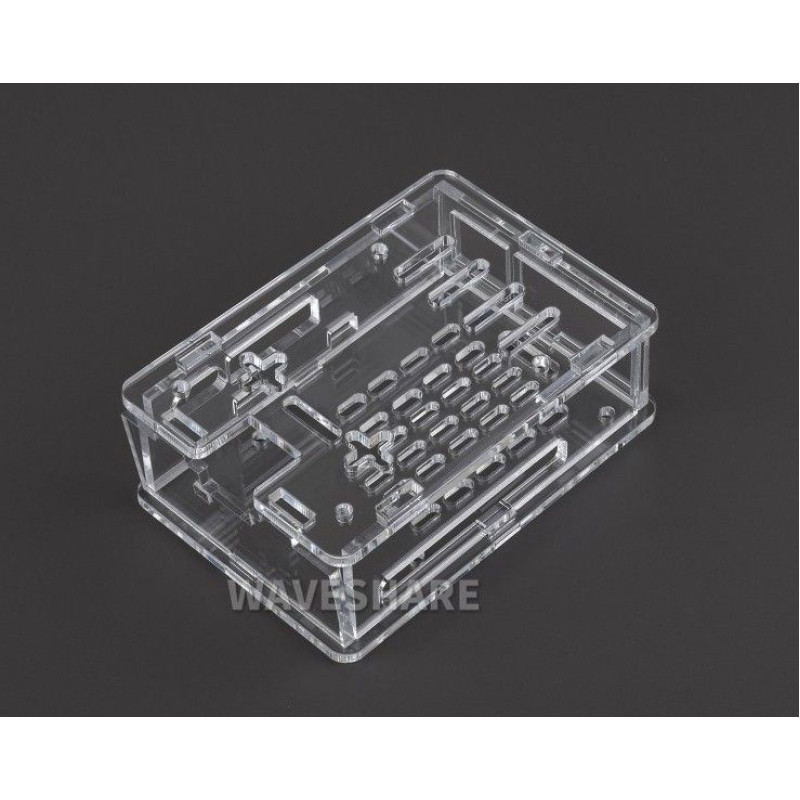

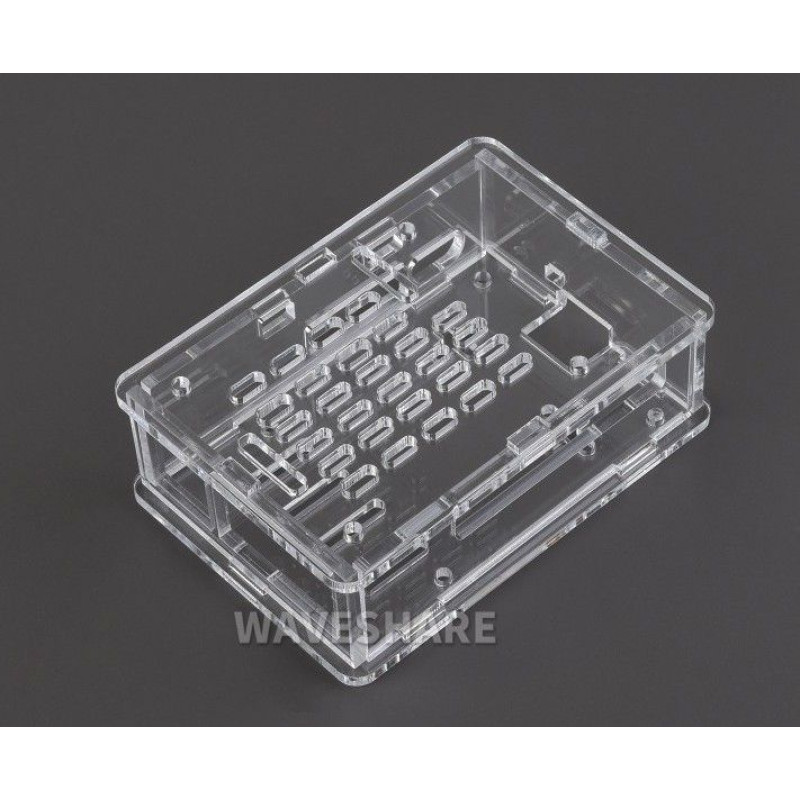

Raspberry Pi 5 Case PI5-CASE-F

The PI5-CASE-F is a plastic case for Raspberry Pi 5, which is designed to protect the Raspberry Pi 5 single board computer. The dimensions and design allow you to place an active cooling system inside the Official Active Cooler (not included)

Main features:

• The case is made of clear plastic for aesthetics and to protect the Raspberry Pi from external influences.

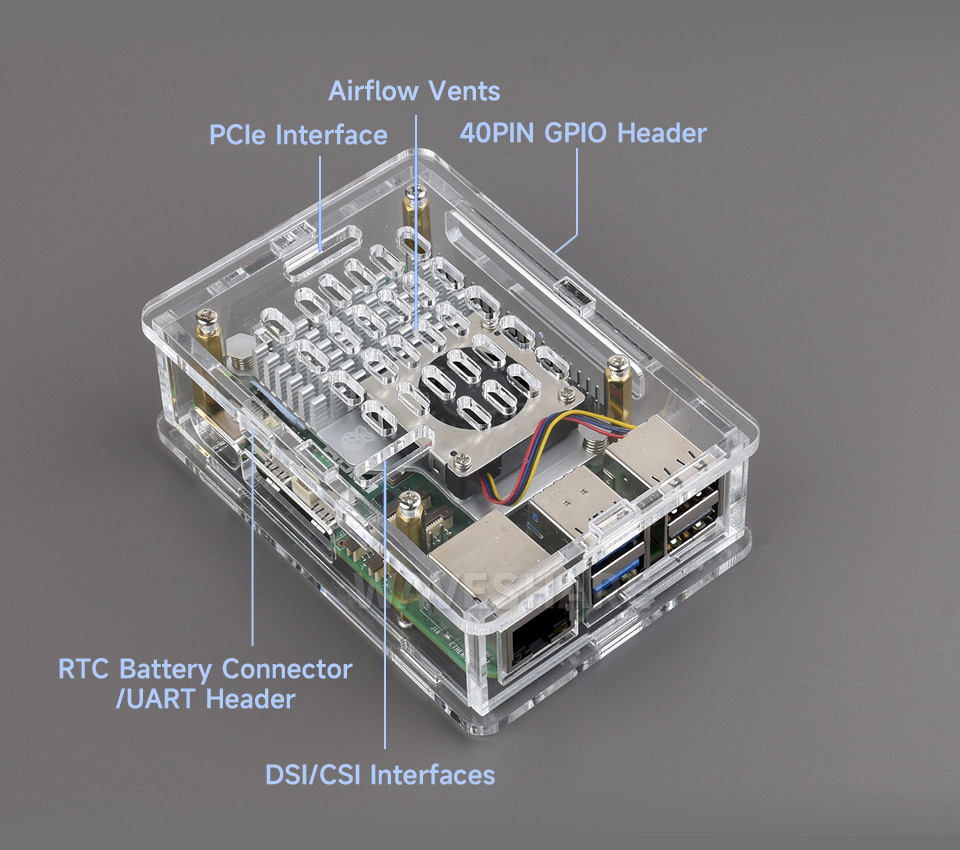

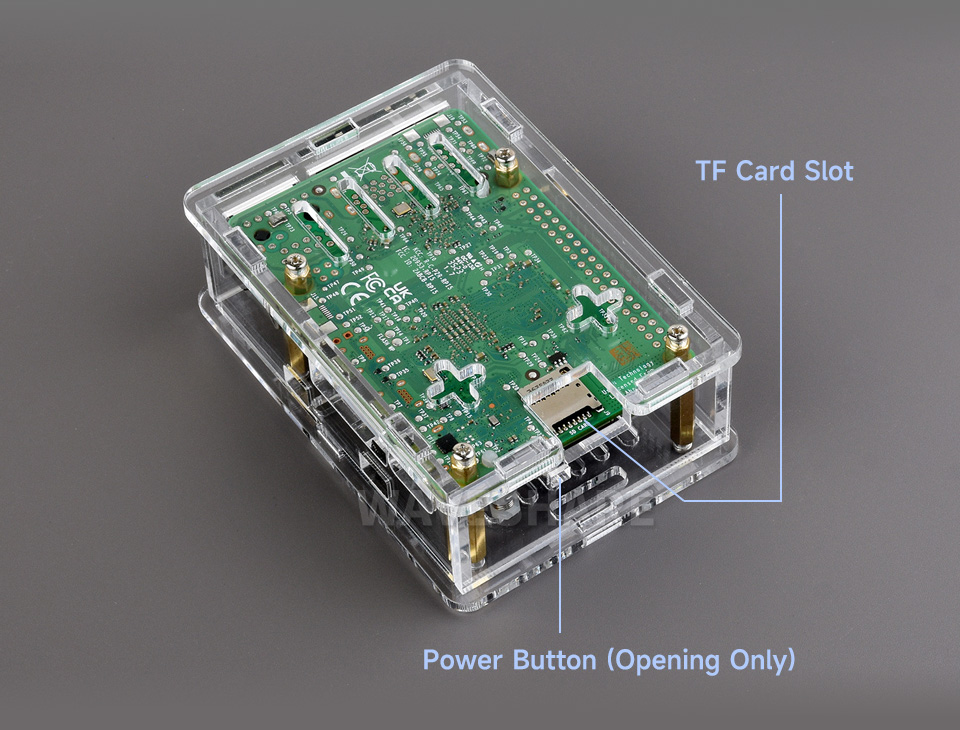

• Specifically designed to be compatible with the Raspberry Pi 5, it features precise cutouts and access to all ports and interfaces, allowing easy access to the Raspberry Pi's connectors and ports without removing the case. Openings for 40-pin GPIO, PCIe, DSI/CSI, and ventilation ports on the top and for the RTC battery connector/UART connector on the side, with a power on/off button. TF card slot on the bottom.

• Designed to accommodate the Official Active Cooler (not included).

• Provides an aesthetic appearance and can act as a protective function for the board.

Interfaces:

* Raspberry Pi 5 is NOT included in the package.

Assembly scheme:

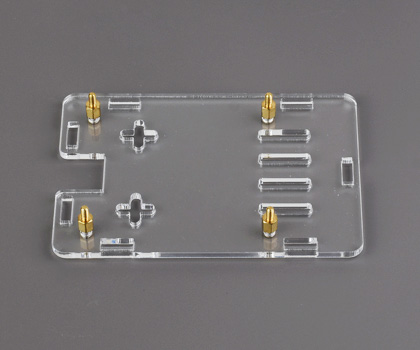

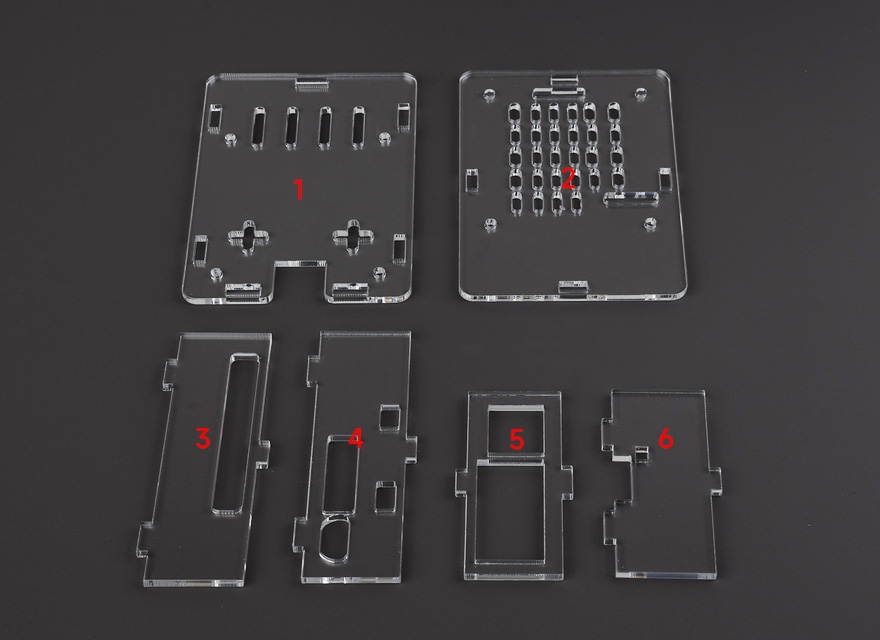

1. Install the short supports and screws on the first acrylic panel, pay attention to the orientation.

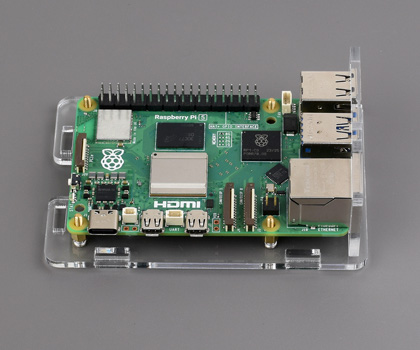

2. Install the 5th acrylic panel to the USB port and Ethernet port of the Raspberry Pi 5, then secure the Raspberry Pi 5 to the short supports as shown.

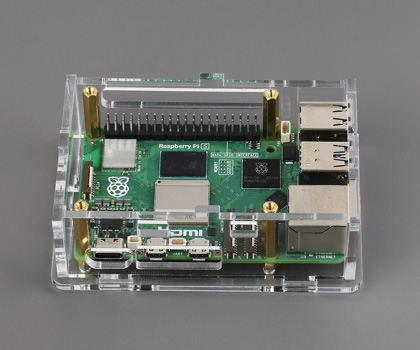

3. Secure the Raspberry Pi 5 with the long supports, and then install the 3rd, 4th, and 6th acrylic panels.

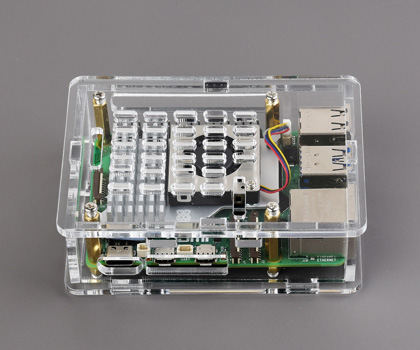

4. Install the active cooler on the Raspberry Pi 5, then install the 2nd acrylic panel on top and secure it with screws.

** If you need to install peripherals such as a camera and DSI display, connect the peripheral cables before installing the top plate.

Weight: 0.090 kg

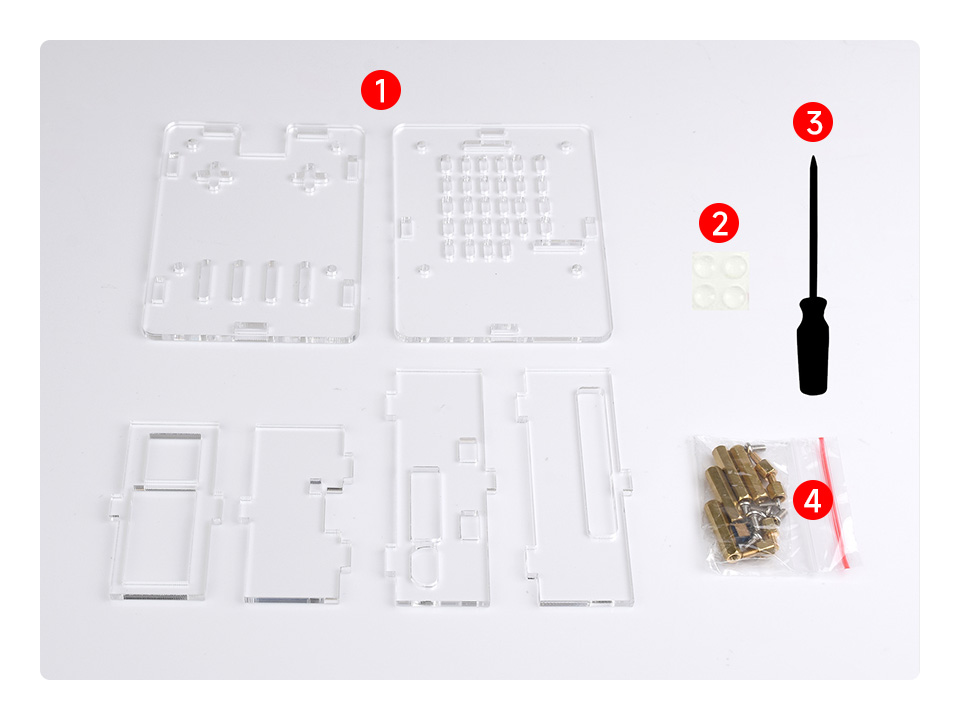

Package contents:

1. PI5-CASE-F x1
2. Anti-slip rubber pad (4 pcs.) x1
3. Screwdriver x1
4. Packing of screws and supports x1 pc.
