Acrylic case for NVIDIA Jetson Nano Developer Kit (16566)

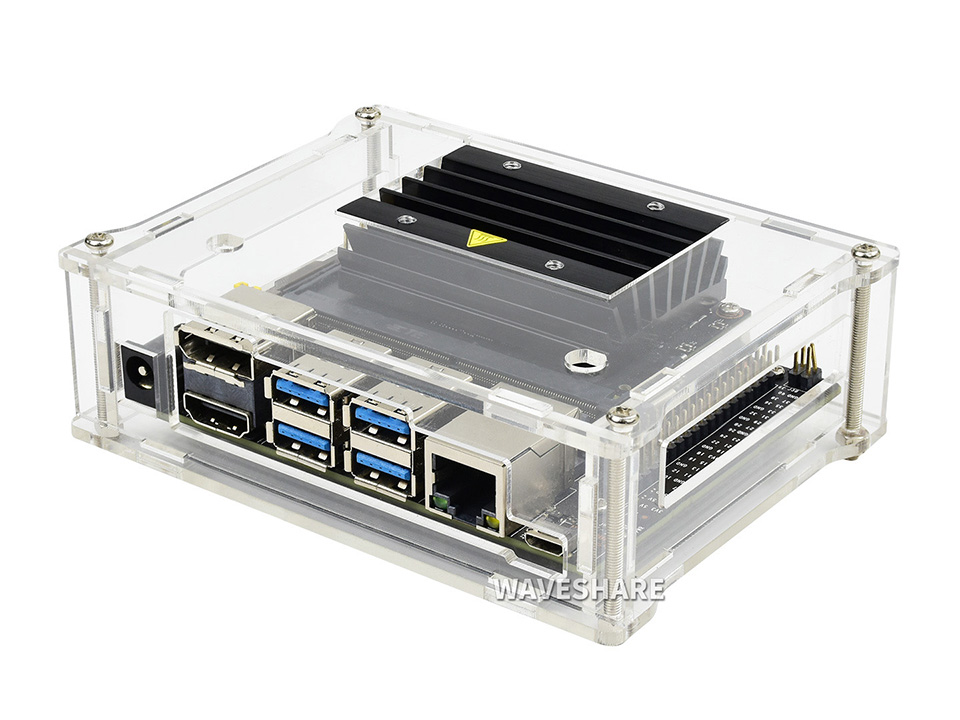

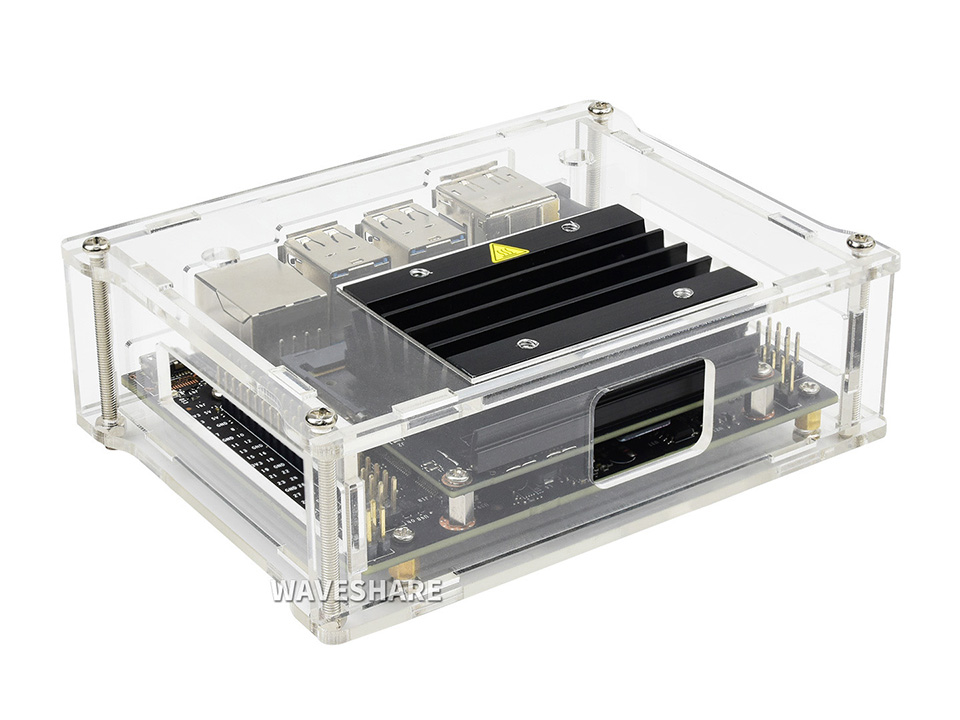

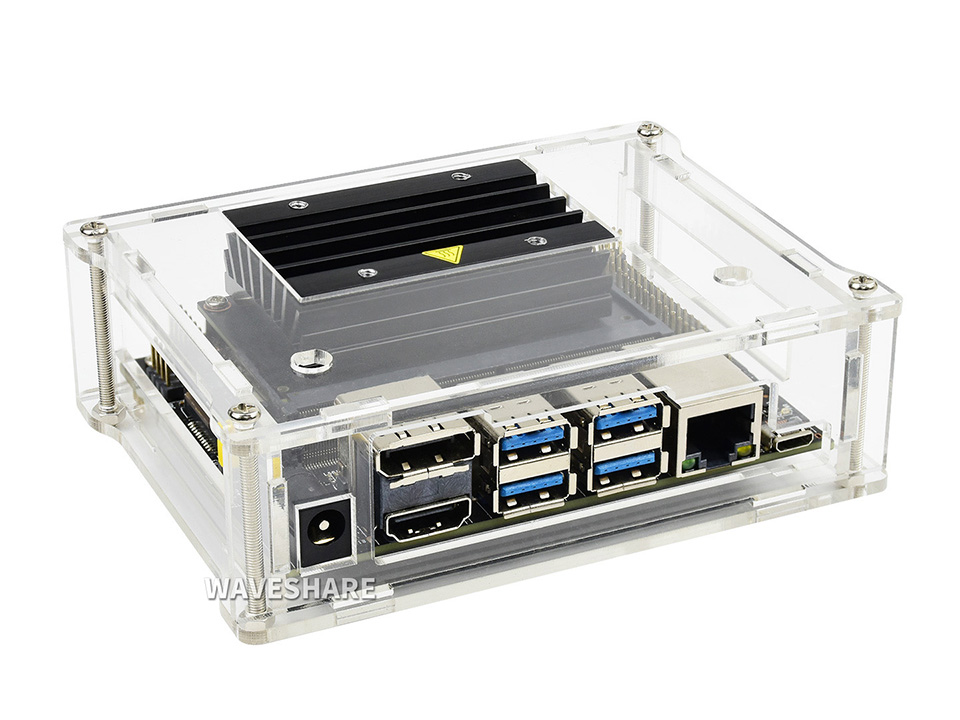

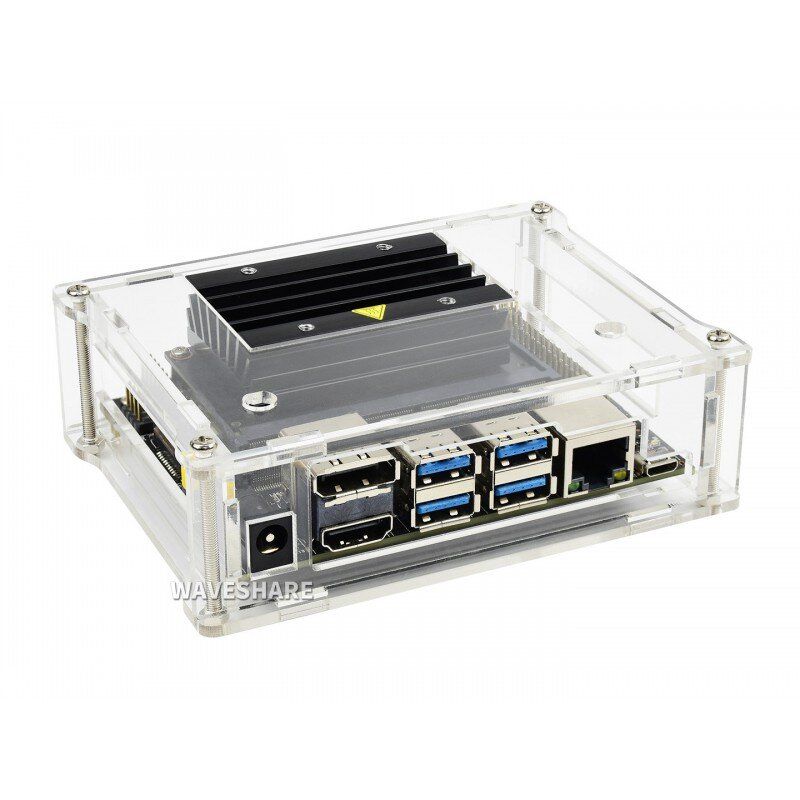

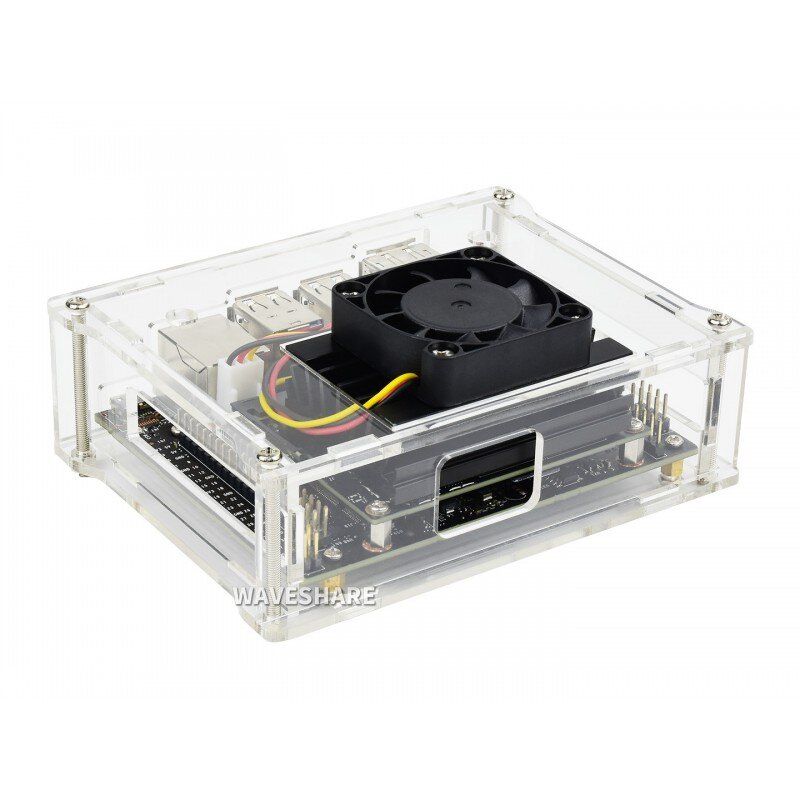

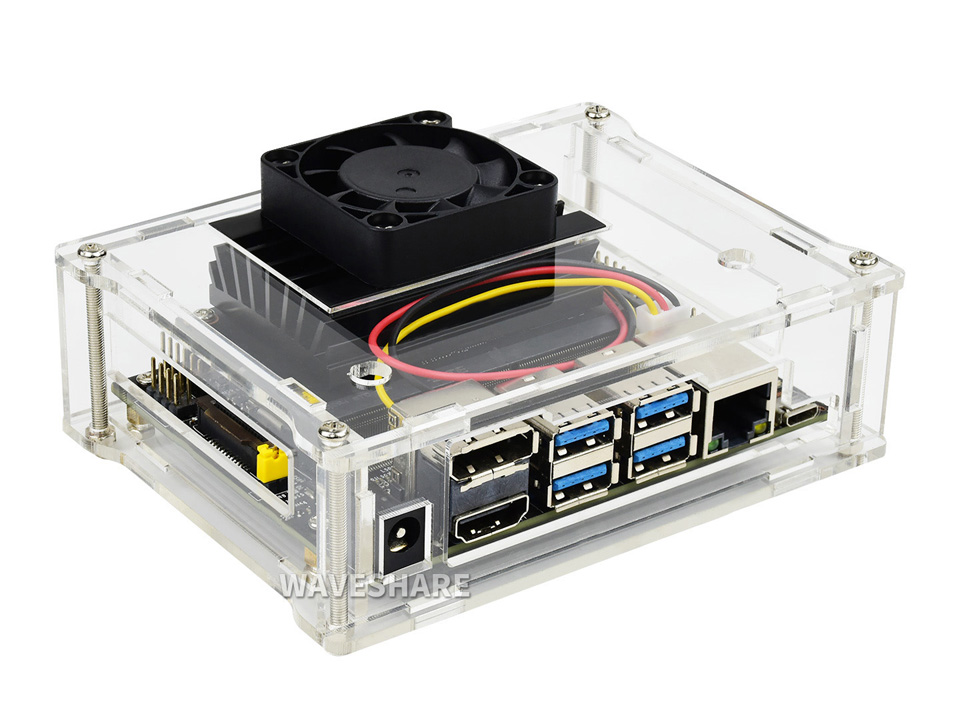

TheNVIDIA Jetson Nano Developer Kit Acrylic Case (16566 ) is a protective acrylic (plexiglass)case assembly kit specifically designed for the NVIDIA Jetson Nano module. This case has a well-thought-out design with convenient access to all peripheral connectors. The design of the heat dissipation system is also worth noting, as it has a special hole above the radiator for mounting the cooling fan. Types of cooling fans: Fan-4010-5V or Fan-4020-PWM-5V.

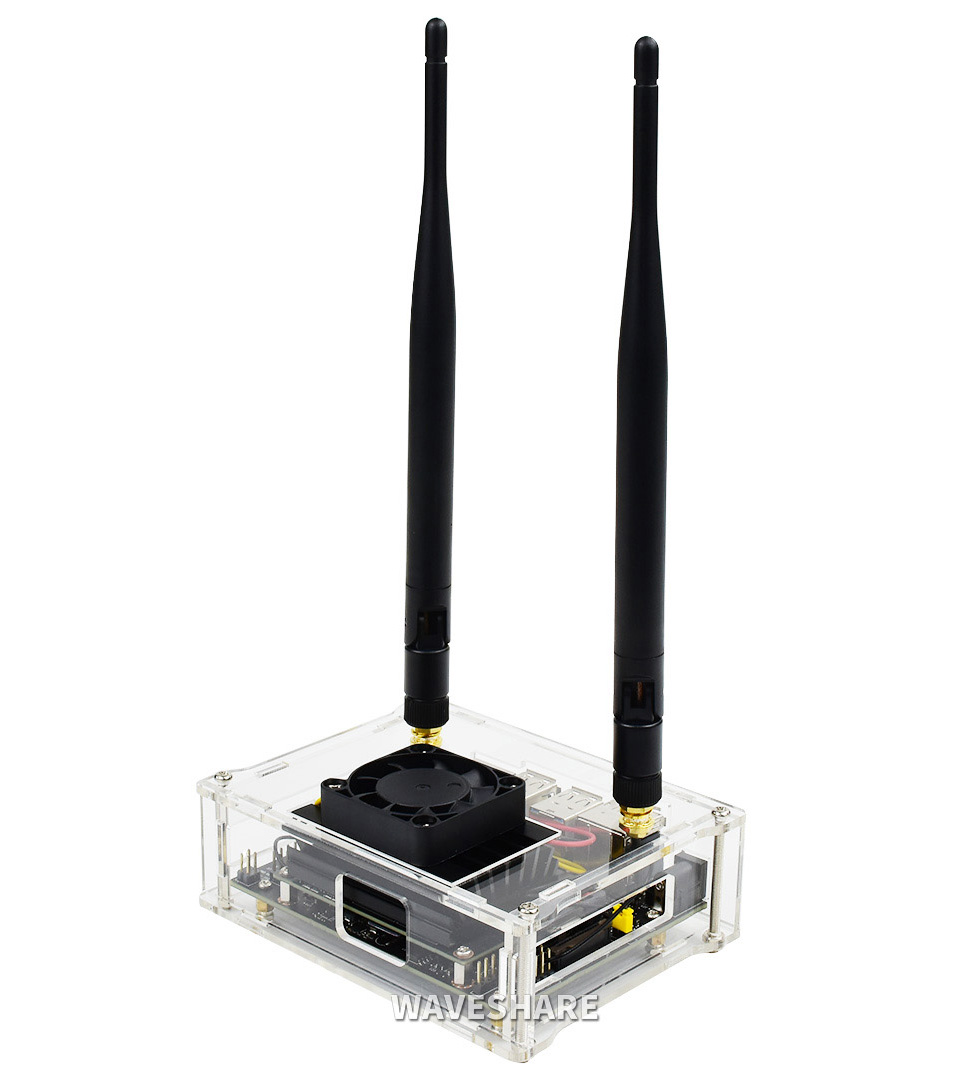

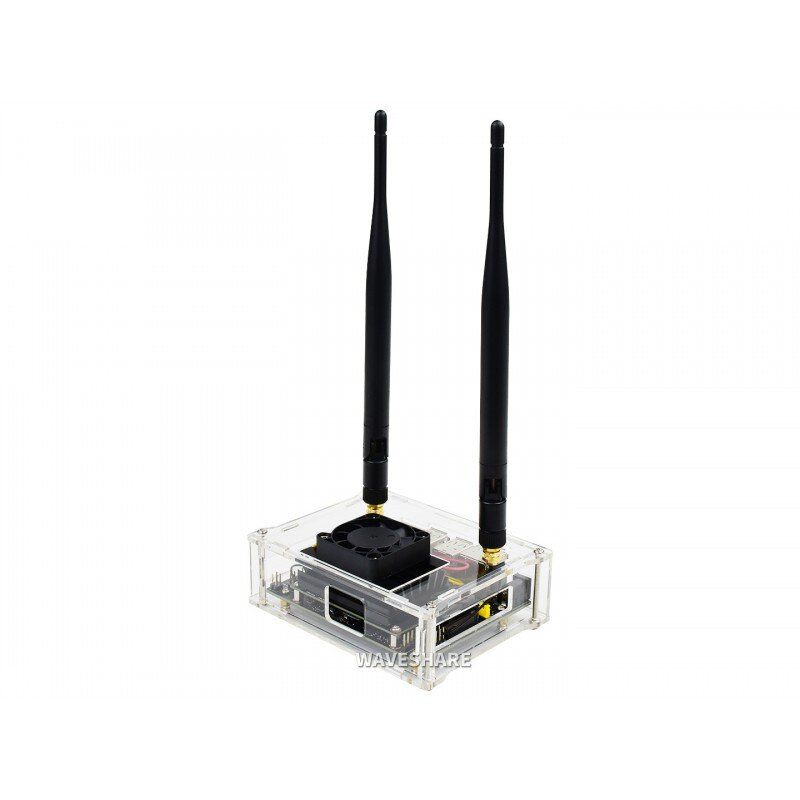

The acrylic case for NVIDIA Jetson Nano has double special holes for mounting antennas that allow you to work with the Wireless-AC8265 wireless network card

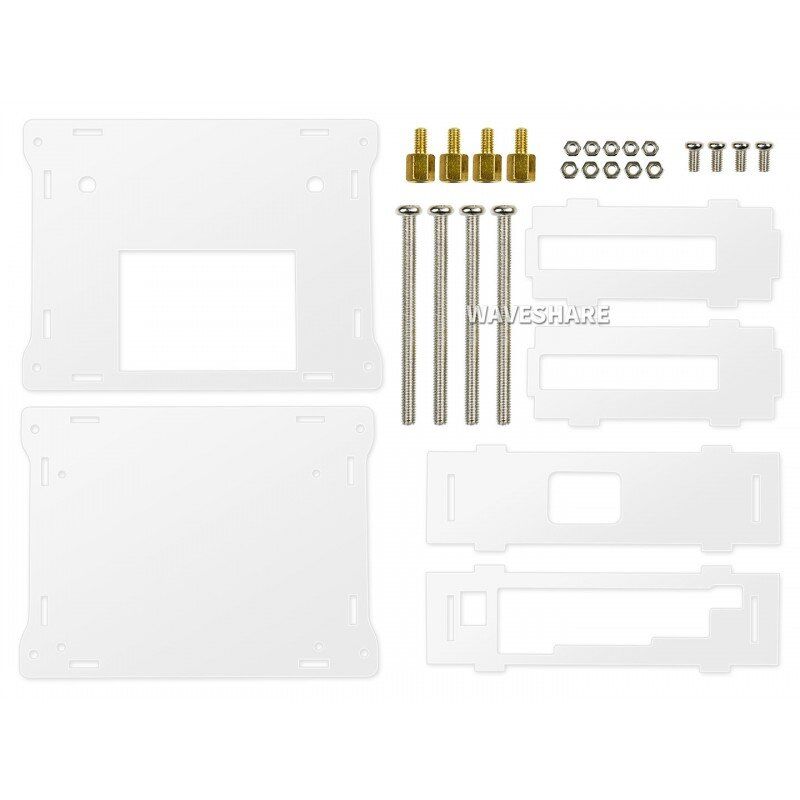

The package includes:

1...6 - plastic panels

7...11 - parts for mounting

Note: new acrylic panels are shipped with a protective film that must be removed before use. The photo shows the acrylic panels without the protective film.

Weight: 0.098 kg

Assembly instructions:

1. Install the wireless module and connect the antenna connector.

2. Install the NVIDIA Jetson Nano module on the bottom base of the chassis.

3. Install the cooling fan on the heatsink

4. Attach the antenna connector to the top of the chassis

5. Install the side panels and fasten them with screws

6. Connect the antennas
