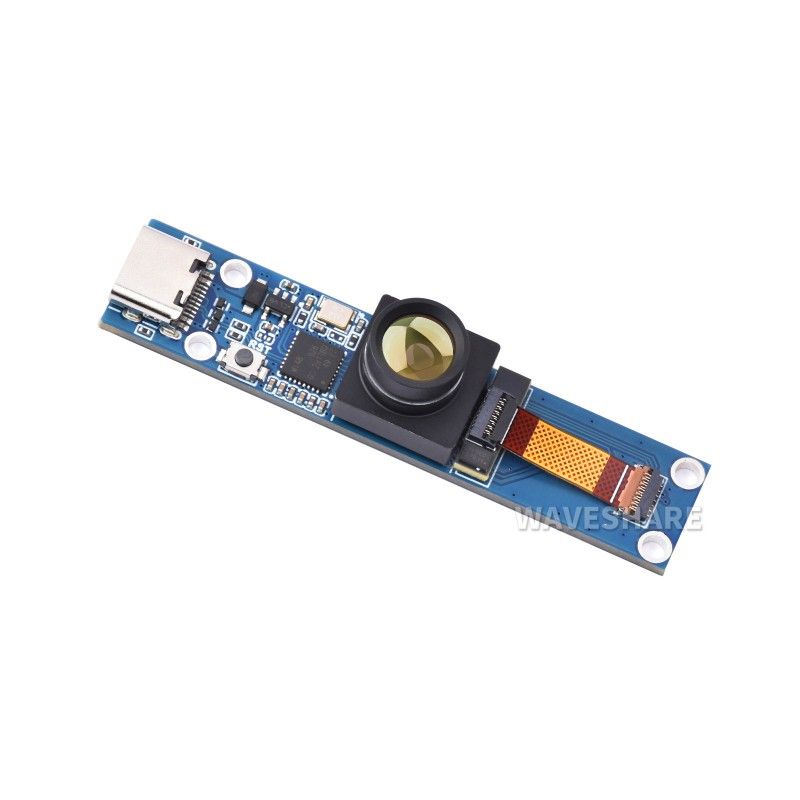

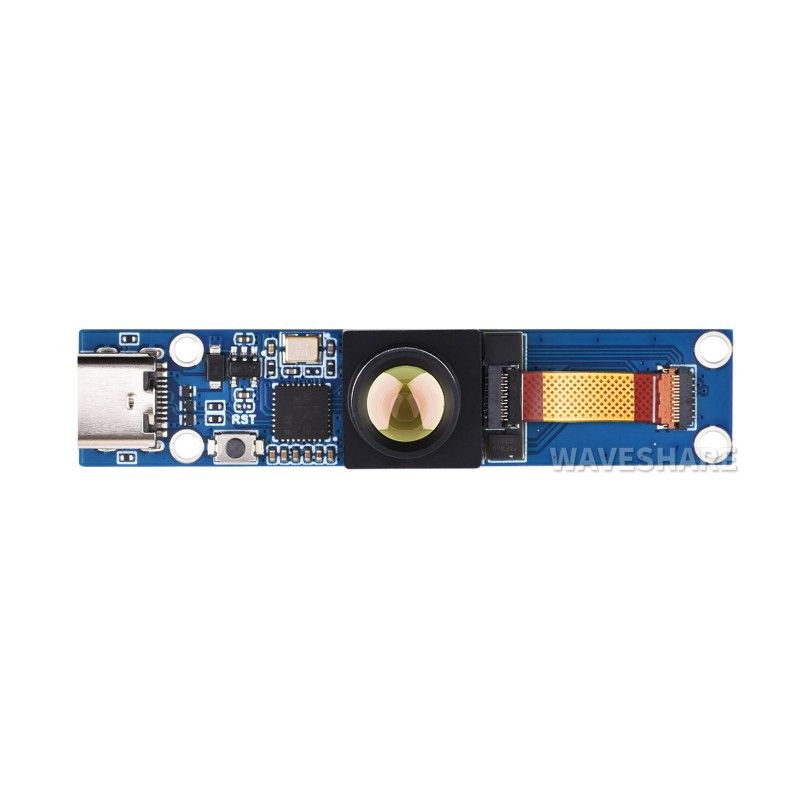

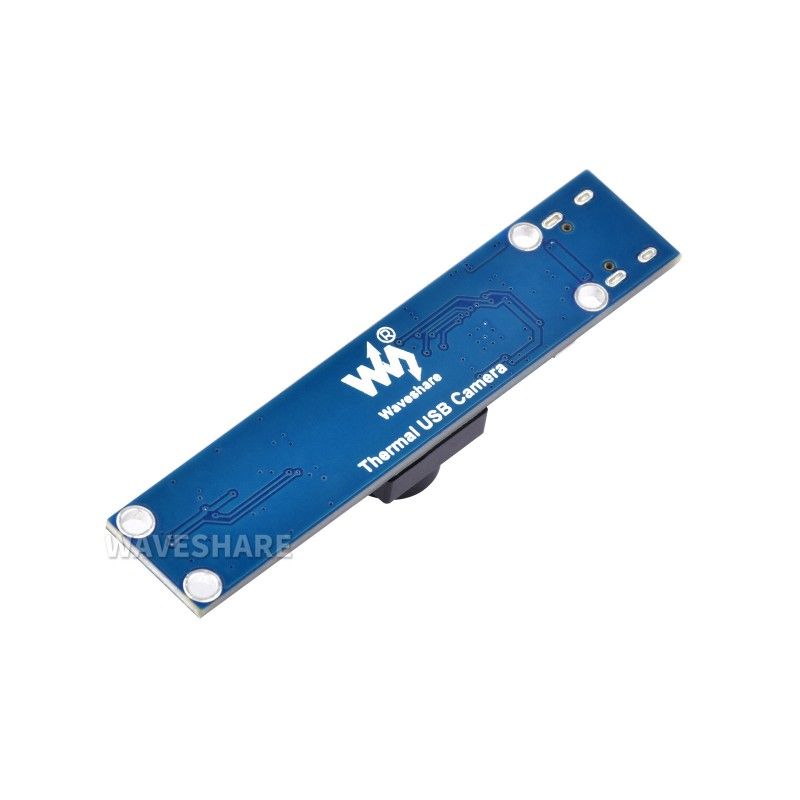

Waveshare Thermal Imaging 80x62 USB Camera (25288)

The Waveshare Thermal Imaging 80x62 USB Camera (25288 ) adds thermal imaging functionality to your devices with a USB Type-C interface. This module uses an infrared thermal imaging camera that utilizes a hybrid microbolometer and thermal battery pixel technology and has an 80x62 pixel sensor. With this, it detects the infrared radiation of objects in its field of view, converts the data into the surface temperature of the objects through calculation, and then creates thermal images for further integration into various industrial or intelligent design or control applications.

Main features:

• Has a USB Type-C interface
• Uses hybrid microbolometer and thermal battery technology
• Has a matrix of 80x62 pixels
• Provides continuous operation and thermal video streaming thanks to its shutterless design
• Has a Noise Equivalent Temperature Difference (NETD) of 150 µC RMS at 1 Hz refresh rate
• Provides thermal image output video stream up to 25 frames per second (max)
• Comes with online resources and manuals

Specifications.

• POWER SUPPLY: 5В
• OPERATING CURRENT: 61mA@5V
• WAVELENGTH RANGE: 814 microns
• OPERATING TEMPERATURE: -2085 ℃
• TARGET TEMPERATURE: -20400 ℃
• REFRESH RATE: 25 FPS (max)
• Field of view: 45°(H)×45°(V)
• NOISE EQUIVALENT TEMPERATURE DIFFERENCE: 150 mK
• MEASUREMENT ACCURACY: ±2 ℃ (ambient temperature 1070 ℃)

Possible applications:

• High-precision long-term non-contact online temperature monitoring (smart home, smart lighting, building and facility inspection)
• Industrial monitoring and diagnostics of equipment, safety and security, intrusion/motion detection (IR thermal imagers, IR thermometers)
• Thermal analysis of small targets, thermal trend analysis and solutions
• Visualization of temperature differences in natural studies

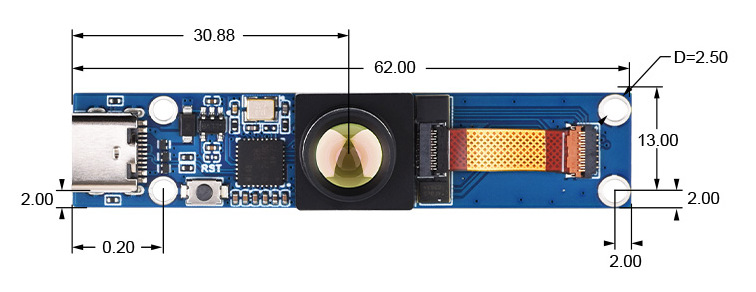

Overall dimensions: 62mm x 13mm

Wiki: www.waveshare.com/wiki/Thermal_Camera_HAT

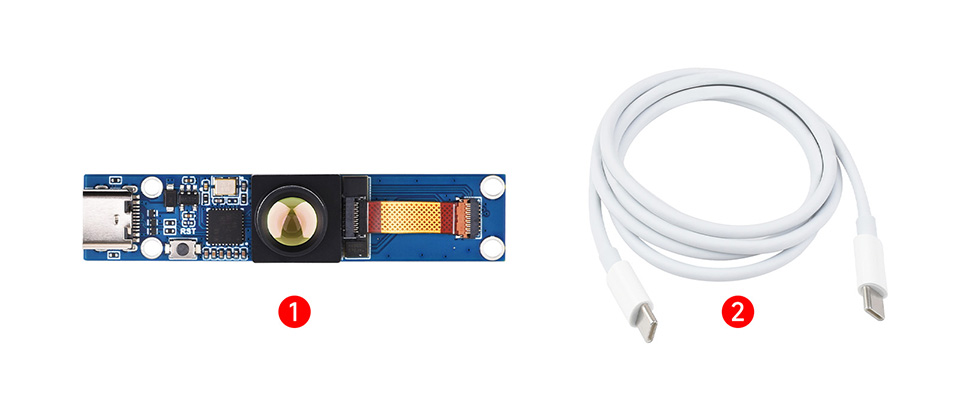

Scope of delivery:

1. Thermal camera HAT x1
2. Dual Type-C cable 1m x1

Weight: 0.033kg
