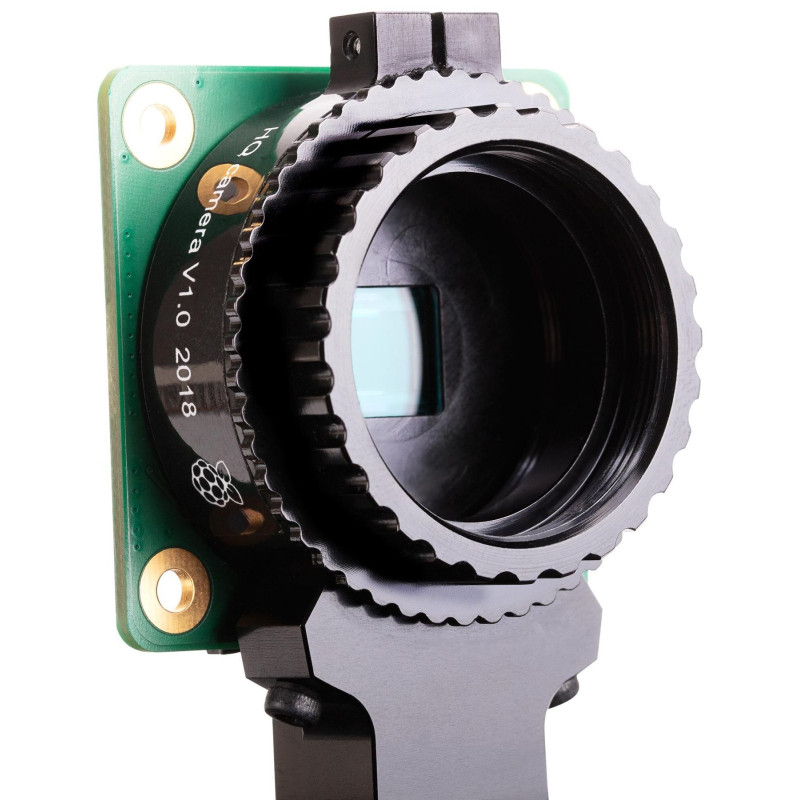

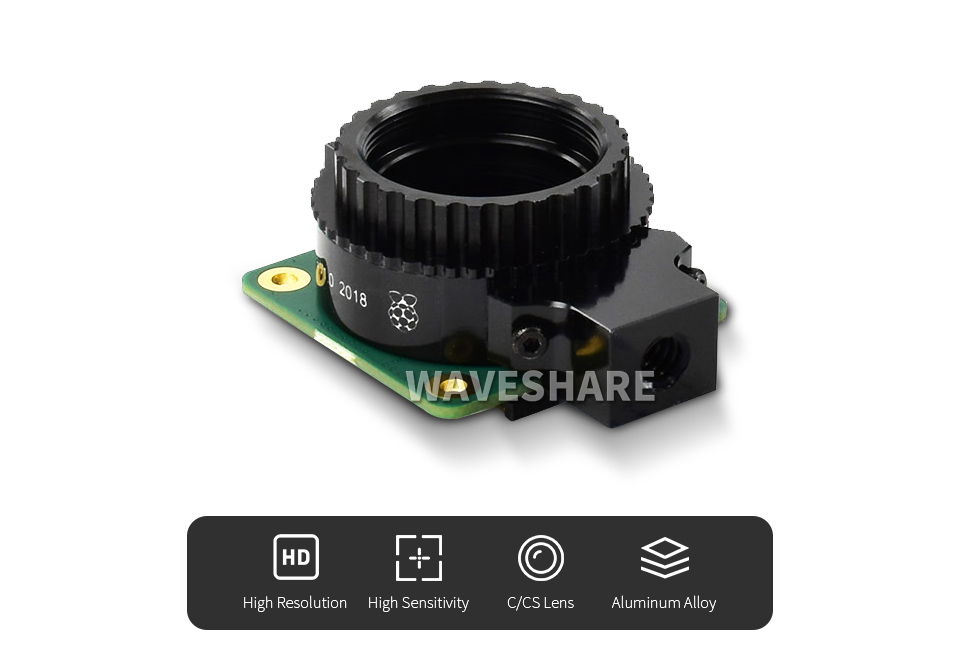

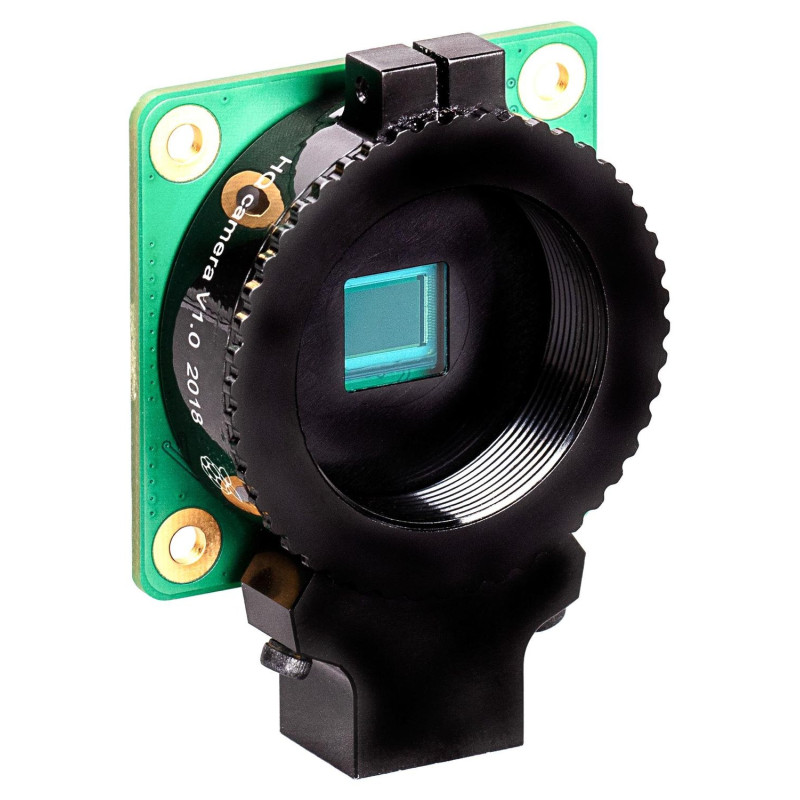

Raspberry Pi High Quality Camera

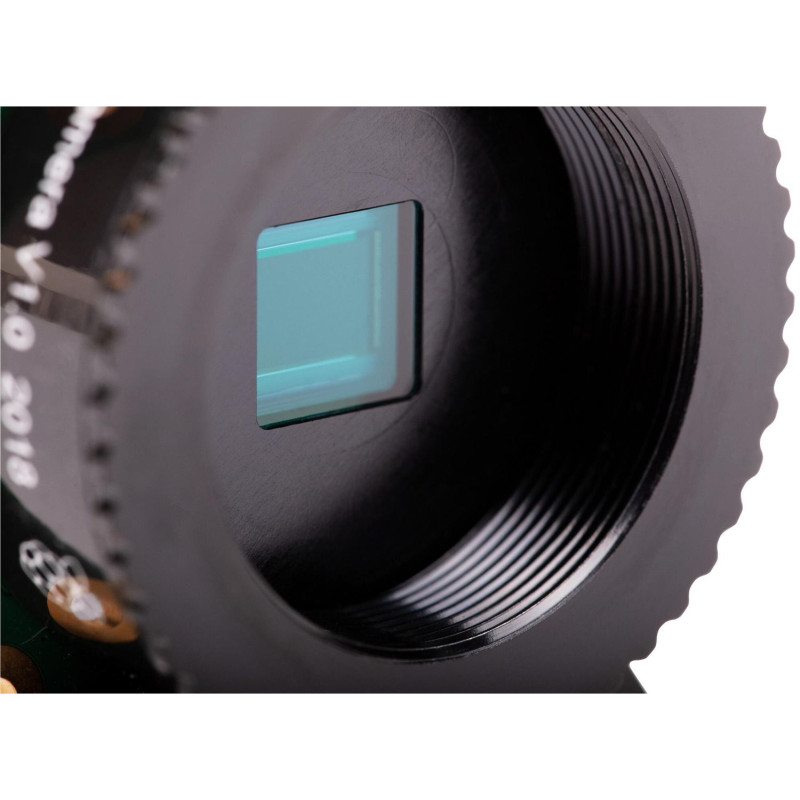

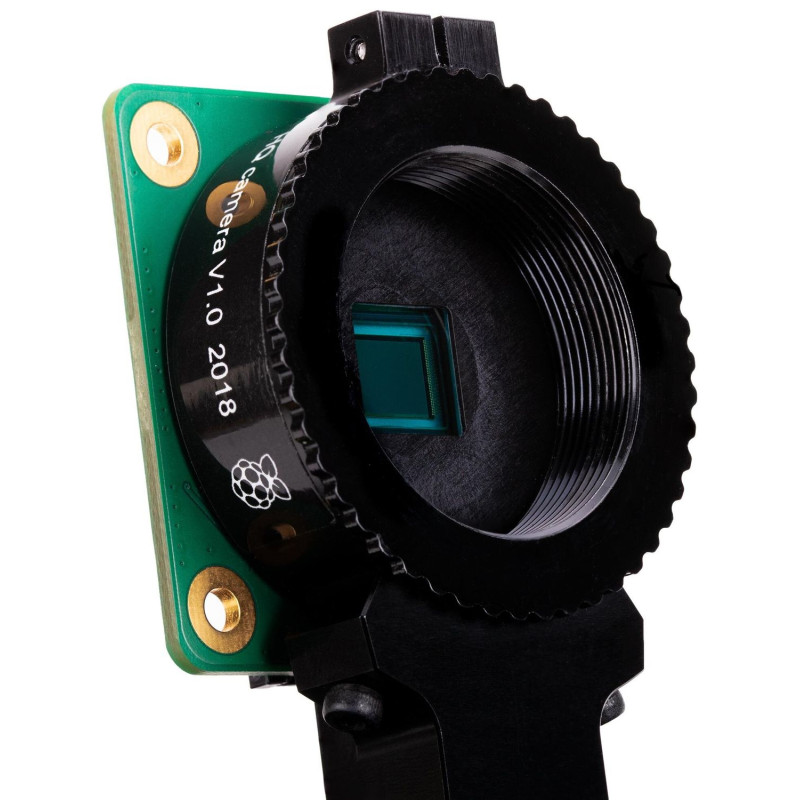

TheRaspberry Pi High Quality Camera is the latest high-quality Raspberry Pi camera from the Raspberry Pi Foundation. It is equipped with a Sony IMX477R sensor. It requires lenses that can be mounted using C or CS type adapters.

The device is compatible with Raspberry Pi boards and offers a higher resolution (12.3 megapixels) and higher sensitivity (almost 50% more area per pixel for improved low-light performance) than the existing V2 camera module.

The high-end Raspberry Pi camera can be an ideal alternative to the V2 camera module, suitable for industrial and consumer applications such as security cameras and other specialized optical devices that require a higher level of visual accuracy.

Video: https://www.youtube.com/watch?v=tYcRTQr9JD8

Specifications:

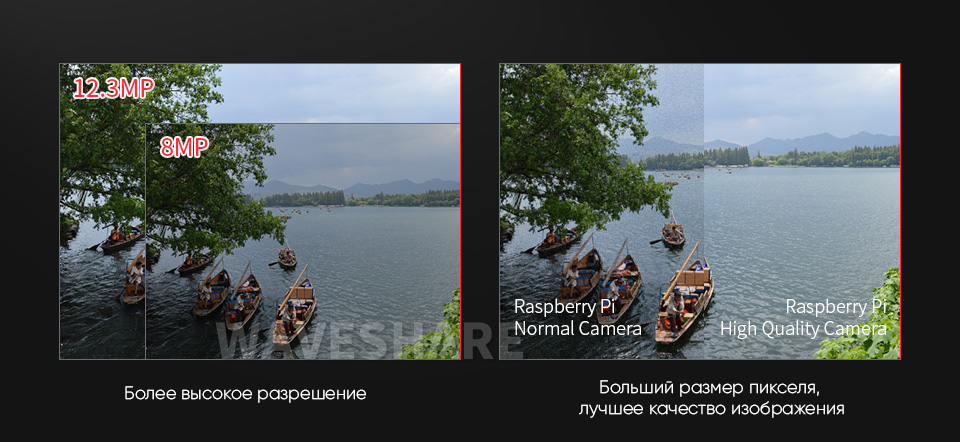

Higher resolution (up to 12.3 megapixels), better image quality (thanks to almost 50% larger area per pixel) compared to the 8-megapixel Raspberry camera:

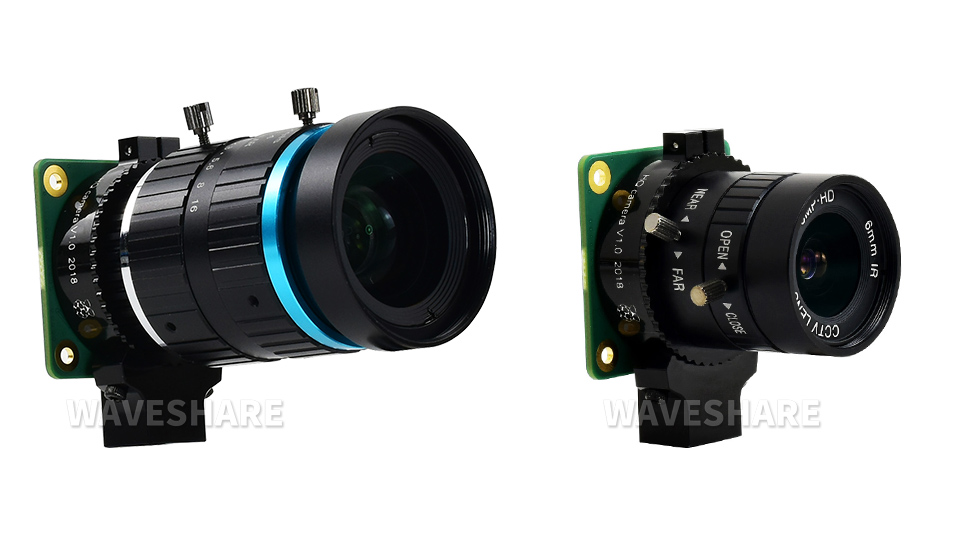

Camera with a mounted lens:

16mm telephoto lens with C-Mount (C-CS adapter required) and 6mm wide-angle lens with CS mount (C-CS adapter must be removed)

Lens selection:

	16mm Telephoto Lens	6mm Wide Angle Lens
image format	1″	1/2″
Focal length	16mm	6mm
aperture	F1.4-16	F1.2
mount adapter	C-mount	CS-mount
Viewing angle	1″ 44.6° × 33.6° 2/3″ 30.0° × 23.2° 1/1.8″ 24.7° × 18.6° 1/2″ 21.8° ×16.4°	63°
back focus	17.53mm	7.53mm
optical length	67.53mm	-
curvature	1″（-0.7%） 1/2″（-0.5%） 1/3″（-0.15%）	-
Minimum distance to the object	0.20m	0.20m
Size	Φ39.00 × 50.00mm	Φ30.00 × 34.00mm
Adjustment.	Manual aperture adjustment	Manual aperture adjustment
weight	133.7g	53g

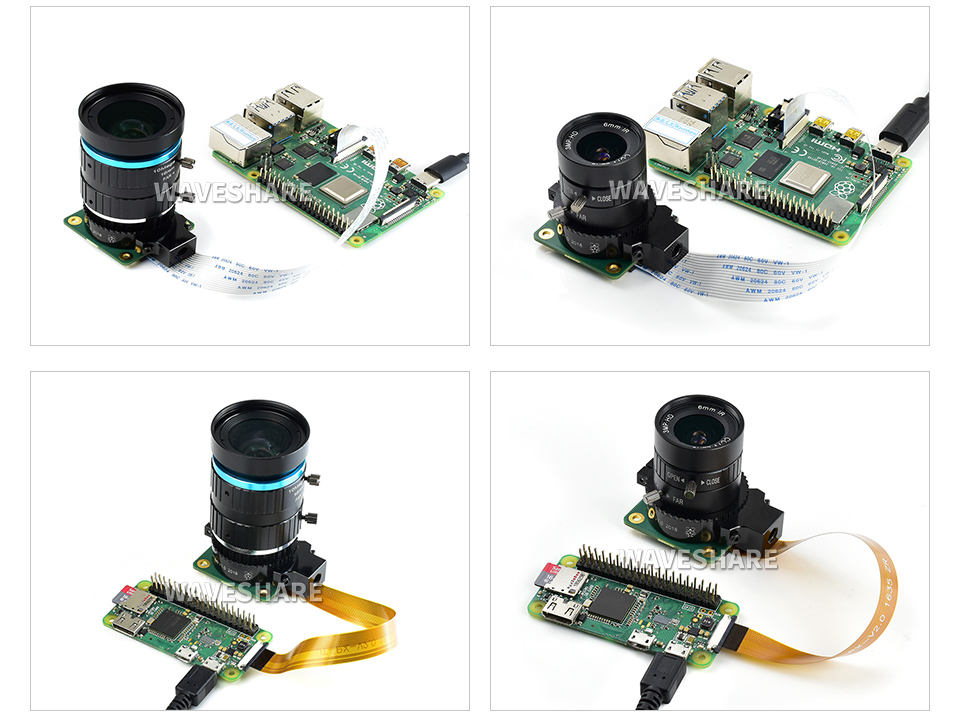

Works with Raspberry Pi:

ATTENTION!

1. Raspberry Pi and lenses in the photos are NOT included in the package.

2. To use with Raspberry Pi Zero, you need to purchase an additional Raspberry Pi Zero v1.3 camera cable.

3. Raspberry Pi High Quality Camera is not compatible with NVidia Jetson Nano devices

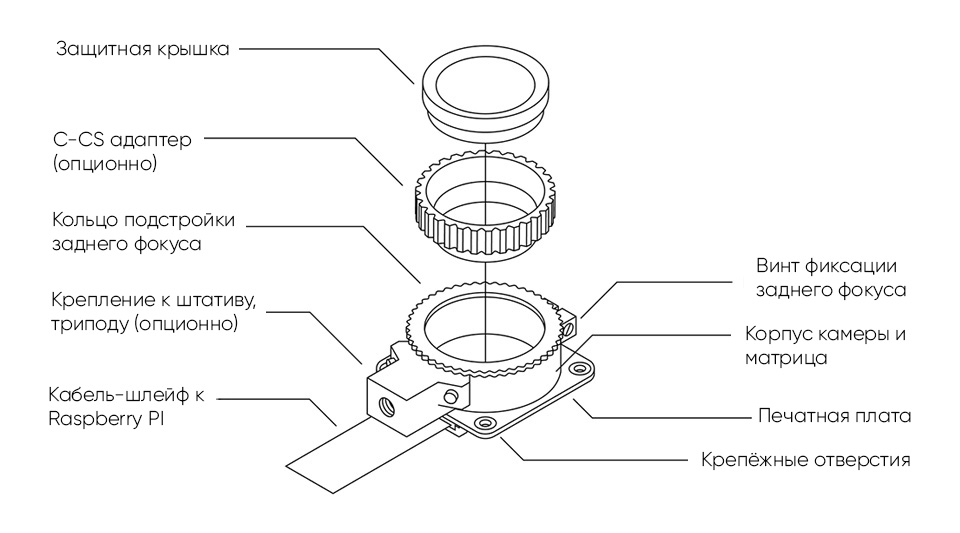

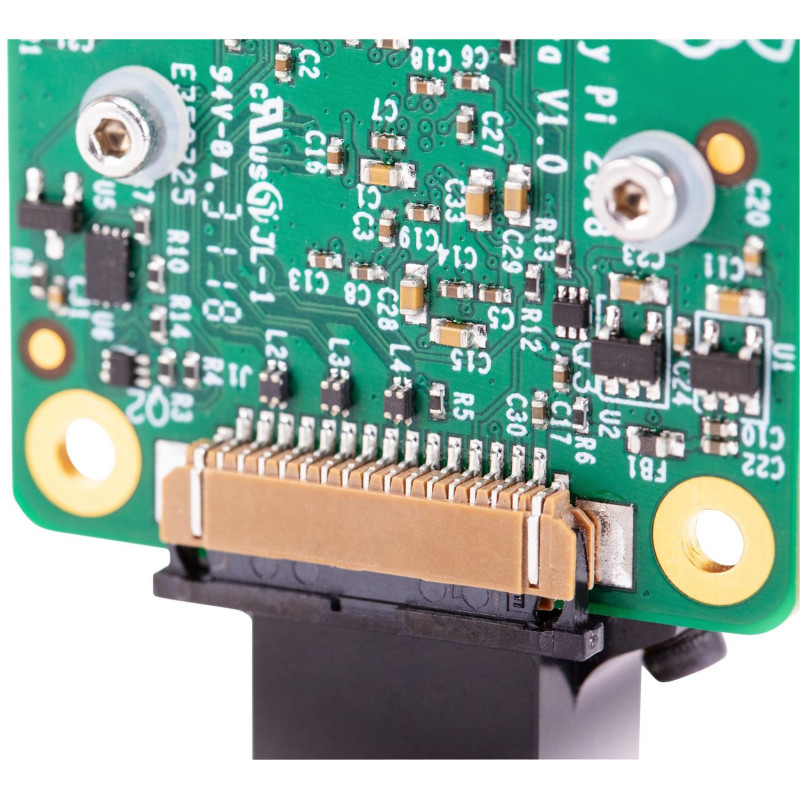

Camera design:

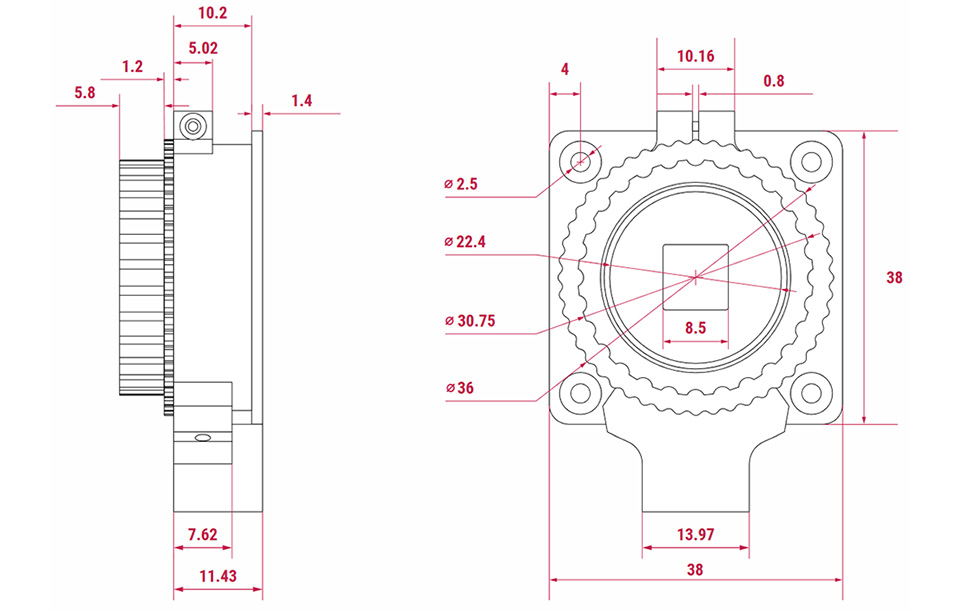

Overall dimensions, mm:

Developer information: waveshare.com/wiki/Raspberry_Pi_HQ_Camera

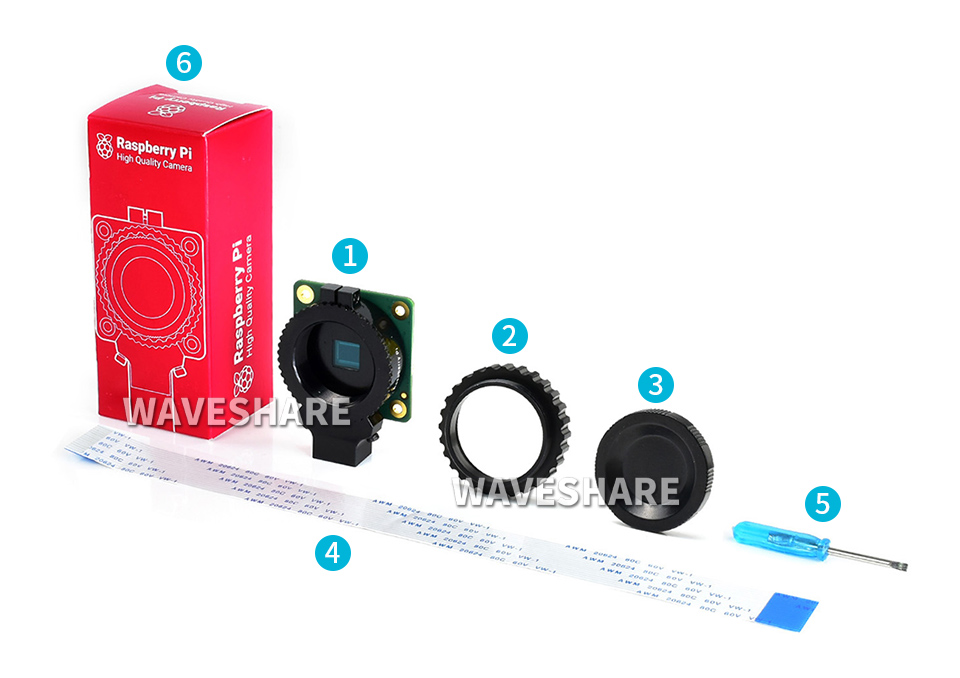

The package includes:

1. Raspberry Pi High Quality Camera x1
2. C-CS adapter x1
3. Protective cover x1
4. FPC cable x1
5. screwdriver x1
6. Packing box x1

weight: 0.042kg
