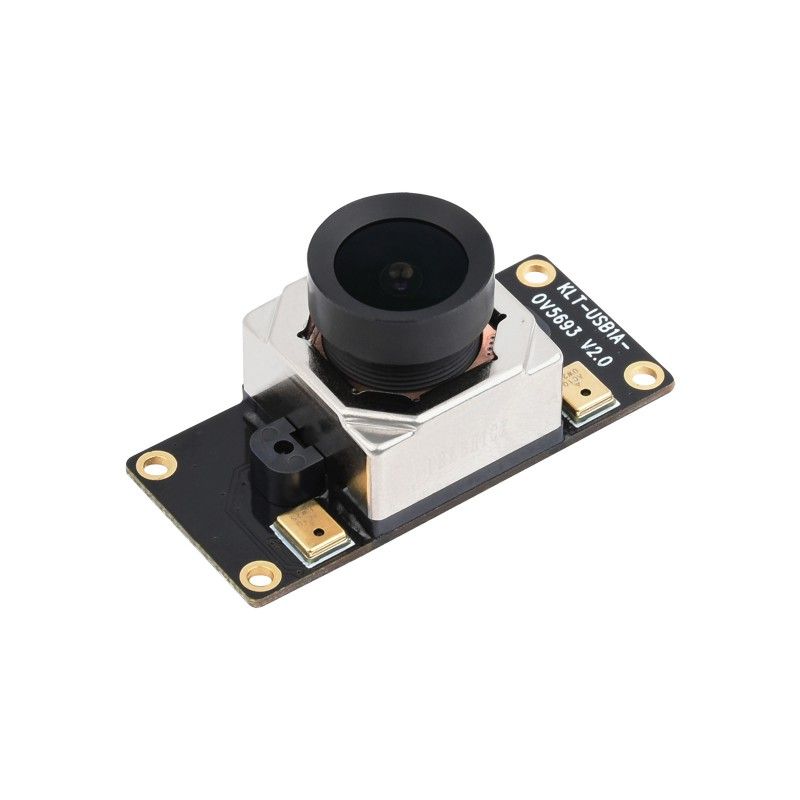

OV5693 5MP USB Camera

TheOV5693 5MP USB Camera (24710 ) is a camera module used to capture images or video. The main camera of this module has a resolution of 5 megapixels (5MP), and can capture images with high definition and detail.

This camera module has a fixed focal length, which means that the focus cannot be adjusted manually. However, it also has auto focus, which allows the camera to automatically adjust the focus to obtain a clear image in different shooting conditions.

The camera module has an M12 mount, which is a standard lens connector for connecting lenses to the camera, so you can mount an M12 lens with a selected focus or a variable focal length option if you want to change the focus after installation.

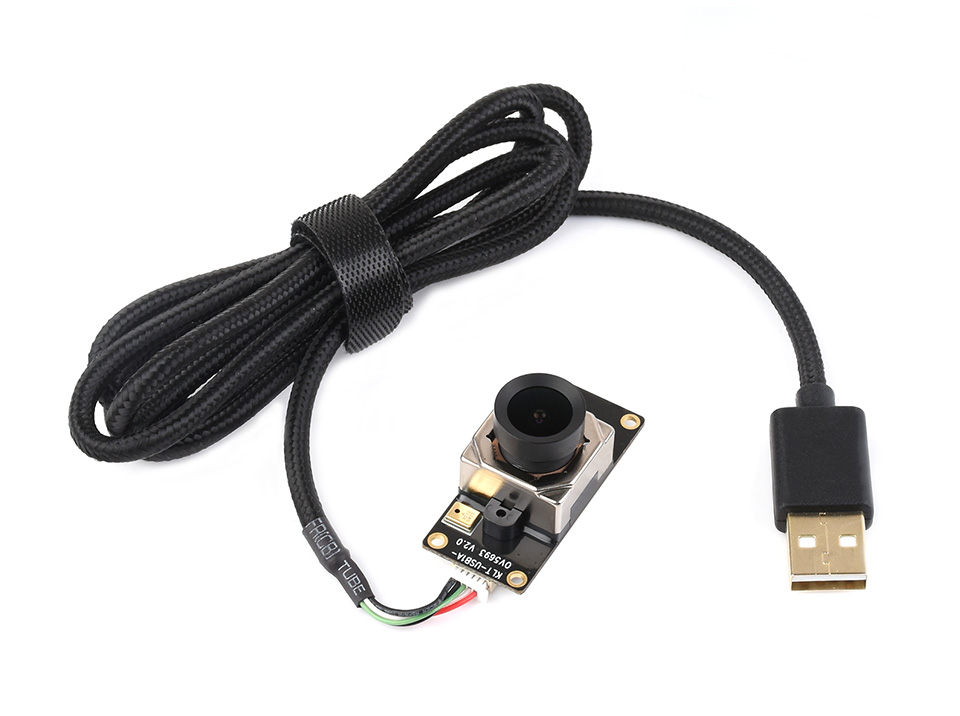

Additionally, this camera module is USB-enabled and can be connected to a computer or other device via the USB port for image transfer or video streaming.

Specifications:

• PIXELS: 5 MP.
• SENSOR: OV5693
• INTERFACE: USB 2.0
• CAMERA.
  • Sensor size: 1/4 inch
  • Aperture (F): 2.1
  • Focal length (EFL): 2.5 mm
  • Field of view (FOV): 135°(D) 95°(H) 70°(V)
  • Focusing: Autofocus
  • Format support: MJPG, YVY2 IMAGE
  • Static image resolution: 2592 × 1944
• MJPG video recording:
  • 2592 × 1944 15 FPS
  • 1920 × 1080 15 fps
  • 1280 × 720 15 FPS
  • 640 × 480 15 FPS
• YUY2:
  • 2592 × 1944 3 frames/s
  • 1920 × 1080 5 fps
  • 1280 × 720 10 fps
  • 640 × 480 15 FPS
• OPERATING VOLTAGE: 5В ± 5%
• OPERATING CURRENT: 500mA

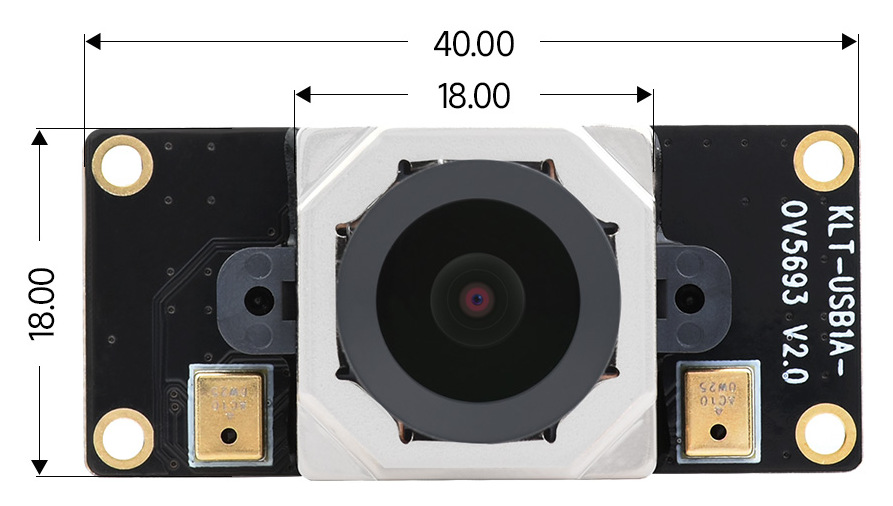

Overall dimensions:

CHAMBERS: 18.00 × 18.00 × 19.69 mm

MODULE: 18.00 × 40.00 mm

Wiki: www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A)

Scope of delivery:

1. OV5693 5MP USB Camera (A) x1

Weight: 0.028 kg
