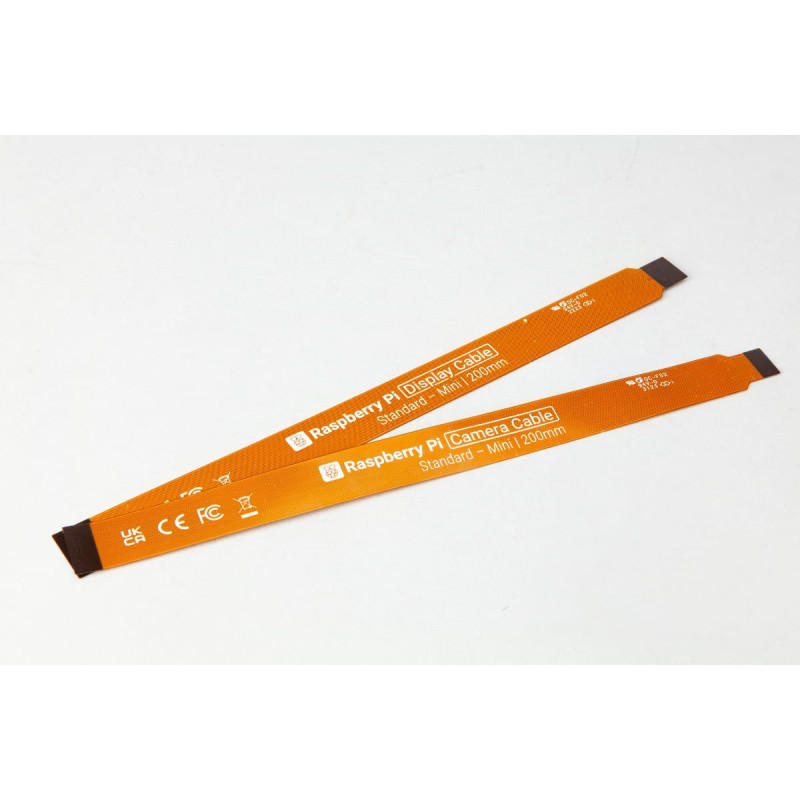

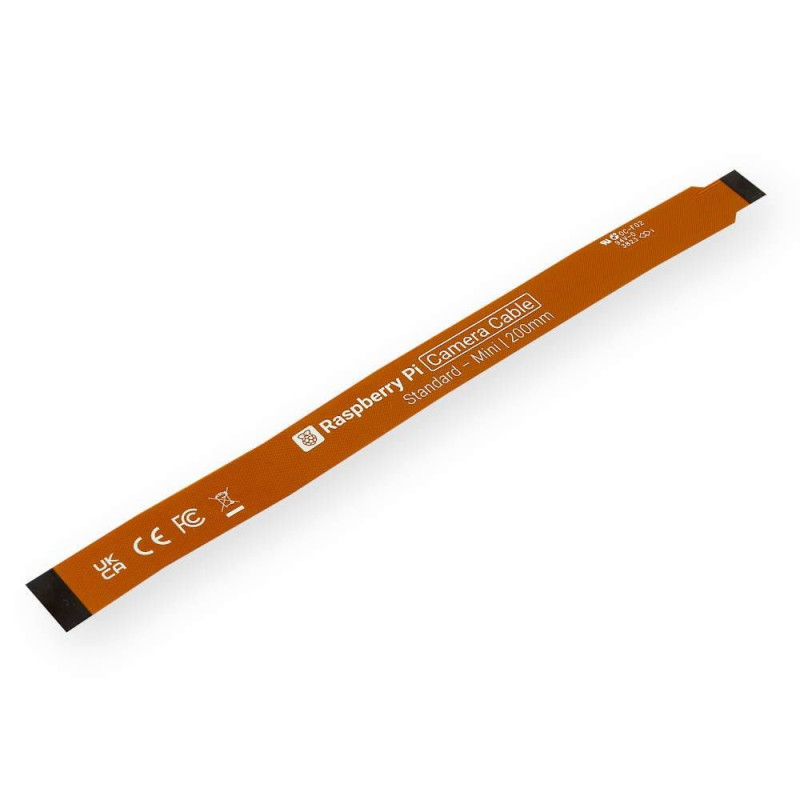

Raspberry Pi 5 FPC Cables - Camera, 200mm

Raspberry Pi 5 FPC Cables - Camera, 200mm (FPC cable for Raspberry Pi 5) is an original Raspberry flexible flat cable 200mm long, specially designed to connect a camera to the Raspberry Pi 5. The cable provides sufficient flexibility and the ability to conveniently position the camera in your projects.

The Raspberry Pi 5 has two MIPI connectors for use with camera modules or displays, but the Raspberry Pi 5 has smaller connectors than previous generations of Raspberry Pi, so you will need this adapter cable to use the camera module. These camera adapter cables have a 22-pin, 0.5 mm pitch connector on one end (for Raspberry Pi 5) and a 15-pin, 1 mm pitch connector on the other (for the camera).

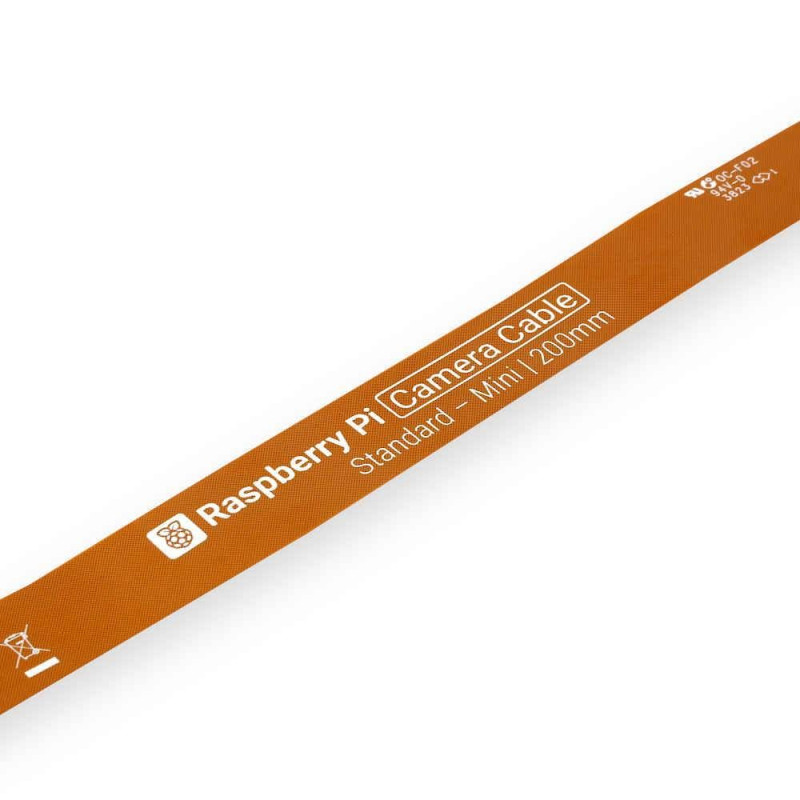

These cables are clearly printed with CAMERA on them so that you don't confuse them with the very similar looking display cables.

Note: These camera cables do NOT work with DSI displays. You must purchase a different cable for your displays - they are not interchangeable!

These FPC cables are designed for optimal signal transmission between the Raspberry Pi 5 and the camera, providing high quality image transmission. They are easy to use and have a reliable connection, making them ideal for embedding cameras in a variety of projects such as video surveillance, monitoring, or creative image processing experiments. With these cables, you can easily expand the capabilities of your Raspberry Pi 5 and use the camera in a variety of applications.

Key Features:

• Designed for camera connection for Raspberry Pi 5
• Suitable for use with camera modules only (not compatible with DSI displays)
• Has a 22-pin 0.5 mm connector on the board side and a 15-pin 1 mm pitch connector on the camera module side
• Cable type - FPC (flexible printed circuit)
• The CAMERA mark is printed on the cable housing for easy identification

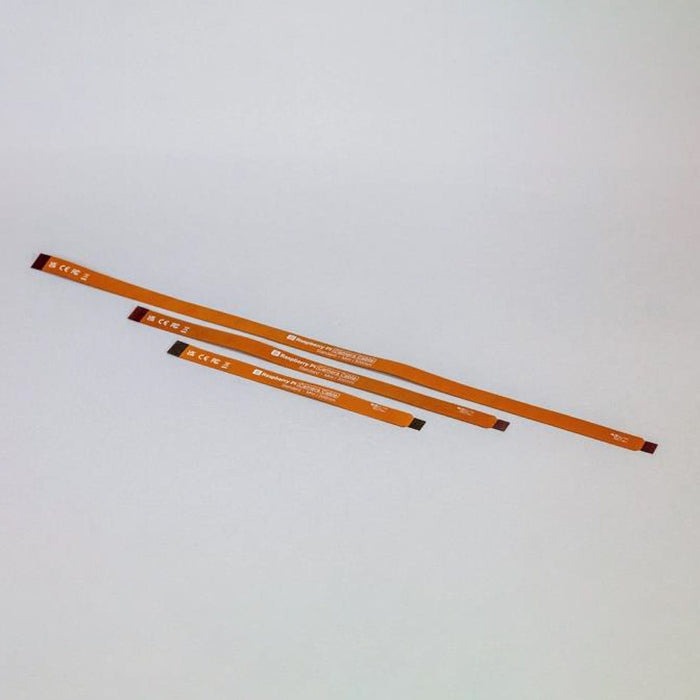

• The range of these cables consists of standard lengths: 200 mm, 300 mm and 500 mm

Scope of delivery:

1. Camera adapter cable for Raspberry Pi 5, 200 mm long - 1 pc.

(Raspberry Pi and camera module are not included in the scope of delivery)
